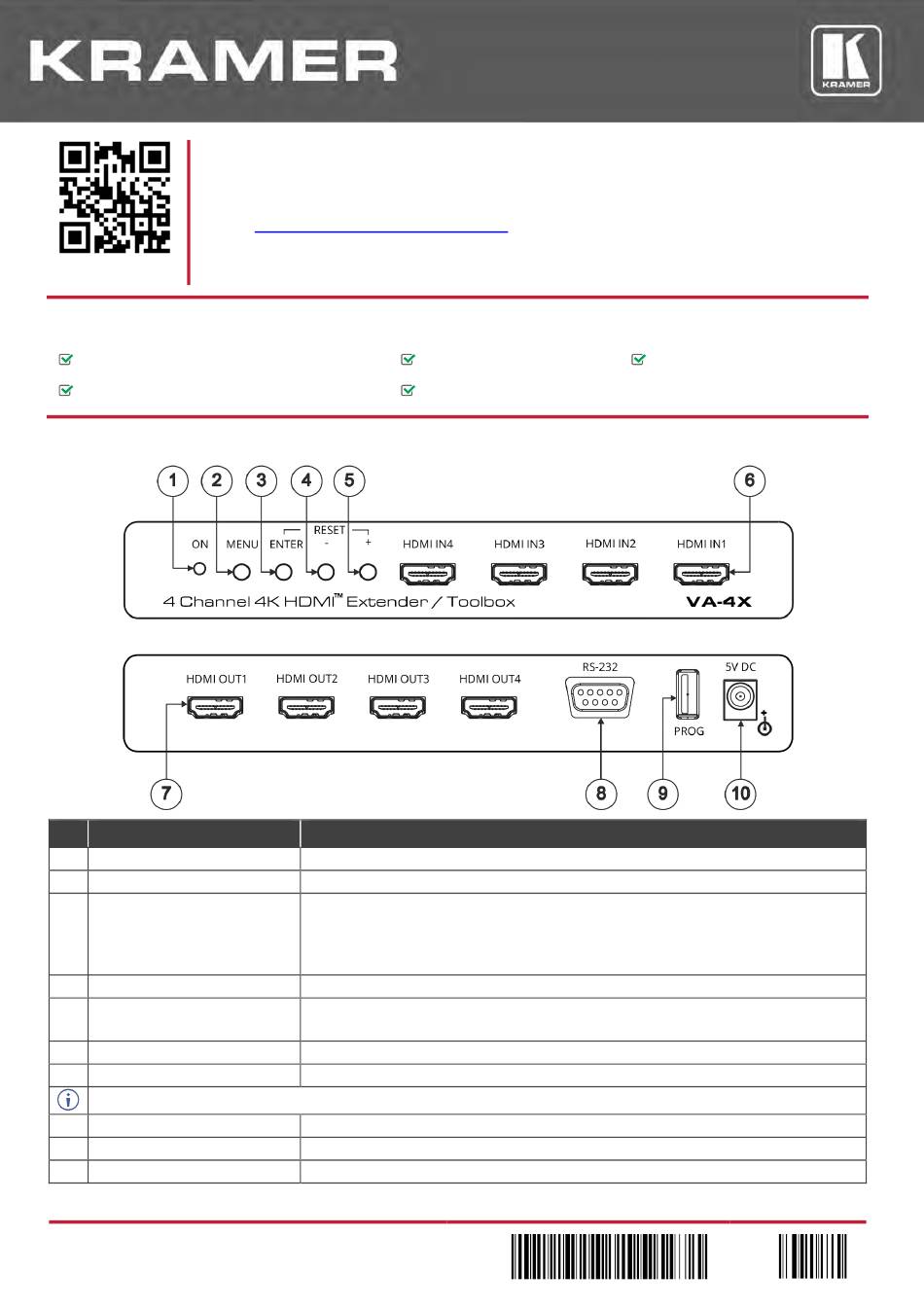

Kramer VA-4X Quick Start Manual

VA-4X Quick Start Guide
This guide helps you install and use your VA-4X for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box

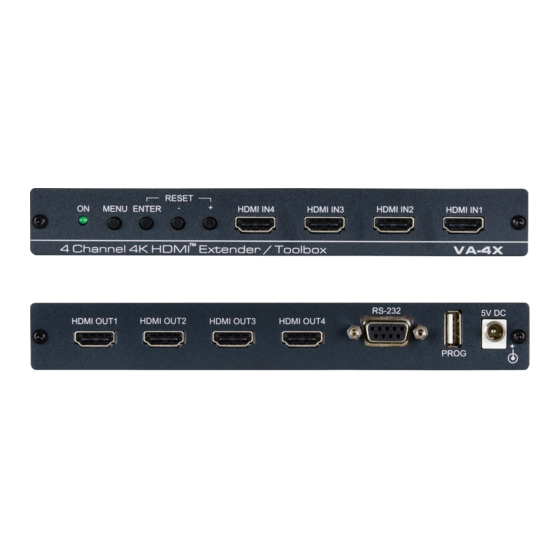

VA-4X 4 Channel 4K HDMI Extender / Toolbox
1 Power adapter and cord
Step 2: Get to know your VA-4X
# Feature
1 ON LED
2 MENU Button
3 ENTER Button
4 - Button
5 + Button
6 HDMI IN Connectors (1 to 4)
7 HDMI OUT Connectors (1 to 4)
IN 1 to OUT 1 comprises Channel 1, IN 2 to OUT 2 comprises Channel 2 and so on.
8 RS-232 9-pin D-sub Connector
9 PROG USB Port
10 5V DC
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
VA-4X Quick Start (P/N:
2900-301291QS
www.kramerav.com/downloads/VA-4X
4 Rubber feet
1 Quick start guide
Function
Lights green when the unit is powered on.
Press to enter/exit the on-screen display (OSD) menu.
In the OSD, press to choose the highlighted menu item.
When not in the OSD, press to view information (enabled when a channel input and
output is connected and the channel Display Information is set to On).
Press ENTER and + simultaneously to reset the device to its default parameters.
In the OSD, press to move back through the list or to decrease the parameter value.
In the OSD, press to move forward through the list or to increase the parameter value.
Press ENTER and + simultaneously to reset the device to its default parameters.
Connect to HDMI sources.
Connect to HDMI acceptors.
Connect to a PC to control VA-4X via the EDID Manager software.
Connect to a PC for firmware upgrade.
Connect to included power adapter.
REV 2)
to download the latest user manual and check if
P/N: 2 9 0 0 - 3 0 1 2 9 1 QS
Mounting bracket kit
Rev: 2
