Kramer VM-2DT Quick Start Manual

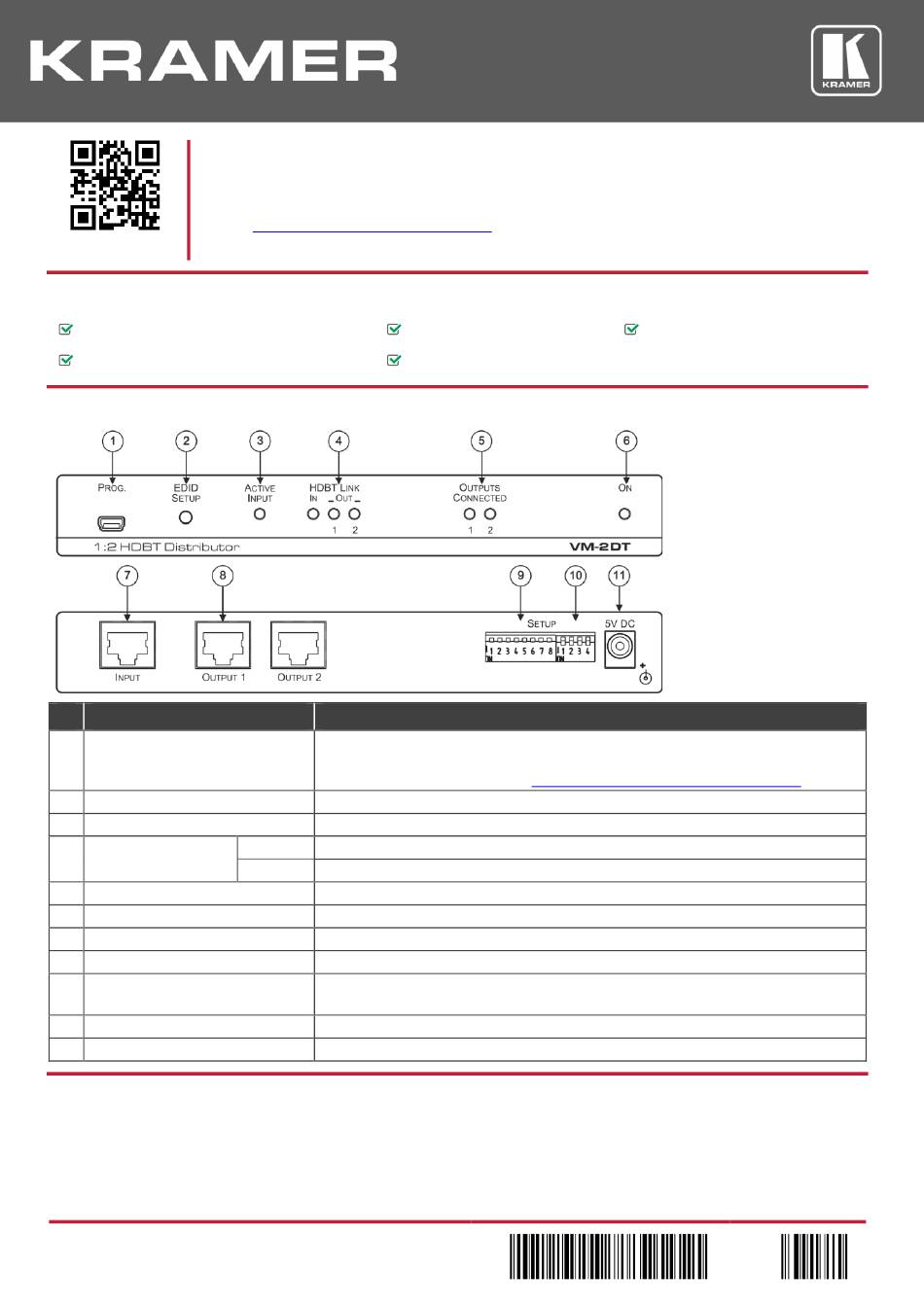

VM-2DT Quick Start Guide
This guide helps you install and use your VM-2DT for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box

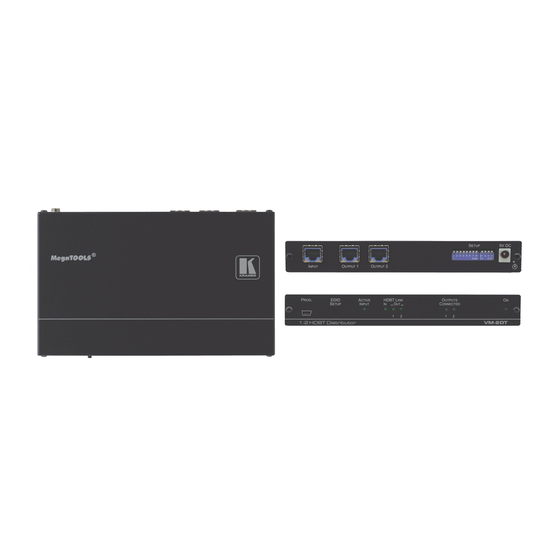

VM-2DT 1:2 HDBT Distributor
4 Rubber feet

Step 2: Get to know your VM-2DT

# Feature
1 PROGRAM Mini USB Connector
2 EDID SETUP Button
3 ACTIVE INPUT LED
4 HDBT LINK LEDs
5 OUTPUTS CONNECTED LEDs
6 ON LED
7 INPUT HDBT Connector
8 HDBT OUT Connectors
9 SETUP 8-way DIP-switches
10 SETUP 4-way DIP-switch
11 5V DC

Step 3: Install the VM-2DT

To mount the VM-2DT in a rack, use an RK-T2B rack adapter. Alternatively, attach the rubber feet to the underside of the VM-2DT
and place it on a table.
A Kramer Mega TOOLS™ can also be mounted on a desk top, wall or similar area. Fasten a bracket on each side of the TOOLS
using the two M3x8 screws (supplied). Use the flat-head screws (supplied) to fix the TOOLS to the mounting surface or enable it to
slide in place.
VM-2DT Quick Start (P/N: 2900-300363QS REV 1)
www.kramerav.com/downloads/VM-2DT
Function
Use to send RS-232 commands. Connect to a PC to perform firmware upgrades (via
K-Upload) and work with the EDID Designer. K-Upload and EDID Designer can be
downloaded from our Web site
Press to capture the input EDID, force RGB mode or select the default EDID
Lights green when an active input signal is detected
IN Lights green when a link is established with the HDBaseT transmitter
OUT Lights green when a link is established with the HDBaseT receiver (1 and 2)
Lights green when an active output acceptor is detected (1 and 2)
Lights green when the unit receives power
Connects to an HDBaseT source, for example VS-44DT
Connect to an HDBaseT acceptor (from 1 to 2), for example TP-580R
Use to set the IR (DIP-switches 1 and 2) and RS-232 (DIP-switches 5 and 6)
commands behavior
For future use
+5V DC connector for powering the unit
to download the latest user manual and check if firmware
1 Power supply (5V DC)
1 Quick start guide
at:www.kramerav.com/manual/EDID Designer
P/N:
2900- 300363QS
TOOL Mounting bracket kit
Rev:
1
