VM-2HDT, VM-3HDT Quick Start Guide
This guide helps you install and use your VM-2HDT, VM-3HDT for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
VM-2HDT or VM-3HDT HDBT DA/Extender
1 Power adapter and cord

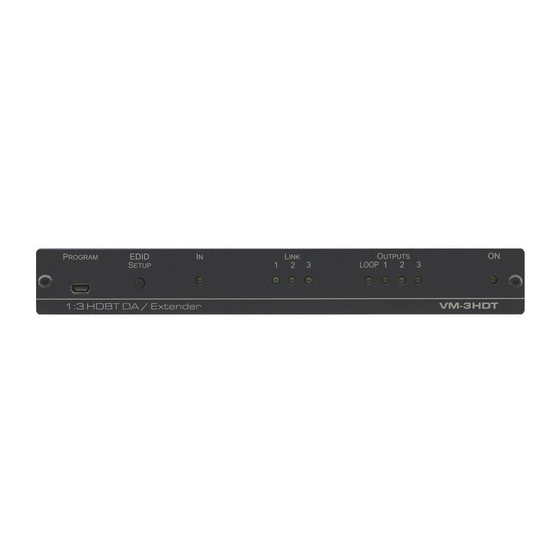

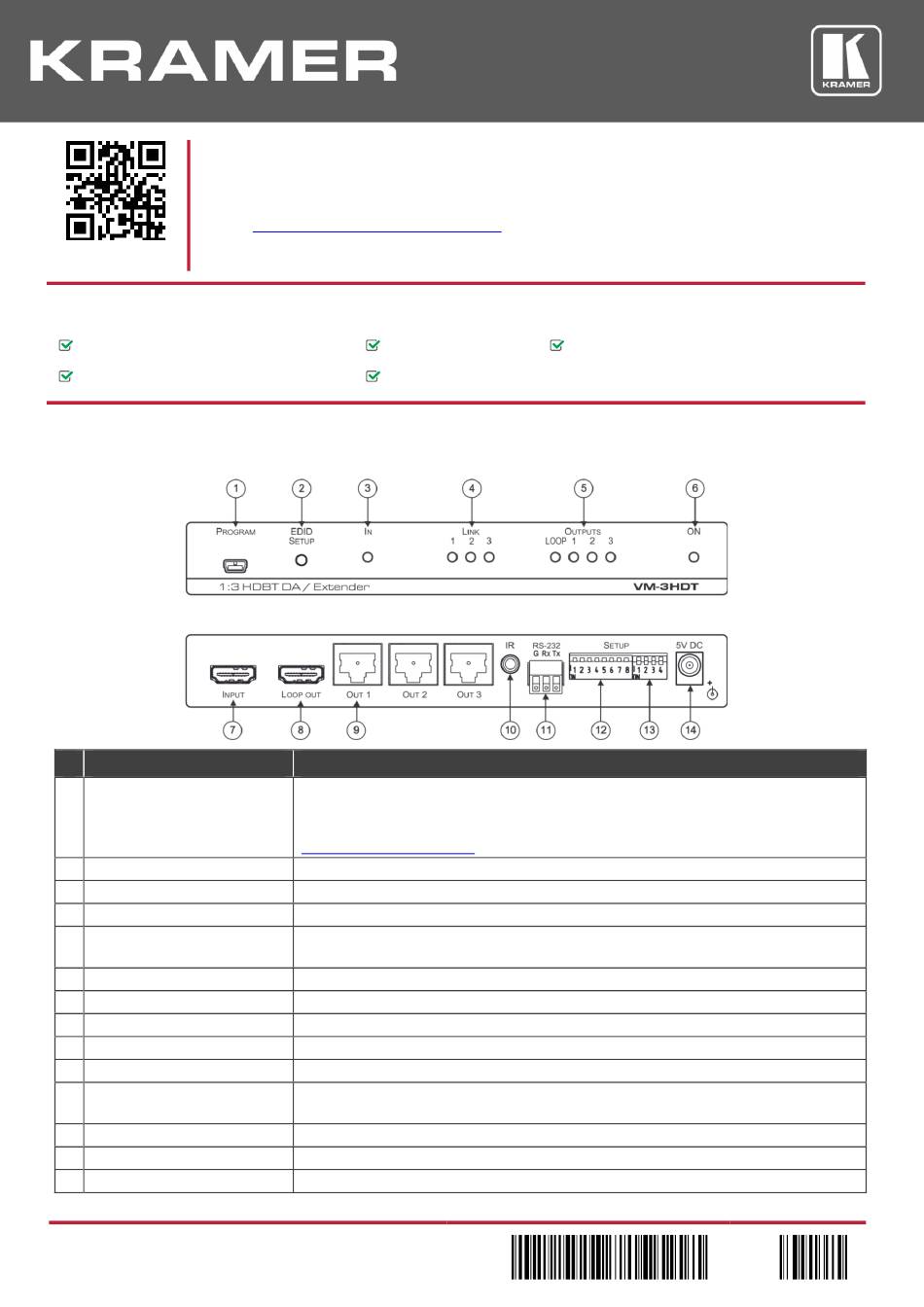

Step 2: Get to know your VM-2HDT, VM-3HDT

This section defines the VM-3HDT. VM-2HDT is identical but has 2 HDBT OUT connectors (OUT 1 and OUT 2).
# Feature
1 PROGRAM Mini USB
Connector
2 EDID SETUP Button
3 IN LED
4 LINK LEDs (1 to 3)
5 OUTPUT LEDs (LOOP and 1 to
3)
6 ON LED
7 INPUT HDMI Connector
8 LOOP OUT HDMI Connector
9 HDBT OUT Connectors (1 to 3)
10 IR 3.5mm Mini Jack
11 RS-232 3-pin Terminal Block
12 SETUP 8-way DIP-switch
13 SETUP 4-way DIP-switch
14 5V DC Connector
VM-2HDT, VM-3HDT Quick Start (P/N: 2900-300859QS REV 1)
www.kramerav.com/downloads/VM-2HDT
4 Rubber feet
1 Quick start guide
Function
Use to send RS-232 commands.
Connect to a PC to perform firmware upgrades (via K-Upload) and work with the EDID
Designer. K-Upload and EDID Designer can be downloaded from our Web site at:
www.kramerav.com/support
Press to capture one of the output EDIDs or the default EDID to the input EDID.
Lights when an active input signal is detected.
Lights when a link is established with the receiver (VM-2HDT: 1 to 2).
Lights when an active output acceptor (sink) is detected on the LOOP or HDBaseT
receiver that is connected to the output (VM-2HDT: LOOP and 1 to 2).
Lights when the unit receives power.
Connects to the HDMI source.
Connect to a local monitor or a daisy-chained distributor, for example, a VM-4HDT.
Connect to an HDBT acceptor, for example TP-580R (VM-2HDT: 1 to 2).
Connect to the remote IR sensor/emitter.
Connect to a serial controller to control a remote device that is connected to the RS-232
port of the HDbaseT receiver.
Used to set the IR and RS-232 command behavior.
For future use.
Connects to the 5V DC power supply.
to download the latest user manual and check if firmware
1 Bracket set
P/N:
2900- 300859QS
Rev:
1
