Page 1

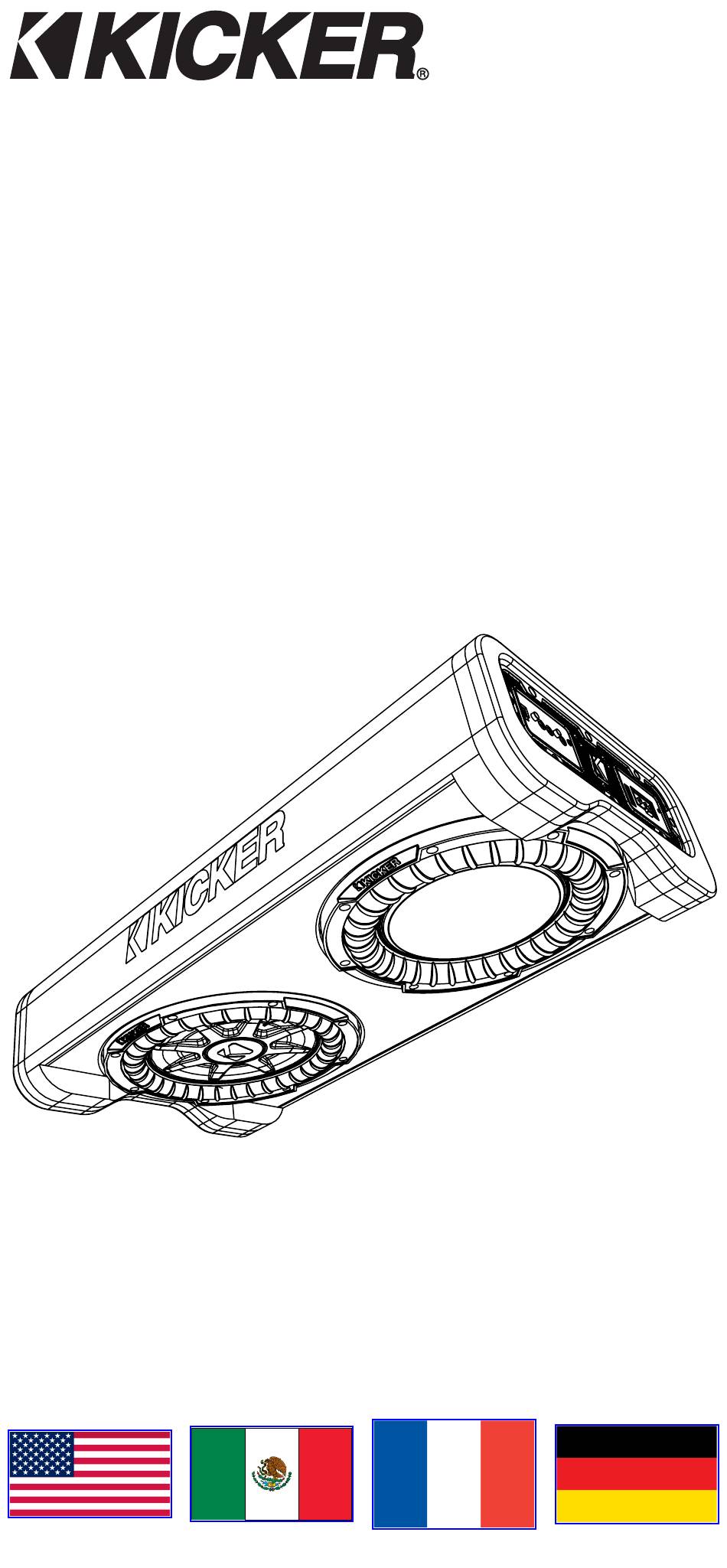

Owner’s Manual Manual del Propietario Manuel d’utilisation Benutzerhandbuch KICKER PTRTP Powered Down-Firing Thin Profile Subwoofer Enclosure with Passive Radiator select language seleccione el idioma choisir la langue sprache auswählen...
VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1 INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE SAME VOLUME LEVEL.
The ground wire should be the last wire disconnected – just the opposite as when you installed it. Model External Fuse (sold separately) Power/Ground Wire KICKER Wiring Kit PTRTP10 1 x 30 Ampere 8 Gauge VK8, PK8, CK8...
Page 7
quick-connect power plug ground fuse Remote Turn-On ≤18” (see page 9) (45cm) English...
Page 8
Connect the wiring pigtail to the amplifier’s audio inputs, then connect the audio output from your source unit to the RCA inputs. If needed, cut off the RCA connections to use hi- level input, or use the KICKER KISL Speaker-RCA Converter. quick-connect wiring harness audio inputs: White...
Mounting Choose a structurally sound location to mount your KICKER powered subwoofer enclosure. Make sure the mounting screws will not puncture the gas tank/ brake lines/wiring or interfere with any mechanical parts on the underside of the mounting surface. Choose a location that allows at least 4” (10cm) of open ventilation for the amplifier.
• DC Offset Turn-On: The DC Offset mode detects a >2.5V DC offset from the HI-Level speaker outputs when the source unit has been turned on. Input Level: The inputs on KICKER powered enclosures are capable of receiving either Hi (speaker-level) or Low-level (RCA) signals from your source unit.
Page 11
Input Gain Control: The input gain control is not a volume control. It matches the output of the source unit to the input level of the amplifier. Maximum power out of the amplifier is possible with the gain in the lowest position.
Remote Bass Installation Remote cable passes audio; do not run cable parallel to power wires. Connect the cable to the remote and the Remote Bass connection on the amplifier English...
Improper connections can result in blown amplifier fuses as well as the failure of other critical systems in the vehicle. If you have more questions about the installation or operation of your new KICKER product, see the Authorized KICKER Dealer where you made your purchase. For more advice on installation, click on the SUPPORT tab on the KICKER homepage, www.kicker.com.
Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes.
Page 15
Service performed by anyone other than KICKER HOW LONG WILL IT TAKE? KICKER strives to maintain a goal of one week turnaround for all electronics (amplifiers, crossovers, equalizers, etc.) & acoustic returns. Delays may be incurred if lack of replacement inventory or parts is encountered.
Page 16
Contenido Descripción general ..16 Especificaciones ....17 Instalación ....19 Cableado ......19 Montaje ....... 22 Funcionamiento .... 23 Instalación del control remoto de graves ......25 Resolución de problemas ....26 Garantía | Garantie ..51 Español...
ángulos, acústicos y eléctricos, para ser la carcasa con el mejor sonido, eficiencia y potencia posibles. Complete su sistema con un par de altavoces coaxiales KICKER y un amplificador multicanal para una experiencia de sonido de alta calidad.
El cable de tierra debe ser el último cable que desconecte, justamente al revés que cuando lo instaló. Modelo Fusible externo Cable de Kit de cableado KICKER (se vende por separado) alimentación/tierra PTRTP10 1 x 30 Amperios Calibre 8...
Page 21
toma de corriente de conexión rápida Tierra fusible Encendido remoto ≤18" (consulte la página 23) (45 cm) Español...
Montaje Elija una ubicación estructuralmente sólida para instalar su carcasa energizada para subwoofer de KICKER. Asegúrese de que los tornillos de montaje y las tuercas rápidas no perforen el tanque de gas/ frenos/cableado, o que interfieran con las piezas metálicas que se ubican en la parte inferior de la superficie de montaje.
Nivel de entrada: las entradas de las carcasas energizadas de KICKER tienen la capacidad de recibir señales de nivel alto (nivel del altavoz) o nivel bajo (RCA) desde su unidad fuente. Coloque el interruptor de nivel de entrada en el panel lateral de forma que coincida con las salidas de su unidad fuente.
Page 25
Control de ganancia de entrada: el control de ganancia de entrada no es un control de volumen. Hace coincidir la salida de la unidad fuente al nivel de entrada del amplificador. Es posible obtener la máxima potencia del amplificador con la ganancia en su posición más baja.
Instalación del control remoto de graves El cable remoto pasa el audio; no extienda el cable paralelo a los de alimentación. Conecte el cable al control remoto y la conexión del control remoto de graves en el amplificador Español...
Si tiene más preguntas sobre la instalación u operación de su nuevo producto KICKER, consulte al distribuidor autorizado KICKER cuando realice la compra. Para mayor asesoramiento sobre la instalación, presione la pestaña de SOPORTE en la página de...
(4 POUCES). LES CAISSONS DE GRAVES DOIVENT ÊTRE MONTÉS AVEC AU MOINS 2,5 CM (1 POUCE) D'ÉCART ENTRE L'AVANT DU HAUT-PARLEUR ET TOUTE SURFACE. LES PRODUITS KICKER SONT CAPABLES DE PRODUIRE DES NIVEAUX SONORES POUVANT ENDOMMAGER VOTRE AUDITION DE MANIÈRE IRRÉVERSIBLE ! LE RÉGLAGE D'UN SYSTÈME À UN NIVEAU PRODUISANT UNE DISTORSION AUDIBLE ENDOMMAGE DAVANTAGE L'AUDITION QUE L'ÉCOUTE D'UN SYSTÈME SANS DISTORSION AU MÊME...
à connexion rapide. Le fil de terre doit être le dernier fil déconnecté, c'est-à- dire le contraire de la façon dont vous l'avez installé. Modèle Fusible externe Fil d'alimentation/ Kit de câblage KICKER (vendu séparément) de terre PTRTP10 1 x 30 ampères Calibre 8...
Page 33
fiche d'alimentation à connexion rapide Terre fusible Mise en marche à ≤18 po distance (voir page 35) (45 cm) Français...
Page 34
RCA. Si nécessaire, coupez les connexions RCA pour utiliser l'entrée à haut niveau ou utilisez le convertisseur haut-parleur-RCA KICKER KISL. Entrées audio du faisceau de câblage à connexion rapide :...
Montage Choisissez un emplacement structurellement solide pour monter votre caisson de basses KICKER amplifié. Veillez à ce que les vis de montage ne perforent pas le réservoir de carburant/les conduites de frein/le câblage ou n'interfèrent pas avec les pièces mécaniques situées sous la surface de montage.
Utilisation Mise en marche automatique : les enceintes KICKER amplifiées offrent deux modes de mise en marche automatiques différents ; +12 V et DC Offset. • Mise en marche à distance : raccordez le fil de calibre 18 de mise sous tension à distance sur votre unité...
Page 37
Contrôle de gain d’entrée : le contrôle de gain d’entrée n’est pas un contrôle du volume. Il fait correspondre la sortie de l’unité source au niveau d’entrée de l’amplificateur. La puissance maximum de sortie de l'amplificateur est possible si le gain est réglé...
Installation des basses à distance Le câble de la télécommande passe l'audio ; ne passez pas le câble parallèlement aux fils d'alimentation. Connectez le câble à la télécommande et à la connexion Remote Bass de l'amplificateur. Français...
Si vous avez d'autres questions sur l'installation ou le fonctionnement de votre nouveau produit KICKER, consultez le revendeur agréé KICKER chez qui vous avez effectué votre achat. Pour plus de conseils sur l'installation, cliquez sur l'onglet SUPPORT sur la page d'accueil de KICKER :www.kicker.com.
SUBWOOFER SOLLTEN MIT EINEM ABSTAND VON MINDESTENS 2,5 CM (1 ZOLL) ZWISCHEN DER VORDERSEITE DES LAUTSPRECHERS UND EINER OBERFLÄCHE MONTIERT WERDEN. KICKER-PRODUKTE SIND IN DER LAGE, SCHALLPEGEL ZU ERZEUGEN, DIE IHR GEHÖR DAUERHAFT SCHÄDIGEN KÖNNEN! WENN SIE EIN SYSTEM AUF EINEN PEGEL AUFDREHEN, DER HÖRBARE VERZERRUNGEN AUFWEIST, SCHADET DIES IHREN OHREN MEHR,...
Sicherungshalter am Stromkabel entfernen, bevor Sie den Schnellstecker entfernen. Das Erdungskabel sollte das letzte Kabel sein, das abgeklemmt wird – genau umgekehrt zur Reihenfolge der Installation. Modell Externe Sicherung Strom-/Erdungskabel KICKER-Verdrahtungskit (separat erhältlich) PTRTP10 1 x 30 Ampere 8 Gauge VK8, PK8, CK8 PTRTP12...
Page 46
Verstärkers an und verbinden Sie dann den Audioausgang Ihres Quellgeräts mit den Cinch- Eingängen. Schneiden Sie bei Bedarf die Cinch-Anschlüsse ab, um einen Hochpegel-Eingang zu verwenden, oder verwenden Sie den KICKER-KISL Speaker-RCA Converter. Schnellanschluss-Kabelbaum Audioeingänge: Weiß Links + Weiß/Schwarz Links –...
Montage Wählen Sie für die Montage Ihres KICKER-Subwoofer- Gehäuses einen statisch einwandfreien Ort. Vergewissern Sie sich, dass die Montageschrauben nicht den Benzintank, die Bremsleitungen oder die Verkabelung durchstoßen und keine mechanischen Teile an der Unterseite der Montagefläche behindern. Wählen Sie einen Standort, der mindestens 10 cm (4 Zoll) offene Belüftung für den Verstärker bietet. ...
• Gleichstrom-Offset-Einschaltung: Der Gleichstrom- Offset-Modus erkennt einen >2,5-V-Gleichstrom-Offset an den hochstufigen Lautsprecherausgaben, wenn die Quelleinheit eingeschaltet wurde Eingangspegel: Die Eingänge der KICKER-Aktivboxen können entweder Hochpegel- (Lautsprecherpegel) oder Niederpegelsignale (Cinch) von Ihrem Quellgerät empfangen. Stellen Sie den Eingangspegelschalter an der Seite des Geräts so ein, dass er mit den Ausgängen Ihres Quellgeräts übereinstimmt.
Page 49
Eingangsverstärkungsregelung: Der Eingangsverstärkungsregler ist kein Lautstärkeregler. Er passt den Ausgang des Quellgeräts an den Eingangspegel des Verstärkers an. Maximale Leistungsausgabe vom Verstärker ist mit der niedrigsten Verstärkungseinstellung möglich. Eine falsche Einstellung der Verstärkung kann zu einer verzerrten Ausgabe oder zur Beschädigung und zum vorzeitigen Ausfall Ihres Gehäuses führen.
Installation der Bass-Fernsteuerung Das Fernbedienungskabel leitet die Audiosignale weiter; das Kabel darf nicht parallel zu den Stromkabeln verlegt werden. Verbinden Sie das Kabel mit der Fernbedienung und dem Anschluss „Remote Bass“ am Verstärker. Deutsche...
Verstärkersicherungen sowie zum Ausfall anderer kritischer Systeme im Fahrzeug führen. Wenn Sie weitere Fragen zur Installation oder zum Betrieb Ihres neuen KICKER-Produkts haben, wenden Sie sich an den autorisierten KICKER-Händler, bei dem Sie Ihr Produkt gekauft haben. Weitere Tipps zur Installation finden Sie auf der KICKER-Homepage unter der Registerkarte SUPPORT auf www.kicker.com.
KICKER car stereos and the fact that we encourage our customers to strive for the best (“ Livin ’Loud”) in all aspects of their lives. KICKER loudspeakers and amplifiers are leaders in the mobile audio system market and are therefore the “fuel” for our customers’ car stereo experience.
