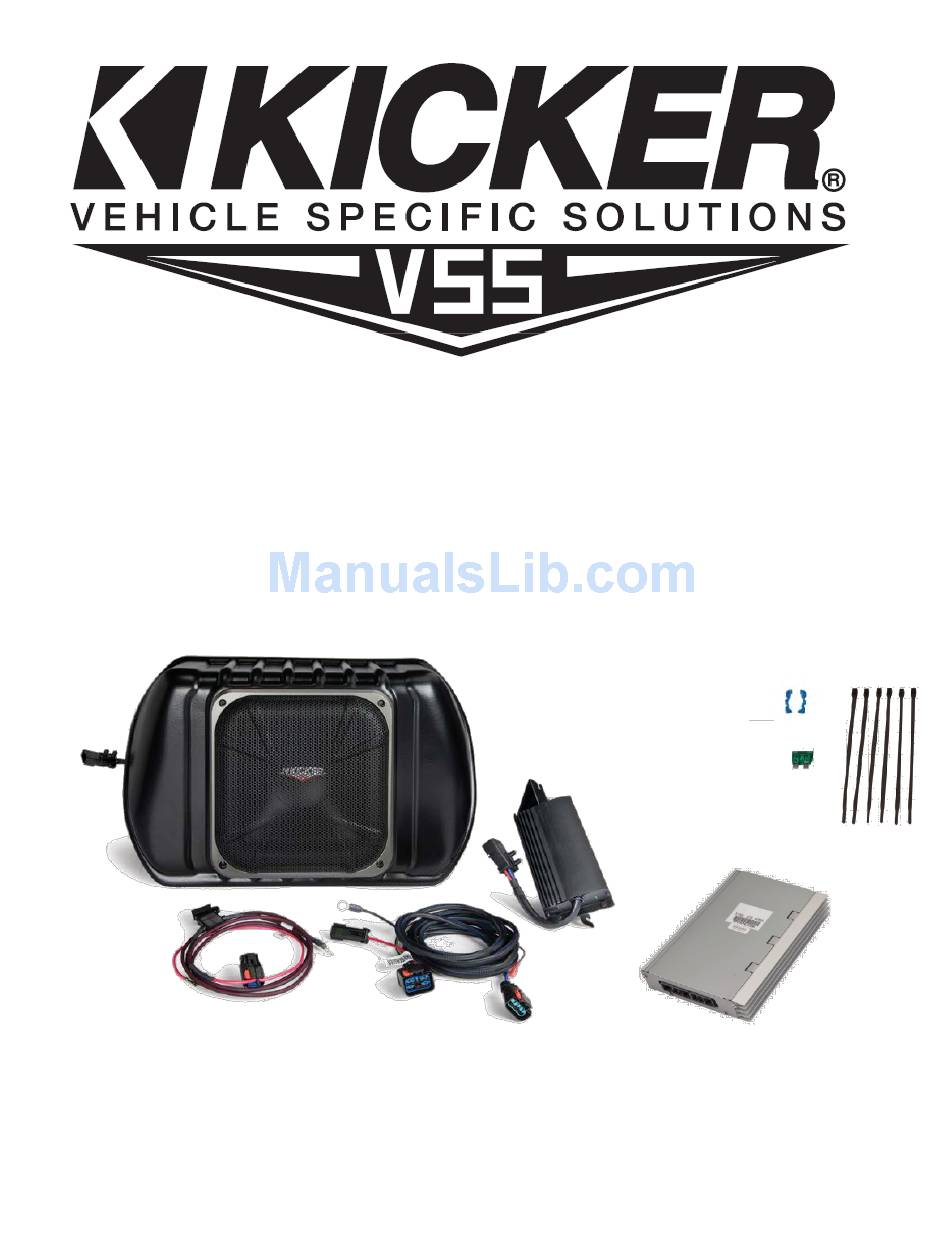

- Page 1 PWRA2P07 Designed for 2007-2010 Jeep® Wrangler two door with premium audio Subwoofer Assembly Wire Ties x 6 T-Taps x 2 Fuse Subwoofer Amplifier Assembly Power Harness 8 channel Amplifier Subwoofer Harness ©2014 Stillwater Designs PWRA2P07-A1-20140908...
- Page 2 DSS or non-DSS mode is to try the balance control. DSS can be utilized with any source - i.e., Sirius® satellite radio, regular radio, and compact disc player. KMS-1® or Kicker® Mobile Surround If your vehicle is equipped with factory VES® (Video Entertainment System) you can enjoy the benefits of KMS-1®...
- Page 3 1. Disconnect the negative battery terminal. 2. Gently pull out on the panel just below the steering column, rotate down and remove. Fig. 1 3. Find the small panel just below the one you just removed and pull to remove it as well. Fig. 2 Fig.
- Page 4 9. Loosen the four screws indicated by the arrows in Fig. 7 approximately 4 turns. Fig. 3 10. Remove the screw indicated by arrow A completely. Fig. 7 11. Install the amplifier with the long tab toward the center of the car. Slide the long tab behind the plastic and under the lower right screw while pulling out on the plastic.
- Page 5 16. Remove the top of the fuse cover and using a 13mm socket and ratchet loosen and remove the nut on the positive battery accessory lug. Fig. 11 17. Connect the ring terminal of the power harness to the lug and retighten the nut. Torque to 10Nm. 18.
- Page 6 24. Install the supplied two pin connector by inserting the terminals on the end of the power wire into the back of the connector until it clicks and locks. Fig. 15 25. Depress the blue terminal retainer down in the center of the connector. 26.
- Page 7 34. Reinstall all previously removed parts in reverse order. Troubleshooting the Kicker Integrated Systems If you experience a problem once the Subwoofer is installed use this guide to locate the trouble. The radio is working, but the Subwoofer is not working: •...
- Page 8 Symptom Possible Cause Solution Fuse not installed in inline Install fuse(s) into fuse holder(s). Refer to fuse holder on subwoofer instructions for correct placement and/or amp harness Low battery voltage Recharge the battery Negative battery cable not Reconnect negative battery cable connected Power wire connector not Connect power wire to body harness.
- Page 9 If you continue to experience problems after troubleshooting with this list, please contact KICKER® Technical Support at (800) 256-0808 ext. 6009, or support@kicker.com.
