2007 - 2013 chevrolet silverado & gmc sierra ext-cab 1500 series with base radio; 2007 - 2014 chevrolet silverado & gmc sierra ext-cab 2500/3500 series with base radio (8 pages)
Page 2

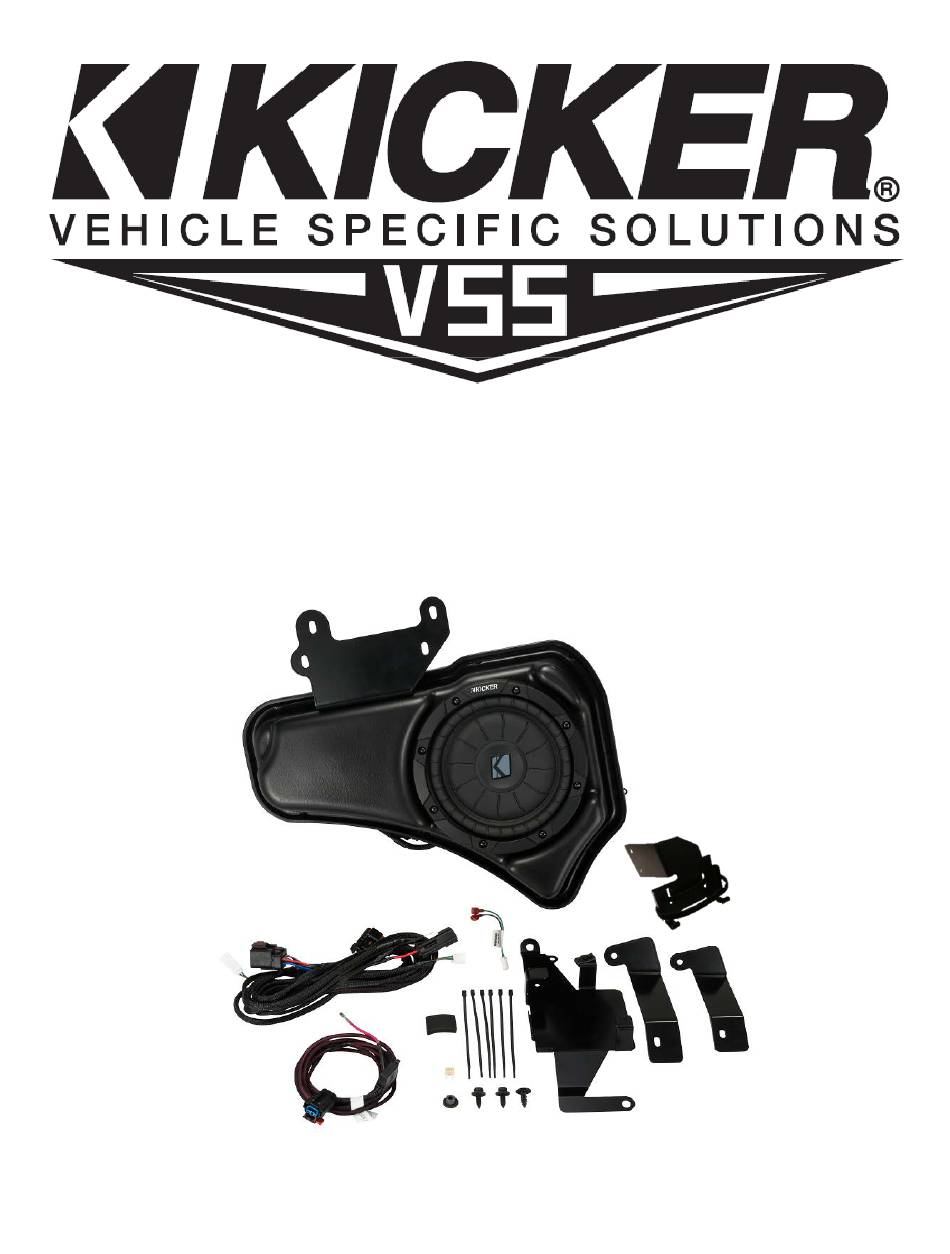

Amplifier Assembly Amplifier Power Harness Amplifier Body Harness Fuse Wire Ties x 6...
Page 3
Wire Routing Disconnect negative battery cable from battery. Note: On vehicles equipped with dual batteries, disconnect negative battery cable from both batteries. Remove the red battery terminal cover and then the power distribution cover next to the battery on the passenger’s side.
Page 4
Install the black two pin power connector on the subwoofer power harness by first inserting the terminal fully into the connector and then depressing the blue retainer. Fig. 4 Note: Make sure the blue retainer in the center of the Then connector is not depressed –...
Page 5
Remove the two screws securing the bottom of the panel below the steering column and pull the panel loose. Fig 9 Fig 9 2017 Year Model Only – Module Relocation (for all other year models, proceed to step 15) Note: 2017 Year Model vehicles require the relocation of a module in order to gain sufficient space to mount the amplifier.
Page 6
Open the console lid and pry the top portion of the console up in the rear and then straight back to remove. Disconnect wiring. Fig. 14 Fig 14 Route the amplifier harness through the front of the console and across the dash toward the driver’s kick panel area.
Page 7
Amplifier Mounting Remove the lower left and lower right nut securing the junction box behind the parking brake pedal. Fig. 18 Connect the amplifier harness to the amplifier. Slide the amplifier/bracket assembly over the junction box studs and on top of the junction box and reinstall the nuts.
Page 8
Using a panel removal tool pry loose the screw cover on the driver’s side C and D pillar post cover and remove the screws securing both covers. Pry loose the C pillar post cover and lay aside. Pry loose the D pillar post cover, disconnect speaker wiring and lay aside.
Page 9
Locate the factory module bracket and remove the two nuts securing it. Fig 27 Pry the module wire retainers from the factory bracket. Fig 27 Note: Depending on the vehicle trim level, there may be one or two modules attached to the bracket. The module(s) will need to be relocated using the supplied relocation bracket in order for the subwoofer to be installed.
Page 10
Unscrew the jack tool-bag knob and remove the tool-bag. Fig 31 Remove the bolt indicated in Fig 31 Install the module relocation bracket as shown in Fig 32 and reinstall bolt. Fig 31 Fig 32 There are two lower subwoofer brackets provided depending on the wheelbase of the vehicle. For Tahoe/Yukon use the longer bracket.
Page 11
Swing the subwoofer into position and over the studs where the factory module bracket attached. Install the nuts and tighten. Fig 37 Note: The lower set of holes in the upper bracket are for Tahoe/Yukon and the upper set of holes are for Suburban/Yukon XL Reattach the factory wire harness to the metal.
Page 12
Troubleshooting the Kicker Integrated Systems If you experience a problem once the subwoofer or amplifier are installed use this guide to locate the trouble. The radio is working, but the Subwoofer is not working: • Check the battery voltage to make sure it is not discharged below 11 volts.
Page 13
If you continue to experience problems after troubleshooting, please contact KICKER Technical Support at (800) 256-0808 ext. 6009, or support@kicker.com. P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510...
