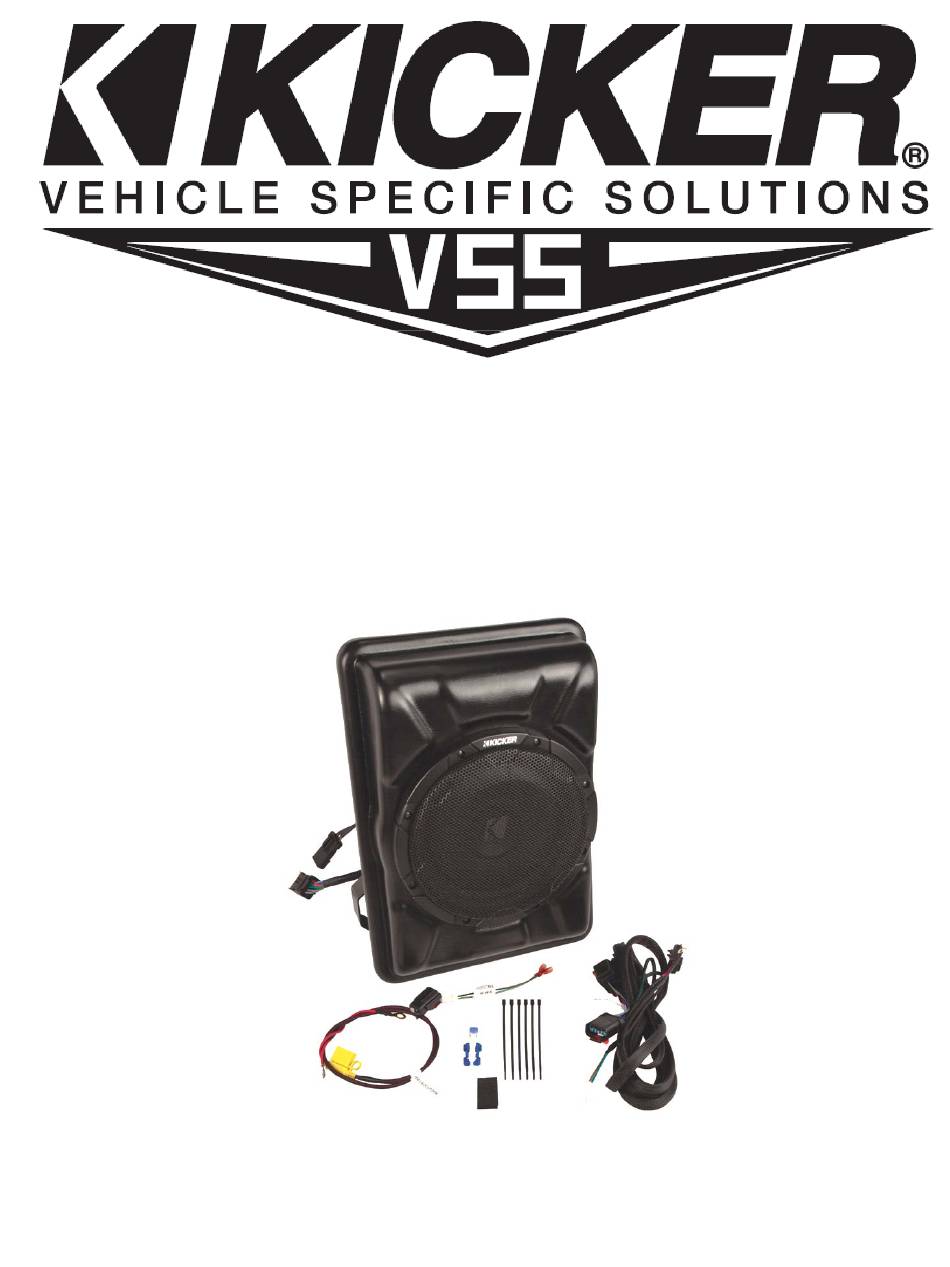

- Page 1 PSON13 Designed for 2013 and newer Chevrolet Sonic vehicles without MyLink™ ® Subwoofer Assembly Subwoofer Power Subwoofer Harness Harness Fuse Wire Ties X 6 Foam Strip Wire Taps X 2 Adaptor Harness ©2015 Stillwater Designs PSON13-A4-20150930 ...
- Page 2 Amplifier/Bracket Assembly Amplifier Harness Amplifier Power Harness Fuse Wire Ties X 6 ...
- Page 3 Power Harness Routing 1. Disconnect negative battery cable from battery. 2. Using a razor knife make a cross shaped incision in the large rubber grommet from inside the vehicle and feed the power harnesses from the engine compartment to the cabin. Using a fish tape wire is recommended.
- Page 4 Amplifier and Subwoofer Harness Routing 7. Remove the driver’s side front kick/threshold panel by loosening the retainer at the top and Retainer – Rotate then pulling loose. Fig. 5 counterclockwise 8. Remove the driver’s side rear threshold panel along the bottom of the door opening 9.
- Page 5 20. Connect the amplifier three-pin power connector to the three-pin power harness connector. 21. Connect the subwoofer harness black two pin power connector to the power harness two pin connector. 22. Continue running the subwoofer harness down the driver’s side of the car to and under the rear seatback.
- Page 6 29. Run one end of the safety strap under the bracket on the side of the enclosure and then connect both ends to the cargo tie-down on the driver’s side of the car. Fig. 12 and Fig. 13 Install foam strip here Install foam strip here Fig.
- Page 7 Troubleshooting the Kicker Integrated Systems If you experience a problem once the subwoofer or amplifier are installed use this guide to locate the trouble. The radio is working, but the Subwoofer is not working: Check the battery voltage to make sure it is not discharged below 11 volts.
- Page 8 If you continue to experience problems after troubleshooting, please contact KICKER Technical Support at (800) 256-0808 ext. 6009, or support@kicker.com. P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510 ...
