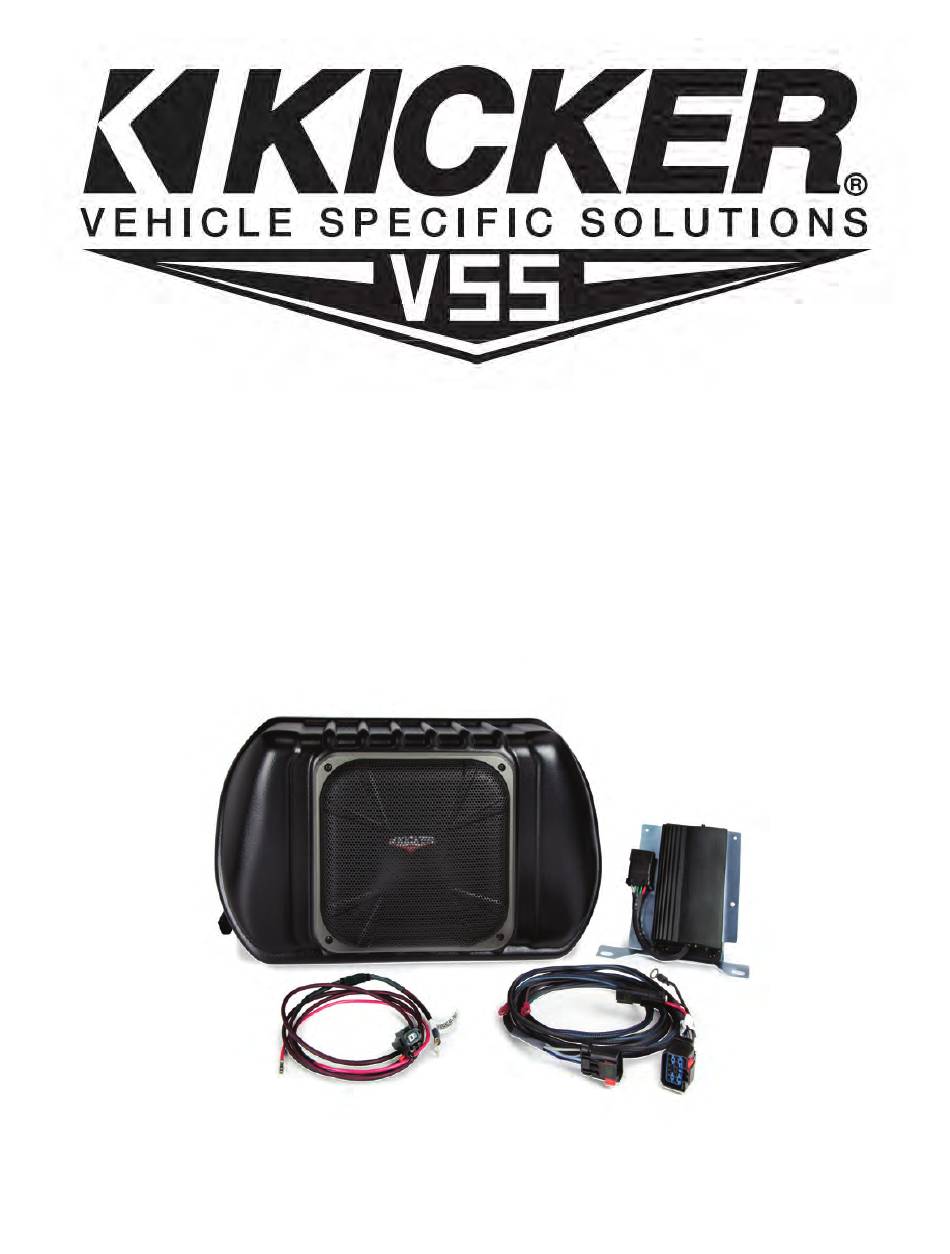

- Page 1 Designed for 2015 and newer Jeep® Wrangler two door with base audio T-TAP x2 10MM BOLT FUSE WIRE TIES x6 SUBWOOFER ASSEMBLY 200 WATT AMP BRACKET ASSEMBLY POWER HARNESS OVERLAY HARNESS Page 1 of 10 ©2015 Stillwater Designs PWRA215 - A1-20150224...
-
Page 2: Power Harness
POWER HARNESS 200W AMP/BRACKET ASSEMBLY OVERLAY HARNESS M6 BOLT x2 FUSE WIRE TIES x6 1. Disconnect negative battery cable 2. Remove the rubber liner in the pocket above the radio to access the 7mm screw and remove the screw. Fig. 1 3. - Page 3 Fig. 3 Fig. 4 6. Pull the radio/instrument bezel straight back and remove from dash. Fig. 5 7. Remove the screws securing the radio and pull the radio from the dash and disconnect the wiring. Disconnect the antenna cable by pulling the locking antenna connector away from the radio. Caution: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
- Page 4 12. Carefully pull the dash panel outward until there is sufficient room to allow access to remove speaker housing and disconnect wiring. Fig. 10 Fig. 9 13. Install the amp/bracket assembly into position as shown in Fig. 11 and secure the top of the amp bracket using the supplied 10mm bolts.
- Page 5 19. You can now connect the radio to the amplifier harness and reconnect the antennae wire and reinstall the radio. 20. Install the sub amp into position by lining up the holes in the amp bracket with the two holes for the bolts that retained the metal plate.
- Page 6 Fig. 18 Fig. 19 31. Remove the top of the fuse cover and using a socket and ratchet loosen and remove the nut on the positive battery accessory lug. Fig. 20 32. Connect the ring terminals of the power harnesses to the lug and retighten the nut. Torque to 10Nm. Fig.
- Page 7 35. Connect the black ground wire to the factory ground point in the driver’s side kick panel. Fig. 23. Torque to 8Nm. 36. Remove the bolt securing the support brace under the steering column and connect the subwoofer harness ground wire as shown in Fig. 24. Torque to 8Nm. Fig.
- Page 8 Troubleshooting the Kicker Integrated Systems If you experience a problem once the Subwoofer is installed use this guide to locate the trouble. The radio is working, but the Subwoofer is not working: • Check the battery voltage to make sure it is not discharged below 11 volts.
- Page 9 Symptom Possible Cause Solution Fuse not installed in inline Install fuse(s) into fuse holder(s). Refer to fuse holder on subwoofer instructions for correct placement and/or amp harness Low battery voltage Recharge the battery Negative battery cable not Reconnect negative battery cable connected Power wire connector not Connect power wire to body harness.
- Page 10 If you continue to experience problems after troubleshooting with this list, please contact KICKER Technical Support at (800) 256-0808 ext. 6009, or support@kicker.com. P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510 Page 10 of 10...
