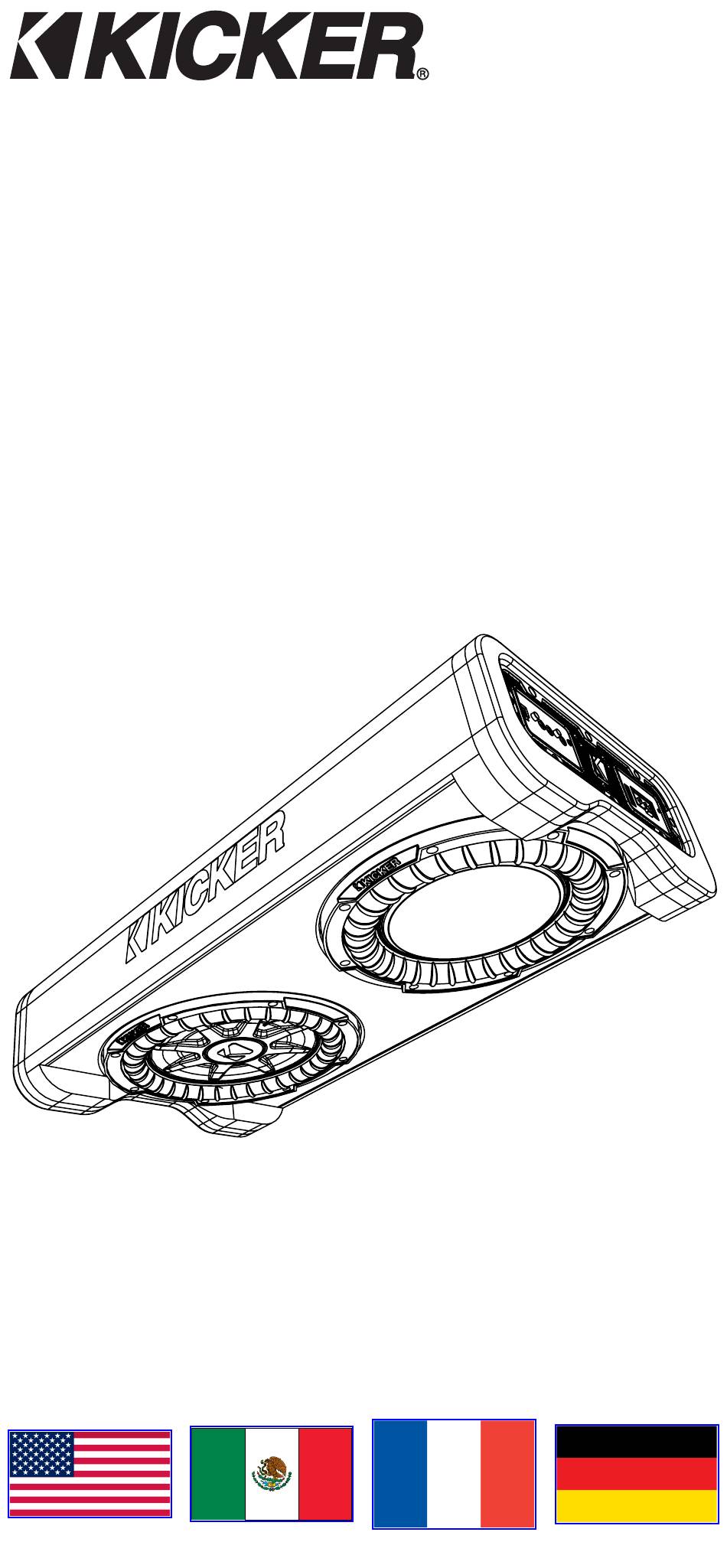

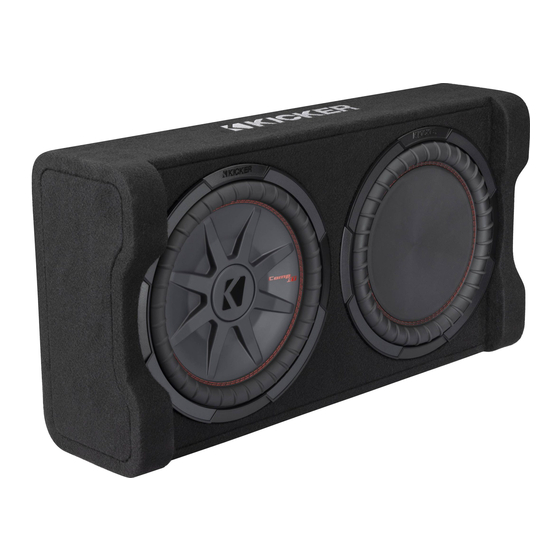

- Page 1 Owner’s Manual Manual del Propietario Manuel d’utilisation Benutzerhandbuch KICKER PTRTP Powered Down-Firing Thin Profile Subwoofer Enclosure with Passive Radiator select language seleccione el idioma choisir la langue sprache auswählen...
-
Page 2: Table Of Contents
Contents Overview ......2 Specifications ......3 Installation ...... 5 Wiring ........5 Mounting ....... 8 Operation ....... 9 Remote Bass Installation ..11 Troubleshooting .... 12 Warranty ...... 13 Int. Warranty Garantía | Garantie ..15 English 49PTRTP-c-23... -
Page 3: Overview
Complete your system with a pair of KICKER coaxial speakers and mulit-channel amplifier for an uncompromising audio experience. Use this manual to install and operate your PTRTP Enclosure. English... -
Page 4: Specifications
Specifications Model: PTRTP10 PTRTP12 Woofer [in, cm] 10, 25 12, 30 Height [in, cm] 5-5/8, 14.2 6-1/8, 15.6 Width [in, cm] 25-5/8, 65 27-1/2, 70 Depth [in, cm] 13-1/4, 33.5 14-5/8, 37 RMS Power @ 14.4V Specifications Common to All Models Frequency response [Hz] 25–120 Electronic Crossover... - Page 5 PTRTP10 PTRTP12 English...
-
Page 6: Installation
The ground wire should be the last wire disconnected – just the opposite as when you installed it. Model External Fuse (sold separately) Power/Ground Wire KICKER Wiring Kit PTRTP10 1 x 40 Ampere 4 Gauge KMPK4, PK4, CK4... - Page 7 quick-connect power plug Ground fuse Remote Turn-On ≤18” (see page 8) (45cm) English...
- Page 8 Connect the wiring pigtail to the amplifier’s audio inputs, then connect the audio output from your source unit to the RCA inputs. If needed, cut off the RCA connections to use hi- level input, or use the KICKER KISL Speaker-RCA Converter. quick-connect wiring harness audio inputs: White...
-
Page 9: Mounting
Mounting Choose a structurally sound location to mount your KICKER powered subwoofer enclosure. Make sure the mounting screws will not puncture the gas tank/ brake lines/wiring or interfere with any mechanical parts on the underside of the mounting surface. Choose a location that allows at least 4” (10cm) of open ventilation for the amplifier. -
Page 10: Operation
• DC Offset Turn-On: The DC Offset mode detects a >2.5V DC offset from the HI-Level speaker outputs when the source unit has been turned on. Input Level: The inputs on KICKER powered enclosures are capable of receiving either Hi (speaker-level) or Low-level (RCA) signals from your source unit. - Page 11 lowest position. Incorrectly setting the gain can result in distorted output or damage to, and premature failure of, your enclosure. For a quick setup, turn the source unit up to about 3/4 volume (if the source unit goes to 30, turn it to 25). Slowly turn up (clockwise) the gain on the amplifier until you can hear audible distortion, then turn it down a little.
-
Page 12: Remote Bass Installation
Remote Bass Installation Remote cable passes audio; do not run cable parallel to power wires. Connect the cable to the remote and the Remote Bass connection on the amplifier English... -
Page 13: Troubleshooting
Improper connections can result in blown amplifier fuses as well as the failure of other critical systems in the vehicle. If you have more questions about the installation or operation of your new KICKER product, see the Authorized KICKER Dealer where you made your purchase. For more advice on installation, click on the SUPPORT tab on the KICKER homepage, www.kicker.com. -
Page 14: Warranty
Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes. - Page 15 Service performed by anyone other than KICKER HOW LONG WILL IT TAKE? KICKER strives to maintain a goal of one week turnaround for all electronics (amplifiers, crossovers, equalizers, etc.) & acoustic returns. Delays may be incurred if lack of replacement inventory or parts is encountered.
-
Page 16: Int. Warranty Garantía | Garantie
KICKER car stereos and the fact that we encourage our customers to strive for the best (“ Livin ’Loud”) in all aspects of their lives. KICKER loudspeakers and amplifiers are leaders in the mobile audio system market and are therefore the “fuel” for our customers’ car stereo experience.
