Funcionamiento - Beko QWIK-PURE CS 100 Instructions For Installation And Operation Manual

Function • Descrizione del funzionamento
Fonctionnement • Descrição de funcionamento
1
3
10

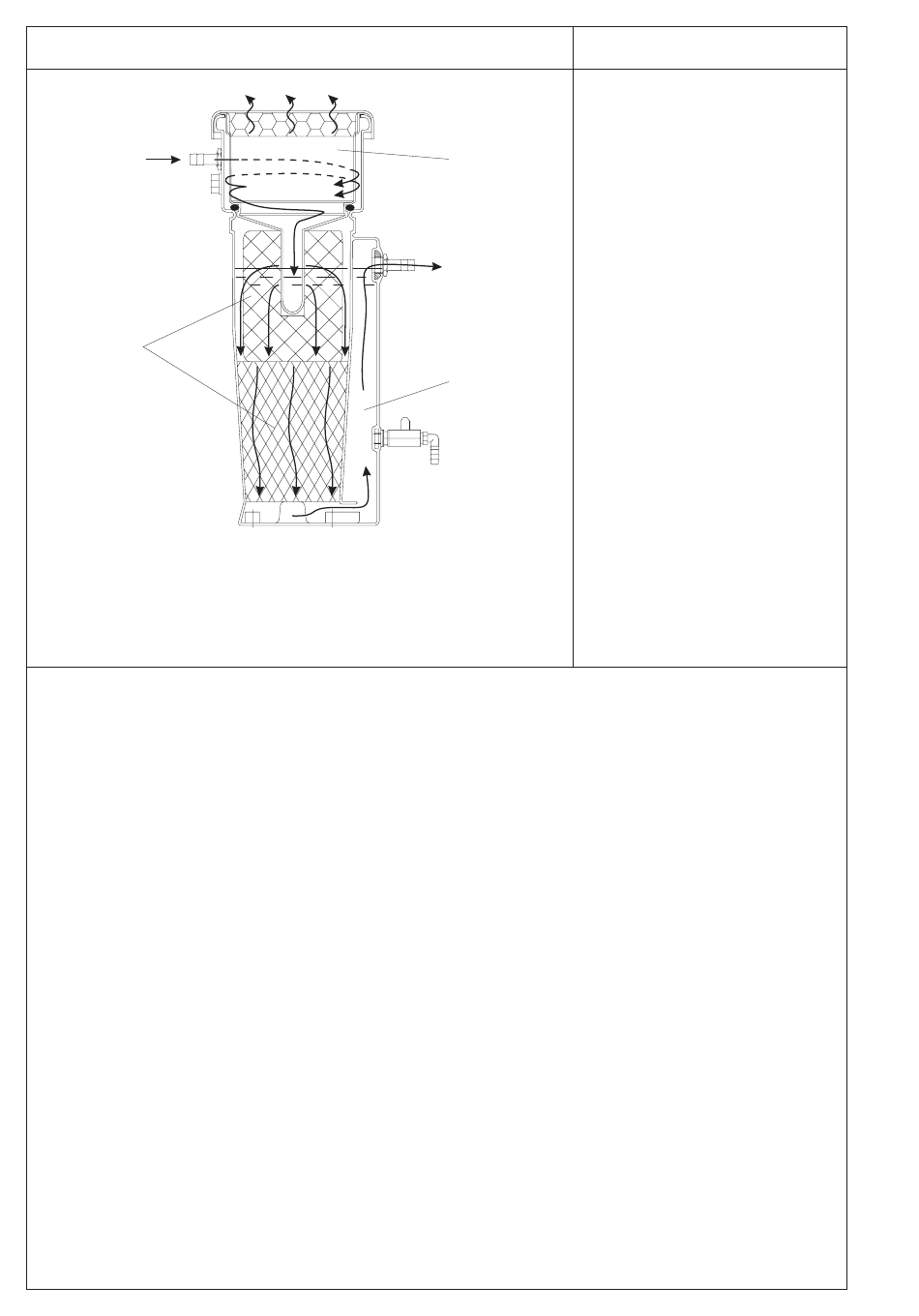

The oil-contaminated condensate can be
fed under pressure to the QWIK-PURE
unit (1).
The pressure is reduced in the pressure
2
relief chamber (2).
The condensate flows steadily into the
subjacent filter stage without turbulence
and runs through the two-stage OEKO-
SORB filter.
6
The OEKOSORB filter unit (3) comprises
a prefilter and a main filter for binding any
residual oil constituents. The water flows out
of the QWIK-PURE
tor through the water outlet (6) and can be
discharged directly into the sewer system.
4
A sampling valve (5) is provided so that
the waste water quality can be checked at
any time.
5
1 Condensate inlet
2 Pressure relief chamber
3 OEKOSORB filter
4 Riser duct
5 Sampling valve
6 Water outlet
