Function
Fonctionnement •
1
2
4
5
0

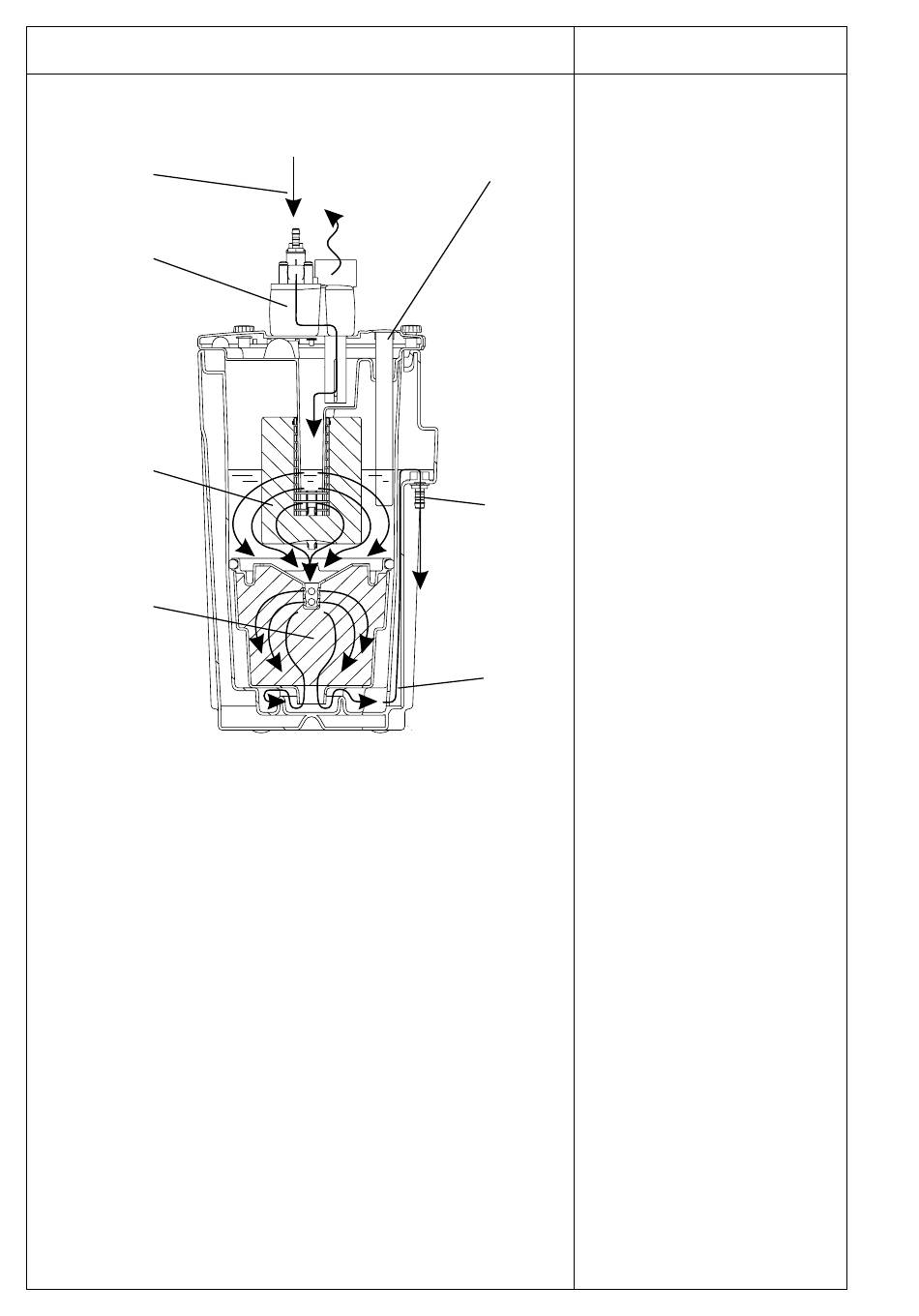

• Esquema de funcionamiento
Descrição de funcionamento
The oil-contaminated condensate can be
fed under pressure to the QWIK-PURE
unit ().
The pressure is reduced in the pressure
3
relief chamber () and the calmed con-
densate flows into the container below
without creating turbulence.
The condensate flows into the chamber
of filter and subsequently passes through
the two-stage OEKOSORB filter.
The OEKOSORB filter unit comprises a
prefilter () and a main filter () for binding
any residual oil constituents. The water
flows out of the QWIK-PURE oil-water
separator through the water outlet ()
and can be discharged directly into the
sewer system.
A sampling valve (*) is provided so that
the waste water quality can be checked
8
at any time.
1 Condensate inlet
2 Pressure relief chamber
3 Level indicator
6
4 Prefilter
5 Main filter
6 Riser duct
7 Sampling valve*
8 Water outlet
* not visible here
english
QWIK-PURE 200, 350
