DO
GUIDE
HD-MD-400-C-E
HD Scaling Auto-Switcher and Extender 400
DO
Install the Devices

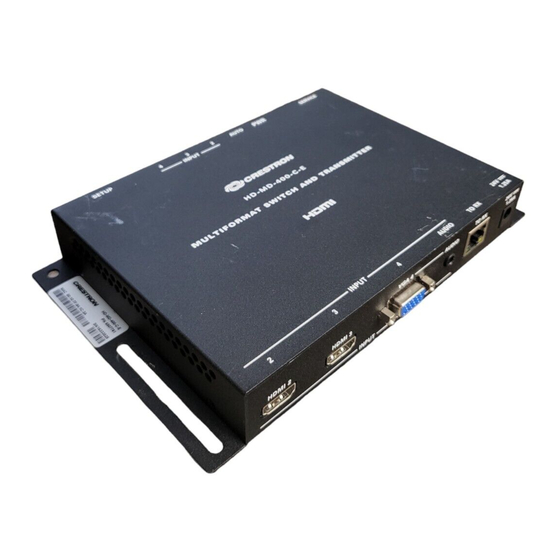

The HD-MD-400-C-E is a multiformat switcher that consists of a transmitter and a receiver.
The transmitter and receiver can be mounted onto a flat surface or onto a rack rail.
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the transmitter and receiver onto a flat
surface such as the underside of a table or onto a wall as appropriate for the installation.
Mounting to the Underside of a Table
Mounting onto a Rack Rail
The transmitter and receiver can be mounted onto the front or rear rail of a rack. Position either
the left or right mounting flange of the device so that the holes align with the holes in the rack.
Then, secure the device to the rack using two mounting screws (not included).
Mounting onto a Rack Rail
DO
Check the Box
QTY PRODUCT
1
Connector, 2-Pin
2
Connector, 5-Pin
1
Power Pack, 24 Vdc 1.25 A, 100-240 Vac
Not included: Cables, Mounting Screws
DO
Connect the Devices
Make connections to the top and bottom panels of the devices as required for the application.
NOTE:
Only one 24 Vdc power pack (included) is required to power both the transmitter and
the receiver; therefore, connect the power pack to the 24 Vdc power connector of either the
transmitter or receiver. Power is transmitted over the cable that connects the TO RX link output
port of the transmitter to the FROM TX link input port of the receiver.
Top and Bottom Panel Connections of the HD-MD-400-C-E Transmitter
For Factory
Use Only
Top
Panel
From HDMI
From RGB (VGA)
®
Audio/Video
or Component
Sources
Video Source
Bottom
Panel
Unbalanced
Stereo Line Level
Audio Input
COLOR
PART NUM.
2003574
2003577
2045870
From 24 VDC
Power Pack
(Included for
Connection to
Transmitter or
To FROM TX
Receiver)
Link Input of
HD-MD-400-C-E
Receiver
