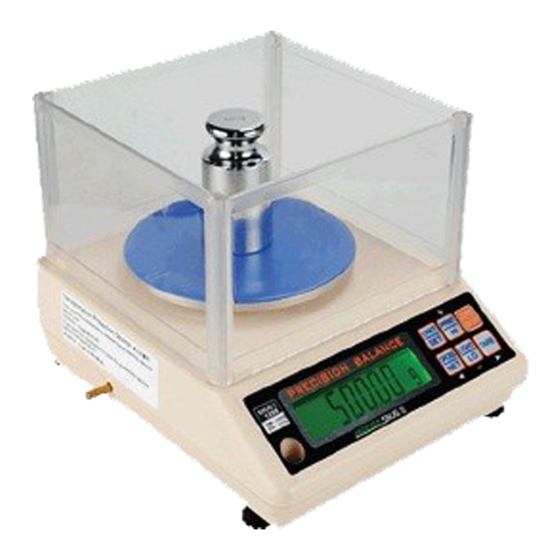

Manual Jadever SNUG III
Contents
---------------------------------------------------
---------------------------------------------------
---------------------------------------------------
---------------------------------------------------
---------------------------------------------------
---------------------------------------------------
---------------------------------------------------
---------------------------------------------------
---------------------------------------------------
---------------------------------------------------
1
1
2
2
4
5
7
11
13
14
1/15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jadever SNUG III
Summary of Contents for Jadever SNUG III
-
Page 1: Table Of Contents
7/22/2019 Manual Jadever SNUG III Contents --------------------------------------------------- Balance-pan fixing Protection device --------------------------------------------------- Installation mode --------------------------------------------------- Description of keys --------------------------------------------------- Operation of weight --------------------------------------------------- single point calibration Operation of weight linear --------------------------------------------------- calibration Setting method --------------------------------------------------- RS-232 serial interface --------------------------------------------------- ... - Page 2 Procedure of disassembling the protection device 1. There is a transport protection rod device on the left side of the balance when facing the front of SNUG III analytical balance. 2. Before using SNUG III analytical balance, turn the protection rod SNUG III http://www.jadever.com.tw http://slidepdf.com/reader/full/manual-jadever-snug-iii...
-
Page 3: Installation Mode
Manual Jadever SNUG III JADEVER SCALE counterclockwise to loose it and then release. 3. Before transporting SNUG III analytical balance, press the protection rod inward and turn it clockwise to tighten. Installation mode 1. When conducting the weight calibration of the product, pay attention to the environment and avoid wind and vibration. - Page 4 7/22/2019 Manual Jadever SNUG III JADEVER SCALE Key for deducting the weight; to deduct the weight of articles on the TARE balance. MODE Key for mode shifting. The mode shifts in the sequence of weighing, counting, percentage and printing time.
-
Page 5: Operation Of Weight
7/22/2019 Manual Jadever SNUG III JADEVER SCALE a beep is heard. Print time setting: Press 「 MODE 」 key after the balance is powered on, the screen will display time XXXX T ,then continuously press 「 UNIT 」 key to shift to month XX.XX D and year XXXX Y. -
Page 6: Operation Of Weight Linear
7/22/2019 Manual Jadever SNUG III JADEVER SCALE ZEro Please wait for a while until the screen displays Step 4: Press 「 TARE 」 key to select the calibration point, on1 is 1/3 load and on2 is 2/3 load and on3 is full load. Put the corresponding weight on the pan after ... - Page 7 7/22/2019 Manual Jadever SNUG III JADEVER SCALE L-CAL Step 2: Clear the pan, then press 「 TARE 」 key and the screen will display as follows: (zero calibration) Step 3: After a “beep”, the screen will display as follows: Step 4: Put the 1/3 load on the pan, after a “beep” , the screen will display as follows: ...
-
Page 8: Setting Method
Step 7: The linear calibration is completed. Clear the pan and then press 「 TARE 」 key to enter countdown mode. The corresponding loading values in the linear calibration for various models of SNUG III balances SNUG SNUG SNUG SNUG SNUG... - Page 9 7/22/2019 Manual Jadever SNUG III JADEVER SCALE LCD display Function Function setting Function View content Description selection setting selection 「 」 key ： 「 」 key ： 「 」 MODE UNIT SMPL internal value Count Note 1 on...
- Page 10 7/22/2019 Manual Jadever SNUG III JADEVER SCALE Selection of Note 4 on automatic power Page 10 Au-no/5/15/30/60 Auto off ↓ Selection of Note 5 on transmission Page 10 2400/4800/9600 bAud speed Selection of Note 6 on automatic zero Page10...
- Page 11 7/22/2019 Manual Jadever SNUG III JADEVER SCALE Note 10 on External Page11 PC/ SH-24 Pr Fu equipment 1. When the Count is displayed on the screen, press 「 UNIT 」 key, you can see the present internal value. Press 「...
-
Page 12: Rs-232 Serial Interface
Press 「 」 key MODE continuously to shift between the function setting options in rotation. RS-232 serial interface The 9PIN connector at the right back of SNUG III balance is a RS-232 standard SNUG III http://www.jadever.com.tw http://slidepdf.com/reader/full/manual-jadever-snug-iii 12/15... - Page 13 7/22/2019 Manual Jadever SNUG III JADEVER SCALE interface, with No. 2PIN for output, No. 5PIN for ground and others useless. BAUD RATE ： 2400 OR 4800 OR 9600 bps DATA BIT ： 8 PARITY BIT ： N ﹝ N ONE ﹞ ...
-
Page 14: Operation Instruction Of
7/22/2019 Manual Jadever SNUG III JADEVER SCALE T. W.: + 0.00g N.W.: +499.98g G.W.: +499.98g Computer program ： 10 OPEN 〝 COM1:9600,N,8,1,RS,DS,LF 〞 AS #1 (BASICA) 20 INPUT #1,A$ 30 PRINT A$ 40 GOTO 20 50 END Operation instruction of USB interface Precautions for using USB device: 1. -
Page 15: Usb Interface
7/22/2019 Manual Jadever SNUG III JADEVER SCALE at 9600, select 9600), click confirm, then the communication can be made. 3. The communication mode of USB is the same as that of RS-232. If user has his own computer receiving terminal, it can be used for the communication.
