Thank you for choosing another quality product from Amperes Electronics
Product in Summary
MA2000 Series of mixing amplifiers is now improved with added features and circuit design, offering a more value added product with greater performance. The
series now includes 360W version to cater for larger installation. All of them comes with 6 speaker zone outputs with flexibility to connect to PM1060 desktop
paging microphone for zone controls.
One notably major difference is the amplifier circuit, which is Class D and is known for its wide frequency response for delivering better sound reproduction. Weight
had been much reduced due to SMPS employed.
Please read through the manual before installation in order to capture the features available and how to suit your applications. We assure you that you are getting
a reliable product for usage in years to come.
Scan to view catalogue and latest updates
Ver 5 / 0824
SPEAKER OUTPUT
OVERRIDE
1
2
3
CH4
CH5
CH6
PLAYER
TREBLE
SIG
SIG
SIG
SIG
INSTRUCTION MANUAL
MA2012 / 2012P 120W 100V
MA2024 / 2024P 240W 100V
MA2036 / 2036P 360W 100V
6 Inputs Mixing Amplifiers with 6 Zone Outputs
4
5
6
ALL
MASTER
BASS
POWER

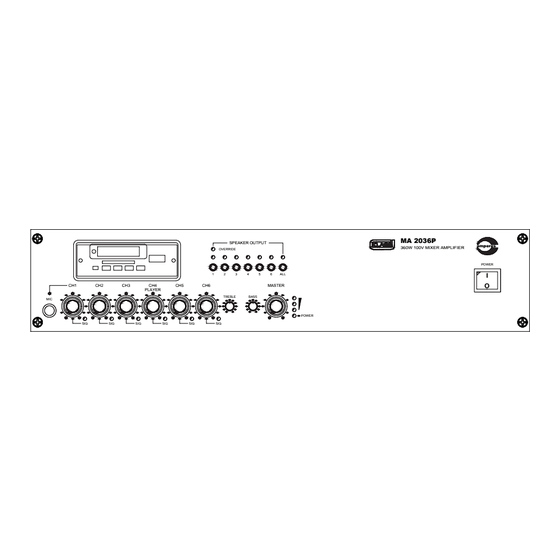

MA 2036P
360W 100V MIXER AMPLIFIER
In our support towards environment, we
shall no longer print manuals to be
accompanied with each product. Please
view through browser and print them
only when necessary.
Improved
amperes
POWER
I
O
Go Green

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA2012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amperes MA2012

Summary of Contents for Amperes MA2012

  • Page 1 TREBLE BASS POWER Thank you for choosing another quality product from Amperes Electronics Product in Summary MA2000 Series of mixing amplifiers is now improved with added features and circuit design, offering a more value added product with greater performance. The series now includes 360W version to cater for larger installation.

  • Page 2: Parts Identification

    EQUIPMENT TO RAIN OR MOISTURE. Rated output power 360W AC220-240V 50/60Hz 450W CAUTION DC input 21-30V Max. 20A RISK OF ELECTRICAL SHOCK AMPERES ELECTRONICS MADE IN MALAYSIA RJ45 PIN CONFIGURATION: DO NOT OPEN 1) Z1 5) Z5 FUSE: 3A 2) Z2...
  • Page 3 Parts Identification 10. POWER AND SINGAL LED LED indicator for power and signal outputs. 11. INCOMING AC SUPPLY The mixer operates at 220 to 240 V ac. IEC connector with fuse rating of 3A is used. 12. 24V DC INPUT CONNECTOR MA2000 also operates on 24V DC.
  • Page 4 EQUIPMENT TO RAIN OR MOISTURE. Rated output power 360W AC220-240V 50/60Hz 450W CAUTION DC input 21-30V Max. 20A RISK OF ELECTRICAL SHOCK AMPERES ELECTRONICS MADE IN MALAYSIA RJ45 PIN CONFIGURATION: DO NOT OPEN 1) Z1 5) Z5 FUSE: 3A 2) Z2...
  • Page 5 Connecting to EP1200 Emergency Paging Microphone If it is required to connect Amperes EP1200 Emergency paging mic ( or other emergency announcement such as MR1301 ) to MA2000 to make ALL CALL, follow the connection diagram below. Activation of EP1200 shall then turn ON all the zones ( All Call ) and bypass any other incoming music sources. Dry contact ( momentarily ) is required to turn ON all zones.
  • Page 6 EQUIPMENT TO RAIN OR MOISTURE. Rated output power 360W AC220-240V 50/60Hz 450W CAUTION DC input 21-30V Max. 20A RISK OF ELECTRICAL SHOCK AMPERES ELECTRONICS MADE IN MALAYSIA RJ45 PIN CONFIGURATION: DO NOT OPEN 1) Z1 5) Z5 FUSE: 3A 2) Z2...

  • Page 7: Pin Connections

    Priority Channel Muting / Ducking Channel 1 and 2 are priority channels that can mute other input sources except audio from paging mic. The mixing level can be adjusted to totally mix or total mute. When both signals are present at Ch.1 and Ch.2, they will mix while muting other channels.

  • Page 8: Remote Controller

    MODE Mode button Mobile phone bluetooth setting At your Android mobile phone, in Bluetooth searching mode, it will show “AMPERES BT”, which is the name of the MA2000P bluetooth module. Click it to pair. AMPERES - BT Once the pairing is successful, you can now stream the music from you mobile phone to the mixing amplifier.

  • Page 9: Technical Specifications

    Technical Specifications Summary of Features 6 Mic / Line selectable inputs with front mic jack and switchable phantom power Bass and Treble tone controls Optional media player module High efficiency Class D power amplifier with 100V and 4 Ohm speaker outputs Priority muting for Line input 1 with adjustable muting level 6 zone speaker output with All Call and remote trigger port, directly connect to PM1060 or PM1120 AC and DC operation for uninterrupted operation during power failure...

  • Page 10: Warranty Conditions
