Mixing amplifier with 6 zone output
Hide thumbs Also See for MA2006:

Advertisement

Quick Links

CH1
CH2
MIC
SIG
SIG
AC220-240V
50/60Hz
24V DC
FUSE: 3A
OUTPUT
SPK6
SPK5
SPK4
SPK3
SPK2
SPK1
100V
Thank you
for choosing another quality product from Amperes Electronics.
MA2000 Series of mixing amplifiers is now improved with added features and circuit design, offering a more value
added product with greater performance. The series now includes 360W version to cater for larger installation. All of
them comes with 6 speaker zone outputs with flexibility to connect to PM1060 desktop paging microphone for zone
controls.
One notably major difference is the amplifier circuit, which is Class D and is known for its wide frequency response for
delivering better sound reproduction. Weight had been much reduced due to SMPS employed.
Please read through the manual before installation in order to capture the features available and how to suit your appli-
cations. We assure you that you are getting a reliable product for usage in years to come.
OVERRIDE
1
2
CH3
CH4
CH5
CH6
PLAYER
TREBLE
SIG
SIG
SIG
SIG
MAX 20A
RJ45 PIN CONFIGURATION:
1) Z1
5) Z5
2) Z2
6) Z6
3) Z3
7) +24V
4) Z4
8) GND
REMOTE SEL.
( PM1060 )

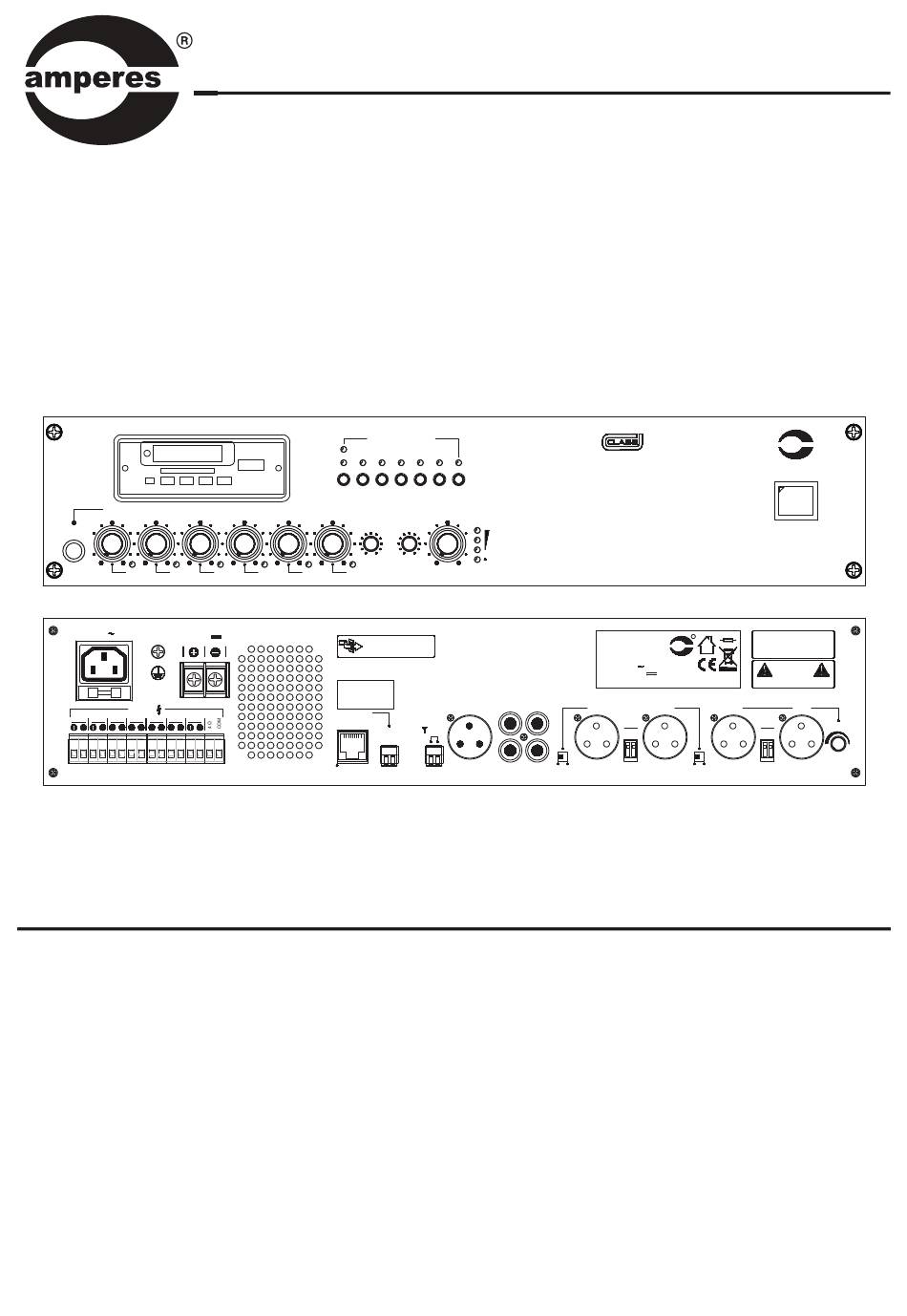

INSTRUCTION MANUAL
MA2006 / 2006P 60W 100V
MA2012 / 2012P 120W 100V
MA2024 / 2024P 240W 100V
MA2036 / 2036P 360W 100V
Mixing Amplifier with 6 Zone Output
SPEAKER OUTPUT
3
4
5
6
ALL
MASTER
BASS
POWER
DO NOT BLOCK VENT
THIS EQUIPMENT REQUIRES
ADEQUATE VENTILATION
CH6
CH5
LINE OUT
L
ANT
ALL
CALL
R
LINE
MA 2036P
360W 100V MIXER AMPLIFIER
R
MIXER AMPLIFIER
amperes
Model : MA2036 P
Rated output power 360W
AC220-240V
50/60Hz 450W
DC input 21-30V
Max. 20A
AMPERES ELECTRONICS
MADE IN MALAYSIA
CH4
CH3
PHANTOM
L
POWER
CHANNEL
4
3
R
MIC
LINE
MIC
LINE
amperes
POWER
I
O
WARNING !
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CH2
CH1
PHANTOM
POWER
MUTE
CHANNEL
2
1
MAX
MIN
CH.1 / 2
PRIORITY MUTE
VER 5 / 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA2006 and is the answer not in the manual?

Questions and answers

Summary of Contents for Amperes MA2006

  • Page 1 LINE Thank you for choosing another quality product from Amperes Electronics. MA2000 Series of mixing amplifiers is now improved with added features and circuit design, offering a more value added product with greater performance. The series now includes 360W version to cater for larger installation. All of them comes with 6 speaker zone outputs with flexibility to connect to PM1060 desktop paging microphone for zone controls.
  • Page 2: Parts Identifications

    EQUIPMENT TO RAIN OR MOISTURE. Rated output power 360W AC220-240V 50/60Hz 450W CAUTION DC input 21-30V Max. 20A RISK OF ELECTRICAL SHOCK AMPERES ELECTRONICS MADE IN MALAYSIA RJ45 PIN CONFIGURATION: DO NOT OPEN 1) Z1 5) Z5 FUSE: 3A 2) Z2...
  • Page 3 Parts Identifications 10. POWER AND SINGAL LED LED indicator for power and signal outputs. 11. INCOMING AC SUPPLY The mixer operates at 220 to 240 V ac. IEC connector with fuse rating of 3A is used. 12. 24V DC INPUT CONNECTOR MA2000 also operates on 24V DC.
  • Page 4: General Connection Diagram

    EQUIPMENT TO RAIN OR MOISTURE. Rated output power 360W AC220-240V 50/60Hz 450W CAUTION DC input 21-30V Max. 20A RISK OF ELECTRICAL SHOCK AMPERES ELECTRONICS MADE IN MALAYSIA RJ45 PIN CONFIGURATION: DO NOT OPEN 1) Z1 5) Z5 FUSE: 3A 2) Z2...
  • Page 5 Connecting EP1200 Emergency Paging Microphone If it is required to connect Amperes EP1200 Emergency paging mic ( or other emergency announcement such as MR1301 ) to MA2000 to make ALL CALL, follow the connection diagram below. Activation of EP1200 shall then turn ON all the zones ( All Call ) and bypass any other incoming music sources.
  • Page 6 EQUIPMENT TO RAIN OR MOISTURE. Rated output power 360W CAUTION AC220-240V 50/60Hz 450W DC input 21-30V Max. 20A RISK OF ELECTRICAL SHOCK AMPERES ELECTRONICS MADE IN MALAYSIA RJ45 PIN CONFIGURATION: DO NOT OPEN 1) Z1 5) Z5 FUSE: 3A 2) Z2...
  • Page 7 Priority Channel Muting / Ducking Channel 1 and 2 are priority channels that can mute other channels ( except audio from Paging Mic ). The mixing level can be adjusted to totally mix or total mute. When both signals are present at Ch.1 and 2, they shall mix while muting other channels.
  • Page 8 Operating the Unit ( Playing USB / SD ) Insert a SD Card or USB into the slot and the unit shall automatically enter the playing mode. Song time lapsed Player Module USB Input Port OFF/ON / V- / V+ MODE OFF/ON Button Individual power OFF/ON for each module...
  • Page 9 Operating the Unit ( FM Tuner ) Radio Mode Display Player Module / V- / V+ MODE OFF/ON To enter the radio mode, press Mode button & FM Radio reception mode shall be displayed. MODE Use the ‘Next’ or ‘Prev’ button to manually select the station. / V- / V+ Auto program select.
  • Page 10: Remote Control

    Remote Control Mode VOL - VOL + CLOCK 1. Power Switch : Press once to switch ON, press again to switch OFF. 2. Mode: Press this button to switch the radio / bluetooth / AUX / playback of USB / SD function. 3.
  • Page 11: Technical Specifications

    Technical Specifications MA2006 / 2006P MA2012/ 2012P MA2024 / 2024P MA2036 / 2036P Rating ( W rms, 100V output ) 120W 240W 360W Operating Voltage 220 - 240V AC or 22 - 30V DC Power Consumption 160W 315W 470W 115W...
  • Page 12: Warranty Conditions

    Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized dealers.
