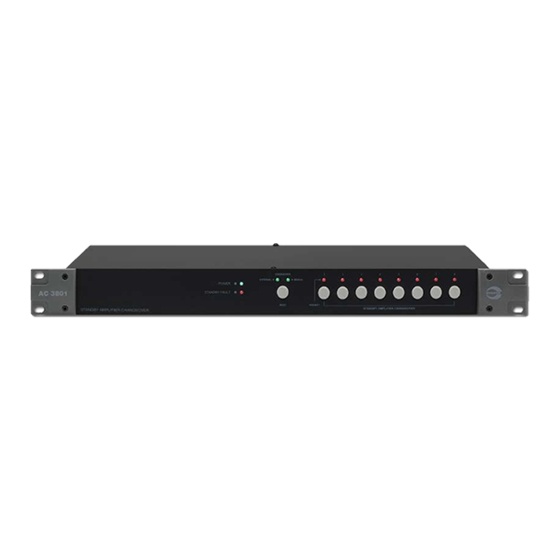

Amperes AC3801 Instruction Manual

AC 3801
STANDBY AMPLIFIER CHANGEOVER
Thank you
for choosing another quality product from Amperes Electronics.
AC3801 is an innovative product, integrating previous models of AX700 and AC3601 in a box. Thereby it can be used as a
manual standby amplifier changeover or as semi auto unit which shall be used with amplifiers with auto fault sensors. In the
latter mode, the unit can be changed to manual mode, simply by changing the front mode switch.
AC3801 comes with 8 inputs for duty amplifiers with single standby power pack. Cascade is possible to enable each
standby amplifier to cater for more than 8 duty units with simple link cable.
With our continuous product improvement policy, we are simply building more efficient and reliable tool for ever increasing
demanding needs of today's PA installations. Installing AC3801 to your system, it's definitely a plus tool of performance
and reliability at a fraction of cost as compared to similar equipment in its class.
INSTRUCTION MANUAL
CHANGEOVER
EXTERNAL MANUAL
POWER
STANDBY FAULT
MODE
Standby Amplifier Changeover unit
1 2 3 4 5
PRIORITY
STANDBY AMPLIFIER CHANGEOVER
AC3801
6 7 8
amperes
