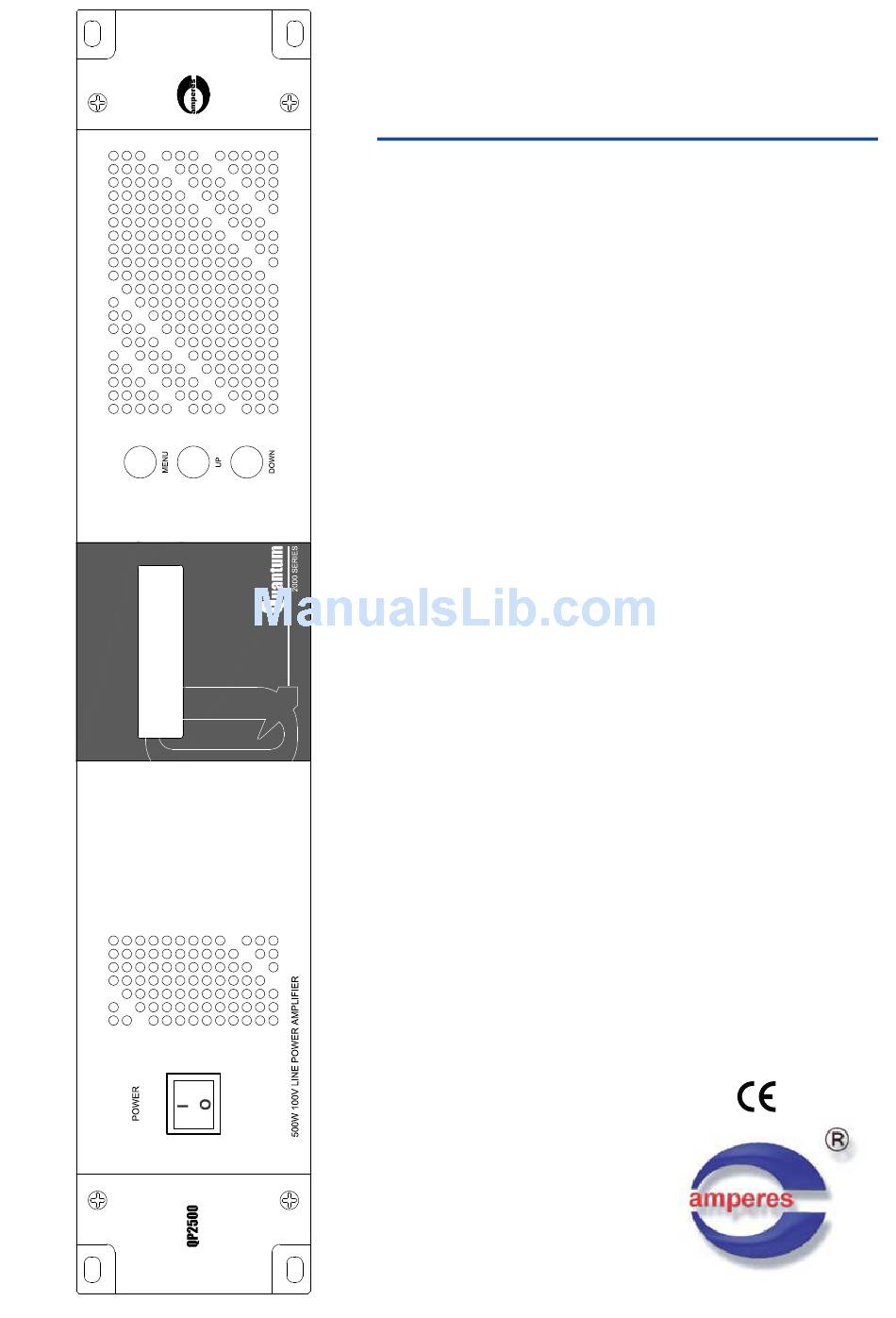

- Page 1 INSTRUCTION MANUAL Quantum QP2000 Series Power Amplifiers QP2125 QP2250 QP2375 QP2500 VER 1 SEP 2010...
-
Page 2: Parts Identification

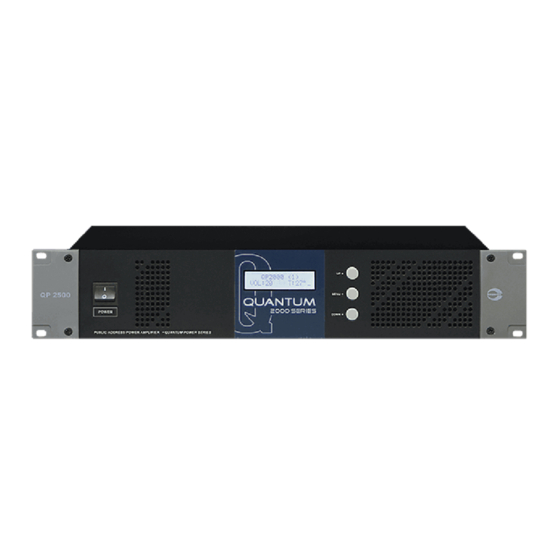

Quantum QP2000 Series of power amplifiers are the latest generation of power packs that had been developed through years of experience, countless feedbacks and limitless fine tuning of its predecessors, thus offering a new and unique audio amplification product. QP2000 series are available in the power range of 125, 250, 275 and 500W 100V line ratings with 2 hu height. - Page 3 QP2000 series are equipped with Auto Fault Sensing feature with Standby Fault Changeover relay incorporated. Outputs from a standby unit is connected to these terminals and connected to the next duty pack in series. Please refer to the section “ Connecting Standby Amplifier ”. amperes Quantum QP2000 Series Power Amplifiers PAGE 3...
- Page 4 General Schematic Diagram An example of application with PM1120 Paging Mic single source to amplifiers, with INPUTS line audio one unit being a standby unit. MX2222 Mixer For Uninterrupted Paging System Matrix application, please SELECT POWER SOURCE MASTER EXT INPUT TONE CTRL M X 2 1 2 2 TUNER...
-
Page 5: Connecting The Unit
If the changeover occurs at the first unit, the remaining shall not be provided with back up output. In order for changeover to take place, AFS feature must be turned on. amperes Quantum QP2000 Series Power Amplifiers PAGE 5... - Page 6 Connecting The Unit - Matrix Paging audio from message player / recorder EP1200 A no th er Q ua lity P ro du ct F rom S/N : REMOTE TRIGGER MESSAGE IN PRE IN PRE OUT MESSAGE SIREN INPUT LEVEL MESSAGE SIREN audio inputs from MxP2188...
- Page 7 In uninterrupted paging setup, two sets of amplifiers are used; Paging and BGM. Two standby unit shall be required to serve each set of amplifiers. Auto fault feature need to be turned on at duty units. amperes Quantum QP2000 Series Power Amplifiers PAGE 7...
- Page 8 Setting The Unit Upon powering up the unit, the Firmware : V02.00 QP2000 ( 2 ) display shall appear as shown, Initialize ... VOL:20 T:26 Initialising and into ready mode. Displaying firmware version of Showing unit address in bracket, the unit volume level and temperature Menus available are for : To begin setting, press the MENU button.
- Page 9 We recommend that the fan to be set at revert to Sub Menu. Use UP and Auto mode. DOWN button to select other Sub Menu To exit this sub menu, select Exit. 3.3 EXIT amperes Quantum QP2000 Series Power Amplifiers PAGE 9...
- Page 10 Setting The Unit 4. SYSTEM INFORMATION 4. SYSTEM INFO Select Sub Menu 4 This menu provides information on various parameters such as input and output level and firmware version. 4.1 MAIN VOL: Output voltage from 100V line 37.1V terminal For service purpose : the voltage 4.2 I5 VOL: prior to step up transformer 15.0V...
-
Page 11: Summary Of Features
Built in standby amplifier changeover RS485 interface for monitoring and remote setting Tone and bass controls Auto fan speed controls Thermal, fuse, output short circuit protections High efficiency with low current consumption Technical Specifications QP2125 QP2250 QP2375 QP2500 125W 250W 375W... -
Page 12: Warranty Conditions
warranty conditions Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized master distributor, Amperes Global Marketing.
