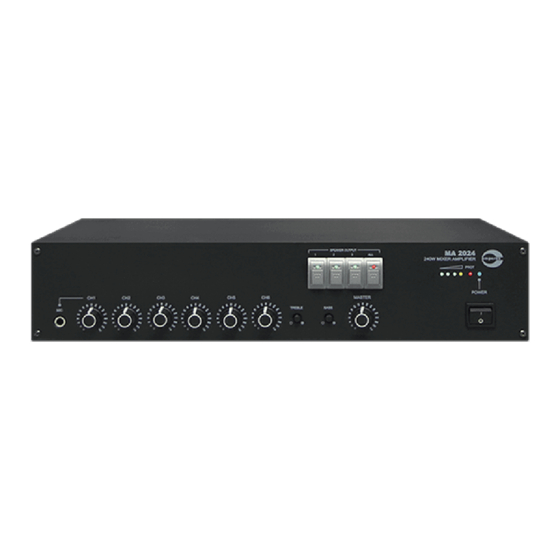

MA2060P/ MA2012P / MA2024P With Media Player
CH1
MIC
CH1
MIC
Thank you
for choosing another quality product from Amperes Electronics.
MA2000 Series of mixer amplifiers had been further improved for performance and durability featuring 3 output
speaker zoning with remote selection from PM Series of paging mic, priority muting over BGM sources as well as
operation using 24V DC. The P prefix of the models includes an integrated media player for FM tuner reception, USB
and SD Card Player.
We believe that this product shall be able to meet your demanding requirement with affordable pricing and
uncompromised features and quality. Though it is rather simple in the installation works, a brief read through the
manual is recommended and we are confident that you are getting a product of excellence.
CH2
CH3
CH5
CH4
USB
OFF/ON
/ V-
/ V+
MODE
IN
CH2
CH3
CH4 / MP3
INSTRUCTION MANUAL
Mixer Amp with 3 Zone Output
CH6
TREBLE
BASS
CH5
CH6
TREBLE
BASS
MA2060 60W 100V
MA2012 120W 100V
MA2024 240W 100V
MA 2024
MA 2024
MASTER
MA 2024P
MA 2024P
MASTER
POWER
I
O
POWER
I
O
VER 4 / 2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amperes MA2000 Series
Summary of Contents for Amperes MA2000 Series
- Page 1 Amperes Electronics. MA2000 Series of mixer amplifiers had been further improved for performance and durability featuring 3 output speaker zoning with remote selection from PM Series of paging mic, priority muting over BGM sources as well as operation using 24V DC.
-
Page 2: Parts Identifications
EM output instead of directly to the batteries. This shall prevent drainage of the battery bank. 8. MAINS AC CORD Mains AC cord comes with standard British 3 pin plug with fuse rating of 5A. PAGE 2 MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT... - Page 3 16. AMPLIFIER OUTPUT TERMINALS Terminals for connecting external speakers and is available in 3 zones. 17. REMOTE PAGING ZONE SELECTION External control of speaker zone selection via negative triggering method. Connection to Amperes PM1060 is recommended 18. DC 24V OUTPUT This 24V DC for paging mic power supply.
-
Page 4: Rear Connections
CH 2 MP 1020 OFF/ON / V- / V+ MODE OFF/ON / V- / V+ MODE MP1020 Zone 3 Zone 1 Speaker Zone 2 Speaker Speaker Zone 3 Zone 1 PAGE 4 MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT... - Page 5 Connection can be done via the front panel 1/4" stereo phone jack or rear panel XLR jack. It is recommended that paging desk with zone selection (Amperes PM1060) be connected via the rear panel jack. The diagram below illustrates the connection of Amperes PM1060 paging desk with zone selection : Connection :...
-
Page 6: Phantom Power
Switch on when condenser microphone is used. In normal usage, it is recommended that it is switched off Two channels - 1 and 2 are provided with switchable phantom power of 12V. LINE LINE LINE LINE PAGE 6 MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT... - Page 7 Press this button to play or to pause. Mode Button The menu at the display would switch between :- MODE RADIO ---- USB ---- SD ---- BLUETOOTH ---- RADIO MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT PAGE 7...
- Page 8 MA2000P player. Click the “ ZTV-CT02CA ” to pair the player. If the pairing is successful, we shall hear “ Bluetooth successfully connected”. Now we can play an audio file on our bluetooth device and stream it to MA2000P. PAGE 8 MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT...
-
Page 9: Remote Control
Press RPT button twice to play all the track, and the LCD will display ALL. 10. Numerical Buttons : In the radio mode, press this button to search the station. In the playback mode, press this button to choose desired songs. MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT PAGE 9... -
Page 10: Summary Of Features
3 zone speaker output with ALL CALL and remote triggering port 100V line output with aux 4 Ohm speaker terminal Tone and bass controls AC / DC operation for fixed and uninterrupted operation PAGE 10 MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT... -
Page 11: Technical Specifications
424 x 88 x 300 mm 12.40 kg Weight 9.80 kg 11.10 kg Note: The above specifications are correct at time of printing but subjected to changes without prior notice due to product improvements. MA2000 SERIES | MIXER AMPLIFIER WITH 3 ZONE OUTPUT PAGE 11... -
Page 12: Warranty Conditions
Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized dealers.
