Amperes AC3601 Quick Start Manual

the emerging preference
monitoring and changeover
Standby amplifier is normally required for a continuous and uninterrupted operation of a PA system in the event that
any of the duty pack fails. A panel is required for the standby unit to take over a duty amp without having to change
the input connection or redo the cabling works.

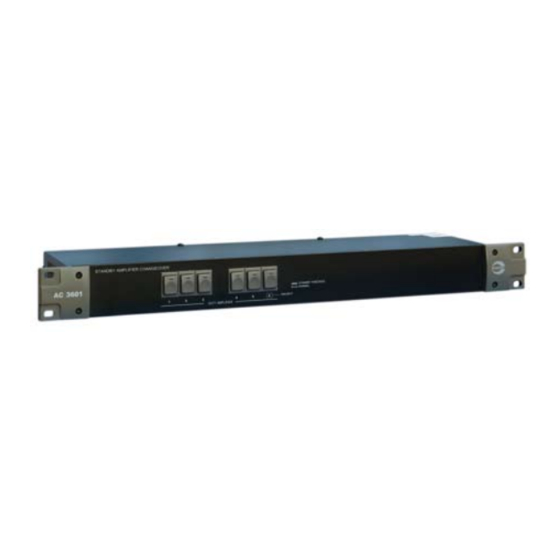

Amperes AC3601 is a changeover panel for 6 duty with 1 standby amplifier but is expandable for a single standby
unit to cater for more than 6 duty packs.
Protection circuitry is embedded that only allowed a failed duty amplifier to be taken over by standby unit to prevent
overloading. Priority features shall ensure higher numbered failed unit has preference for changeover.
Application Schematic
POWER AMP 1
W/O AFS
POWER
POWER
I PROTECT
PA 2120
CLIP
O SIGNAL -10 dB
SIGNAL -40 dB
POWER AMP 6
POWER
POWER
I PROTECT
PA 2120
CLIP
O
SIGNAL -10 dB
SIGNAL -40 dB
cascade link
optional ext
unit-cascade
IN 12
DUTY AMPS
POWER
POWER
I PROTECT
PA 2120
CLIP
O
SIGNAL -10 dB
SIGNAL -40 dB
DC 24V
USAGE OF NON RECOMMENDED
POWER SUPPLY UNIT MAY CAUSE
DAMAGE TO THIS EQUIPMENT
DC SUPPLY RATING :
24V DC, 0.5A
+
( PS9400 RECOMMENDED )
rear view
2008 - all rights reserved by amperes electronics sdn bhd
PA 2120
120 Watts
amperes
PA 2120
120 Watts
amperes
100V
IN 1
IN 6
AC3601
s/by
link 100V
AC3601 ( EXTENSION )
amperes
STANDBY TAKEOVER
NORMAL
1 2 3 4 5 6 PRIORITY
DUTY AMPLIFIER
OUTPUT
TO SPEAKER
IN 7
ZONE SEL.
ETC
PA 2120
120 Watts
amperes
STANDBY AMP
DUTY AMPLIFIER INPUTS STANDBY CASCADE WIRING CONNECTIONS
AMP INPUT LINK
DUTY AMP
S/BY AMP
6 DUTY / 1 STANDBY MANUAL AMP CHANGEOVER
Features
Cater for 6 duty and 1 standby amplifier
Expandable for 1 standby tos erve more than 6 duty units
Overload protection by allowing only a single take over
Prioritized changeover - unit with higher number is preferred
for changeover
Manual front panel changeover selection
In cascade mode :
Duty amp 12 has
highest priority
Specifications
Operating voltage
Power consumption
Zone load rating
OUTPUT
TO SPEAKER
Amplifier inputs
ZONE SEL.
Changeover indication
ETC
Switching mode
Cable connection
Cable size
Dimensions (WxHxD)
Weight
LINK IN - FR. N-1 AC3601
IN
LINK
LINK OUT - TO NEXT AC3601
OUT
MAX LOAD / CH - 400W / 100V LINE
PLEASE OBSERVE POLARITY
AMP.IN
TO ZONE SELECTOR
AMP.OUT OR SPEAKERS another quality product from
amperes electronics
S/BY IN
AC3601
AC3601
Product Options :
AX700
6 duty / 1 standby auto changeover panel
to be used with Amperes AS4000
AX3700
6 duty / 1 standby auto fault changeover
unit with self generated Pilot Tone and
switch over for inputs and outputs.
24V DC via PS9400 PSU
Standby : 82 mW, 3.4 A
Operating : 1.3 W, 50 mA
400 W / 100V line per ch.
6 duty / 1 standby
Front switch LED
Via front panel switch
Plug in connectors
2.5 mm sq
482 x 44 x 130 mm
1.6 kg
packing information
Carton : 540(W) x 105(H) x 270(D) mm
Weight : 2.05 kg
Qty : 1 units / carton
