CT Coil and Load Power Settings

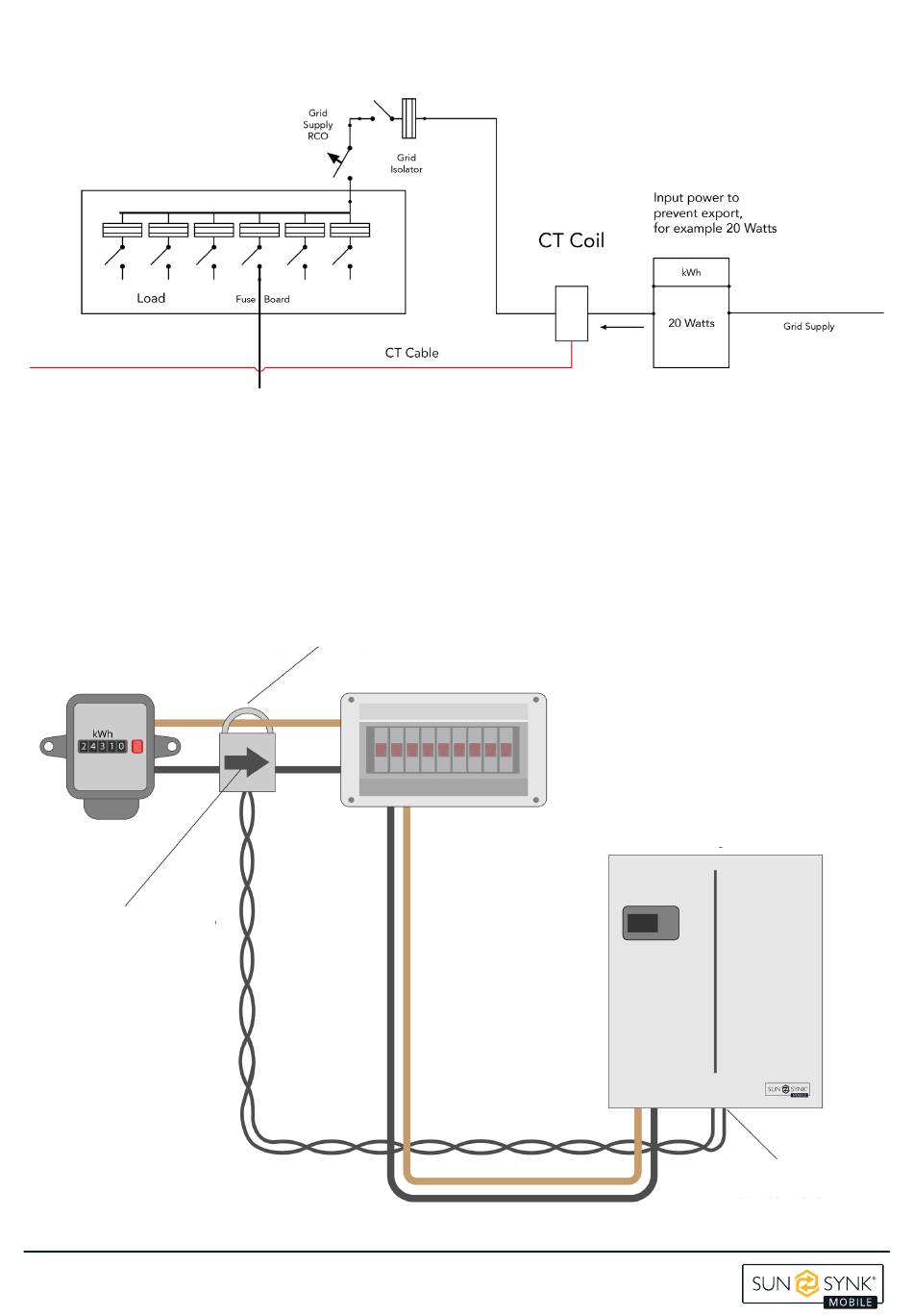

The CT coil is one of the most important parts of the Powerlynk X. This device reduces the power of the in-
verter to prevent feeding power to the grid. This is also known as zero export.
Fit the coil (sensor) around the live cable on the main fuse feeding the building and run the cable back to
ƒ
the inverter. This cable can be extended up to an extra 10m using a similar cable.
Connect the other end of the CT coil into the inverter terminals marked as CT coil.
ƒ
Fit around positive cable feeding the building BETWEEN the meter and main fuse.
Electricity Meter
CT arrow pointing in
the direction of the
Powerlynk X
13 SM3.6kWPL - Powerlynk X
Main Fuse
Feed cable back
to Powerlynk X
Powerlynk X
Connect into CT/
Limiter Port
