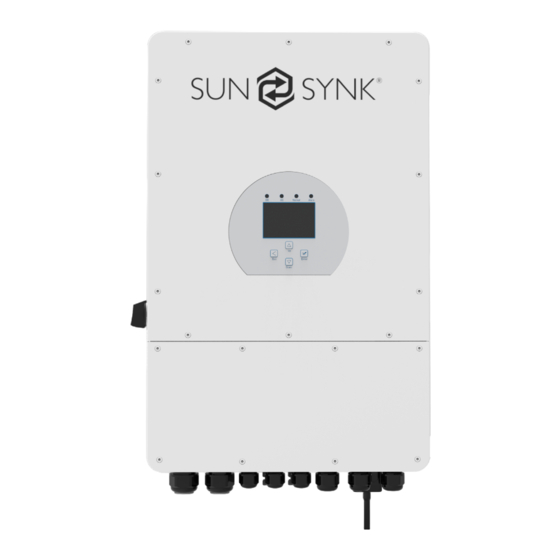

- Page 1 SINGLE-PHASE HYBRID INVERTER USER MANUAL SUNSYNK-10K-SG02LP1 / SUNSYNK-12K-SG02LP1 www.sunsynk.com sales@sunsynk.com customerservices@sunsynk.com PLEASE RETAIN FOR v.2 (12/12/23 FUTURE REFERENCE...
-
Page 2: Table Of Contents
Table of Contents SAFETY Setup Page Basic Setup General Safety Set Time (Clock) Symbols/Safety Signs Set Company Name / Beeper / Auto dim Safety Instructions Factory Reset and Lock Code Product Disposal Inverter Remote Control Battery Setup Page PRODUCT INTRODUCTION Generator &... -
Page 3: Safety
SAFETY General Safety This device should only be used in accordance with the instructions within this manual and in compli- ƒ ance with local, regional, and national laws and regulations. Only allow this device to be installed, oper- ated, maintained, and repaired by other people who have read and understood this manual. Ensure the manual is included with this device should it be passed to a third party. - Page 4 15.70 A V DC 48 V V DC 48 V AC OUTPUT BATTERY INPUT 230V V DC 48 V Output Voltage, Input Voltage Type, Ac 230V Battery Discharge Voltage, Battery 15.70 A Output Rated Current, Max AC Current, 15.70 A Discharge Current, Input Voltage Type, Output Frequency, Max AC ISC, Power Battery Discharge Power.
-
Page 5: Safety Instructions
WARNING HIGH LIFE RISK DUE TO FIRE OR ELECTROCUTION. Sunsynk Single-Phase Hybrid Inverter can only be installed by a qualified licensed electrical contractor. This is not a DIY product. This chapter contains important safety and operating instructions. Read and keep this manual for future ƒ... -
Page 6: Product Introduction
PRODUCT INTRODUCTION This multifunctional inverter combines the functions of an inverter, solar charger and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display offers user-configurable and easily accessible button operations such as battery charging, AC/solar charging, and acceptable input voltage based on different applications. -
Page 7: Product Size
Product Size Inverter Size SINGLE PHASE HI 10/12kW | User Manual... -
Page 8: Product Features
Product Features INTERACTIVE Easy and simple to understand display ƒ Supporting Wi-Fi or GSM monitoring ƒ Visual power flow screen ƒ Smart settable 3-stage MPPT charging for optimized battery performance ƒ Auxiliary load function ƒ Parallel / multi invert function grid-tied and off-grid ƒ... -
Page 9: Basic System Architecture
Basic System Architecture The following illustration shows the basic application of this inverter. It also includes the following devices to have a complete running system. Generator or utility ƒ PV modules ƒ Consult with your system integrator for other possible system architectures depending on your require- ments. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Model SUNSYNK-10K-SG02LP1 SUNSYNK-12K-SG02LP1 Battery Input Data Battery Type Lead-acid or Lithium-ion Battery Voltage Range 40~60V Max. Charge Current 220A 250A Max. Discharge Current 220A 250A Charging Curve 3 Stages/Equalisation External Temperature Sensor Charging Strategy for Li-Ion Battery Self-Adaptation to BMS PV String Input Data Max. - Page 11 General Data Operating Temperature Range -40~60°C, >45°C Derating Cooling Smart cooling Noise <45dB Communication with BMS RS485; CAN Weight 36kg Size 420W×670H×233D mm (Excluding connectors and brackets) Protection Degree IP65 Installation Style Wall-mounted Warranty 5 years SINGLE PHASE HI 10/12kW | User Manual...
-
Page 12: Installation
INSTALLATION Parts List Check the equipment before installation. Please make sure nothing is damaged in the package. You should have received the items in the following package: Stainless Steel Anti-Collision Parallel Communication Bolt M8×80 Cable x1 Hybrid Inverter L-type Hexagon Wrench User Manual x1 Data Logger x1 Stainless Steel Mounting... -
Page 13: Selecting The Mounting Area
Selecting the Mounting Area This Hybrid Inverter is designed for outdoor use (IP65), DO NOT install the inverter in the following areas: Areas with high salt content, such as the marine environment. It will deteriorate the metal parts and ƒ possibly lead to water/dampness penetrating the unit. -
Page 14: Mounting The Inverter
Install the indoor unit on the wall where the floor height is higher than 1600mm. ƒ For proper heat dissipation, allow a clearance of approximately 500mm to the side, 500mm above and ƒ below the unit, and 1000mm to the front of the unit. WARNING For proper air circulation to dissipate heat, allow a clearance of approx. -
Page 15: Battery Connection
12 mm (0.47 in.) 82~90mm [(3.23 in.)to(3.54 in.)] Battery Connection For safe operation and compliance, a separate DC over-current protector or disconnect device is required between the battery and the inverter. Switching devices may not be required in some applications, but over-current protectors are still required. - Page 16 Please follow the below steps to implement battery connection: Please choose a suitable battery cable with the correct connector which can well fit into the battery ƒ terminals. Use a suitable screwdriver to unscrew the bolts and fit the battery connectors in, then fasten the bolt ƒ...
-
Page 17: Function Port Definition
Function Port Definition Inverter 1 2 3 4 5 6 7 8 9 10 ATS_240V BMS 485/CAN DRMs Meter Parallel_A Parallel_B BMS 485/CAN: for battery communication. Meter: for energy meter communication. Parallel A: Parallel communication port 1 Batt Temp Sensor (CAN interface). -
Page 18: Lead-Acid Battery Temperature Sensor
Lead-Acid Battery Temperature Sensor Temp. sensor SINGLE PHASE HI 10/12kW | User Manual... -
Page 19: Connecting The Ac
Connecting the AC Before connecting to the grid, a separate AC breaker must be installed between the inverter and the grid, and also between the backup load and the inverter. This will ensure the inverter can be securely disconnect- ed during maintenance and fully protected from over current. For the 10/12kW model, the recommended AC breaker for backup load is 100A. -
Page 20: Recommended Ac Surge Protector
LOAD GRID GEN PORT GRID GEN PORT LOAD Recommended AC Surge Protector SINGLE PHASE HI 10/12kW | User Manual... -
Page 21: Pv Connection
PV Connection Before connecting to PV modules, please install a separate DC circuit breaker between the inverter and PV modules. It is very important for system safety and efficient operation to use appropriate cable for PV mod- ule connection. To reduce the risk of injury, please use the proper recommended cable size as below. Model Wire Size Cable (mm... -
Page 22: Pv Protection
Installing the CT Coil The CT coil is one of the most important parts of the Sunsynk Parity inverter. This device reduces the power of the inverter to prevent feeding power to the grid. This feature is also known as “Zero Export”. - Page 23 Inverter White wire Black wire Arrow pointing to inverter Grid The primary side of the CT needs to be clamped on the If the data read by the CT is wrong, you can try to point Grid live line. the direction of the CT to the grid. If the CT coil is fitted in the wrong way then this variable will have negative instead of positive values when the...
-
Page 24: Meter Connection
Meter Connection System Connection for the CHNT Meter Inverter Breaker Meter Parallel_A Parallel_B System connection diagram for the CHNT meter Output RS 485 Grid input Grid DDSU666 DIN-RAIL METER 230V 5(60) A 800imp/kWh RS485A RS485B CHNT meter CHNT DDSU666 Earth Connection (MANDATORY) An Earth Cable shall be connected to the earth plate on the grid size in order to prevent electric shock if the original protective conductor fails. - Page 25 Since the inverter is a true hybrid, then the bond must only be made when the inverter is operating in Islanding Mode. To accommodate this, Sunsynk provides an AC output, which is connected to the A/T/S connections whenever the inverter is running on Island Mode. Therefore, you can simply connect the coil of an AC relay to the ATS 240 connections.
-
Page 26: Wiring System For Inverter
Wiring System for Inverter This diagram is an example for grid systems without special requirements on electrical wiring connection. DC Breaker Note: The back-up PE line and earthing bar must be grounded properly and effectively. Otherwise the back-up function may be abnormal when the grid fails. AC Breaker Load Battery... -
Page 27: Typical Application Of Diesel Generator
Remotely control signal line 1. DC Breaker Generator Battery Pack 1. DC Breaker for battery SUNSYNK-10K-SG02LP1: 300A DC breaker SUNSYNK-12K-SG02LP1: 300A DC breaker Backup Load 2. AC Breaker for gen port SUNSYNK-10K-SG02LP1: 100A AC breaker SUNSYNK-12K-SG02LP1: 100A AC breaker 3. AC Breaker for backup load port... -
Page 28: Single-Phase Parallel Connection
Parallel A Parallel B (slave) Ground Inverter Inverter 1/2/3. DC Breaker for battery 1. DC SUNSYNK-10K-SG02LP1: 300A DC breaker No.2 Breaker SUNSYNK-12K-SG02LP1: 300A DC breaker (slave) 5/7/9. AC Breaker for grid port SUNSYNK-10K-SG02LP1: 100A AC breaker SUNSYNK-12K-SG02LP1: 100A AC breaker 4/6/8. - Page 29 Inverter 1. DC Breaker Inverter 1/2/3. DC Breaker for battery No.2 SUNSYNK-10K-SG02LP1: 300A DC breaker (slave) SUNSYNK-12K-SG02LP1: 300A DC breaker 5/7/9. AC Breaker for gen port SUNSYNK-10K-SG02LP1: 100A AC breaker SUNSYNK-12K-SG02LP1: 100A AC breaker 4/6/8. AC Breaker for backup load port 2.
-
Page 30: Three-Phase Parallel Inverter
Three-Phase Parallel Inverter SINGLE PHASE HI 10/12kW | User Manual... - Page 31 SINGLE PHASE HI 10/12kW | User Manual...
-
Page 32: Operation
OPERATION Switching ON/OFF Once the inverter has been correctly installed and the batteries have been connected, press the ON/OFF button (located on the left side of the case) to activate the system. When the system is connected without a battery but connected with either PV or grid and the ON/OFF button is switched off, the LCD will still illumi- nate (display will show off). -
Page 33: Lcd Operation Flow Chart
LCD Operation Flow Chart Solar Page Solar Graph Grid Page Grid Graph Inverter Page Battery Page BMS Page HOME PAGE Load Page Load Graph Basic Setting Battery Settings Grid Settings System Mode System Setup Advanced Settings Aux Load Settings Fault Codes Li BMS Settings SINGLE PHASE HI 10/12kW | User Manual... -
Page 34: Home Page
Home Page Press the Esc button any page to access the home page: 1. Customer name 2. Access the settings menu page 3. Access solar page 4. Access load page 5. Access battery page SOLAR/TURBINE AC load 6. Access grid page 7. -
Page 35: System Flow Page
What this page displays: Total solar power produced. Inverter voltage. ƒ ƒ MPPT 1 power/voltage/current. Inverter current. ƒ ƒ MPPT 2 power/voltage/current. Load power. ƒ ƒ Grid power. Load voltage. ƒ ƒ Grid frequency. Battery power charge/discharge. ƒ ƒ Grid voltage. Battery SOC. -
Page 36: Setup Page
What this page displays: The system flow. Battery status. ƒ ƒ MPPTs power. Power distribution to load or grid. ƒ ƒ Setup Page To access Settings, click on the gear icon on the right top of the navigation menu. What this page displays: Serial number. -
Page 37: Basic Setup
Basic Setup Set Time (Clock) To set time, click on the BASIC icon and then on ‘Time’ What this page displays: Time. ƒ Date. ƒ AM/PM. ƒ What you can do from this page: Adjust / set time. ƒ Adjust / set date. ƒ... -
Page 38: Factory Reset And Lock Code
Locked Inverter: This function is used to lock the inverter completely so no access can be gained. It will ƒ ask for a 5-digit code that only the Sunsynk Technical staff can assist with. Test mode (only for engineers): For engineers to conduct tests. -
Page 39: Inverter Remote Control
Inverter Remote Control To control the inverter remotely, tick the box that allows it. What this page displays: Remote control option. ƒ What you can do from this page: Allows remote control of the inverter. ƒ Battery Setup Page To configure battery settings, click on the BATTERY icon and then on ‘Batt type’. What this page displays: Battery capacity in (Ah): For non-BMS-batteries the range allowed is 0-2000Ah, while for lithium-ion, ƒ... -
Page 40: Generator & Battery Page
NOTE: Recommended: AGM and Flooded: Ah battery size x 20% = Charge/Discharge amps. Lithium: Ah battery size x 50% = Charge/Discharge amps. Gel: follow manufacturer' s instructions. Generator & Battery Page To configure battery charging settings, click on the BATTERY icon and then on ‘Batt Charge’. What this page displays: Amps: Charge rate of 40A from the attached generator in Amps. - Page 41 1Amp 12V. Below is a simple reference circuit of an auto-start system that can auto-start generators on a boat. (Sunsynk will be releasing a new OS E406 ( Auto-Start ) for better generator control).
-
Page 42: Battery Discharge Page
Battery Discharge Page To configure inverter’s shut-down settings, click on the BATTERY icon and then on ‘Shut Down’. SINGLE PHASE HI 10/12kW | User Manual... - Page 43 Activating Shutdown causes the inverter to enter standby-mode. It does not entirely shut down the inverter. Total shutdown occurs at voltages below 19V. The voltage displayed on the Sunsynk Parity Inverter will vary depending on whether the inverter is charging or discharging the batteries.
-
Page 44: Setting Up A Lithium Battery
The batteries recommended for use with the Sunsynk systems are AGM Lead Acid or Lithium Battery Banks. At its core, an AGM is still a lead-acid battery. AGM stands for Absorbent Glass Mat, which refers to the tech- nology these devices use to create power. This fiberglass mat sits between the positive and negative lead plates of your battery. - Page 45 NOTE: With some types of lithium batteries, the BMS cannot be controlled by the Sunsynk inverter. In this case, treat the battery as a lead-acid type and set the charging and discharging protocol following the battery manufacturer's specifications.
- Page 46 RS485 Inverter Brand Model Storage Notes or CAN Setup Inverter US2000B RS485 US3000 RS485 US2000C RS485 US3000C RS485 PYLON UP5000 RS485 US5000 RS485 Force L1 RS485 Force L2 RS485 L051100-A L051100-A1 UZ ENERGY L051100-B L051100-D ESS-5120 RS485 ESS-10240 RS485 ESS-BOX2 RS485...
- Page 47 RS485 Inverter Brand Model Storage Notes or CAN Setup Inverter GSL051100A-B-GBP2 GSL051200A-B-GBP2 GSL051280A-B-GBP2 GSL ENERGY ZnP48100ESA1 GSL-51-100 GSL-51-200 IPACK C3.3 DOWELL IPACK C6.5 IPACK C10 G2500-48V Giter G5040-48V CFE2400 CF Energy CFE5100 CFE5100S Batterich/ UP3686 Greenrich BYD Battery-Box LV Flex Lite 48NPFC80...
- Page 48 RS485 Inverter Brand Model Storage Notes or CAN Setup Inverter ZR-FC48100-1630J1 ZR-FS4850-16OSJ1 ZRGP ZR-FS48100-16OSJ1 ZR-PBX1 U-P48200-7 U-P48100-7 U-P48150-1 L01-48100 DMEGC L02-48200 LR48100 Robuste LR48200 4K Pack Soluna 5K Pack EOS-5K Pack REVOV R100 Powerfree Rack PAND Powerfree Cube CLiS (Zhong- neng Lithi- um Battery Enerhi-M Series...
- Page 49 RS485 Inverter Brand Model Storage Notes or CAN Setup Inverter VOLTA STAGE1 VOLTA STAGE2 VOLTA VOLTA STAGE3 VOLTA STAGE4 LM-JW-51.2V100Ah LEMAX LM-JW-51.2V200Ah EVO 5.7KWH 48V-120Ah Yoshopo BB-LFP-100Ah-P Gen2 P48200-7 GEN2 Gen2 P48100-7 Gen2 P48150-1 51.2V 100Ah Shanghai Green GTEM-48V2500 RS485 Tech Co.,Ltd.
-
Page 50: Program Charge & Discharge Times
Solar Export: The ability to limit power supply to only the household loads. ƒ Priority to Load Only: Set the power limits to supply only the loads connected to the LOAD port. ƒ Fast_Zero_Export_Mode: Contact Sunsynk for more information. ƒ SINGLE PHASE HI 10/12kW | User Manual... - Page 51 If nothing ticked: This Mode allows the hybrid inverter to sell back any excess power produced by the solar panels to the grid. If the use time is active, the battery energy can also be sold into the grid. The PV energy will be used to power the load and charge the battery, and then excess energy will flow to the grid.
- Page 52 Set the unit to charge the battery from the grid or generator ticking ‘Grid’ or ‘Gen’ and set what times this ƒ needs to occur. Set the time to discharge the unit to the load or export to the grid by unticking ‘Grid’ and ‘Gen’. ƒ...
- Page 53 Example: This example shows the battery being charged up to 100% by both the Grid and Solar PV from 8 a.m. to 11 a.m. and then being able to supply up to 4kW of battery-power to the ‘essential’ loads from the ‘Load’ Port until the battery SOC drops to 50%.
-
Page 54: Grid Supply Page
Example: During 01:00-05:00, when the battery SOC is lower than 80%, it will use the grid to charge the battery until the battery SOC reaches 80%. During 05:00-08:00 and 08:00-10:00, when battery SOC is higher than 40%, the hybrid inverter will discharge the battery until the SOC reaches 40%. - Page 55 What this page displays: Normal connect: The allowed grid voltage/frequency range when the inverter first time connects to the ƒ grid. Normal Ramp rate: It is the startup power ramp. ƒ Reconnect after trip: The allowed grid voltage/frequency range for the inverter connects the grid after ƒ...
- Page 56 What this page displays: FW: This series inverter is able to adjust inverter output power according to grid frequency. ƒ Droop f: The percentage of nominal power per Hz. ƒ For example: “Start freq f>50.2Hz, Stop freq f<50.2, Droop f=40%PE/Hz” when the grid frequency reaches 50.2Hz, the inverter will decrease its active power at Droop f of 40%.
- Page 57 What this page displays: P(Q): It adjusts the inverter reactive power according to the set active power. ƒ P(PF): It adjusts the inverter PF according to the set active power. ƒ Lock-in/Pn 50%: When the inverter output active power is less than 50% rated power, it won't enter the ƒ...
-
Page 58: Paralleling Inverters Advanced Settings
Select the corresponding meter type according to the meter installed in the system. ƒ The Sunsynk parity inverter can be wired standalone or where more power is required it can be connected in parallel either single or 3 phase configuration. The maximum number of inverters that can be paral- leled in a single phase utility grid is 16 and the maximum number that can be paralleled in a three phase utility grid is 15A. - Page 59 Each inverter will require a fuse isolator with surge protection and each group circuit will require an RCD. If the batteries as supplying power to the main load during the outage, then a change over switch will also be required or a split load can be used. The CT coils used to limit export power must only be connected to the master.
- Page 60 If you need further help please refer to the Sunsynk website where you will find training videos and Fre- quently Asked Questions www.sunsynk.com. Firmware prior installation is important to be updated and all inverters in parallel or three phase system must be the same.
-
Page 61: Connecting The Drm's
Connecting the DRM’s This can be selected under advance settings. This can be selected under advance settings. 1. DRM 1/5 5. Ref 0 2. DRM 2/6 6. D Ground 3. DRM 3/7 7. Net J 4-7 4. DRM 4/8 8. Net J 4-7 SINGLE PHASE HI 10/12kW | User Manual... -
Page 62: Advanced Function Setup
Advanced Function Setup Inverter Inverter load port shell Ground cable 230V external relay External relay coil open contact Grid peak shaving: When this is selected, the grid output power will be limited within the set value. If ƒ the load power exceeds the allowed value, it will take PV energy and stored battery energy to supple- ment. -
Page 63: Grid Power
Grid Power This page shows the Daily / Monthly / Yearly and total grid power export or consumed. Access this page by clicking on the ‘Solar/Turbine’ icon on the home page. SINGLE PHASE HI 10/12kW | User Manual... -
Page 64: Advanced Settings For Wind Turbines
Advanced Settings for Wind Turbines To configure wind turbine settings, click on the ADVANCE icon. This is for Wind Turbine 16.5 What this page displays: If one or both of the MPPTs are connected to a wind turbine. ƒ What you can do from this page: Select the MPPT to be used as a turbine input. -
Page 65: Advanced Settings For Auxiliary Load
Most wind turbines are three-phase PM type. Therefore, either a wind turbine controller or a direct connec- tion to the MPPT via a simple protection circuit will be required. Dump Load or Diversion Load is an important part of an off-grid power system. When the battery ( Battery Bank ) is fully charged, and the water turbine / wind turbine / solar PV module is still generating, a dump load is a useful device to send spare electricity to. - Page 66 For Gen Input mode: Gen Input: Tick this box if using a Generator. Allowed Max. power from diesel generator. ƒ Peak shaving power: This is a technique used to reduce electrical power consumption during periods ƒ of maximum demand on the utility grid. This enables the user to save substantial amounts of money due to the expensive peak power charges.
- Page 67 On Grid always on: When click "on Grid always on" the smart load will switch on when the grid is pres- ƒ ent. Solar Power: Power limiter to the maximum power allowed to the Aux load. ƒ Aux Load OFF Batt Battery SOC at which the Smart load will switch off. ƒ...
-
Page 68: Operation Modes
OPERATION MODES Mode I: Basic AC cable DC cable COM cable Backup Load On-Grid Home Load Solar Battery Grid Mode II: Generator AC cable DC cable Backup Load On-Grid Home Load Solar Grid Battery Generator SINGLE PHASE HI 10/12kW | User Manual... -
Page 69: Mode Iii: With Aux-Load
Mode III: With Aux-Load AC cable DC cable Backup Load On-Grid Home Load Solar Grid Battery Smart Load Mode IV: AC Couple On-Gen+AC couple AC cable DC cable On-Grid Home Load Grid Solar Backup Load Battery On-Grid Inverter SINGLE PHASE HI 10/12kW | User Manual... - Page 70 On-Load+AC couple AC cable DC cable On-Load+AC couple AC cable DC cable On-Grid Inverter Backup Load On-Grid Inverter Backup Load Solar Solar On-Grid Home Load On-Grid Home Load Battery Battery Grid Smart Load Grid Smart Load On-Grid+AC couple AC cable DC cable On-Grid+AC couple AC cable...
-
Page 71: Fault Codes
2. If the fault still exists, please get in touch with us for help. Inverter work mode changed 1.Reset the inverter. Working Mode Change 2.Seek help from Sunsynk. AC Slide over current fault. AC over current fault or 1.Check if the backup load power is within the range of the hardware inverter. - Page 72 Error Code Description Solutions DC side over current fault 1. Check PV module connect and battery connect; 2. When in the off-grid mode, the inverter startup with a big DC over current fault of the power load, and it may report F20. Please reduce the load hardware power connected.;...
- Page 73 Error Code Description Solutions Grid frequency out of range 1.Check if the frequency is in the range of specification AC_OverFreq_Fault 2.You may need to adjust the frequency on the grid set up page. Grid frequency out of range 1. Check the frequency is in the range of specification or not. AC_UnderFreq_Fault 2.
- Page 74 Chapter 3, ‘Technical Specifications’. If you need further help please refer to the Sunsynk website where you will find training videos and frequent- ly asked questions www.sunsynk.com.
-
Page 75: Commissioning
COMMISSIONING Start-Up / Shutdown Procedure The inverter must be installed by a qualified / licensed electrical engineer in accordance with the country's wiring regulations. Before switching on, the installation engineer must have completed the Earth Bond, RCD and earth leakage tests, checked that the solar panel Voc voltage does not exceed 480V and checked the battery voltage. -
Page 76: Gdfi Fault
Ensure you are familiar This is the heart of the with this, if you fully under- See section ‘Program system this controller stand the controller you Charge / Discharge Times’ everything will fully appreciate the ca- pabilities of there inverter If paralleling inverters in 3 Phase check you phase If using a wind turbine... - Page 77 APPENDIX A The following table is the connection on battery side of SSLB1: Protocol Description Pin 1: CAN-H Pin 5: CAN-L Pin 2, 3, 4, 6, 7, 8: NC Pin 1: RS485B Pin 2: RS485A Pin 3, 6: GND RS485 Pin 7: RS485A Pin 8: RS485B Pin 4, 5: NC...
- Page 78 Instantaneous APPENDIX E The Sunsynk inverter can be connected to the internet, but you need to add a data logger to do this. The inverter is compatible with Solar Man data-loggers, which you can obtain from us with your distributor 1.
- Page 79 Sunsynk, 17 Turnstone Business Park, Mulberry Avenue, Widnes, Cheshire, WA8 0WN. Call us SA: +27 10 100 3589 Globaltech Sunsynk South Africa (Pty) Ltd, Unit 2 Highview Boulevard, Ferndale 2194. Call us NL: +31 40 798 7136 Sunsynk EU, Henri Wijnmalenweg 8, 5657 EP Eindhoven, Netherlands.
