Summary of Contents for SunSynk SUNSYNK-29.9K-SG01HP3-EU-BM3

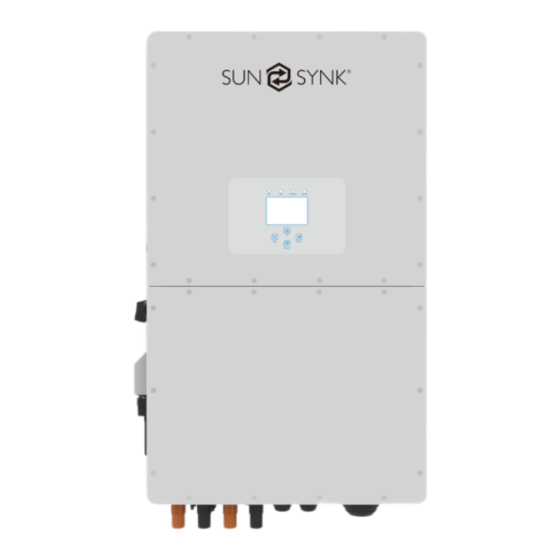

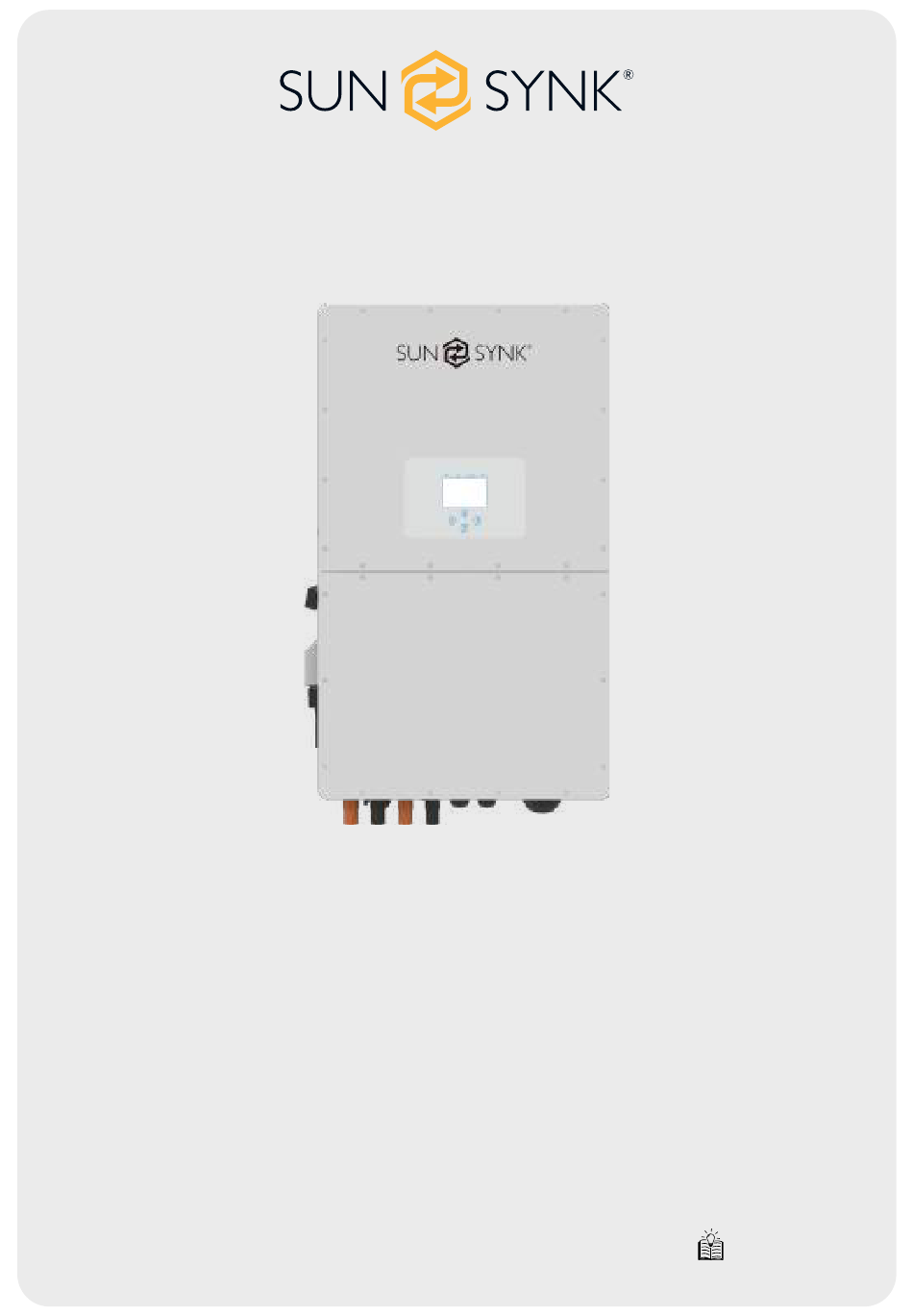

- Page 1 THREE-PHASE HYBRID INVERTER INSTALLER MANUAL SUNSYNK-29.9K-SG01HP3-EU-BM3 SUNSYNK-30K-SG01HP3-EU-BM3 SUNSYNK-35K-SG01HP3-EU-BM3 SUNSYNK-40K-SG01HP3-EU-BM4 SUNSYNK-50K-SG01HP3-EU-BM4 www.sunsynk.com sales@sunsynk.com customerservices@sunsynk.com PLEASE RETAIN FOR v.23 (10/17/23) FUTURE REFERENCE...
- Page 2 The manufacturer's warranty does not cover any damage resulting from the neglect of these instructions. Sunsynk assumes no liability for damage caused by the operation contrary to what is specified in this operating manual.
-
Page 3: Table Of Contents
Table of Contents SAFETY Status Page System Flow Page General Safety Setup Page Symbols/Safety Signs Basic Setup Safety Instructions Set Time (Clock) Product Disposal Set Company Name / Beeper / Auto dim Factory Reset and Lock Code PRODUCT INTRODUCTION Inverter Remote Control System Overview Battery Setup Page Product Size... -
Page 4: Safety
SAFETY General Safety This device should only be used in accordance with the instructions within this manual and in compli- ƒ ance with local, regional, and national laws and regulations. Only allow this device to be installed, oper- ated, maintained, and repaired by other people who have read and understood this manual. Ensure the manual is included with this device should it be passed to a third party. - Page 5 15.70 A V DC 48 V V DC 48 V AC OUTPUT BATTERY INPUT 230V V DC 48 V Output Voltage, Input Voltage Type, Ac 230V Battery Discharge Voltage, Battery 15.70 A Output Rated Current, Max AC Current, 15.70 A Discharge Current, Input Voltage Type, Output Frequency, Max AC ISC, Power Battery Discharge Power.
-
Page 6: Safety Instructions
WARNING HIGH LIFE RISK DUE TO FIRE OR ELECTROCUTION. Sunsynk Three-Phase Hybrid Inverter can only be installed by a qualified licensed electrical contractor. This is not a DIY product. This chapter contains important safety and operating instructions. Read and keep this manual for future ƒ... -
Page 7: Product Introduction
PRODUCT INTRODUCTION The Sunsynk Three-Phase Hybrid Inverter is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications. -
Page 8: Product Size
Product Size Inverter Size THREE PHASE HI 29.9/50kW | Installer Manual... -
Page 9: Features
Features INTERACTIVE Easy and straightforward to understand LCD display; ƒ Supporting Wi-Fi or GSM monitoring; ƒ Visual power flow screen; ƒ Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker; ƒ Smart settable 3-stage MPPT charging for optimised battery performance; ƒ... -
Page 10: Basic System Architecture
Basic System Architecture The following diagram explains the basic application and architecture of this 3-Phase Inverter. It also includes the following devices to have a Complete running system. Generator or Utility ƒ PV modules ƒ Batteries ƒ Normal and smart loads ƒ... -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS SUNSYNK- SUNSYNK- SUNSYNK- SUNSYNK- SUNSYNK- Model 29.9K-SG01HP3- 30K-SG01HP3- 35K-SG01HP3- 40K-SG01HP3- 50K-SG01HP3- EU-BM3 EU-BM3 EU-BM3 EU-BM4 EU-BM4 Battery Input Date Battery Type Li-Ion Battery Voltage Range 160~800V Max. Charging Current 50A+50A Max. Discharging Current 50A+50A Number of battery input... - Page 12 SUNSYNK- SUNSYNK- SUNSYNK- SUNSYNK- SUNSYNK- Model 29.9K-SG01HP3- 30K-SG01HP3- 35K-SG01HP3- 40K-SG01HP3- 50K-SG01HP3- EU-BM3 EU-BM3 EU-BM3 EU-BM4 EU-BM4 Protection PV Input Lightning Pro- Integrated tection Anti-islanding Protection Integrated PV String Input Reverse Integrated Polarity Protection Insulation Resistor De- Integrated tection Residual Current Moni-...
-
Page 13: Installation
INSTALLATION Parts List Check the equipment before installation. Please make sure nothing is damaged in the package. You should have received the items in the following package: Hybrid Inverter Wall Mounting Stainless Steel Anti-Colli- Bracket x1 sion Bolt M12x60 x4 Stainless Steel Mounting Parallel Communication L-type Hexagon Wrench... -
Page 14: Selecting The Mounting Area
Selecting the Mounting Area For proper heat dissipation, allow a clearance of approximately 500mm to the side, 500mm above and below the unit, and 1000mm to the front of the unit. DO NOT install the inverter in the following areas: Areas with high salt content, such as the marine environment. -
Page 15: Mounting The Inverter
If children under 10 years old may approach the unit, take preventive measures so they cannot reach ƒ and touch the unit. Install the indoor unit on the wall where the floor height is higher than 1600mm. ƒ Before connecting all wires, please take the metal cover off, removing the screws as shown below: Mounting the Inverter Select installation locations that are adequate to support the weight of the converter. -
Page 16: Battery Connection
Inverter Hanging Plate Installation Battery Connection For safe operation and compliance, an individual DC overcurrent protector or disconnection device is required to connect the battery and the inverter. Users are recommended to utilise a suitable fuse and DC isolator (see next page). Switching devices may not be required in some applications, but overcurrent pro- tectors must be used. - Page 17 Please follow below steps to implement battery connection: 1. Pass the cable through the terminal: 2. Put on the rubber ring: 3. Crimp terminals: 4. Fasten terminal with a bolt: 5. Fasten the terminal with outer cover: Battery Port Battery Port BMS connection BMS connection Pass the BMS communication cable...
-
Page 18: Function Port Definition
Function Port Definition Inverter Meter Parallel_1 Parallel_2 BMS1 BMS2 RS485 1 2 3 4 5 6 7 8 9 10 111 2 1 2 3 4 5 6 7 8 9 10 111 2 SHUT DOWN Meter: For energy meter communication. -
Page 19: Grid And Backup Load Connection
29.9/30/35/40/50KW model, the recommended AC breaker for grid is 240A. There are three terminal blocks marked as GRID, LOAD, and GEN. Please do not confuse input and output connections. External AC SPD is compulsory on all Sunsynk inverters. WARNING All wiring must be performed by qualified personnel. System safety and efficient operation need to use appropriate cable for AC input connection. -
Page 20: Pv Connection
1. Switch the Grid Supply Main Switch (AC) OFF. 2. Switch the DC isolator OFF. 3. Assemble PV input connector to the inverter. 4. Use the MC4 connectors supplied by Sunsynk with the inverter. THREE PHASE HI 29.9/50kW | Installer Manual... - Page 21 WARNING Before connection, please ensure the polarity of the output voltage of the PV array matches the DC+ and DC- symbols. Please do not connect the PV array's positive and negative poles to the ground. This can seriously damage the inverter. Before connecting the inverter, please make sure the PV array open-circuit voltage is within the maxi- mum limit of the inverter.
-
Page 22: Connecting The Ct Coil
Connecting the CT Coil The CT coil is one of the most important parts of the Sunsynk inverter. This device reduces the power of the inverter to prevent feeding power to the grid. This feature is also known as “Zero Export”. -
Page 23: Meter Connection
NOTE: When the reading of the load power on the LCD is not correct, please reverse the CT arrow. When the inverter is in the off-grid state, the N line needs to be connected to the earth. Meter Connection CHNT Meter GRID Inverter Meter... -
Page 24: Chnt Meter With Ct Coil
CHNT Meter with CT Coil GRID Inverter Meter Parallel_1 Parallel_2 Breaker RS485A RS485B AC Breaker Home Load Three-Phase Smart Meter Grid 6 9 10 1314 16171921 (3,6,9,10) Three-Phase Smart Meter RS 485 CHNT Meter 230/400V,3~ 250A/50mA 50/60Hz ： CHNT DTSU666 NOTE: When the inverter is in the off-grid state, the N line needs to be connected to the earth. -
Page 25: Earth Connection (Mandatory)
Earth Connection (MANDATORY) Ground cable shall be connected to ground plate on grid side this prevents electric shock if the original pro- tective conductor fails. Model Wire Size Cable (mm Torque Value (max) 29.9/30/35/40/50kW 0 AWG 53.5 20.3Nm The conductor should be made of the same metal as the phase conductors. NOTE: Only for South Africa –... -
Page 26: Wiring System For Inverter
Wiring System for Inverter THREE PHASE HI 29.9/50kW | Installer Manual... -
Page 27: Wiring Diagram
Wiring Diagram THREE PHASE HI 29.9/50kW | Installer Manual... - Page 28 3. AC Breaker Backup Load 4. AC Breaker Home Load 1. DC Breaker for battery SUNSYNK-29.9K-SG01HP3-EU-BM3: 200A DC breaker SUNSYNK-30K-SG01HP3-EU-BM3: 200A DC breaker SUNSYNK-35K-SG01HP3-EU-BM3: 200A DC breaker SUNSYNK-40K-SG01HP3-EU-BM4: 200A DC breaker SUNSYNK-50K-SG01HP3-EU-BM4: 200A DC breaker 2. AC Breaker for backup load SUNSYNK-29.9K-SG01HP3-EU-BM3: 240A AC breaker...
-
Page 29: Typical Application Of Diesel Generator
1. DC Breaker 2. AC Breaker Battery pack 1. DC Breaker for battery SUNSYNK-29.9K-SG01HP3-EU-BM3: 200A DC breaker SUNSYNK-30K-SG01HP3-EU-BM3: 200A DC breaker SUNSYNK-35K-SG01HP3-EU-BM3: 200A DC breaker SUNSYNK-40K-SG01HP3-EU-BM4: 200A DC breaker SUNSYNK-50K-SG01HP3-EU-BM4: 200A DC breaker Backup Load 2. AC Breaker for backup load SUNSYNK-29.9K-SG01HP3-EU-BM3: 240A AC breaker... -
Page 30: Three Phase Parallel Connection
Battery pack Inverter Inverter No.2 (slave) Ground 4/6/8. AC Breaker for grid port SUNSYNK-29.9K-SG01HP3-EU-BM3: 240A AC breaker SUNSYNK-30K-SG01HP3-EU-BM3: 240A AC breaker SUNSYNK-35K-SG01HP3-EU-BM3: 240A AC breaker Battery pack SUNSYNK-40K-SG01HP3-EU-BM4: 240A AC breaker SUNSYNK-50K-SG01HP3-EU-BM4: 240A AC breaker 5/7/9. AC Breaker for backup load SUNSYNK-29.9K-SG01HP3-EU-BM3: 240A AC breaker... -
Page 31: Operation
OPERATION Switching ON/OFF Once the inverter has been correctly installed and the batteries have been connected, press the ON/OFF button (located on the left side of the case) to activate the system. When the system is connected without a battery but connected with either PV or grid and the ON/OFF button is switched off, the LCD will still illumi- nate (display will show off). -
Page 32: Lcd Operation Flow Chart
LCD operation flow chart Solar Page Solar Graph Grid Page Grid Graph Inverter Page Battery Page BMS Page HOME PAGE Load Page Load Graph Basic Setting Battery Settings Grid Settings System Mode System Setup Advanced Settings Aux Load Settings Fault Codes Li BMS Settings THREE PHASE HI 29.9/50kW | Installer Manual... -
Page 33: Home Page
Home page Press the Esc button any page to access the home page: 1. Customer name 2. Access the settings menu page 3. Access solar page 4. Access load page 5. Access battery page SOLAR/TURBINE AC load 6. Access grid page 7. -
Page 34: System Flow Page
What this page displays: Total solar power produced. Inverter voltage. ƒ ƒ MPPT 1 power/voltage/current. Inverter current. ƒ ƒ MPPT 2 power/voltage/current. Load power. ƒ ƒ Grid power. Load voltage. ƒ ƒ Grid frequency. Battery power charge/discharge. ƒ ƒ Grid voltage. Battery SOC. -
Page 35: Setup Page
What this page displays: The system flow. Battery status. ƒ ƒ MPPTs power. Power distribution to load or grid. ƒ ƒ Essential Loads Setup Page To access Settings, click on the gear icon on the right top of the navigation menu. What this page displays: Serial number. -
Page 36: Basic Setup
Basic Setup Set Time (Clock) To set time, click on the BASIC icon and then on ‘Time’ What this page displays: Time. ƒ Date. ƒ AM/PM. ƒ What you can do from this page: Adjust / set time. ƒ Adjust / set date. ƒ... -
Page 37: Factory Reset And Lock Code
Locked Inverter: This function is used to lock the inverter completely so no access can be gained. It will ask for a 5-digit code that only the Sunsynk Technical staff can assist with. Test mode (only for engineers): For engineers to conduct tests. -
Page 38: Inverter Remote Control
Inverter Remote Control To control the inverter remotely, tick the box that allows it. What this page displays: Remote control option. ƒ What you can do from this page: Allows remote control of the inverter. ƒ Battery Setup Page To configure battery settings, click on the BATTERY icon and then on ‘Batt type’. What this page displays: Lithium: This is BMS protocol. -
Page 39: Generator & Battery Page
Generator & Battery Page To configure battery charging settings, click on the BATTERY icon and then on ‘Batt Charge’. What this page displays: Amps: Charge rate of 40A from the attached generator in Amps. ƒ Grid Amps: Current that the grid charges the battery. ƒ... - Page 40 1Amp 12V. Below is a simple reference circuit of an auto-start system that can auto-start generators on a boat. (Sunsynk will be releasing a new OS E406 ( Auto-Start ) for better generator control).
-
Page 41: Battery Discharge Page
Battery Discharge Page To configure inverter’s shut-down settings, click on the BATTERY icon and then on ‘Shut Down’. What this page displays: Shutdown 20%: It indicates the inverter will shutdown if the SOC is below this value. ƒ Low Batt 20%: It indicates the inverter will alarm if the SOC below this value. ƒ... -
Page 42: Setting Up A Lithium Battery
Setting Up a Lithium Battery To set up a lithium-ion battery, click on the BATTERY icon and visit the ‘Batt Type’ column. What this page displays: This information will only display if the ‘Lithium’ option is selected under ‘Batt Type’. ƒ... - Page 43 NOTE: With some types of lithium batteries, the BMS cannot be controlled by the Sunsynk inverter. In this case, treat the battery as a lead-acid type and set the charging and discharging protocol following the battery manufacturer's specifications. It is crucial to refer to the manuals that manufacturers produce for their batteries. That way, the chance of errors occurring during installation is significantly reduced.
- Page 44 Dowell iPack CHV Series Sunova Ess GT4100-E Serie HVS Series/HVM Series CAN H: Pin 5 InnergratorHV-Series CAN L: Pin 4 SUNSYNK CAN H: Pin 4 SUN-BATT-80 CAN L: Pin 5 BN624V-105-66K HV BN728V-105-77K HV CAN H: Pin 7 BN572V-280-160K HV...
-
Page 45: Program Charge & Discharge Times
Program Charge & Discharge Times To set ‘Charge’ and ‘Discharge’ times, click on the ‘System Mode’ icon after clicking on the gear icon. What this page displays: Zero Export: A setting to prevent the inverter exporting power to the grid. ƒ... - Page 46 ZeroExport: The hybrid inverter will not only provide power to the backup load connected but also give power to the home load connected. If PV power and battery power are insufficient, it will take grid energy as a supplement. The hybrid inverter will not sell power to the grid. In this mode, a CT is needed. For the installation method of the CT, please refer to the chapter "CT Connection".
- Page 47 Concerning the detailed next figures: 1. Tick this box to not export power back to the grid (the CT coil will detect power flowing back to the grid and will reduce the power of the inverter only to supply the local load). 2.
- Page 48 Example: This example shows the battery being charged up to 100% by both the Grid and Solar PV from 8 a.m. to 11 a.m. and then being able to supply up to 4kW of battery-power to the ‘essential’ loads from the ‘Load’ Port until the battery SOC drops to 50%.
-
Page 49: Grid Supply Page
Example: During 01:00-05:00, when the battery SOC is lower than 80%, it will use the grid to charge the battery until the battery SOC reaches 80%. During 05:00-08:00 and 08:00-10:00, when battery SOC is higher than 40%, the hybrid inverter will discharge the battery until the SOC reaches 40%. - Page 50 What this page displays: Normal connect: The allowed grid voltage/frequency range when the inverter first time connects to the ƒ grid. Normal Ramp rate: It is the startup power ramp. ƒ Reconnect after trip: The allowed grid voltage/frequency range for the inverter connects the grid after ƒ...
- Page 51 What this page displays: FW: This series inverter is able to adjust inverter output power according to grid frequency. ƒ Droop f: The percentage of nominal power per Hz. ƒ For example: “Start freq f>50.2Hz, Stop freq f<50.2, Droop f=40%PE/Hz” when the grid frequency reaches 50.2Hz, the inverter will decrease its active power at Droop f of 40%.
- Page 52 What this page displays: P(Q): It adjusts the inverter reactive power according to the set active power. ƒ P(PF): It adjusts the inverter PF according to the set active power. ƒ Lock-in/Pn 50%: When the inverter output active power is less than 50% rated power, it won't enter the ƒ...
-
Page 53: Paralleling Inverters Advanced Settings
Set the Modbus SN for paralleling. ƒ The Sunsynk parity inverter can be wired standalone or where more power is required it can be connected in parallel either single or 3 phase configuration. The maximum number of inverters that can be paral- leled in a single phase utility grid is 16 and the maximum number that can be paralleled in a three phase utility grid is 15A. - Page 54 Each inverter will require a fuse isolator with surge protection and each group circuit will require an RCD. If the batteries as supplying power to the main load during the outage, then a change over switch will also be required or a split load can be used. The CT coils used to limit export power must only be connected to the master.
- Page 55 If you need further help please refer to the Sunsynk website where you will find training videos and Fre- quently Asked Questions www.sunsynk.com. Firmware prior installation is important to be updated and all inverters in parallel or three phase system must be the same.
-
Page 56: Connecting The Drm's
Connecting the DRM’s This can be selected under advance settings. Inverter Load port Shell L1 L2 L3 N Ground cable Relay Ex_Meter For CT: when in a Three-phase system with a CHNT Three-phase energy meter (DTSU666), ƒ click the corresponding phase where the hybrid inverter is connected. e.g. when the hybrid inverter output connects to A phase, please click A Phase. -
Page 57: Solar Power Generated
Solar Power Generated This page shows the daily, monthly, yearly, and total solar power produced. Access this page by clicking on the ‘Solar/Turbine’ icon on the Home Page. Grid Power This page shows the Daily / Monthly / Yearly and total grid power export or consumed. Access this page by clicking on the ‘Solar/Turbine’... -
Page 58: Advanced Settings For Wind Turbines
Advanced Settings for Wind Turbines To configure wind turbine settings, click on the ADVANCE icon. What this page displays: If one or both of the MPPTs are connected to a wind turbine. ƒ What you can do from this page: Select the MPPT to be used as a turbine input. -
Page 59: Advanced Settings For Auxiliary Load
Most wind turbines are three-phase PM type. Therefore, either a wind turbine controller or a direct connec- tion to the MPPT via a simple protection circuit will be required. Dump Load or Diversion Load is an important part of an off-grid power system. When the battery ( Battery Bank ) is fully charged, and the water turbine / wind turbine / solar PV module is still generating, a dump load is a useful device to send spare electricity to. - Page 60 For Gen Input mode: Gen Input: Tick this box if using a Generator. Allowed Max. power from diesel generator. ƒ Peak shaving power: This is a technique used to reduce electrical power consumption during periods ƒ of maximum demand on the utility grid. This enables the user to save substantial amounts of money due to the expensive peak power charges.
- Page 61 For Aux Load Output mode: Aux Load Output: This mode utilizes the Gen input connection as an output which only receives power when the battery SOC and PV power is above a user programmable threshold. For Example: Power=500W, ON: 100%, OFF=95%. When the PV power exceeds 500W, and battery bank SOC reaches 100%, Smart Load Port will switch on automatically and power the load connected.
-
Page 62: Operation Modes
OPERATION MODES Mode I: Basic AC cable DC cable COM cable Backup Load On-Grid Home Load Solar Battery Grid Mode II: With Generator AC cable DC cable Solar Backup Load On-Grid Home Load Grid Battery Generator THREE PHASE HI 29.9/50kW | Installer Manual... -
Page 63: Mode Iii: With Smart-Load
Mode III: With Smart-Load AC cable DC cable Solar Backup Load On-Grid Home Load Grid Battery Smart Load Mode IV: AC Couple On-Grid+AC couple AC cable DC cable Solar Backup Load On-Grid Home Load Grid Battery On-Grid Inverter THREE PHASE HI 29.9/50kW | Installer Manual... -
Page 64: Mode V: Grid-Tied
Mode V: Grid-Tied COM cable AC cable DC cable Backup Load On-Grid Home Load Solar Grid FAULT CODES To check the fault codes click on the FAULT CODES icon on the settings menu. If any of the fault messages listed in the following table appear on your inverter and the fault has not been removed after re-starting, please contact your local vendor or service centre. - Page 65 1. Check the PV side cable ground connection; GFCI_Failure 2. Restart the system 2-3 times; 3. If the fault still existing, please contact Sunsynk. AC Slide over current fault. 1. Check if the backup load power is within the range of the Tz_Ac_Overcurr_Fault inverter.
- Page 66 Error Code Description Solutions Leakage current fault 1. Check the PV module and inverter cables. Tz_GFCI_OC_Fault 2. You may have a faulty PV panel (earth short) 3. Restart inverter PV isolation resistance is too low 1. Check if the connection of PV panels and inverter are firm- DC_Insulation_Fault ly connected.
- Page 67 Error Code Description Solutions BUS voltage is too high 1. Check whether battery voltage is too high; DC_VoltHigh_Fault 2. Check the PV input voltage, make sure it is within the allowed range; 3. Seek help from us, if can not go back to normal state. BUS voltage is too low 1.
- Page 68 Error Code Description Solutions 1. The DRM function is for Australia market only. 2. Check the DRM function is active or not. DRMs0_stop 3. Seek help from us, if can not go back to normal state after restart the system. 1.
-
Page 69: Commissioning
‘Technical Specifications’. If you need further help please refer to the Sunsynk website where you will find training videos and frequent- ly asked questions www.sunsynk.com. -
Page 70: Gdfi Fault
Check each bond on the Check the VOC does not Ensure both MPPTs are solar panels exceed 480V balanced Measure the supply volt- If it falls out of the setting age check it matches the range it will cause the in- See Grid Setup page settings of the inverter verse shut down and alarm... - Page 71 APPENDIX A Definition of RJ45 Port Pin for BMS1 RS485 Pin 485_B 485_A GND_485 CAN_H1 CAN_L1 GND_485 485_A 485_B Definition of RJ45 Port Pin for BMS2 RS485 Pin 485_B 485_A GND_485 CAN_H2 CAN_L2 GND_485 485_A 485_B Definition of RJ45 Port Pin for Meter Meter-485 Pin Meter-485_B Meter-485_A...
- Page 72 Definition of RJ45 Port Pin for RS485 RS485 Pin Modbus-485_B Modbus-485_A GND_485 GND_485 Modbus-485_A Modbus-485_B RS232 WIFI/RS232 D-GND 12Vdc THREE PHASE HI 29.9/50kW | Installer Manual...
- Page 73 ƒ Secondary output cable length is 4m. ƒ For more information, training videos, software upgrades, help line, forum please refer to http://www.sunsynk.com - Tech Support (Do not forget to register first on the website). Sunsynk @energysolutions sunsynkofficial THREE PHASE HI 29.9/50kW | Installer Manual...
- Page 74 HK Address: Room 702-704, 7/F Texwood Plaza, 6 How Ming Street, Kwun Tong, Kowloon, Hong Kong. UK Address: Sunsynk, 17 Turnstone Business Park, Mulberry Avenue, Widnes, Cheshire, WA8 0WN. SA Address: Globaltech Sunsynk South Africa (Pty) Ltd, Unit 2 Highview Boulevard, Ferndale 2194.
