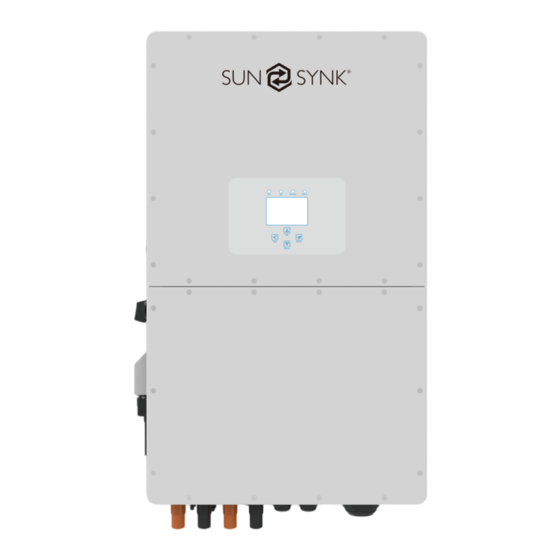

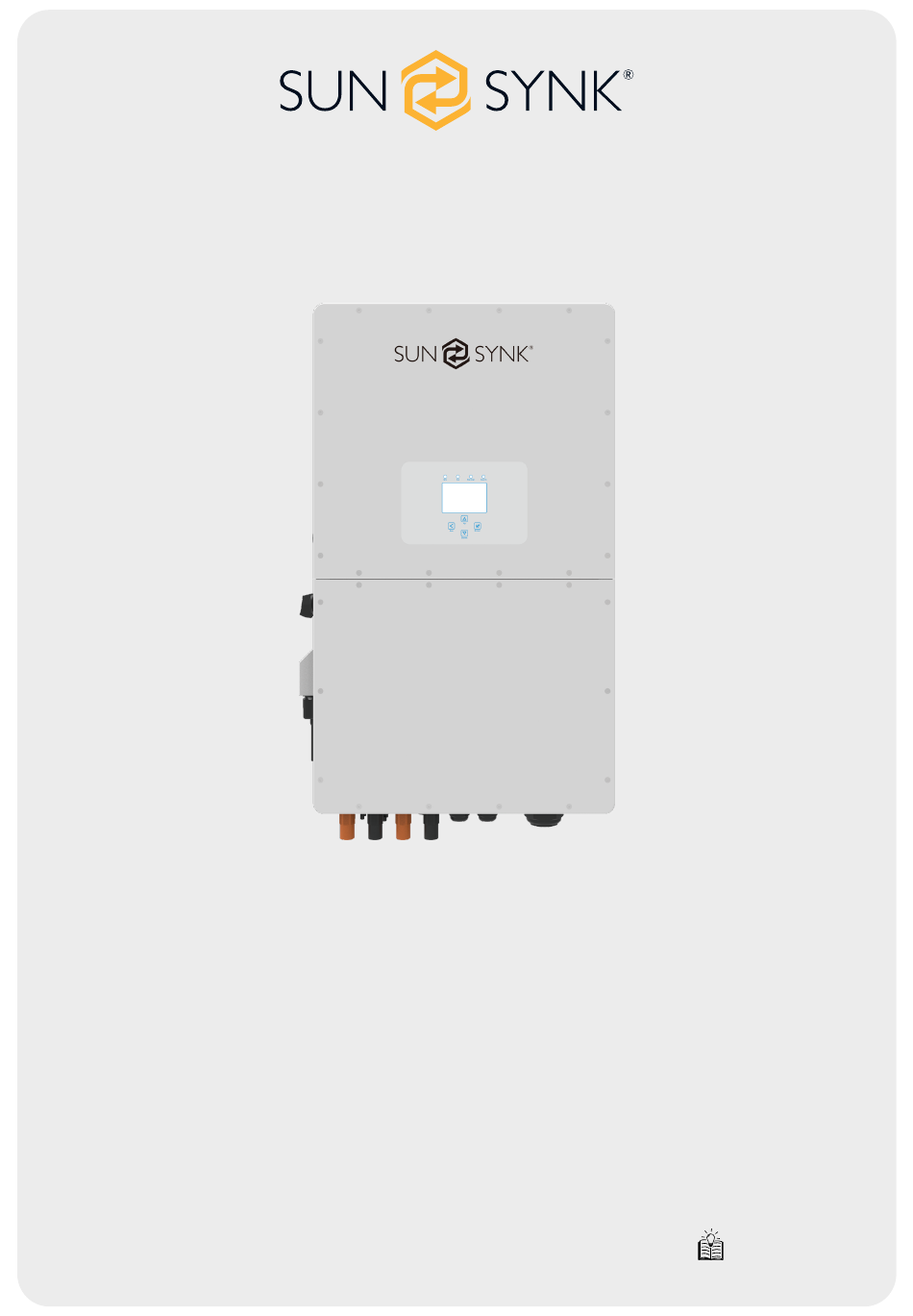

- Page 1 THREE-PHASE HYBRID INVERTER USER MANUAL SUNSYNK-25K-SG01HP3-EU-BM2 SUNSYNK-30K-SG01HP3-EU-BM3 SUNSYNK-40K-SG01HP3-EU-BM4 SUNSYNK-50K-SG01HP3-EU-BM4 www.sunsynk.com sales@sunsynk.com customerservices@sunsynk.com PLEASE RETAIN FOR v.19 (08/21/23) FUTURE REFERENCE...
- Page 2 The manufacturer's warranty does not cover any damage resulting from the neglect of these instructions. Sunsynk assumes no liability for damage caused by the operation contrary to what is specified in this operating manual.
-
Page 3: Table Of Contents
Table of Contents SAFETY Status Page System Flow Page General Safety Setup Page Symbols/Safety Signs Basic Setup Safety Instructions Set Time (Clock) Product Disposal Set Company Name / Beeper / Auto dim Factory Reset and Lock Code PRODUCT INTRODUCTION Inverter Remote Control System Overview Battery Setup Page Product Size... -
Page 4: Safety
SAFETY General Safety This device should only be used in accordance with the instructions within this manual and in compli- ƒ ance with local, regional, and national laws and regulations. Only allow this device to be installed, oper- ated, maintained, and repaired by other people who have read and understood this manual. Ensure the manual is included with this device should it be passed to a third party. - Page 5 15.70 A V DC 48 V V DC 48 V AC OUTPUT BATTERY INPUT 230V V DC 48 V Output Voltage, Input Voltage Type, Ac 230V Battery Discharge Voltage, Battery 15.70 A Output Rated Current, Max AC Current, 15.70 A Discharge Current, Input Voltage Type, Output Frequency, Max AC ISC, Power Battery Discharge Power.
-
Page 6: Safety Instructions
WARNING HIGH LIFE RISK DUE TO FIRE OR ELECTROCUTION. Sunsynk Three-Phase Hybrid Inverter can only be installed by a qualified licensed electrical contractor. This is not a DIY product. This chapter contains important safety and operating instructions. Read and keep this manual for future ƒ... -
Page 7: Product Introduction
PRODUCT INTRODUCTION The Sunsynk Three-Phase Hybrid Inverter is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications. -
Page 8: Product Size
Product Size THREE PHASE HI 25/50kW | Installer Manual... -
Page 9: Features
Features INTERACTIVE Easy and straightforward to understand LCD display; ƒ Supporting Wi-Fi or GSM monitoring; ƒ Visual power flow screen; ƒ Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker; ƒ Smart settable 3-stage MPPT charging for optimised battery performance; ƒ... -
Page 10: Basic System Architecture
Basic System Architecture The following diagram explains the basic application and architecture of this 3-Phase Inverter. It also includes the following devices to have a Complete running system. Generator or Utility ƒ PV modules ƒ Batteries ƒ Normal and smart loads ƒ... -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS SUNSYNK- SUNSYNK- SUNSYNK-40K- SUNSYNK-50K- Model 25K-SG01HP3- 30K-SG01HP3- SG01HP3-EU- SG01HP3-EU- EU-BM2 EU-BM3 Battery Input Date Battery Type Li-Ion Max. Charging Current 50A+50A Max. Discharging Current 50A+50A Number of battery input Charging Strategy for Li-lon Battery Self-adaption to BMS PV String Input Data Max. - Page 12 SUN-25K- SUN-30K- SUN-40K- SUN-50K- Model SG01HP3-EU- SG01HP3-EU- SG01HP3-EU- SG01HP3-EU- Protection PV Input Lightning Protection Integrated Anti-islanding Protection Integrated PV String Input Reverse Polarity Integrated Protection Insulation Resistor Detection Integrated Residual Current Monitoring Unit Integrated Output Over Current Protection Integrated Output Shorted Protection Integrated Output Over Voltage Protection DC Type II / AC Type III...
-
Page 13: Installation
INSTALLATION Parts List Check the equipment before installation. Please make sure nothing is damaged in the package. You should have received the items in the following package: Hybrid Inverter Wall Mounting Stainless Steel Anti-Colli- Bracket x1 sion Bolt M12x60 x4 Parallel Communication Stainless Steel Mounting L-type Hexagon Wrench... -
Page 14: Selecting The Mounting Area
Selecting the Mounting Area For proper heat dissipation, allow a clearance of approximately 500mm to the side, 500mm above and below the unit, and 1000mm to the front of the unit. DO NOT install the inverter in the following areas: Areas with high salt content, such as the marine environment. -
Page 15: Mounting The Inverter
If children under 10 years old may approach the unit, take preventive measures so they cannot reach ƒ and touch the unit. Install the indoor unit on the wall where the floor height is higher than 1600mm. ƒ Before connecting all wires, please take the metal cover off, removing the screws as shown below: Mounting the Inverter Select installation locations that are adequate to support the weight of the converter. - Page 16 Inverter hanging plate installation THREE PHASE HI 25/50kW | Installer Manual...
-
Page 17: Function Port Definition
Function Port Definition THREE PHASE HI 25/50kW | Installer Manual... -
Page 18: Battery Connection
Battery Connection For safe operation and compliance, an individual DC overcurrent protector or disconnection device is required to connect the battery and the inverter. Users are recommended to utilise a suitable fuse and DC isolator (see next page). Switching devices may not be required in some applications, but overcurrent pro- tectors must be used. - Page 19 3. Crimp terminals: 4. Fasten terminal with a bolt: 5. Fasten the terminal with outer cover: NOTE: Depending on the battery type, the inverter should be capable of controlling the battery BMS. There- fore, you need to set the protocol of the BMS on both the battery and the inverter. When using more than one battery, the first battery will be the master, and the other batteries will be the slaves.
-
Page 20: Grid And Backup Load Connection
25/30/40/50KW model, the recommended AC breaker for the backup load is 180A. There are three terminal blocks marked as GRID, LOAD, and GEN. Please do not confuse input and output connections. External AC SPD is compulsory on all Sunsynk inverters. WARNING All wiring must be performed by qualified personnel. -
Page 21: Pv Connection
WARNING Ensure the AC power source is disconnected before attempting to wire it to the unit. 3. Then, insert AC output wires according to the polarities indicated on the terminal block and tighten the terminal. Make sure to connect corresponding N wires and PE wires to related terminals as well. 4. -
Page 22: Pv Module Wiring
2. Switch the DC isolator OFF. 3. Assemble PV input connector to the inverter. 4. Use the MC4 connectors supplied by Sunsynk with the inverter. WARNING Before connection, please ensure the polarity of the output voltage of the PV array matches the DC+ and DC- symbols. - Page 23 3. Insert the contact pin into the connector housing until it locks into place. Then screw the cap nut onto the connector housing. Torque to 2.5-3 N.m. 4. Finally, insert the DC connector into the positive and negative input of the inverter. NOTE: When sunlight falls on the solar panel, it will generate a voltage.
-
Page 24: Connecting The Ct Coil
Connecting the CT Coil The CT coil is one of the most important parts of the Sunsynk inverter. This device reduces the power of the inverter to prevent feeding power to the grid. This feature is also known as “Zero Export”. -
Page 25: Meter Connection
Meter Connection CHNT Meter GRID Inverter Meter Parallel_1 Parallel_2 RS485A Three-Phase Smart Meter RS485B Grid Three-Phase Smart Meter (1,4,7,10) (3,6,9,10) RS 485 CHNT DTSU666 THREE PHASE HI 25/50kW | Installer Manual... -
Page 26: Chnt Meter With Ct Coil
CHNT Meter with CT Coil GRID Inverter Meter Parallel_1 Parallel_2 Breaker RS485A RS485B AC Breaker Home Load Three-Phase Smart Meter Grid 6 9 10 1314 16171921 (3,6,9,10) Three-Phase Smart Meter RS 485 CHNT Meter 230/400V,3~ 250A/50mA 50/60Hz ： CHNT DTSU666 NOTE: When the inverter is in the off-grid state, the N line needs to be connected to the earth. -
Page 27: Earth Connection (Mandatory)
Earth Connection (MANDATORY) Ground cable shall be connected to ground plate on grid side this prevents electric shock if the original pro- tective conductor fails. Model Wire size Cable (mm Torque value (max) 25/30/40/50KW 0 AWG 53.5 20.3Nm The conductor should be made of the same metal as the phase conductors. THREE PHASE HI 25/50kW | Installer Manual... -
Page 28: Wiring System For Inverter
Wiring System for Inverter THREE PHASE HI 25/50kW | Installer Manual... -
Page 29: Wiring Diagram
Wiring Diagram THREE PHASE HI 25/50kW | Installer Manual... - Page 30 L wire N wire PE wire BMS1 BMS2 Inverter Ground 1. DC Breaker 2. AC Breaker Battery pack 3. AC Breaker Backup Load 4. AC Breaker 1. DC Breaker for battery Home Load SUN 25K-SG-EU: 200A DC breaker SUN 30K-SG-EU: 200A DC breaker SUN 40K-SG-EU: 200A DC breaker SUN 50K-SG-EU: 200A DC breaker 2.
-
Page 31: Typical Application Of Diesel Generator
Typical Application of Diesel Generator L wire N wire PE wire Remotely control signal line coil Relay open contact Generator 3. AC Breaker 1 2 3 4 5 6 7 8 9 10 111 2 SHUT DOWN BMS1 BMS2 Ground Inverter 1. -
Page 32: Three Phase Parallel Connection
Three Phase Parallel Connection L wire N wire PE wire Inverter Meter Parallel_1 Parallel_2 BMS1 BMS2 RS485 No.3 (slave) Ground Battery pack Inverter Inverter No.2 (slave) Ground 4/6/8. AC Breaker for grid port SUN 25K-SG-EU: 240A AC breaker SUN 30K-SG-EU: 240A AC breaker SUN 40K-SG-EU: 240A AC breaker Battery pack SUN 50K-SG-EU: 240A AC breaker... -
Page 33: Operation
OPERATION Switching ON/OFF Once the inverter has been correctly installed and the batteries have been connected, press the ON/OFF button (located on the left side of the case) to activate the system. When the system is connected without a battery but connected with either PV or grid and the ON/OFF button is switched off, the LCD will still illumi- nate (display will show off). -
Page 34: Lcd Operation Flow Chart
LCD operation flow chart Solar Page Solar Graph Grid Page Grid Graph Inverter Page Battery Page BMS Page HOME PAGE Load Page Load Graph Basic Setting Battery Settings Grid Settings System Mode System Setup Advanced Settings Aux Load Settings Fault Codes Li BMS Settings THREE PHASE HI 25/50kW | Installer Manual... -
Page 35: Home Page
Home page Press the Esc button any page to access the home page: 1. Customer name 2. Access the settings menu page 3. Access solar page 4. Access load page 5. Access battery page SOLAR/TURBINE AC load 6. Access grid page 7. -
Page 36: System Flow Page
What this page displays: Total solar power produced. Inverter voltage. ƒ ƒ MPPT 1 power/voltage/current. Inverter current. ƒ ƒ MPPT 2 power/voltage/current. Load power. ƒ ƒ Grid power. Load voltage. ƒ ƒ Grid frequency. Battery power charge/discharge. ƒ ƒ Grid voltage. Battery SOC. -
Page 37: Setup Page
What this page displays: The system flow. Battery status. ƒ ƒ MPPTs power. Power distribution to load or grid. ƒ ƒ Setup Page To access Settings, click on the gear icon on the right top of the navigation menu. What this page displays: Serial number. -
Page 38: Basic Setup
Basic Setup Set Time (Clock) To set time, click on the BASIC icon and then on ‘Time’ What this page displays: Time. ƒ Date. ƒ AM/PM. ƒ What you can do from this page: Adjust / set time. ƒ Adjust / set date. ƒ... -
Page 39: Factory Reset And Lock Code
Locked Inverter: This function is used to lock the inverter completely so no access can be gained. It will ask for a 5-digit code that only the Sunsynk Technical staff can assist with. Test mode (only for engineers): For engineers to conduct tests. -
Page 40: Inverter Remote Control
Inverter Remote Control To control the inverter remotely, tick the box that allows it. What this page displays: Remote control option. ƒ What you can do from this page: Allows remote control of the inverter. ƒ Battery Setup Page To configure battery settings, click on the BATTERY icon and then on ‘Batt type’. What this page displays: Battery capacity in (Ah): For non-BMS-batteries the range allowed is 0-2000Ah, while for lithium-ion, ƒ... -
Page 41: Generator & Battery Page
NOTE: Recommended: AGM and Flooded: Ah battery size x 20% = Charge/Discharge amps. Lithium: Ah battery size x 50% = Charge/Discharge amps. Gel: follow manufacturer' s instructions. Generator & Battery Page To configure battery charging settings, click on the BATTERY icon and then on ‘Batt Charge’. What this page displays: Amps: Charge rate of 40A from the attached generator in Amps. - Page 42 1Amp 12V. Below is a simple reference circuit of an auto-start system that can auto-start generators on a boat. (Sunsynk will be releasing a new OS E406 ( Auto-Start ) for better generator control).
-
Page 43: Battery Discharge Page
Battery Discharge Page To configure inverter’s shut-down settings, click on the BATTERY icon and then on ‘Shut Down’. THREE PHASE HI 25/50kW | Installer Manual... - Page 44 Activating Shutdown causes the inverter to enter standby-mode. It does not entirely shut down the inverter. Total shutdown occurs at voltages below 19V. The voltage displayed on the Sunsynk Parity Inverter will vary depending on whether the inverter is charging or discharging the batteries.
-
Page 45: Setting Up A Lithium Battery
State of Charge Bulk: The bulk charge is the first stage of a battery’s charging process, where the charger identifies the battery and its needs and then applies a high voltage to do the bulk of the charging. It involves about 80% of the recharge. - Page 46 NOTE: With some types of lithium batteries, the BMS cannot be controlled by the Sunsynk inverter. In this case, treat the battery as a lead-acid type and set the charging and discharging protocol following the battery manufacturer's specifications.
-
Page 47: Program Charge & Discharge Times
Support RS485 or Inverter Brand Model Inverter Notes Setup Parallel CAN H: Pin 7 FREEDOM LITE BUSINESS 60/48HV CAN L: Pin 8 SS7017 CAN H: Pin 4 SOLAR MD SS7018 CAN L: Pin 5 SS7020 IES-BATT-157R CAN H: Pin 4 IES-BATT-200C CAN L: Pin 5 IES-BATT-200R... - Page 48 Grid peak shaving: When this is selected, the grid output power will be limited within the set value. If ƒ the load power exceeds the allowed value, it will take PV energy and stored battery energy to supple- ment. If there is not enough PV energy or stored energy to meet the load requirement, grid power will increase to meet the load needs.
- Page 49 What you can do from this page: Set a real time to start and stop charging or discharging the battery. ƒ Choose to charge the battery from the grid or generator. ƒ Limit export power to the grid. ƒ Set the unit to charge the battery from the grid or generator ticking ‘Grid’ or ‘Gen’ and set what times this ƒ...
- Page 50 Example: This example shows the battery being charged up to 100% by both the Grid and Solar PV from 8 a.m. to 11 a.m. and then being able to supply up to 4kW of battery-power to the ‘essential’ loads from the ‘Load’ Port until the battery SOC drops to 50%.
-
Page 51: Grid Supply Page
Example: During 01:00-05:00, when the battery SOC is lower than 80%, it will use the grid to charge the battery until the battery SOC reaches 80%. During 05:00-08:00 and 08:00-10:00, when battery SOC is higher than 40%, the hybrid inverter will discharge the battery until the SOC reaches 40%. - Page 52 What this page displays: Normal connect: The allowed grid voltage/frequency range when the inverter first time connects to the ƒ grid. Normal Ramp rate: It is the startup power ramp. ƒ Reconnect after trip: The allowed grid voltage/frequency range for the inverter connects the grid after ƒ...
- Page 53 What this page displays: FW: This series inverter is able to adjust inverter output power according to grid frequency. ƒ Droop f: The percentage of nominal power per Hz. ƒ For example: “Start freq f>50.2Hz, Stop freq f<50.2, Droop f=40%PE/Hz” when the grid frequency reaches 50.2Hz, the inverter will decrease its active power at Droop f of 40%.
- Page 54 What this page displays: P(Q): It adjusts the inverter reactive power according to the set active power. ƒ P(PF): It adjusts the inverter PF according to the set active power. ƒ Lock-in/Pn 50%: When the inverter output active power is less than 50% rated power, it won't enter the ƒ...
-
Page 55: Paralleling Inverters Advanced Settings
Set the Modbus SN for paralleling. ƒ The Sunsynk parity inverter can be wired standalone or where more power is required it can be connected in parallel either single or 3 phase configuration. The maximum number of inverters that can be paral- leled in a single phase utility grid is 16 and the maximum number that can be paralleled in a three phase utility grid is 15A. - Page 56 Each inverter will require a fuse isolator with surge protection and each group circuit will require an RCD. If the batteries as supplying power to the main load during the outage, then a change over switch will also be required or a split load can be used. The CT coils used to limit export power must only be connected to the master.
- Page 57 If you need further help please refer to the Sunsynk website where you will find training videos and Fre- quently Asked Questions www.sunsynk.com. Firmware prior installation is important to be updated and all inverters in parallel or three phase system must be the same.
-
Page 58: Connecting The Drm's
Connecting the DRM’s This can be selected under advance settings. Inverter Load port Shell L1 L2 L3 N Ground cable Relay Ex_Meter For CT: when in a Three-phase system with a CHNT Three-phase energy meter (DTSU666), ƒ click the corresponding phase where the hybrid inverter is connected. e.g. when the hybrid inverter output connects to A phase, please click A Phase. -
Page 59: Solar Power Generated
Solar Power Generated This page shows the daily, monthly, yearly, and total solar power produced. Access this page by clicking on the ‘Solar/Turbine’ icon on the Home Page. Grid Power This page shows the Daily / Monthly / Yearly and total grid power export or consumed. Access this page by clicking on the ‘Solar/Turbine’... -
Page 60: Advanced Settings For Wind Turbines
Advanced Settings for Wind Turbines To configure wind turbine settings, click on the ADVANCE icon. What this page displays: If one or both of the MPPTs are connected to a wind turbine. ƒ What you can do from this page: Select the MPPT to be used as a turbine input. -
Page 61: Advanced Settings For Auxiliary Load
Most wind turbines are three-phase PM type. Therefore, either a wind turbine controller or a direct connec- tion to the MPPT via a simple protection circuit will be required. Dump Load or Diversion Load is an important part of an off-grid power system. When the battery ( Battery Bank ) is fully charged, and the water turbine / wind turbine / solar PV module is still generating, a dump load is a useful device to send spare electricity to. - Page 62 For Gen Input mode: Gen Input: Tick this box if using a Generator. Allowed Max. power from diesel generator. ƒ Peak shaving power: This is a technique used to reduce electrical power consumption during periods ƒ of maximum demand on the utility grid. This enables the user to save substantial amounts of money due to the expensive peak power charges.
- Page 63 For Aux Load Output mode: Aux Load Output: This mode utilizes the Gen input connection as an output which only receives power when the battery SOC and PV power is above a user programmable threshold. For Example: Power=500W, ON: 100%, OFF=95%. When the PV power exceeds 500W, and battery bank SOC reaches 100%, Smart Load Port will switch on automatically and power the load connected.
-
Page 64: Operation Modes
OPERATION MODES Mode I: Basic Mode II: With Generator THREE PHASE HI 25/50kW | Installer Manual... -
Page 65: Mode Iii: With Smart-Load
Mode III: With Smart-Load Mode IV: AC Couple THREE PHASE HI 25/50kW | Installer Manual... -
Page 66: Fault Codes
4. Generally, it will desappear automatically when shows F13; 5. If it remains same, turn on DC and AC switches for one minute, then turn on the DC and AC switches; 6. Seek help from Sunsynk. THREE PHASE HI 25/50kW | Installer Manual... - Page 67 1. Check the PV side cable ground connection; GFCI_Failure 2. Restart the system 2-3 times; 3. If the fault still existing, please contact Sunsynk. AC Slide over current fault. 1.Check if the backup load power is within the range of the Tz_Ac_Overcurr_Fault inverter.
- Page 68 Error Code Description Solutions 1. When in parallel mode, check the parallel communication cable connection and hybrid communication address set- tings. Parallel_Comm_Fault 2. During the parallel system startup period, inverters will re- port F29. When all inverters are in ON status, it will disappear automatically;...
- Page 69 Error Code Description Solutions 1. Check the battery 1 terminal voltage is high; 2. Restart the inverter 2 times and restore the factory set- BAT1_VoltHigh_Fault tings; 3. Seek help from us, if can not go back to normal state. Battery low voltage 1.
- Page 70 Chapter 3, ‘Technical Specifications’. If you need further help please refer to the Sunsynk website where you will find training videos and frequent- ly asked questions www.sunsynk.com.
-
Page 71: Commissioning
COMMISSIONING Start-Up / Shutdown Procedure The inverter must be installed by a qualified / licensed electrical engineer in accordance with the country's wiring regulations. Before switching on, the installation engineer must have completed the Earth Bond, RCD and earth leakage tests, checked that the solar panel Voc voltage does not exceed 480V and checked the battery voltage. -
Page 72: Gdfi Fault
Ensure you are familiar This is the heart of the with this, if you fully under- See section ‘Program system this controller stand the controller you Charge / Discharge Times’ everything will fully appreciate the ca- pabilities of there inverter If paralleling inverters in 3 Phase check you phase If using a wind turbine... - Page 73 APPENDIX A Definition of RJ45 Port Pin for BMS1 RS485 Pin 485_B 485_A GND_485 CAN_H1 CAN_L1 GND_485 485_A 485_B Definition of RJ45 Port Pin for BMS2 RS485 Pin 485_B 485_A GND_485 CAN_H2 CAN_L2 GND_485 485_A 485_B Definition of RJ45 Port Pin for Meter Meter-485 Pin Meter-485_B Meter-485_A...
- Page 74 Definition of RJ45 Port Pin for RS485 RS485 Pin Modbus-485_B Modbus-485_A GND_485 GND_485 Modbus-485_A Modbus-485_B RS232 WIFI/RS232 D-GND 12Vdc THREE PHASE HI 25/50kW | Installer Manual...
- Page 75 ƒ Secondary output cable length is 4m. ƒ For more information, training videos, software upgrades, help line, forum please refer to http://www.sunsynk.com - Tech Support (Do not forget to register first on the website). Sunsynk @energysolutions sunsynkofficial THREE PHASE HI 25/50kW | Installer Manual...
- Page 76 Sunsynk, 17 Turnstone Business Park, Mulberry Avenue, Widnes, Cheshire, WA8 0WN. Call us SA: +27 10 100 3589 Globaltech Sunsynk South Africa (Pty) Ltd, Unit 2 Highview Boulevard, Ferndale 2194. Call us NL: +31 40 798 7136 Sunsynk EU, Henri Wijnmalenweg 8, 5657 EP Eindhoven, Netherlands.
