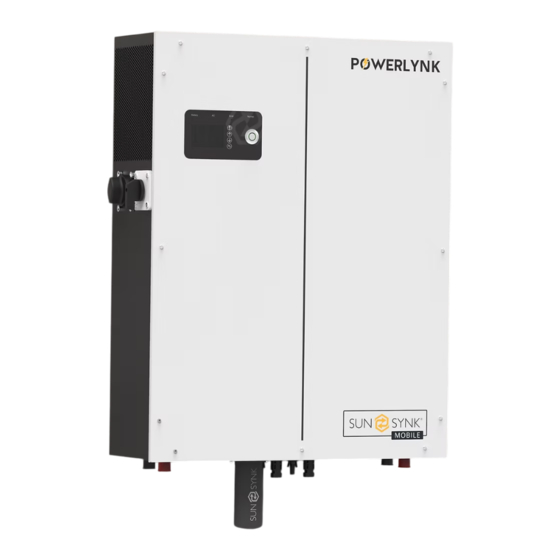

- Page 1 POWERLYNK XL - SM5.5kWPL USER MANUAL www.sunsynkmobile.com / sales@sunsynkmobile.com Please retain for 1024 future reference...
-
Page 2: Table Of Contents
Startup / Shutdown Procedure Wiring the PV Panels Information for Commissioning the Inverter CT Coil and Load Power Settings GFDI Fault Parallel Operation External Battery and Parallel Connections MAINTENANCE LCD DISPLAY SCREEN APPENDIX A FACTORY SETTINGS BATTERY COMPATIBILITY SM5.5kWPL - Powerlynk XL... -
Page 3: Safety
Safety Instructions WARNING HIGH LIFE RISK DUE TO FIRE OR ELECTROCUTION. The Powerlynk XL can only be installed by a qualified licensed electrical contractor. This is not a DIY product. Ensure to follow the safety warnings listed below: Be sure to read this manual thoroughly before installation. -
Page 4: Symbols In The Manual
MC4 connections. If this label is situated next to the positive and negative battery connections it indicates that for paralleling, only Sunsynk batteries are recommended. Symbols in the Product Risk of burn. - Page 5 CE mark is attached to the solar inverter to verify that the unit follows the provi- Max. PV input current. sions of the European Low Voltage and EMC Directives. SM5.5kWPL - Powerlynk XL...
-
Page 6: Product Disposal
PRODUCT INTRODUCTION The Powerlynk XL is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require. -
Page 7: Box Contents
BOX CONTENTS This box contains: • Powerlynk XL (main unit) • Wall mounting bracket • Screw pack • Data logger (Sunsynk Wi-Fi) • CT Coil (2 pin AERO - female connector) (3m cable) • 1x3 pin AC Load connector (female) •... - Page 8 Protective Class Class I Efficiency Max. Efficiency 97.6% Max. Battery to Load Efficiency 94.0% Europe Efficiency 97.6% MPPT Efficiency 99.9% Operating Temperature Ranges Inverter -25ºC ~ +60ºC Battery Charging 0ºC ~ +45ºC Battery Discharging -20ºC ~ +50ºC SM5.5kWPL - Powerlynk XL...
-
Page 9: Installation
Areas where animals may urinate on the unit or ammonia may be generated. ƒ High altitude areas (over 4000 metres above sea level). ƒ Environments where precipitation or humidity are above 95%. ƒ Areas where the air circulation is too low. ƒ SM5.5kWPL - Powerlynk XL... -
Page 10: Mounting The Inverter
0ºC ~ 55ºC. Ensure other objects and surfaces are outside of the recommended spaces (500mm each side / above and ƒ below / front) to guarantee heat dissipation and easy access to the wiring / cabling. SM5.5kWPL - Powerlynk XL... -
Page 11: Turning On The Batteries
Turning on the Batteries Turn the battery isolation switch to turn on the batteries. MOBILE CAUTION Setting a power limit higher than maximum will damage the battery fuse. SM5.5kWPL - Powerlynk XL... -
Page 12: Flow Diagram
Non-Essential Loads Connecting to the Mains / Grid 1. Connect the Powerlynk XL Hybrid Inverter to the electrical grid via the grid ports, using a suitable RCD and a 20A fuse on the consumer board. 2. Now, using a 3mm cable, connect only the essential loads to the load ports (output) to a secondary consumer board, considering the maximum limit of 5.5 kW. -
Page 13: Ct Coil And Load Power Settings
CT Coil and Load Power Settings The CT coil is one of the most important parts of the Powerlynk XL. This device reduces the power of the inverter to prevent feeding power to the grid. This is also known as zero export. - Page 14 You can access the External Battery Pack page by pressing the Home/Back button again: SN: XXXXXXXXXX External Battery Pack Capacity: 100Ah SOC: 65% Voltage: 53.4V Current: 30A Charge Voltage Limit: 57.6V Discharge Voltage Limit: 45.0V Charge Current Limit: 50A Discharge Current Limit: 100A Temp: 31.2ºC Alarm: 0x0000 SM5.5kWPL - Powerlynk XL...
-
Page 15: Parallel Operation
Fault Codes page. In the event of this error, please maintain the connection and proceed to the settings to modify the work mode as presented above, and wait ap- proximately 3-4 minutes. After that, the device should return to its normal working condi- tion, with the error cleared. SM5.5kWPL - Powerlynk XL... -
Page 16: External Battery And Parallel Connections
External Battery and Parallel Connections Inverter Unit: 1 External Battery Number: 1 Inverter Unit: 1 External Battery Number: 2 Inverter Unit: 2 External Battery Number: 1 Inverter Unit: 2 External Battery Number: 2 Inverter Unit: 3 External Battery Number: 1 SM5.5kWPL - Powerlynk XL... - Page 17 Inverter Unit: 2 External Battery Number: 1 (Shows CT Coil Connection + Master&Slave) Inverter Unit: 2 External Battery Number: 2 (Shows Batteries connected in parallel) Inverter Unit: 3 External Battery Number: 6 (Show External Batteries can be installed into each inverter) SM5.5kWPL - Powerlynk XL...
-
Page 18: Lcd Display Screen
LCD DISPLAY SCREEN The LCD display screen is situated on the front of the Powerlynk XL, this is where you can control and operate the system. 1. Power - to turn the system on / off. 2. Settings / Select - to operate the settings menu &... -
Page 19: Factory Settings
Default Setting 00:00 6:00 2500W 52.0V 6:00 12:00 2500W 52.0V 12:00 18:00 2500W 52.0V 18:00 23:59 2500W 52.0V BATTERY COMPATIBILITY The following batteries are compatible with all Sunsynk Mobile Lifelynk Inverters: SUN-BATT-5.32 ƒ SUNSYNK-L5.1 ƒ L051069-A ƒ SM5.5kWPL - Powerlynk XL... -
Page 20: Operation
18:00 2000W 52.0V Year Power 3600KWh Enable Low Battery Earth Neutral Bond 49.0V Max Grid Freq 47.0Hz 18:00 23:59 2000W 52.0V Total Power 7200KWh Night Power Saving Enable Float Charge 56.0V Voltage AC 230V Frequency 50Hz SM5.5kWPL - Powerlynk XL... -
Page 21: Switching On / Off
What you can do from this page If you press the select button you can navigate to the basic setup menu If Sunsynk Connect has been connected, the WI-FI icon appears Access the CT screen by pressing the Home/Back button... -
Page 22: Home Settings
15-05-2023 15-05-2023 Set Date Set Date Backlight Backlight Standalone Standalone Work Mode Work Mode Voltage SOC/Voltage SOC/Voltage Factory Reset Factory Reset What does this page display? Time Date Backlight on / off Work Mode SOC/Voltage Reset SM5.5kWPL - Powerlynk XL... -
Page 23: Work Mode Settings
Change the work mode settings via the “Basic Settings” page by pressing the “Work Mode” button. Then a password input page will be shown. The default password is “1234”. Basic Settings Set Time 15:16 Please Input the Password Set Date 15-05-2023 Backlight **** Standalone Work Mode Work Mode SOC/Voltage SOC/Voltage Factory Reset SM5.5kWPL - Powerlynk XL... -
Page 24: System Logger
Solar Production Daily Power 1KWh Daily Power 1KWh Monthly Power 30KWh Monthly Power 30KWh Year Power 3600KWh Year Power 3600KWh Total Power 7200KWh Total Power 7200KWh What does this page display? Solar production icon Grid production icon SM5.5kWPL - Powerlynk XL... -
Page 25: Advance Settings
What does this page display? Grid Settings page icon System Configuration page icon System Controller page icon Battery Settings page icon What you can do from this page You can access the grid, system, inverter, and battery setting pages. SM5.5kWPL - Powerlynk XL... -
Page 26: Grid Settings
Charge from AC Low Battery Low Battery 49.0V Float Charge Float Charge 56.0V 56.0V What does this page display? Low battery SOC/Voltage Reboot SOC/Voltage Maximum charge current Charge from the mains Low Battery SOC/Voltage Float charge SOC/Voltage SM5.5kWPL - Powerlynk XL... -
Page 27: System Settings
If Earth Neutral Bond is enabled, the relay will make and earth neutral bond on the load port of the inverter after the grid power fails. This is for earth leakage devices to function correctly on this island circuit. The Night Power Saving can be set to “Enable” or “Disable”. SM5.5kWPL - Powerlynk XL... -
Page 28: Export Control
GRID earth when GRID has power. When it is set to “Disable”, this function will not be available. Export Control Export Control Enable Enable Earth Neutral Bond Earth Neutral Bond Disable Night Power Saving Enable Night Power Saving Enable SM5.5kWPL - Powerlynk XL... -
Page 29: Night Power Saving
AC is off, the UPS function shift time will be longer, can’t be immediate, it will take around 30 seconds. When there is PV power input, then the inverter’s DC to DC converting will work again, because without this converting, the batter packs can’t be charged. SM5.5kWPL - Powerlynk XL... -
Page 30: Setting Details
56V and set all time range to Y. Start to charge battery time by selecting the Charge Y or N System Controller Time Start Time Stop Power %/Voltage Charge 00:00 06:00 1500W 100% 06:00 12:00 1500W 100% 12:00 18:00 1500W 100% 18:00 23:59 1500W 100% SM5.5kWPL - Powerlynk XL... - Page 31 49.0V Earth Neutral Bond Float Charge Night Power Saving Enable 56.0V System Controller Time Start Time Stop Power %/Voltage Charge 00:00 06:00 2000W 52.0V 06:00 12:00 2000W 52.0V 12:00 18:00 2000W 52.0V 18:00 23:59 2000W 52.0V SM5.5kWPL - Powerlynk XL...
- Page 32 System Controller Time Start Time Stop Power %/Voltage Charge 00:00 06:00 2000W 06:00 12:00 2000W 12:00 18:00 2000W 18:00 23:59 2000W If the low battery voltage is set higher, the %voltage will be placed higher accordingly. SM5.5kWPL - Powerlynk XL...
-
Page 33: Fault Codes
1. Power supply failure, update power board. Working mode change Inverter work mode changed: 1. Reset the inverter. 2. Seek help from Sunsynk Mobile. Short circuit protecting Short circuit fault: 1. Maintain the connection. 2. Proceed to the settings to modify the work mode. - Page 34 3. If the fault exists, please contact us for help. Load current exceeding 1. Try tu reduce the load power. 2. Seek help from Sunsynk Mobile. Over Load Protection 1. Reduce appliance power on LOAD side (sys- tem will auto-reboot in 2 minutes).
-
Page 35: Commissioning
Bus one shutdown 1. Reset the inverter. 2. Seek help from Sunsynk Mobile. DRMs0 stop Reserved Error code FAN Error 1. A technician needs to check the internal fan wire or replace fan. -
Page 36: Information For Commissioning The Inverter
Check the battery charge Check the battery BMS is and discharge is within the communicating with the C rating of the battery. Too inverter. high will damage the battery. SM5.5kWPL - Powerlynk XL... -
Page 37: Gfdi Fault
Check if there are no fault codes and lithium battery communication is correct. Weekly cleaning statement: suggest micromesh filters as an available option. Micro insects here are a real problem. SM5.5kWPL - Powerlynk XL... - Page 38 2. Be of the type specified in the inverter manufacturer’s instructions or as labelled on the inverter. We recommend the use of an RCD on all circuits and sub circuits connected to the Sunsynk Mobile inverter. Residual current breaker with overcurrent protection (RCBO).
- Page 39 MOBILE Email Us: Website: sales@sunsynkmobile.com www.sunsynkmobile.com VAT Number: 4020296234 Address: Sunsynk UK Ltd. 17 Turnstone Business Park, Mulberry Avenue, Widnes, Cheshire, WA8 0WN Call Us: +27 10 100 3589...
