Powering on the system
There are up to 4 ways to turn the system on. The first is the main power button that's installed
onto the front of the case. Second is the built-in buttons on the PowerBoard. Third is the touch
button on the back side, top left corner area of the PowerBoard inside the acrylic cut out, touch
the Singularity Computers logo to turn the system on. Fourth is the power button built into the
motherboard, it depends on the model whether it has it or not.
SATA Connectors
Connect the SATA inputs into the SATA outputs on the motherboard and install 2.5" and/or 3.5"
drives into the PowerBoard. There is no need to connect a SATA power cable to the 2.5" drive, it is
powered directly from the PowerBoard.
SATA drive support:
• Drive 1: 2.5"
• Drive 2: 2.5"
• Drive 3: 2.5" or 3.5"
• Drive 4: 2.5" or 3.5"
Mount Drives

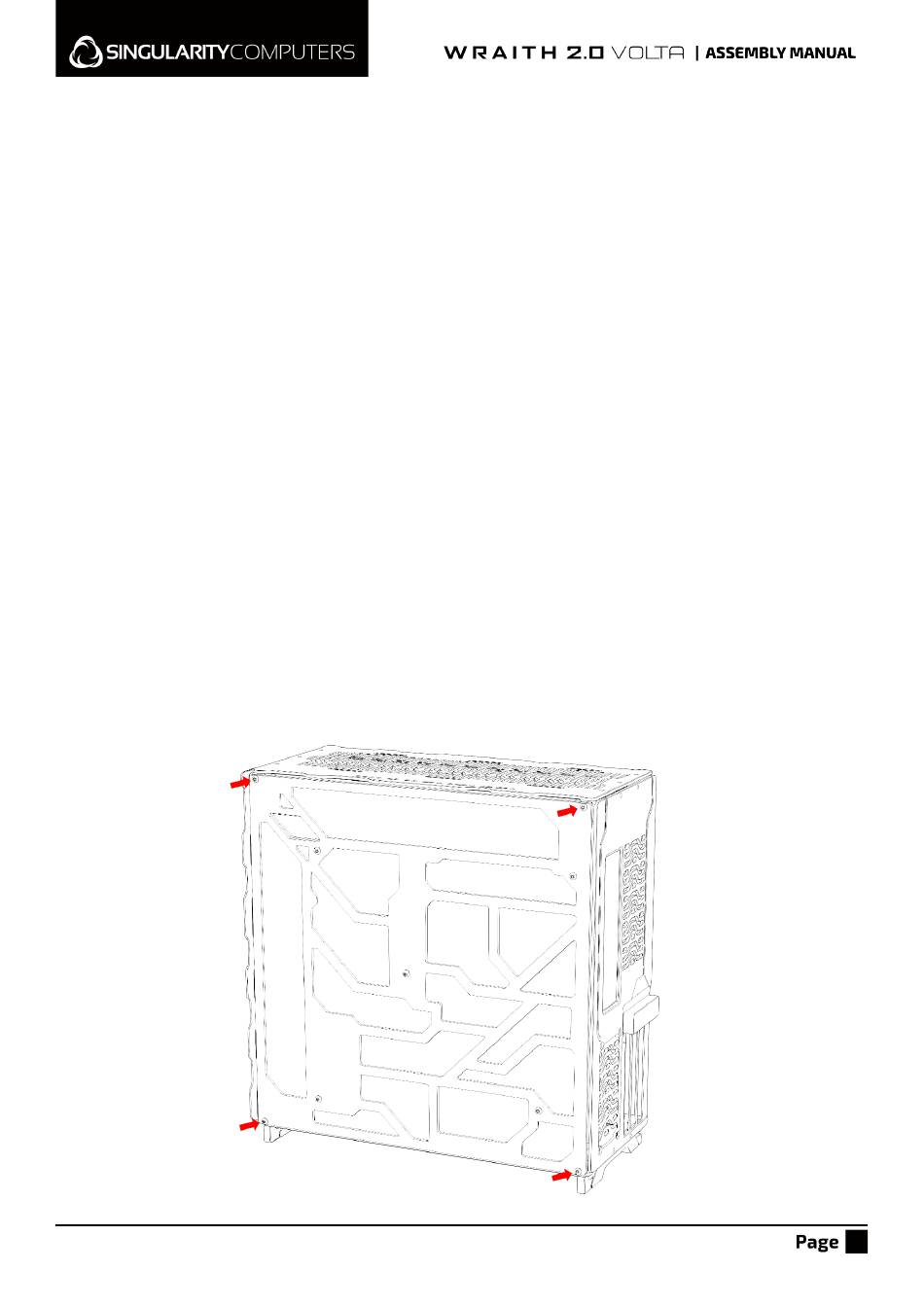

To mount drives the rear covers will need to be removed by undoing the fasteners marked in the
diagram below.
