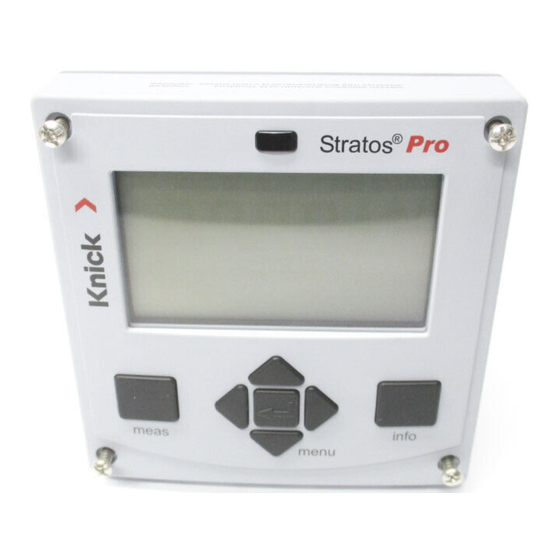

Knick Stratos Pro A201N-CONDI-0 User Manual

Conductivity measurement with toroidal sensors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®

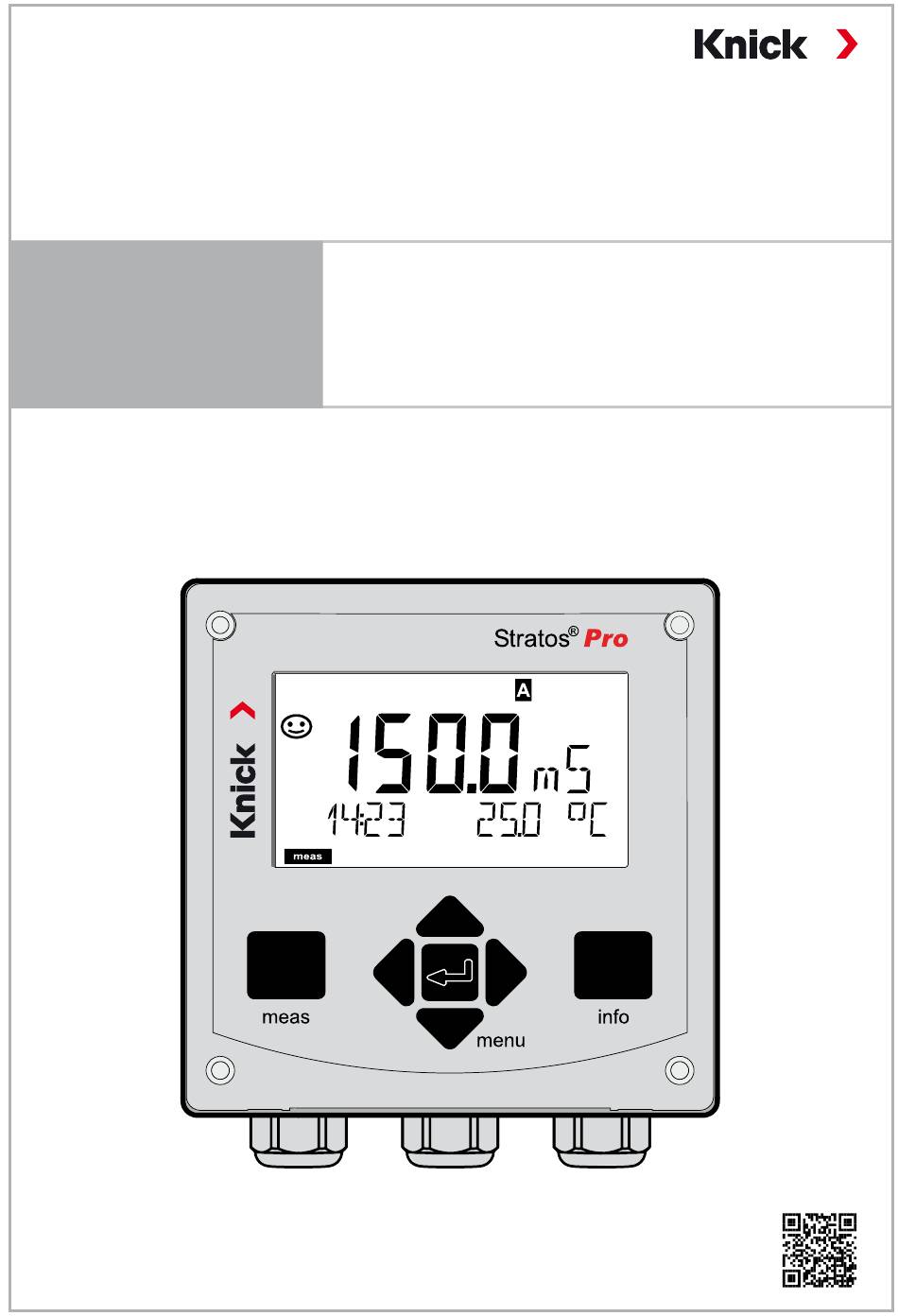

User Manual
Read before installation.
Keep for future use.
Stratos Pro A201CONDI
Conductivity Measurement
with Toroidal Sensors
www.knick.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stratos Pro A201N-CONDI-0 and is the answer not in the manual?

Questions and answers

Related Manuals for Knick Stratos Pro A201N-CONDI-0

Summary of Contents for Knick Stratos Pro A201N-CONDI-0

  • Page 1 ® Stratos Pro A201CONDI Conductivity Measurement User Manual with Toroidal Sensors Read before installation. Keep for future use. www.knick.de...

  • Page 2: Supplemental Directives

    Supplemental Directives Read this document and retain it for future reference. Before assem- bling, installing, operating, or maintaining the product, ensure that you fully understand the instructions and risks. Observe all safety instructions. Failure to follow the instructions in this document may result in serious injury and/or property damage.

  • Page 3: Documents Supplied

    Quickstart Guides Installation and first steps: • Operation • Menu structure • Calibration • Error messages and recommended actions Test Report 2.2 According to EN 10204 Electronic Documentation www.knick-international.com: Manuals + software Ex devices: Control Drawings EU Declaration of Conformity...

  • Page 4: Table Of Contents

    Table of Contents Supplemental Directives ............... 2 Documents Supplied ..............3 Safety ....................7 Intended Use ..................7 Introduction ..................9 Overview of Stratos Pro A201CONDI ........12 Assembly ..................13 Package Contents ................13 Mounting Plan, Dimensions ............14 Pipe Mounting, Protective Hood ..........15 Panel Mounting ..................16 Electrical Installation ..............17 Rating Plates / Terminal Assignments ........18...
  • Page 5 Table of Contents Configuration ................39 Menu Structure of Configuration..........39 Parameter Set Selection ..............41 Configuration (Original for Copy) ..........46 Sensor .....................48 Sensor Verification (TAG, GROUP) ..........56 Current Output 1 ................58 Current Output 2 ................68 Temperature Compensation ............70 CONTROL Input (TAN SW-A005) ...........74 Alarm Settings ..................76 Time and Date ..................80 Measuring Points (TAG/GROUP) ..........82...
  • Page 6 Table of Contents Error Handling ................122 Error Messages ................123 Decommissioning ...............126 Disposal ....................126 Returns ....................126 Sensoface ..................127 HART: Typical Applications ............129 FDA 21 CFR Part 11 ..............130 Electronic Signature – Passcodes ..........130 Audit Trail ....................130 Index .....................131...

  • Page 7: Safety

    Safety Always Read and Observe the Safety Instructions! The device is constructed in accordance with the latest technology and generally accepted safety rules and regulations. Under certain circumstances, however, usage may pose risks to users or cause damage to the device. Commissioning must be carried out by specialist personnel authorized by the operating company.
  • Page 8 Safety Function Check Mode (HOLD Function) After activating configuration, calibration, or service, Stratos Pro enters function check mode (HOLD). The current outputs respond in accordance with the configuration. Operations must not be carried out while Stratos Pro is in function check (HOLD) mode, as the system may behave unexpectedly and put users at risk.

  • Page 9: Introduction

    Introduction Housing and Mounting Options • The sturdy molded enclosure is designed for IP66/IP67 / TYPE 4X Outdoor protection, is made of PBT glass fiber reinforced PC, and has the following dimensions: H 148 mm, W 148 mm, T 117 mm. Knockouts in the housing enable • wall mounting (with sealing plugs to seal the housing) see page 14 •...
  • Page 10 Introduction Display Plain-text messages on a large, backlit LC display enable intuitive op- eration. You can specify which values are to be displayed in standard measuring mode (“Main Display, ” see page 31). Color-Coded User Interface The colored display backlighting indicates different operating states (e.g., alarm: red, HOLD mode: orange;...
  • Page 11 Introduction Control Inputs (TAN SW-A005) I input Current The analog (0) 4 ... 20 mA current input can be used for external temperature compen- input sation; see page 70. HOLD HOLD (Floating digital control input) The HOLD input can be used for external input activation of HOLD mode;...

  • Page 12: Overview Of Stratos Pro A201Condi

    Overview Overview of Stratos Pro A201CONDI CONDI receive hi Output 1 input receive lo send lo Output 2 send hi RTD (GND) RTD (Sense) Shield RS 485 Current Input + Input – input HOLD HOLD + HOLD – input CONTROL CONTROL + CONTROL –...

  • Page 13: Assembly

    Assembly Package Contents Note: Check all components for damage upon receipt. Do not use damaged parts. The package should contain: • Front unit, rear unit, bag containing small parts • Specific test report • Documentation (see page 3) Fig.: Assembling the enclosure 1) Insertable jumper (3x) 6) Blanking plug (2x, non-Ex 2) Plate (1x), for conduit mount-...

  • Page 14: Mounting Plan, Dimensions

    Assembly Mounting Plan, Dimensions 1) Cable gland (3 x) 2) Knockouts for cable gland or ½” conduit, 21.5 mm dia. (2 knockouts) Conduit couplings not included! 3) Knockout for pipe mounting (4 x) 4) Knockout for wall mounting (2 x) Fig.: Mounting plan (All dimensions in mm!)

  • Page 15: Pipe Mounting, Protective Hood

    Assembly Pipe Mounting, Protective Hood ø40...ø60 1) Hose clamp with worm gear drive to DIN 3017 (2 x) 2) Pipe-mount plate (1 x) 3) For vertical or horizontal posts or pipes 4) Self-tapping screw (4 x) Fig.: Pipe-mount kit, accessory ZU 0274 (All dimensions in mm!) Fig.: Protective hood for wall and pipe mounting, accessory ZU 0737 (All dimensions in mm!)

  • Page 16: Panel Mounting

    Assembly Panel Mounting < 30 1) Circumferential sealing (1 x) 2) Screws (4 x) 3) Position of control panel 4) Span piece (4 x) 5) Threaded sleeve (4 x) Cutout 138 x 138 mm (DIN 43700) 1...22 Fig.: Panel-mount kit, accessory ZU 0738 (All dimensions in mm!)

  • Page 17: Electrical Installation

    Electrical Installation Before commencing with the installation, make sure that all lines to be connected are de-energized. Observe the safety instructions; see page 7. Cable Glands In a hazardous location, only cable glands with suitable approvals may be used. The installation instructions of the manufacturer must be observed.

  • Page 18: Rating Plates / Terminal Assignments

    Electrical Installation Rating Plates / Terminal Assignments Fig.: Terminal assignments of Stratos Pro A201 Fig.: Stratos Pro A201N rating plate at outside bottom of front (illustrative example)

  • Page 19: Wiring Of Stratos Pro A201Condi

    Electrical Installation Wiring of Stratos Pro A201CONDI Sensor connection MK-CONDI module Areas for placing the screwdriver to pull out the terminals Terminal row 1 Terminal row 2 Fig.: MK-CONDI module terminal assignments In addition: 2 HART pins (between terminal row 1 and 2) Fig.: Terminals, device opened, back of front unit...

  • Page 20: Cable Preparation Se655 / Se656

    Cable Preparation SE655 / SE656 Preparing the shield connection Pre-assembled special cable for SE655 / SE656 sensors • Insert the special cable through the cable entry into the terminal compartment. • Remove the already separated part of the cable insulation (1). •...

  • Page 21: Wiring Example: Se655 / Se656

    Wiring Example: SE655 / SE656 Measuring task: Conductivity, temperature Sensors: SE655/SE656 sensor Connecting the pre-assembled cable...

  • Page 22: Wiring Example: Se660

    Wiring Example: SE660 Measuring task: Conductivity, temperature Sensor: SE660 sensor...

  • Page 23: Wiring Example: Yokogawa Isc40

    Wiring Example: Yokogawa ISC40 Measuring task: Conductivity, temperature Sensor: Yokogawa ISC40 (Pt 1000) Jumper! Configuration settings for this sensor:...

  • Page 24: Wiring Example: Yokogawa Ic40S

    Wiring Example: Yokogawa IC40S Measuring task: Conductivity, temperature Sensor: Yokogawa IC40S (NTC 30k) Configuration settings for this sensor: Approx. 1.7...

  • Page 25: Wiring Example: Se670, Se680

    Wiring Example: SE670, SE680 Measuring task: Conductivity, temperature Sensor: SE670 NOTICE! Connection to RS-485 interface. Remove the measuring module. The SE670 / SE680 sensors are connected to the RS-485 interface of the device – for an A2... Series (2-wire) device, the measuring module slot must be empty.

  • Page 26: Connecting An Se670 / Se680 Sensor

    Connecting an SE670 / SE680 Sensor NOTICE! The slot for the MK-CONDI module must be empty – be sure to remove the module! Areas for placing the screwdriver to pull out the terminals Connection of SE670 / SE680: Wire color Brown Green Yellow...

  • Page 27: User Interface, Keypad

    User Interface, Keypad MEMO SENS 1 Display 2 Keypad 3 Nameplate (enclosure bottom) Function • Return to last menu level • Directly to measuring mode (press > 2 s) • Measuring mode: other display • Retrieve information • Show error messages •...

  • Page 28: Display

    Display MEMO SENS 1 Temperature 13 Info available 2 Sensocheck 14 Hold mode active 3 Interval/response time 15 Main display 4 Sensor data 16 Secondary display 5 Not used 17 Proceed using enter 6 Limit message: 18 Not used Limit 1 or Limit 2 19 Diagnostics 7 Alarm...

  • Page 29: Measuring Mode

    Measuring Mode After the operating voltage has been connected, the analyzer auto- matically goes to “Measuring“ mode. To call the measuring mode from another operating mode (e.g. Diagnostics, Service): Hold meas key depressed (> 2 s). Sensoface indicator Active (sensor status) parameter set (configuration) Time...

  • Page 30: Selecting The Mode / Entering Values

    Selecting the Mode / Entering Values To select the operating mode: 1) Hold meas key depressed (> 2 s) (directly to measuring mode) 2) Press menu key: the selection menu appears 3) Select operating mode using left / right arrow key 4) Press enter to confirm the selected mode Selection menu Selected mode...

  • Page 31: Display In Measuring Mode

    Display in Measuring Mode The MAIN DISPLAY is the display which is shown in measuring mode. To call the measuring mode from any other mode, hold the meas key depressed for at least 2 sec. meas key enter key meas By pressing meas briefly you can step through further displays such as tag number (TAG) or flow (L/h).

  • Page 32: Color-Coded User Interface

    Color-Coded User Interface The color-coded user interface* guarantees increased operating safety. Operating modes are clearly signaled. The normal measuring mode is white. Information text appears on a green screen and the diagnostic menu appears on turquoise. The orange HOLD mode (e.g. during calibration) is quickly visible as is the magenta screen which indicates asset management messages for predictive diagnostics –...

  • Page 33: Operating Modes

    Operating Modes Diagnostics Display of calibration data, display of sensor data, performing a device self-test, viewing the logbook entries, display of hardware/software versions of the individual components. The logbook (TAN SW-A002) can store 100 events (00...99). They can be displayed directly on the device.

  • Page 34: Menu Structure Of Modes And Functions

    Menu Structure of Modes and Functions Meas. mode TAG display CLK display (main display selectable) after 60 s after 60 s Pressing the menu key (down arrow) opens the selection menu. Select the menu group using the left/right arrow keys. ...

  • Page 35: Hold Mode

    HOLD Mode The HOLD mode is a safety state during configuration and calibration. Output current is frozen (LAST) or set to a fixed value (FIX). The HOLD mode is indicated by orange display backlighting. HOLD mode, display icon: Output signal response •...

  • Page 36: Alarm

    Alarm External activation of HOLD (SW-A005) The HOLD mode can be activated from outside by sending a signal to the HOLD input (e.g. from the process control system). Power supply HOLD 12...24 V AC/DC input Stratos Pro A201 Process control system HOLD inactive 0...2 V AC/DC HOLD active...

  • Page 37: Alarm And Hold Messages

    Alarm and HOLD Messages Message Released by Cause Alarm Sensocheck Polarization / Cable (22 mA) Error Messages Flow (CONTROL input) ERR 10: Conductance > 3500 mS HOLD HOLD via menu or input (Last/Fix) Configuration Calibration Service Generating a message via the CONTROL input (TAN SW-A005) (min.

  • Page 39: Configuration

    Configuration CAUTION! Incorrect parameter settings or adjustments can result in incorrect outputs. Stratos Pro must therefore be commissioned by a system specialist, all its parameters must be set, and it must be fully adjusted. For detailed information on parameter setting and adjustment, see the user manual Menu Structure of Configuration The device provides 2 parameter sets “A“...
  • Page 40 Configuration Parameter Set A/B: Configurable Menu Groups Menu group Parameter set A Parameter set B Sensor selection Current output 1 Current output 1 Current output 2 Current output 2 Compensation Compensation Control input Alarm mode Alarm mode Parameter set selection Setting the clock TAG of measuring point TAG of measuring point...

  • Page 41: Parameter Set Selection

    Configuration Parameter Set Selection Note: Manual selection of parameter sets must have been preset in the CONFIG > PARSET menu. Default setting is a fixed parameter set A. Wrong settings change the measurement properties! Manual switchover of parameter sets A/B Display Action To switch between parameter sets:...
  • Page 42 Configuration Configuration Choices Default Sensor (SENSOR) SNS: SE 655, SE 656 SE 655 SE 660, SE 670, SE680-K, SE680-M MEMOSENS OTHER OTHER RTD TYPE 100PT / 1000PT / 1000PT 30 NTC CELL FACTOR XX.XXx 01.980 TRANS RATIO XXX.Xx 120.0 MEAS MODE Cond Cond Conc %...
  • Page 43 Configuration Configuration Choices Default Sensor (SENSOR) SNS: CIP COUNT ON/OFF 0 ... 9999 CYCLES SIP COUNT ON/OFF 0 ... 9999 CYCLES CHECK TAG ON/OFF CHECK GROUP ON/OFF Output 1 (OUT1) OT1: Channel Cond/TMP Cond Output LIN / BiLIN / LOG BEGIN 4 mA xxxx 000.0 mS/cm...
  • Page 44 Configuration Configuration Choices Default Output 2 (OUT2) ... other steps like output 1 Temperature compensation (CORRECTION) Compensation for ultrapure water: NaCl, HCL, NH3 TC LIQUID 00.00 ...19.99%/K 00.00%/K REF TEMP 000.0 ... 199.9 °C 025.0 °C TEMP EXT * ON/OFF I-INPUT 0–20 mA / 4–20 mA 4...20 mA...
  • Page 45 Configuration Configuration Choices Default Parameter set (PARSET) Select fixed parameter set (A) or switch between A/B via (fixed parameter control input or manually in set A) measuring mode Real-time clock (CLOCK) CLK: FORMAT 24 h / 12 h 24 h 24 h TIME hh/mm 00..23:00...59...

  • Page 46: Configuration (Original For Copy)

    Configuration (Original for Copy) Parameter Parameter set A Parameter set B SNS: Sensor type SNS: RTD type SNS: Cell factor SNS: Transfer ratio SNS: Measuring mode SNS: Measuring range SNS: Concentration determination SNS: Temperature unit SNS: Temp detection SNS: Manual temp SNS: CIP counter SNS: SIP counter SNS: CHECK TAG...
  • Page 47 Configuration (Original for Copy) Parameter Parameter set A Parameter set B OT2: Vertex X (bilinear curve only) OT2: Vertex Y (bilinear curve only) OT2: Filter time OT2: FAIL 22 mA (error messages) OT2: FACE 22 mA (Sensoface messages) OT2: HOLD mode OT2: HOLD FIX current COR: TC SELECT COR: Temp coefficient...

  • Page 48: Sensor

    Configuration Sensor Select: Sensor type, temperature probe, cell factor, transfer ratio, measuring mode, range 1) Press menu key. 2) Select CONF using , press enter. 3) Select parameter set using keys, press enter. 4) Select SENSOR menu using keys, press enter. 5) All items of this menu group are indicated by the “SNS:”...
  • Page 49 Configuration Menu item Action Choices Sensor type SE 655 Select sensor type using  keys. SE 656, SE 660 SE 670, SE 680-K, SE 680-M, Press enter to confirm. MEMOSENS, OTHER Temperature probe Only with OTHER: 1000PT Select type of tempera- 100PT ture probe using ...
  • Page 50 Configuration Sensor Select: Concentration determination 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select SENSOR menu using  keys, press enter. 5) All items of this menu group are indicated by the “SNS:”...
  • Page 51 Configuration Menu item Action Choices Concentration For conc measurement -01- (NaCl), -02- (HCl), only -03- (NaOH), -04- (H determination Select desired concentra- -05- (HNO ), -06- (H tion solution using . -07- (HCl), -08- (HNO -09- (H ), -10- (NaOH), Press enter to confirm.
  • Page 52 Configuration Sensor Select: Temperature unit, temperature detection 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select SENSOR menu using  keys, press enter. 5) All items of this menu group are indicated by the “SNS:”...
  • Page 53 Configuration Menu item Action Choices Temperature unit Select °C or °F using  keys. Press enter to confirm. Temperature Select mode using : AUTO: Measured by detection sensor MAN: Direct input of temperature, no measure- ment (see next step) EXT: Temperature speci- fied via current input (only if TAN E enabled) Press enter to confirm.
  • Page 54 Configuration Sensor Adjust: Cleaning cycles, sterilization cycles 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select SENSOR menu using  keys, press enter. 5) All items of this menu group are indicated by the “SNS:”...
  • Page 55 Configuration Menu item Action Choices CIP / SIP Cleaning cycles Select ON or OFF using ON/OFF  keys. Activates/deactivates log- ging in extended logbook (TAN SW-A003). Press enter to confirm. Sterilization cycles Select ON or OFF using ON/OFF  keys. Activates/deactivates log- ging in extended logbook (TAN SW-A003).

  • Page 56: Sensor Verification (Tag, Group)

    Configuration Memosens Sensor Sensor Verification (TAG, GROUP) 1) Press menu key. 2) Select CONF using , press enter. 3) Select parameter set using  keys, press enter. 4) Select SENSOR menu using  keys, press enter. 5) All items of this menu group are indicated by the “SNS:” code.
  • Page 57 Configuration Menu item Action Choices Select ON or OFF using ON/OFF  keys. Press enter to confirm. When switched on, the entry for “TAG” in the Memosens sensor is com- pared to the entry in the analyzer. If the entries differ, a mes- sage will be generated.

  • Page 58: Current Output 1

    Configuration Current Output 1 Output current range. Linear/Logarithmic. Current start. 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select OUT1 menu using  keys, press enter. 5) All items of this menu group are indicated by the “OT1:”...
  • Page 59 Configuration Menu item Action Remark Process variable Selectable decades with Select using  keys: logarithmic setting (LOG): Cond: Conductivity S/cm: 0.001 mS/cm, 0.01 mS/cm, TMP: Temperature 0.1 mS/cm, 1.0 mS/cm, 10.0 mS/ Press enter to confirm. cm, 100.0 mS/cm, 1000 mS/cm Then select characteristic S/M: 0.001 S/m, 0.01 S/m, 0.1 S/m, 1.0 S/m, 10.0 S/m, 100 S/m...
  • Page 60 Configuration Current Output 1 Output current curve, bilinear 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select OUT1 menu using  keys, press enter. 5) All items of this menu group are indicated by the “OT1:”...
  • Page 61 Configuration Menu item Action Choices Output current Select using  keys. Linear characteristic Press enter to confirm. curve biLIN Bilinear curve Logarithmic curve Current start Entered value applies to Enter value using  selected process variable/  keys. and current end range If the adjusted range is exceeded, the device...
  • Page 62 Logarithmic Curve Nonlinear output current characteristic: allows measurements over several decades, e.g. measuring very low values with a high resolution and high values with a low resolution. Parameters required: Start and end value Possible start and end values The start value must be at least one decade lower than the end value. Start value and end value must be specified in the same units (either in µS/cm or in S/m, see listing): 0.001 mS/cm...
  • Page 63 Configuration Menu item Action Choices Logarithmic curve Select using  keys. Logarithmic curve Press enter to confirm. of output current biLIN Bilinear curve Linear characteristic Start value Start value of logarithmic Enter value using  output curve  keys. Press enter to confirm. End value End value of logarithmic Enter value using ...
  • Page 64 Configuration Current Output 1 Adjusting the time interval of the output filter 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select OUT1 menu using  keys, press enter.
  • Page 65 Configuration Menu item Action Choices Time averaging filter 0...120 SEC Enter value using  (0000 SEC)  keys. Press enter to confirm. Time averaging filter To smoothen the current output, a low-pass filter with adjustable filter time constant can be switched on. When there is a jump at the input (100 %), the output level is at 63 % after the time interval has been reached.
  • Page 66 Configuration Current Output 1 Output current during Error and HOLD 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select OUT1 menu using  keys, press enter. 5) All items of this menu group are indicated by the “OT1:”...
  • Page 67 Configuration Menu item Action Choices Output current Select ON (22 mA for ON/OFF error message) or OFF during error message using  keys. Press enter to confirm. Output current during Select ON or OFF using ON/OFF  keys. Sensoface messages Confirm by pressing enter OT1: FACE 22 mA Output current...

  • Page 68: Current Output 2

    Configuration Current Output 2 Output current range. Process variable . . . 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select OUT2 menu using  keys, press enter.
  • Page 69 Configuration Menu item Action Choices Process variable Cond/TMP Select using  keys: Begin: 0 °C Cond: Conductivity End: 100°C TMP: Temperature Press enter to confirm. All the following adjustments are made as for current output 1 (see there)!

  • Page 70: Temperature Compensation

    Configuration Temperature Compensation Selecting the compensation method. TC process medium. 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select CORRECTION menu using  keys, press enter. 5) All items of this menu group are indicated by the “COR:”...
  • Page 71 Configuration Menu item Action Choices Temperature Select desired compensation using keys: compensation OFF: Temp compensation LIN: Linear temperature compensation with entry of temperature coefficient nLF: Temperature compensa- tion for natural waters to EN 27888 NaCl: Ultrapure water with NaCl traces (0 ... +120 °C / +32 ... +248 °F) HCL: Ultrapure water with HCl traces...
  • Page 72 Configuration Temperature Compensation Current input for temp measurement. 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select CORRECTION menu using  keys, press enter. 5) All items of this menu group are indicated by the “COR:”...
  • Page 73 Configuration Menu item Action Choices With external temp measurement (current input enabled / TAN): Current range Select desired range using  keys. Press enter to confirm. Current start Input range: Modify digit using  keys, select next digit using  keys. Press enter to confirm.

  • Page 74: Control Input (Tan Sw-A005)

    Configuration CONTROL Input (TAN SW-A005) Parameter set selection via external signal or flow measurement 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select CNTR_IN menu using  keys, press enter.
  • Page 75 Configuration Menu item Action Choices Select function of PARSET Select using keys. (selecting parameter Press enter to confirm. CONTROL input set A/B via signal at CONTROL input) Flow (for connecting a pulse- output flow meter) Adjust to flow meter: With “Flow” selected, 12000 pulses/liter you must adjust the device to the flow meter...

  • Page 76: Alarm Settings

    Configuration Alarm Settings Delay. Sensocheck. Tempcheck. 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select ALARM menu using  keys, press enter. 5) All items of this menu group are indicated by the “ALA:”...
  • Page 77 Configuration Menu item Action Choices Delay 0...600 SEC Enter value using  (010 SEC)  keys. Press enter to confirm. Sensocheck Select Sensocheck ON/OFF (continuous monitoring of sensor). Select ON or OFF using  keys. Press enter to confirm (At the same time, Sensoface is activated.
  • Page 78 Configuration Alarm Settings CONTROL input (TAN SW-A005) 1) Press menu key. 2) Select CONF using  keys, press enter. 3) Select parameter set using , press enter. 4) Select ALARM menu using  keys, press enter. 5) All items of this menu group are indicated by the “ALA:”...
  • Page 79 Configuration Menu item Action Choices CONTROL input The CONTROL input can generate an alarm when assigned to FLOW (flow monitoring) in the CONF menu: FLOW CNTR Flow measurement: allows monitoring the minimum and maximum flow (pulse counter) Alarm Specify value Default: 05.00 liters/h Minimum flow FLOW MIN...

  • Page 80: Time And Date

    Configuration Time and Date 1) Press menu key. 2) Select CONF using , press enter. 3) Select parameter set A using  keys, press enter. 4) Select CLOCK using  keys, press enter. 5) All items of this menu group are indicated by the “CLK:”...
  • Page 81 Configuration Time and Date Control of the calibration and cleaning cycles is based on the time and date of the integrated real-time clock. In measuring mode the time is shown in the lower display. When using digital sensors, the calibration data is written in the sensor head. In addition, the logbook entries (cf Diagnostics) are provided with a time stamp.

  • Page 82: Measuring Points (Tag/Group)

    Configuration Measuring Points (TAG/GROUP) Display Backlighting 1) Press menu key. 2) Select CONF using , press enter. 3) Select parameter set A using  keys, press enter. 4) Select TAG or DISPLAY using  keys, press enter. 5) All items of this menu group are indicated by the “TAG:”...
  • Page 83 Configuration Sensor Verification (TAG, GROUP) When Memosens sensors are calibrated in the lab, it is often useful and sometimes even mandatory that these sensors will be operated again at the same measuring points or at a defined group of measuring points. To ensure this, you can save the respective measuring point (TAG) or group of measuring points (GROUP) in the sensor.

  • Page 85: Calibration

    Calibration Note: • All calibration procedures must be performed by trained person- nel. Incorrectly set parameters may go unnoticed, but change the measuring properties. Calibration can be performed by: • Determining the cell factor with a known calibration solution taking account of the temperature •...

  • Page 86: Calibration With Calibration Solution

    Calibration Calibration with Calibration Solution Input of temperature-corrected value of calibration solution with simultaneous display of cell factor. Be sure to use known calibration solutions and the respective temper- ature-corrected conductivity values (see calibration solution tables in the appendix). During the calibration procedure the temperature must be kept constant.
  • Page 87 Calibration Display Action Remark The cell factor and zero point are displayed. The “hourglass” icon is blinking. Use the arrow keys to select: • Repeat (repeat calibration) or • Measuring. Press enter to confirm. With MEAS selected: Display of measured End calibration by variable, Sensoface pressing enter.

  • Page 88: Calibration By Input Of A Cell Factor

    Calibration Calibration by Input of a Cell Factor You can directly enter the value for the cell factor of a sensor. This value must be known, e.g. determined beforehand in the laboratory. The selected process variable and the temperature are displayed. This method is suitable for all process variables.

  • Page 89: Calibration By Input Of An Installation Factor

    Calibration Calibration by Input of an Installation Factor When using a Memosens sensor in a tight space, the installation factor is entered. Display Action Remark Select Calibration. Press enter to proceed. Select CAL_INSTALL calibration method. Press enter to proceed. Ready for calibration. Display (3 sec) Hourglass blinks.

  • Page 90: Product Calibration

    Calibration Product Calibration (Calibration by sampling) For product calibration, the uncompensated conductivity (mS/cm, S/m) is used. During product calibration the sensor remains in the process. The measurement process is only interrupted briefly. Procedure: 1) The sample is measured in the lab or directly on the site using a portable meter.
  • Page 91 Calibration Display Action Remark The device returns to From the blinking measuring mode. CAL mode indicator you see that product calibration has not been terminated. Product calibration Display (3 sec) step 2: Now the device is in When the sample value HOLD mode.

  • Page 92: Zero Calibration In Air / With Calibration Solution

    Calibration Zero Calibration in Air / with Calibration Solution Display Action Remark Select Calibration. Press enter to proceed. Select CAL_ZERO calibration method. Press enter to proceed. Ready for calibration. Display (3 sec) Hourglass blinks. Now the device is in HOLD mode. Calibration in air Edit digits until the lower display indicates Zero...

  • Page 93: Temp Probe Adjustment

    Temp probe adjustment Calibration Temp Probe Adjustment Display Action Remark Select Calibration. Wrong settings Press enter to proceed. change the Select CAL_RTD measurement calibration method. properties! Press enter to proceed. Measure the tempera- Display (3 sec) ture of the process Now the device is in medium using an HOLD mode.

  • Page 94: Measurement

    Measurement Display Remark From the configuration or calibration menus, you can switch the device to measuring mode by pressing the meas key. In the measuring mode the upper display line shows the configured process variable or AM/PM and °F: (Cond or temperature), the lower display line shows the time and the second configured process variable (Cond or temperature).

  • Page 95: Diagnostics

    Diagnostics In the Diagnostics mode you can access the following menus without interrupting the measurement: CALDATA viewing the calibration data SENSOR viewing the sensor data SELFTEST starting a device self-test LOGBOOK viewing the logbook entries MONITOR displaying currently measured values VERSION displaying device type, software version, serial number Access to diagnostics can be protected with a passcode...
  • Page 96 Diagnostics Display Menu item Displaying the calibration data Select CALDATA using, press enter to confirm. Use thekeys to select the desired parameter from the bottom line of the display (LAST_CAL CELLFACTOR ZERO). The selected parameter is shown in the main display. Press meas to return to measurement.
  • Page 97 Diagnostics Display Menu item Device self-test (To abort, you can press meas.) 1) Display test: Display of all segments with changing background colors white/green/red. Press enter to proceed. 2) RAM test: Hourglass blinks, then display of --PASS- - or --FAIL-- Press enter to proceed.
  • Page 98 Diagnostics Display Menu item Displaying the logbook entries (TAN SW-A002) Select LOGBOOK using, press enter to confirm. By using the  keys, you can scroll backwards and forwards through the logbook (entries -00-...-99-), -00- being the last entry. If the display is set to date/time, you can search for a particular date using the ...
  • Page 99 Diagnostics Display Menu item Version Here, you find the data you require for requesting a device-specific Option. Display of device type, software/hardware version, and serial number for all device components. Use the  keys to switch between software and hardware version. Press enter to proceed to next device component.

  • Page 100: Service

    Service In the Service mode you can access the following menus: MONITOR Displaying currently measured values. OUT1 Testing current output 1. OUT2 Testing current output 2. (Only if equipped with 2nd current output.) CODES Assigning and editing passcodes. DEFAULT Resetting the device to factory settings. OPTION Enabling options via TAN.
  • Page 101 Service Menu item Remark Displaying currently measured values (sensor monitor) with HOLD mode activated: Select MONITOR using, press enter to confirm. Select variable in the bottom text line using. The selected parameter is shown in the upper display line. As the device is in HOLD mode, you can perform validations using simulators without influencing the signal outputs.
  • Page 102 Service Menu item Remark Assigning passcodes: In the “SERVICE - CODES“ menu you can assign pass- codes to DIAG, HOLD, CAL, CONF and SERVICE modes (Service preset to 5555). When you have lost the Service passcode, you have to request an “Ambulance TAN“ from the manufac- turer specifying the serial number of your device.

  • Page 103: Operating States

    Operating States Operating status Measuring Diag 60 s CAL_SOL Calibration solution CAL_CELL Cell factor P_CAL Product cal S1 P_CAL Product cal S2 CAL_ZERO Zero cal CAL_RTD Temp adjustment CONF ParSet A CONF ParSet B...
  • Page 104 Operating States Operating status HOLD input Explanation: as configured (Last/Fix or Last/Off ) active manual...

  • Page 105: Maintenance And Repair

    • Opening the Service menu • Opening the Confiuration menu Repair The Stratos Pro and the measuring modules cannot be repaired by the user. To request a repair, please contact Knick Elektronische Messgeräte GmbH & Co. KG by visiting www.knick.de.

  • Page 106: A201B/X: Supply Units And Connection

    A201B/X: Supply Units and Connection Recommended Power Supply Units Order No. Stratos Pro A201X, Zone 1: Repeater power supply, Ex, 90...253 V AC, WG 21 A7 output 4...20 mA Repeater power supply, Ex, 90...253 V AC, WG 21 A7 Opt. 470 HART, output 4...20 mA Repeater power supply, Ex, 24 V AC/DC, WG 21 A7 Opt.

  • Page 107: Product Line And Accessories

    Product Line and Accessories Order Code Stratos Pro A201 Example CONDI 2-wire / 4-20 mA B,C,E Communication Without (HART retrofittable via TAN) 0 Version number Version Approvals General Safety ATEX / IECEx Zone 2 ATEX / IECEx / FM Zone 1 / Cl 1 Div 1 Measuring channel Memosens pH / Redox digital...

  • Page 108: Specifications

    Specifications CONDI input Input for toroidal conductivity sensors SE655, SE656, SE660, SE670, SE680-K, SE680-M, MEMOSENS Measuring range Conductivity 0.000 ... 1999 mS/cm Concentration 0.00 ... 100.0 wt% Salinity 0.0 ... 45.0 % (0 ... 35 °C / 32 ... 95 °F) Display ranges Conductivity 0.000 ...
  • Page 109 Specifications Concentration -06- H 94 – 99 wt% (-17 °C / 1.4 °F) ... 89 – 99 wt% (115 °C / 239 °F) determination -07- HCl 22 – 39 wt% (-20 °C / -4°F) ... 22 – 39 wt% (50 °C / 122 °F) (continued) -08- HNO 35 –...
  • Page 110 Specifications I input (TAN) Current input 0/4 ... 20 mA / 50 Ω for external temperature signal Start/end of scale Configurable –50 ... 250 °C / –58 ... 482 °F Characteristic Linear Measurement error 1.3) < 1% current value + 0.1 mA HOLD input Galvanically separated (optocoupler) Function...
  • Page 111 Specifications Output 2 Current loop, 4 ... 20 mA, floating, reverse polarity protected For version with 2nd current output only Supply voltage 14 ... 30 V Process variable * Conductivity, resistivity, concentration, salinity, or temperature Characteristic Linear, bilinear or logarithmic Overrange * 22 mA in the case of error messages Output filter *...
  • Page 112 Specifications Diagnostic functions Calibration data Calibration date, sensor parameters Device self-test Display test, automatic memory test (RAM, FLASH, EEPROM), module test Logbook (TAN) 100 events with date and time Extended logbook (TAN) Audit Trail: 200 events with date and time Service functions Sensor monitor Display of direct sensor signals...
  • Page 113 Specifications Wiring Stripping length Max. 7 mm Temperature resistance > 75 °C / 167 °F Rated operating conditions Climatic class 3K5 according to EN 60721-3-3 Location class C1 according to EN 60654-1 Ambient temperature –20 ... 65 °C / –4 ... 149 °F Relative humidity 5 ...

  • Page 114: Calibration Solutions

    Calibration Solutions Potassium Chloride Solutions (Conductivity in mS/cm) Temperature Concentration [˚C] 0.01 mol/l 0.1 mol/l 1 mol/l 0.776 7.15 65.41 0.896 8.22 74.14 1.020 9.33 83.19 1.147 10.48 92.52 1.173 10.72 94.41 1.199 10.95 96.31 1.225 11.19 98.22 1.251 11.43 100.14 1.278 11.67...
  • Page 115 Calibration Solutions Sodium Chloride Solutions (Conductivity in mS/cm) Temperature Concentration [˚C] 0.01 mol/l 0,1 mol/l Saturated 0.631 5.786 134.5 0.651 5.965 138.6 0.671 6.145 142.7 0.692 6.327 146.9 0.712 6.510 151.2 0.733 6.695 155.5 0.754 6.881 159.9 0.775 7.068 164.3 0.796 7.257 168.8...

  • Page 116: Concentration Measurement

    Concentration Measurement Ranges Substance Concentration ranges NaCl 0-26 wt% (0 °C / +32 °F) 0-26 wt% (+100 °C / +212 °F) -01- Configuration 0-18 wt% (–20 °C / –4 °F) 22-39 wt% (–20 °C / –4 °F) 0-18 wt% (+50 °C / +122 °F) 22-39 wt% (+50 °C / +122 °F) Configuration -02-...

  • Page 117: Concentration Curves

    Concentration Curves -01- Sodium chloride solution NaCl -01- c [% by wt]  Concentration measurement not possible in this range. Conductivity versus substance concentration and process temperature for sodium chloride solution (NaCl)
  • Page 118 Concentration Curves -02- Hydrochloric acid HCl -07- -07- -02- c [% by wt]  Concentration measurement not possible in this range. Conductivity versus substance concentration and process temperature for hydrochloric acid (HCl) Source: Haase/Sauermann/Dücker; Z. phys. Chem. New Edition, Vol. 47 (1965)
  • Page 119 Concentration Curves -03- Sodium hydroxide solution NaOH -10- -10- -03- c [% by wt]  Concentration measurement not possible in this range. Conductivity versus substance concentration and process temperature for sodium hydroxide solution (NaOH)
  • Page 120 Concentration Curves -04- Sulfuric acid H -06- -09- -06- -04- -09- c [% by wt]  Concentration measurement not possible in this range. Conductivity versus substance concentration and process temperature for sulfuric acid (H Source: Darling; Journal of Chemical and Engineering Data; Vol.9 No.3, July 1964...
  • Page 121 Concentration Curves -05- Nitric acid HNO -08- -05- -08- c [% by wt]  Concentration measurement not possible in this range. Conductivity versus substance concentration and process temperature for nitric acid (HN0 Source: Haase/Sauermann/Dücker; Z. phys. Chem. New Edition, Vol. 47 (1965)

  • Page 122: Error Handling

    Error Handling Alarm condition: • The display backlighting turns red • The alarm icon is displayed • The complete measured-value display blinks • “ERR xxx“ is displayed in the lower menu line Press the [info] key to view a short error text: •...

  • Page 123: Error Messages

    Error Messages Info text Problem (is displayed in case of Error Possible causes fault when the Info key is pressed) ERR 99 Error in factory settings DEVICE FAILURE EEPROM or RAM defective This error message only occurs in the case of a total defect. The device must be repaired and recalibrated at the factory.
  • Page 124 Error Messages Info text Problem (is displayed in case of Error Possible causes fault when the Info key is pressed) ERR 10 CONDUCTANCE TOO HIGH Measuring range of conductance exceeded > 3500 mS ERR 11 Display range limits exceeded CONDUCTIVITY RANGE Cond >...
  • Page 125 Error Messages Info text Problem (is displayed in case of Error Possible causes fault when the Info key is pressed) ERR 72 FLOW TOO LOW Flow too low ERR 73 FLOW TOO HIGH Flow too high ERR 100 INVALID SPAN OUT1 Span Out1 configuration error Selected span too small...

  • Page 126: Decommissioning

    Decommissioning Disposal Local codes and regulations must be observed when disposing of the product. Returns If required, send the product in a clean condition and securely packed to your local contact. See www.knick.de.

  • Page 127: Sensoface

    Sensoface (Sensocheck must have been activated during configuration.) The smiley in the display (Sensoface) alerts to sensor problems (defective sensor, defective cable, maintenance required). The permitted calibration ranges and the conditions for a friendly, neutral, or sad Sensoface are summarized in the following table.
  • Page 128 Sensoface Display Problem Status Sensor defect Wrong or defective sensor or excessive cable capacitance (see also error message Err 15). Temperature Temperature outside range for TC, conc, sal...

  • Page 129: Hart: Typical Applications

    HART: Typical Applications (SW-A001) HART Terminal + out Power supply 250 Ω 4 ... 20mA min 19 V - out 1 - out 2 A201 HART Terminal HART Terminal Repeater + out power supply 4 ... 20mA - out 1 - out 2 A201...

  • Page 130: Fda 21 Cfr Part 11

    FDA 21 CFR Part 11 Conformity with FDA 21 CFR Part 11 In their directive “Title 21 Code of Federal Regulations, 21 CFR Part 11, Electronic Records; Electronic Signatures“ the American health agency FDA (Food and Drug Administration) regulates the production and processing of electronic documents for pharmaceutical develop- ment and production.

  • Page 131: Index

    Index Access code assignment 102 Accessories 107 Activating an option 102 AIR-SET calibration 92 Alarm 36 Alarm and HOLD messages 37 Alarm settings 76 Ambulance TAN 102 Assembly 13 Audit Trail 130 Audit Trail, diagnostics 98 Autorange 59 Backlighting 28 Block diagram 12 Cable glands 17 Cable preparation SE655/SE656 20...
  • Page 132 Index Concentration solution, selection 50 Configuration, alarm 76 Configuration, CONTROL input 74 Configuration, current output 1 58 Configuration, current output 2 68 Configuration, display backlighting 82 Configuration, flow measurement 74 Configuration, general 33 Configuration, measuring point 82 Configuration, menu groups 40 Configuration, menu structure 39 Configuration, output current during Error and HOLD 66 Configuration, overview 42...
  • Page 133 Index Diagnostics, logbook 98 Diagnostics mode 95 Diagnostics, sensor monitor 98 Diagnostics, version 99 Dimensions 14 Display 28 Display backlighting 28 Display data in Diagnostics mode 95 Display test 97 Disposal 126 Documentation: package contents 3 EEPROM test 97 Electrical installation 17 Electronic Signature 130 Enabling an option 102 Enclosure 14...
  • Page 134 Index HART, typical applications 129 HOLD, configuring the output signal 67 HOLD mode, description 35 HOLD mode, exit 35 HOLD mode, external activation 36 HOLD mode, manual activation 36 HOLD mode, output signal 35 Info text 123 Installation, notices 17 Intended use 7 Keypad 27 Logarithmic curve 62...
  • Page 135 Index Operating modes 33 Operating mode, selection 30 Operating states 103 Option request 102 Option request: Conditions 99 Options, overview 107 Order code 107 Output current, display 94 Output current range 68 Output current, specify value 101 Output filter 64 Output signal during HOLD 35 Output signal during HOLD, cofiguration 67 Overview, device properties 9...
  • Page 136 Index RAM test 97 Rated operating conditions 113 Rating plates 18 Repair 105 Reset to factory settings 102 Returns 126 Safety 7 Safety guide 3 SE670/680 sensor, connection via RS-485 26 Selection menu 30 Sensocheck, configuration 76 Sensocheck, description 127 Sensoface, description 127 Sensoface, troubleshooting 122 Sensor connection, assignments 19...
  • Page 137 Index Tag number, display 94 TAG (point of measurement) 83 TAN input 102 TAN options, activation 102 TAN options, overview 107 Technical data 108 Tempcheck 76 Temperature compensation 70, 71 Temperature probe adjustment 93 Temperature probe, monitoring 77 Temperature probe, selection 48 Temperature unit 52 Terminal assignments 18 Test report 2.2 3...
  • Page 138 Knick Elektronische Messgeräte GmbH & Co. KG Headquarters Beuckestraße 22 • 14163 Berlin Germany Phone: +49 30 80191-0 Fax: +49 30 80191-200 info@knick.de www.knick.de Local Contacts www.knick-international.com Translation of the original instructions Copyright 2022 • Subject to change Version: 4 • This document was published on February 18, 2022.
