  • Page 1 AS-18       Component/Composite over CAT5 Extender with Audio   User Manual                             ...
  • Page 2: Safety And Notice

    Safety and Notice    The  AS‐18  Component/Composite  over  CAT5  Extender  with  Audio  has  been  tested  for  conformance  to  safety  regulations  and  requirements,  and  has  been  certified  for  international  use.  However,  like  all  electronic  equipments,  the  AS‐18  should  be  used  with  care.  Please  read  and follow the safety instructions to protect yourself form possible injury and to minimize the ...
  • Page 3 Introduction     With only one CAT‐5e cable, the AS‐18 lets you extend signals to cover the distance up to  500m  (1,650ft).  The  devices  are  composed  of  a  transmitter  and  a  receiver.  The  transmitter  is  installed near the video signal source, and the receiver is placed near the desired display, up to  impressive  500m  (1,650ft)  away  for  composite  case  or  YPbPr  case  in  480i  /  480p  with  digital  audio to 400m (1,300ft) away. For composite case, you can send your video with analog stereo  audio  signal,  and  for  YPbPr  case,  digital  audio  in  S/PDIF  format  can  be  sent  through  a  cost‐effective CAT‐5e cable. ...
  • Page 4: Package Content

    Features  Extend CVBS with analog audio to 500m (1,650ft)  Extend YPbPr in 480i / 480p to 500m (1,650ft) with digital audio to 400m (1,300ft)  Extend YPbPr in 720p with digital audio to 300m (1,000ft)  Adjustable EQ & Gain control on the receiver side to adapt the module to the quality of  cable and video.    Package Content  1x AS‐18‐TX (TX = transmitting unit)  1x AS‐18‐RX (RX = receiving unit)  2x 5V 2A power adapter  1x User Manual    Technical Specifications  YPbPr Format Support: 480i / 480p / 720p / 1080i  CVBS: NTSC / PAL / SECAM  Input DDC signal: 5 volts (peak‐to‐peak)  HDMI Connector: 19 pin type female connector  Power Supply: 5V 2A  Power Consumption: TX: 5 Watts (max) / RX: 8 Watts (max)  RJ‐45 Connector: 2 indication LEDs  Dimensions: 123mm x 95mm x 25mm    (4.8”x3.7”x1”)    (L x W x H)  Weight: 400g    (14oz) ...
  • Page 5: Panel Descriptions

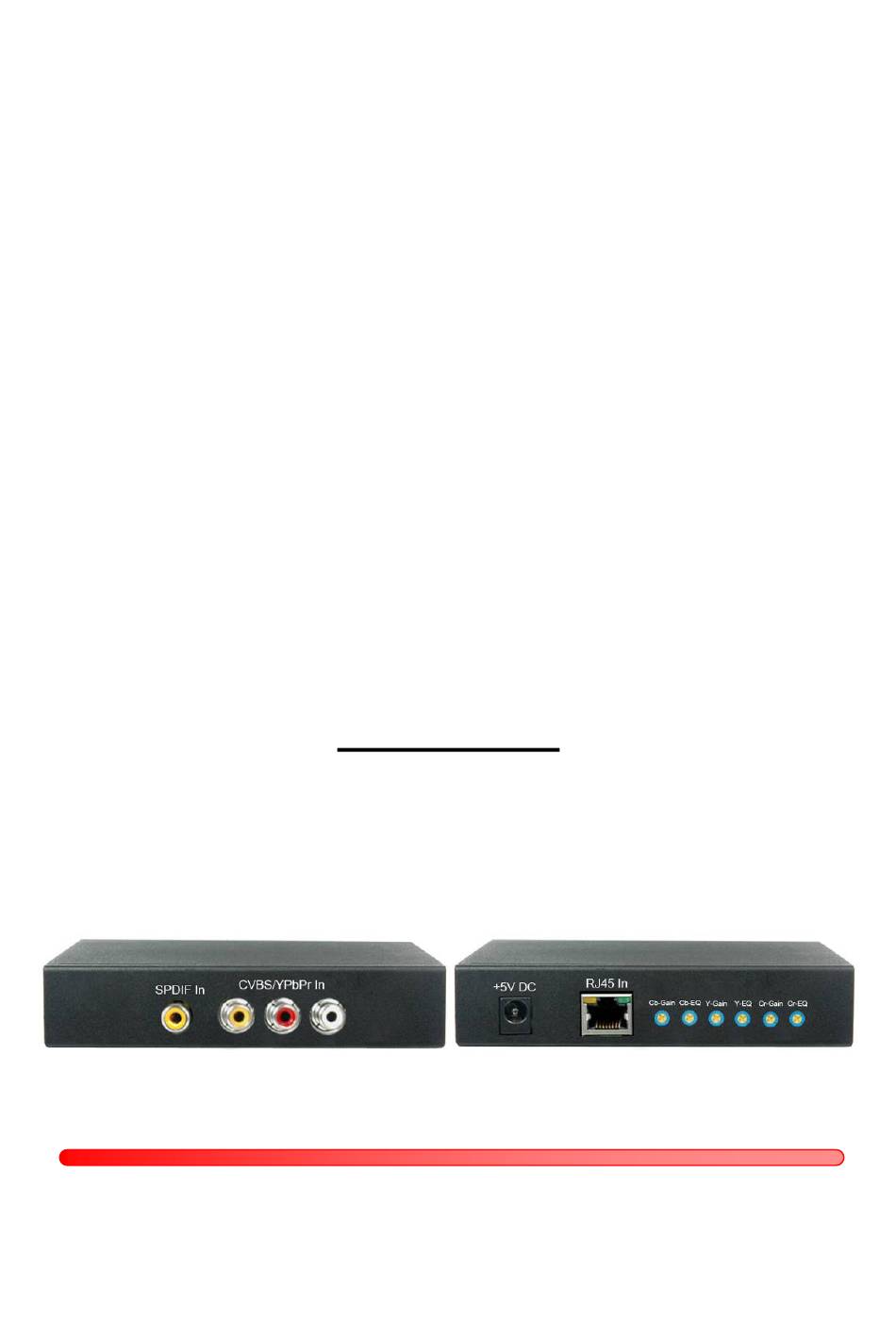

    Panel Descriptions   Front Panel — Transmitting unit (AS‐18‐TX)          S/PDIF CVBS/YPbPr       1    1.  S/PDIF: Connect to digital audio source  2.  CVBS/YPbPr: Connect to a video source with either a component or composite cable      Rear Panel — Transmitting unit (AS‐18‐TX)    RJ45 OUT +5V DC         3.  +5V DC Power jack: connect to 5V DC power supply  4.  RJ45 OUT: Plug in a CAT‐5/5e/6 cable that needs to be linked to the RJ‐45 connector of the  receiving unit AS‐08‐RX. ...
  • Page 6   Front Panel — Receiving unit (AS‐18‐RX)          S/PDIF CVBS/YPbPr   5    5.  SPDIF: Connect to digital audio output  6.  CVBS/YPbPr: Connect to a display with either a component or composite cable      Rear Panel — Receiving unit (AS‐18‐RX)    ┌Y┐ ┌Cr┐ ┌Cb┐ RJ-45 IN +5V DC GAIN EQ GAIN EQ GAIN EQ     7      7.  +5V DC power jack: connect to 5V DC power supply  8.  RJ‐45 IN: Plug in a CAT‐5/5e/6 cable that needs to be linked to the RJ‐45 connector of the  receiving unit AS‐18‐RX. ...
  • Page 7: Hardware Installation

    Hardware Installation       1. Connect your YPbPr/CVBS/Audio source (such as a DVD player) to the transmitting unit.  2. Connect your display (such as a plasma TV) to the receiving unit.  3. Connect your CAT‐5/5e/6 cable between the transmitting and receiving units.  4. Make sure your CAT‐5/5e/6 cable is tightly connected and not loose.  5. Plug in 5V DC power cord to the power jack of the receiving unit.  6. Plug in 5V DC power cord to the power jack of the transmitting unit.  7. If a flickering or a blinking image is seen or even worse, not displayed at all, try to adjust  the  rotary  knobs  to  improve  the  cable  skew.  GAIN  rotary  knobs  are  designed  for  gain  control,  and  EQ  rotary  knobs  are  designed  for  equalizing  the  wave  form  of  the  receiving  video signal. It is suggested to begin with adjusting the rotary knob of Y EQ to get the input ...
