Chapter 9 – Device Installation

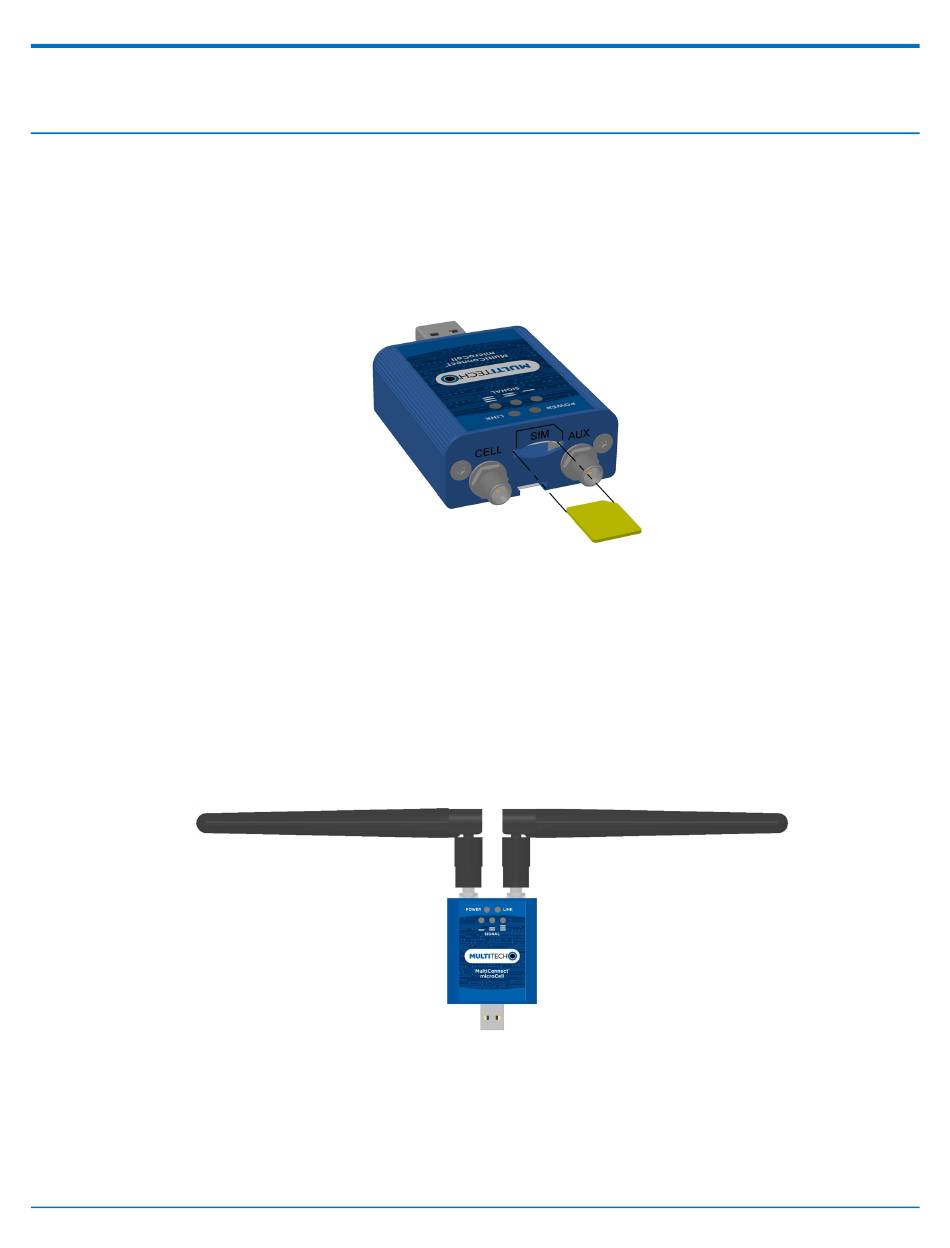

Installing a SIM Card
This model requires a SIM card, which is supplied by your service provider. To install the SIM card:
1.
Locate the SIM card slot on the side of the modem. The slot is labeled SIM.
2.
Slide the SIM card into the SIM card slot with the contact side facing up as shown. When the SIM card is
installed, it locks into place.
Removing a SIM Card
To remove the SIM card, push the SIM card in. The device ejects the SIM card.
Installing the Device
Important:
Install drivers on your computer before connecting the device.
Important:
Install both antennas for diversity.
1.
Screw both antennas finger tight on to the SMA connectors, labeled CELL and AUX
2.
Angle antennas away from each other. Do not angle antennas parallel each other.
3.
Connect the USB connector to your computer or other USB high power device, such as a hub.
4.
The POWER LED lights after the device powers up.
®
MultiConnect
microCell MTCM-L4N1D User Guide
S000822 Rev. 1.1
DEVICE INSTALLATION
17
