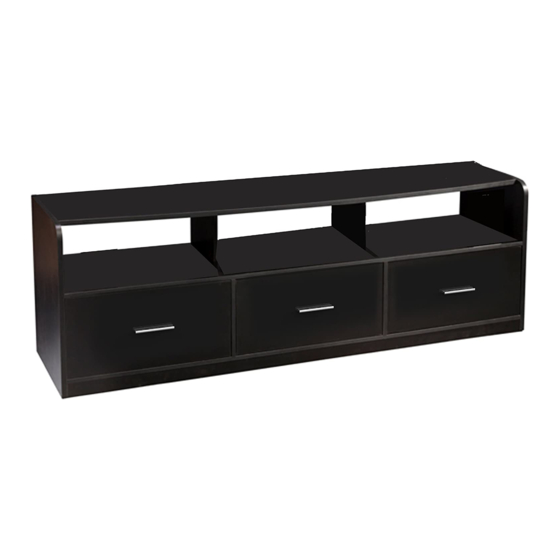

convenience concepts Tribeca TV Stand 151311CH Assembly Instructions Manual

convenience concepts Tribeca TV Stand 151311CH Assembly Instructions Manual

Holds up to 60” tv, maximum weight: 100 lbs

Advertisement

Quick Links

MAXIMUM WEIGHT: 100 lbs
151311CH
ASSEMBLY INSTRUCTIONS
We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,
step by step instructions will guide you through the project from start to finish .
Feel confident that this will be a fun and rewarding project . The final product will be a quality
piece of furniture that will go together smoothly and give years of enjoyment .
Please do not return to the store
STOP
. Broken or missing parts?
. Need help with assembly?
If you have any questions just call 1-800-468-6447 or email us at
parts@convenience-concepts.com
Tribeca TV Stand
HOLDS UP TO 60" TV
151311
151311MC

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tribeca TV Stand 151311CH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for convenience concepts Tribeca TV Stand 151311CH

  • Page 1 Tribeca TV Stand HOLDS UP TO 60” TV MAXIMUM WEIGHT: 100 lbs 151311CH 151311 151311MC ASSEMBLY INSTRUCTIONS We have designed our furniture with you , the customer in mind . Our clear , easy to follow , step by step instructions will guide you through the project from start to finish . Feel confident that this will be a fun and rewarding project .
  • Page 2 Cambolt & Camlock(32pcs) Bottom Panel(1pc) large Divider Panel(2pcs) (22pcs) Middle Panel(1pc) Small Divider Panel(2pcs) Long Screw (12pcs) Foot Panel(1pc) Drawer Cambolt & Camlock (12pcs) Top Panel(1pc) Drawer Front Panel(3pcs) Handle (3pcs) (12) Handle Screw(6pcs) Side Panel(2pcs) Drawer Bottom Panel(3pcs) Left(7) Right(8) Cap (8pcs) (13) (10)
  • Page 3 PAGE OF 8 Exploded Views Drawers...
  • Page 4 PAGE OF 8 step1 Insert cambolts and camlocks(A)and wooden dowels(B) to Bottom Panel(1)as shown. *Refer to page 2 for dowel assembly step2 Insert camlocks (A)and wooden dowels(B) to Large Divider Panels(2) as shown. 2.Connect both large Divider Panels(2) to Bottom Panel(1) and gently tighten camlocks.
  • Page 5 PAGE 5 OF 8 step3 Attach cambolts and camlocks(A) to Middle Panel(3). step4 1.Place Middle Panel(3) onto assembly and gently tighten camlocks. 2.Attach Cambolts(A) to Middle Panel(3). step5 Camlock side faces inside Insert Camlocks (A) to Small Divider Panels(4). 2.Connect both Small Divider Panels(4) to the Middle Panel(3).
  • Page 6 PAGE 6 OF 8 step6 Insert Cambolts and Camlocks(A) to Top Panel(5). step7 1.Connect Top Panel(5) to Small Divider Panels(4). 2.Gently tighten camlocks. 3.Attach caps(G) to camlock holes in panel(4). step8 1.Using two people,turn unit upside down carefully. 2 Attach Cambolts(A) to Bottom Panel(1) and Camlocks(A) to Foot Panel(6).
  • Page 7 PAGE 7 OF 8 step9 1.Attach cambolts(A) and insert wooden dowels(B)to side panel(7)and(8). step10 1.Connect the Side panels(7)and(8) to the assembly.(Make sure all the Camlocks face bolt holes before assemble and all Slide Rails should on the same level.) 2.Gently tighten camlocks.
  • Page 8 PAGE 8 OF 8 step11 1.Fasten drawer side panels(10) and (11) to drawer back panel(13) using long screws(C) as shown. 2. Insert drawer camlocks(D) to drawers side panels(10) and (11). step12 1.Slide Drawer Bottom Panel(12) into slots in Side Panel(10)and(11). 2.Attach Drawer Cambolts(D) and Handle(E) to the Drawer Front...
  • Page 9 PAGE 8 OF 8 step13 1.Carefully slide Drawers into unit and enjoy your quality piece of furniture. step14 1.Connect the back panel (14) to the assembly as shown using medium screws (I).
