www.ti.com
EVM User's Guide: TPS56A37EVM
TPS56A37 Step-Down Converter Evaluation Module
Description
The TPS56A37 is a high efficiency, high-voltage input,
easy-to-use synchronous buck converter. With the
wide operating input voltage range of 4.5 V to 28 V,
the TPS56A37 is designed for systems powered from
12-V, 19-V, 24-V power-bus rails. The device supports
up to 10-A continuous output current. The output
voltage range is from 0.6 V to 13 V. DCAP3™ control
mode provides an easy-to-design, stable regulation
with very little external components, and supports
cost-effective ceramic capacitors.
SLVUCT3 – DECEMBER 2023
Submit Document Feedback
Features
•
4.5-V to 28-V input voltage range
•
0.6-V to 13-V output voltage range (default: 5-V)
•
10-A continuous output current capability
•
Supports up to 98% duty operation
•
10-Pin 3.0-mm × 3.0-mm QFN HotRod
Applications
•
Industrial PC, EPOS, factory automation and
control
•
Multifunction printers, video conference system
•
Monitors, TV, speakers, PC and notebooks,
portable electronics
•
General purposes for 12-V,19-V, 24-V power-bus
supply

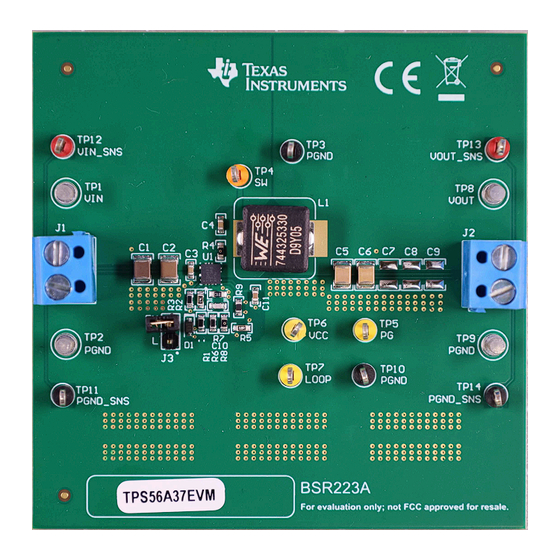

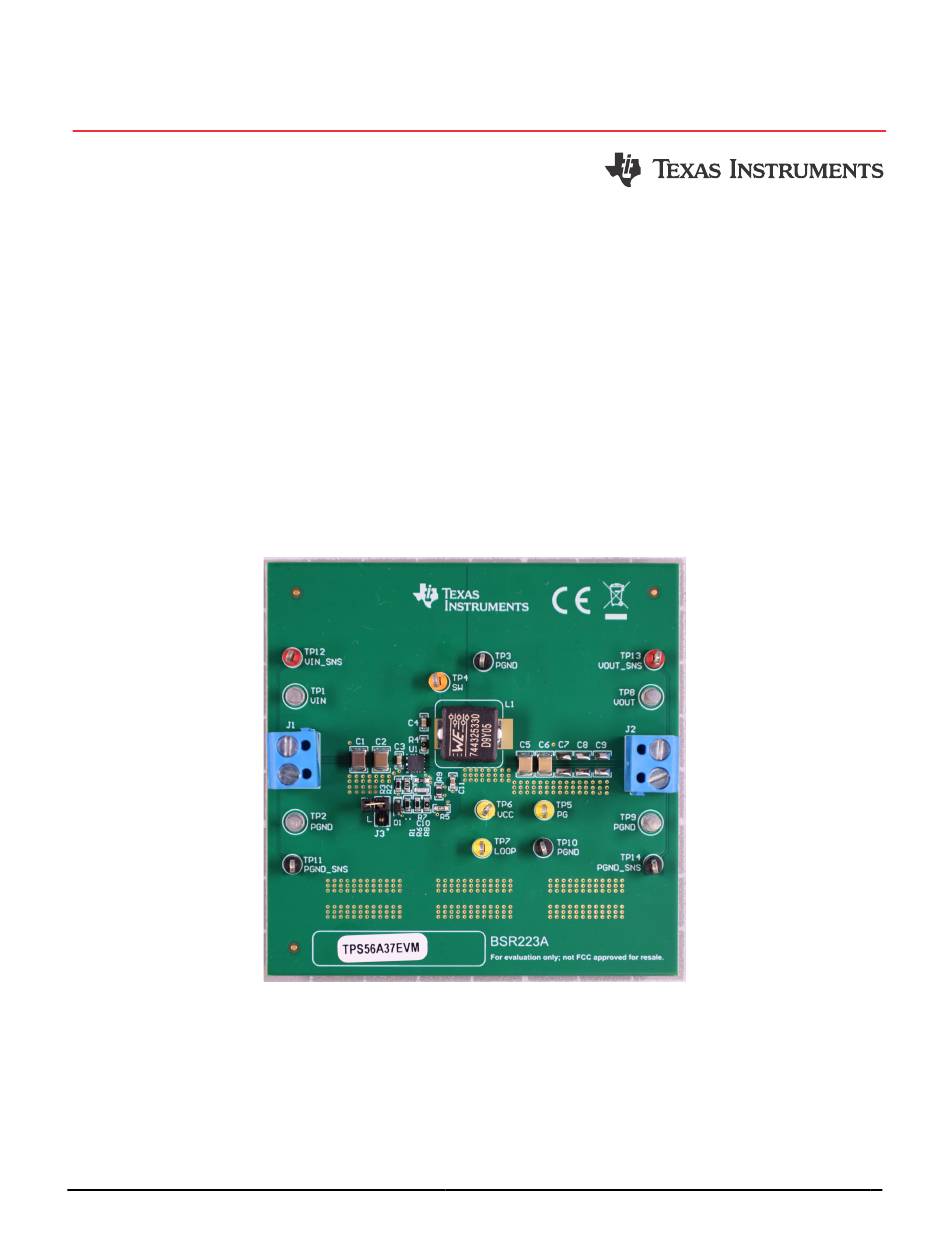

TPS56A37EVM Front Photo
Copyright © 2023 Texas Instruments Incorporated
TPS56A37 Step-Down Converter Evaluation Module
Description
™
package
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TPS56A37
Summary of Contents for Texas Instruments TPS56A37
- Page 1 Description EVM User's Guide: TPS56A37EVM TPS56A37 Step-Down Converter Evaluation Module Description Features The TPS56A37 is a high efficiency, high-voltage input, • 4.5-V to 28-V input voltage range easy-to-use synchronous buck converter. With the • 0.6-V to 13-V output voltage range (default: 5-V) wide operating input voltage range of 4.5 V to 28 V,...
-
Page 2: Kit Contents
5.5 V to 28 V 0 A to 10 A This user's guide contains information for the TPS56A37 as well as support documentation for the TPS56A37EVM evaluation module. This user's guide includes the performance specifications, schematic, and the bill of materials of the TPS56A37EVM. - Page 3 Hardware 2 Hardware 2.1 Modifications These evaluation modules are designed to provide access to the features of the TPS56A37. Some modifications can be made to this module. 2.1.1 Output Voltage Setpoint To change the output voltage of the EVMs, change the value of resistor R6 (R...
-
Page 4: Test Setup And Results
VIN (J1-1) and GND (J1-2). 3. Move the jumper at J3 (Enable control) away from pins 2 and 1 (EN and GND) to enable the output. TPS56A37 Step-Down Converter Evaluation Module SLVUCT3 – DECEMBER 2023 Submit Document Feedback... - Page 5 SW = 20 V/div IL = 5 A/div 2 us/div Figure 3-2. TPS56A37EVM Output Voltage Ripple, V = 24 V, I = 10 A SLVUCT3 – DECEMBER 2023 TPS56A37 Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 6 Vout = 5 V/div SW = 20 V/div PG = 5 V/div 200 us/div Figure 3-4. TPS56A37EVM Shutdown Relative to EN, I = 10 A TPS56A37 Step-Down Converter Evaluation Module SLVUCT3 – DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 7: Pcb Layout
VIN pin of the EN control, and the connections of test points. Figure 4-2. TPS56A37EVM Front Photo Figure 4-3. TPS56A37EVM Back Photo SLVUCT3 – DECEMBER 2023 TPS56A37 Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 8 Hardware Design Files www.ti.com Figure 4-4. Top Assembly Figure 4-5. Top Layer Figure 4-6. Middle Layer 1 Figure 4-7. Middle Layer 2 TPS56A37 Step-Down Converter Evaluation Module SLVUCT3 – DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 9 Hardware Design Files Figure 4-8. Bottom Layer SLVUCT3 – DECEMBER 2023 TPS56A37 Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 10 Terminal, Turret, TH, Double 1502-2 Keystone TP3, TP10, TP11, Test Point, Multipurpose, Black, TH 5011 Keystone TP14 Test Point, Multipurpose, Orange, TH 5013 Keystone TPS56A37 Step-Down Converter Evaluation Module SLVUCT3 – DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 11 4.5-V to 28-V Input, 10-A Synchronous Buck Converter TPS56A37RPAR Texas Instruments C7, C8, C9 CAP, CERM, 22 uF, 25 V, +/- 10%, X7R, 1210 GRM32ER71E226KE15L MuRata SLVUCT3 – DECEMBER 2023 TPS56A37 Step-Down Converter Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 12 Texas Instruments. All trademarks are the property of their respective owners. 6 Reference 1. Texas Instruments, TPS56A37 4.5-V to 28-V Input, 10-A Synchronous Buck Converter data sheet TPS56A37 Step-Down Converter Evaluation Module SLVUCT3 – DECEMBER 2023 Submit Document Feedback...
- Page 13 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 14 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 15 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 16 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 17 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
-
Page 18: Important Notice
TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
