EVM User's Guide: TPS56837HEVM
TPS56837H Buck Converter Evaluation Module
Description
The TPS56837H is a high-efficiency, easy-to-use,
synchronous buck converter with a wide input voltage
range of 4.5-V to 28-V, and supports up to 8-A
continuous output current at output voltages between
4-V and 22-V for USB Power Delivery (USB PD)
application. The TPS56837H operates at Eco-mode
to attain high efficiency at light load with fixed 500 kHz
switching frequencies and three selectable current
limit through MODE pin configuration. D-CAP3
control mode provides an easy-to-design, stable
regulation with very little external components, and
supports cost-effective ceramic capacitors.
SLVUCT2 – DECEMBER 2023
Submit Document Feedback
Features
Applications

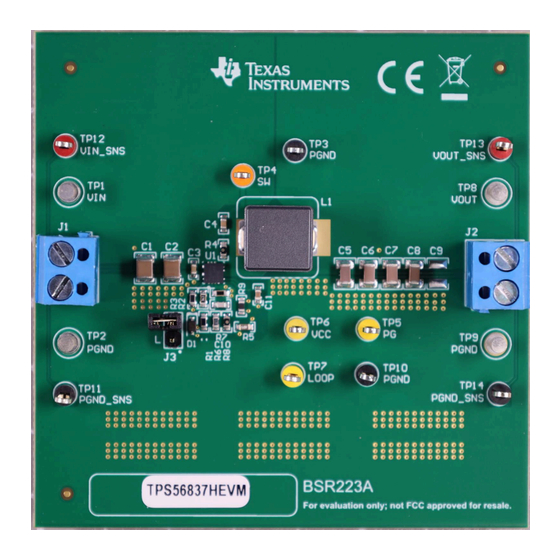

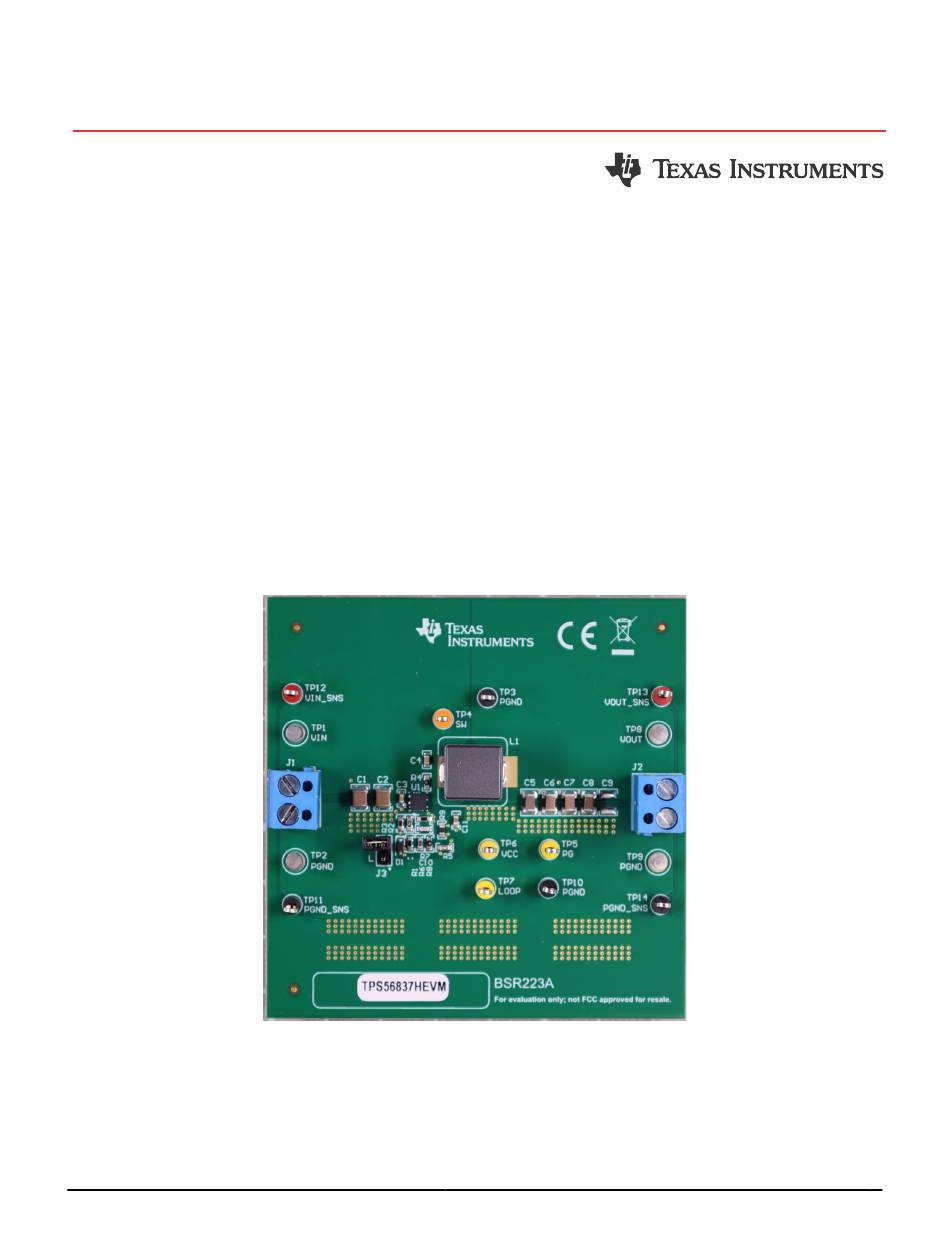

Figure 1-1. TPS56837HEVM (Top View)
Copyright © 2023 Texas Instruments Incorporated
4.5-V to 28-V input voltage range
4-V to 22-V output voltage range
Supports 8-A continuous output current
Three adjustable cycle-by-cycle over current limits
Small 10-pin 3.0-mm × 3.0-mm HotRod
Package
USB Power Supplies with PD
Industrial PC, EPOS, factory automation and
control
Multifunction printers, video conference system
Monitors, TV, speakers, PC and notebooks,
portable electronics
General purposes for 12-V,19-V, 24-V power-bus
supply
TPS56837H Buck Converter Evaluation Module
Description
QFN
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TPS56837H and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TPS56837H

  • Page 1 Description EVM User's Guide: TPS56837HEVM TPS56837H Buck Converter Evaluation Module Description Features The TPS56837H is a high-efficiency, easy-to-use, • 4.5-V to 28-V input voltage range synchronous buck converter with a wide input voltage • 4-V to 22-V output voltage range range of 4.5-V to 28-V, and supports up to 8-A...
  • Page 2: Kit Contents

    16 V to 28 V 0 A to 8 A This user's guide contains information for the TPS56837H as well as support documentation for the TPS56837HEVM evaluation module. This user's guide includes the performance specifications, schematic, and the bill of materials of the TPS56837HEVM.
  • Page 3: Mode Pin

    Hardware 2 Hardware 2.1 Modifications These evaluation modules are designed to provide access to the features of the TPS56837H. Some modifications can be made to this module. 2.1.1 Output Voltage Setpoint To change the output voltage of the EVMs, change the value of resistor R6 (R...
  • Page 4: Test Setup And Results

    VIN (J1-1) and GND (J1-2). 3. Move the jumper at J3 (Enable control) away from pins 2 and 1 (EN and GND) to enable the output. TPS56837H Buck Converter Evaluation Module SLVUCT2 – DECEMBER 2023 Submit Document Feedback...
  • Page 5 SW = 20 V/div IL = 5 A/div 2 us/div Figure 3-2. TPS56837HEVM Output Voltage Ripple, V = 24 V, I = 8 A SLVUCT2 – DECEMBER 2023 TPS56837H Buck Converter Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 6 Vout = 10 V/div SW = 20 V/div PG = 5 V/div 200 us/div Figure 3-4. TPS56837HEVM Shutdown Relative to EN, I = 8 A TPS56837H Buck Converter Evaluation Module SLVUCT2 – DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 7: Pcb Layout

    4-8. The top layer contains the main power traces for VIN, VOUT, and ground. Also on the top layer are connections for the pins of the TPS56837H and a large area filled with power ground (PGND). Most of the signal traces are also located on the top side.
  • Page 8 Hardware Design Files www.ti.com Figure 4-4. Top Assembly Figure 4-5. Top Layer Figure 4-6. Middle Layer 1 Figure 4-7. Middle Layer 2 TPS56837H Buck Converter Evaluation Module SLVUCT2 – DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 9 Hardware Design Files Figure 4-8. Bottom Layer SLVUCT2 – DECEMBER 2023 TPS56837H Buck Converter Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 10 Terminal, Turret, TH, Double 1502-2 Keystone TP3, TP10, TP11, Test Point, Multipurpose, Black, TH 5011 Keystone TP14 Test Point, Multipurpose, Orange, TH 5013 Keystone TPS56837H Buck Converter Evaluation Module SLVUCT2 – DECEMBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 11 4.5-V to 28-V Input, 8-A Synchronous Buck Converter TPS56837HRPAR Texas Instruments CAP, CERM, 22 uF, 35 V, +/- 20%, X5R, 1206 C3216X5R1V226M160AC SLVUCT2 – DECEMBER 2023 TPS56837H Buck Converter Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 12 Texas Instruments. All trademarks are the property of their respective owners. 6 Reference 1. Texas Instruments, TPS56837H 4.5-V to 28-V Input, 8-A Synchronous Buck Converter data sheet TPS56837H Buck Converter Evaluation Module SLVUCT2 – DECEMBER 2023 Submit Document Feedback...
  • Page 13 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 14 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 15 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 16 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 17 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 18: Important Notice

    TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
