- Page 1 CASTING C Instruction Manual Ver.13 Please read through very well before operating CASTING C372A. Caution must be strictly observed safety. It is recommended to keep this booklet nearby for your reference.
-
Page 2: Precautions In Handling
SAFETY Please read over carefully the instructions contained herein before installation, and use this control unit properly in the optimum method. Please store this instruction manual in a safe place. ※ In this section, safety notes are shown under two categories; “ Warning” and “Caution”. Warnings : If not observed, serious injury may result Cautions : If not observed, minor or moderate injury, or objective damage may result. - Page 3 Warning : To replace the cutting blade and guide, attach the blade cover. If not observed, injury may result. Blade cover Cautions : Do not touch a switch with a wet hand. If not observed, electric shock may result. Cautions : Do not sprinkle water over the unit. If not observed, electric shock may result.
-
Page 4: Precautions In Installation Site
Cautions : This unit is intended for cutting and stripping the wire. Using the unit for other purposes or remodeling it is not allowed. Precautions in installation site Warning : Install on a horizontal surface that can withstand the weight of the machine. If not installed properly, injury due to falling of the unit, vibration or excessive operation noise may result. -
Page 5: Table Of Contents
TABLE OF CONTENTS Precautions in Handling ..............................1 Precautions in installation site ............................3 1.Before starting operation ..............................5 2. Control panel ..................................6 3. Description of front mechanism............................7 4. Guide replacement ................................8 ①To cut tube already with slit ............................8 ②To cut tube without slit ............................... -
Page 6: Before Starting Operation
1.Before starting operation ①Check the power switch Make sure that the power switch on the operation panel is turned off. ②Connection of Power Cable Make sure that the power switch of operation panel is off. Insert the attached power cable into the outlet of power box (Located at the lower left on the front side) fully to the end. -
Page 7: Control Panel
2. Control panel [LENGTH] : Length of cut tube [PIECS] : Number of pieces to be processed [PIECES/UNIT] : [PIECS]→[Y/.] For example, you can set this when you need 20 bundles of 50pieces totaling 1000 pieces. [IDLE TIME] : [PIECS]→[Y/.]→[Y/.] By inputting the time, you can set the automatic start of the batching. -
Page 8: Description Of Front Mechanism

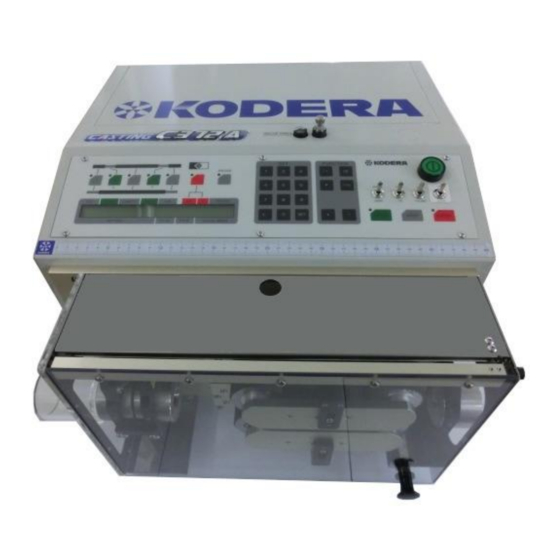

3. Description of front mechanism ③Upper belt ①Guide #1 ②Upper tension ⑧Lower belt ⑦Lower tension ⑤Cutting blade ⑥Guide #3 ④Guide #2... -
Page 9: Guide Replacement
4. Guide replacement Make sure that the power switch of operation panel is off. Put blade cover on when replacing guide. Serious injury may result. ① To cut tube already with slit Screw A Screw A 1.Prepare Guide #1,2 and 3 in accordance with a size of tube to be processed. The vertical guide is attached only to guide No.1. -
Page 10: ②To Cut Tube Without Slit
② To cut tube without slit Vertical guide Screw B 1. Prepare Guide #1-3 in accordance with a size of tube to be processed. If "Guide No. 1 vertical guide" is attached, remove screw B. 2. Attach the Blade cover ( magnetic ) "Guide No. -
Page 11: ③To Cut And Slit Tube
③ To cut and slit tube 1. Prepare appropriate one Guide #1 and #3 in accordance with a size of the tube to be processed. 2. Remove Vertical guide on Guide #1 . 3. Attach the "blade cover" and remove guides No.1 to No.3. 4. -
Page 12: To Set The Tube
5. To set the tube 1. TURN OFF the power of machine. 2. For the tube w/o slit, set the tube nearby cutting blade. 3. For the tube w/slit, set the tube fixing slit part on “vertical guide” and set it nearby cutting blade. 4. -
Page 13: To Start Process
6.To start process 1. After replacing the guide and setting the tube, set the processing conditions. 2.Press ［LENGTH］,put the value and [SET]. E.g.) : 1000mm →[1][0][0][0］[SET］ 3.Press ［PIECES］, put the number and [SET]. E.g.) : 50 pieces →[5][0][SET］ 4.［STRAT］ and process starts. 5.After set pieces are done, machine stop running. -
Page 14: Commands
7.Commands You can change various settings with the "F" key on the "Function" panel and the number keys on the "Settings" panel. ・F1（FEED SPEED） If you press [F] and then [1], "FEED SPEED" will blink.. Touch keys 1 to 9 on the setting panel and press the [SET] button. The display changes from blinking to lit and the belt roller speed is entered. -
Page 15: To Replace Belts
8. To replace belts 1. Loosen the screw C. Screw C * There is no need to remove it. 2. Lower the tension roller. 3. Pull the belts toward. 4. Inverse process for putting the belts on. -
Page 16: To Replace Blades
9. To replace blades Be cautious when handling blade. 1. Attach the "Blade Cover". 2. Remove the Guide #2 and #3. Be careful not to be injured with the cutting blade. 3. Remove the air-coupler and evacuate the air. 4. Lower the [Blade block] and remove the screw E. Screw E Screw F 5. -
Page 17: Tube Sensor(Option)
10. Tube Sensor(Option) Tube sensor setting Accessories screws 1.Attach the [Tube Sensor] with the attached screw. 2. Run the harness of sensor through a hole on the right above of front panel. 3. Remove the screws on the back cover of C372A and the MDU mounting plate. 4. -
Page 18: Parts List (Options)
11. Parts list (options) DISCRIPTIONS PART # REMARK CUTTING BLADE 372A-1 Break No372A-1 SLITTING BLADE（For OLFA Extra Heavy and use it. –Duty H Blade 2 Block） When making a cutting blade specified length, wear gloves and pinch it with a vise or something like that. -
Page 19: Boards
DISCRIPTIONS PART # REMARK φ8.5 372A-G3-8.5 φ11 372A-G3-11 STANDARD φ15 372A-G3-15 φ18 372A-G3-18 φ20 372A-G3-20 GUIDE #3 φ21 372A-G3-21 φ25 372A-G3-25 φ29 372A-G3-29 φ32 372A-G3-32 φ35 372A-G3-35 φ36 372A-G3-36 φ39 372A-G3-39 12. BOARDS MDU-5H45 BOARD MDU-5H45 BOARD FOR LOWER BELT ROLLER FOR UPPER BELT ROLLER PW BOARD MAIN BOARD... -
Page 20: Trouble Shooting
13. Trouble shooting Description of error Factors Countermeasures Cutter error Blade cannot go down due to lack Fill the air of air ・Replace to new blade Blade cannot go down to bottom dead point. ・Set the going down speed faster with speed controller Fitting of the Guide is not good Correct the guide mounting position... -
Page 21: Daily Check-Up At Starting And Maintenance
14. Daily Check-up at Starting and Maintenance Daily or regular checking and maintenance is essential to use machines for a long time in a good condition without defects. It may depend on the frequency in use. Please practice them referring to the chart below. Daily Check-up &... -
Page 22: Memory
・Hold down [F] and [Y /.] And press [CE]. At this time, the memorized data and the settings displayed on the LCD panel are all deleted. SPECIFICATIONS Model CASTING C372A BELT： Stepping pulse motor 2-shaft control Drive CUTTING： Air Cutting Length 0.1mm～99999mm（Applicable setting lengths）...
Need help?
Do you have a question about the CASTING C372A and is the answer not in the manual?
Questions and answers

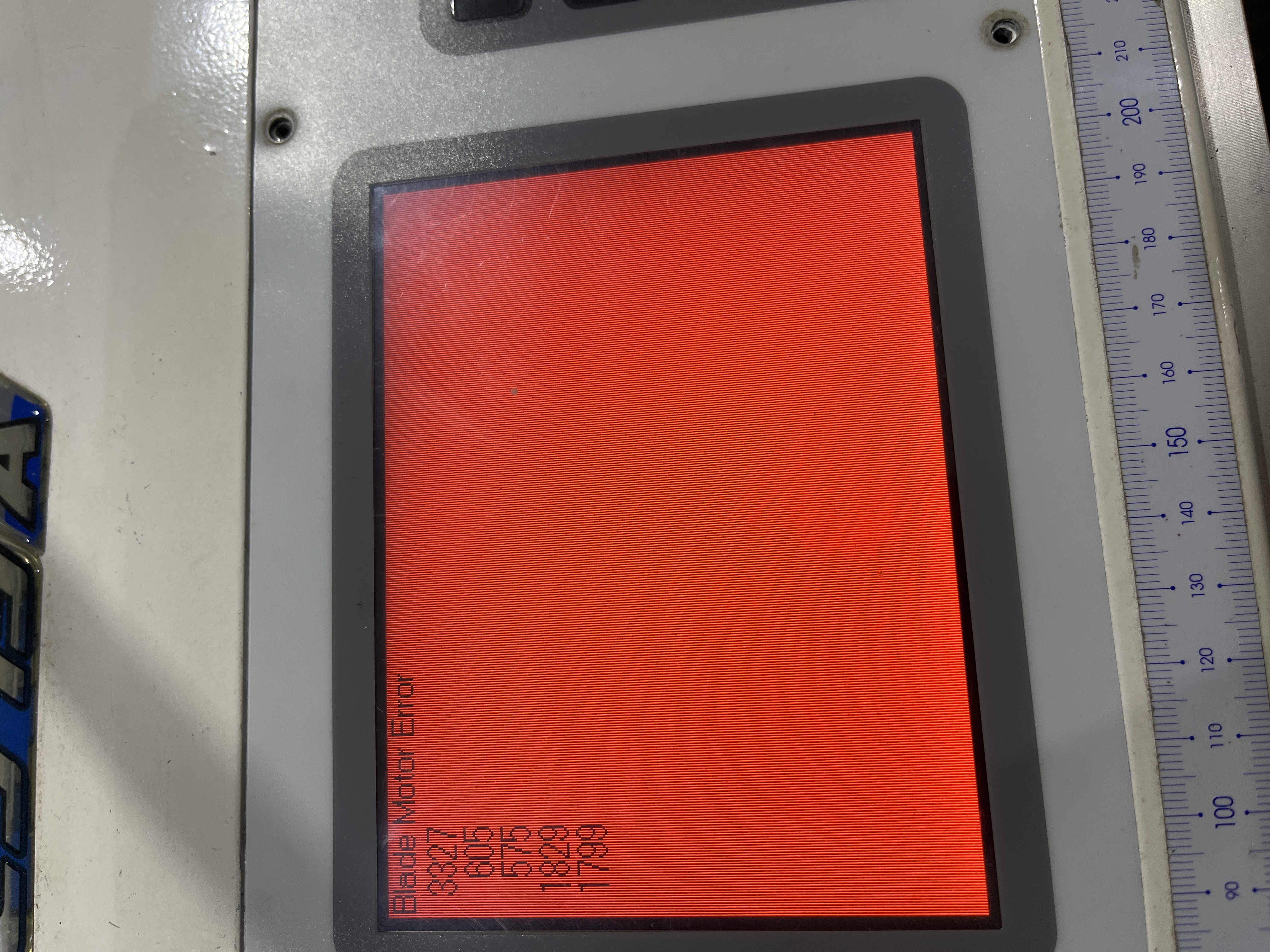

blade motor error
