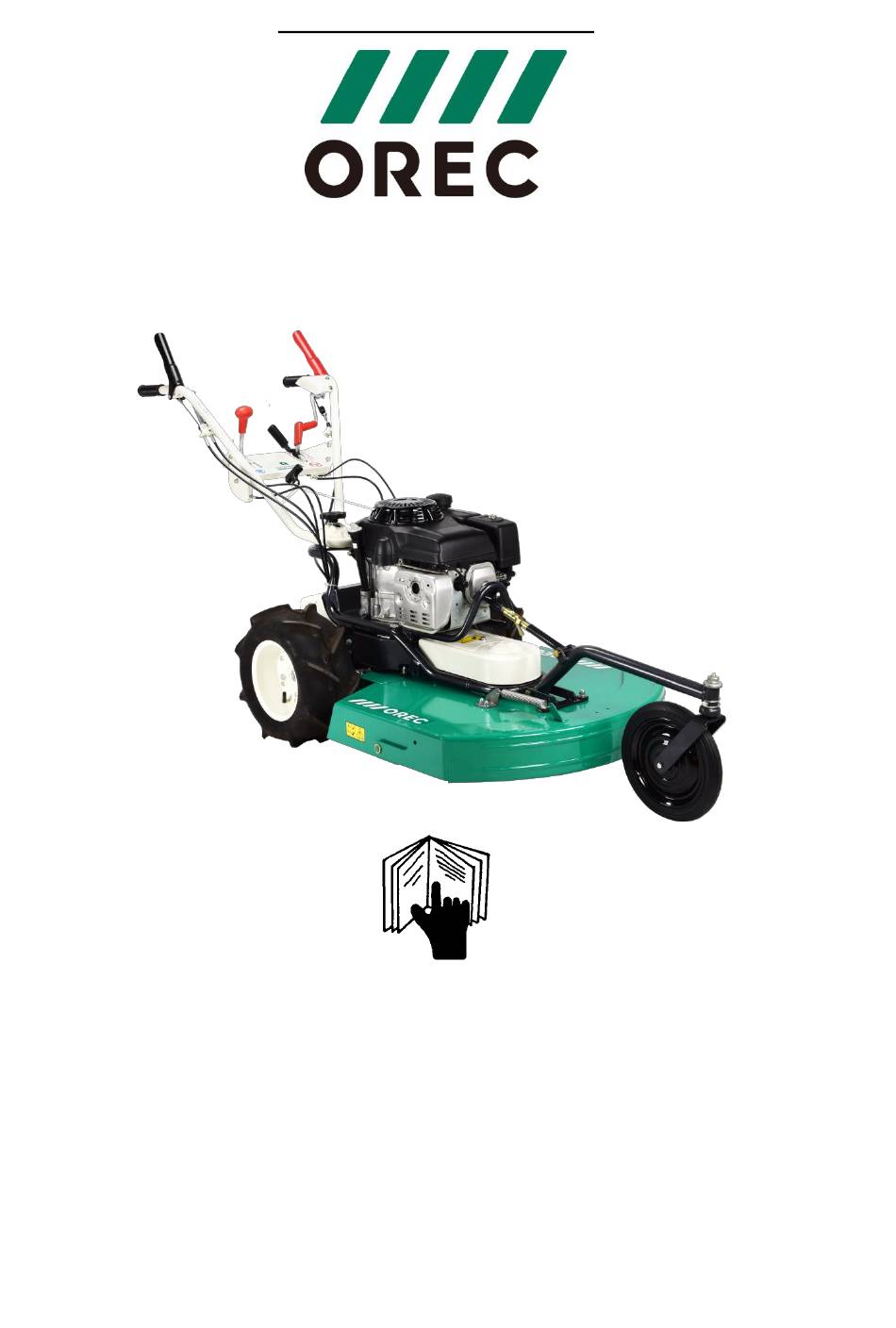

INSTRUCTION MANUAL
Grassland walk behind mower
SH61 & SH61H & SH71H & SH71H(W)
Read this instruction manual carefully before any use of the machine, keep it as a reference. For any
question about this manual, please report to your OREC dealer or to the distributor of your country or
to :http://www.orec-jp.com.
Update : October 2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OREC SH61
Summary of Contents for OREC SH61
- Page 1 SH61 & SH61H & SH71H & SH71H(W) Read this instruction manual carefully before any use of the machine, keep it as a reference. For any question about this manual, please report to your OREC dealer or to the distributor of your country or to :http://www.orec-jp.com.
-
Page 2: Introduction
Use only the OREC original parts : “ non genuine ” parts will not assure you of a correct and safe working and are likely to make the guarantee null and void. Write the name and the serial number of your machine hereunder : MODEL :.................. -
Page 3: Table Of Contents
50 - 100 50 - 100 Weight (kg) 118 (SH71H) 120 (SH71H(W)) Fuel tank capacity (litre) blade speed (rpm) 1624 (SH61) / 2351 (SH61H) 2351 (SH71H/SH71H(W)) Over all width (mm) 800 (SH71H) 820 (SH71H(W)) OREC SH61 et SH71 - © SAT 02/06... -
Page 4: Check List
CHECK LIST INSTRUCTIONS TO THE DEALER • The assembling, the installation and the first application of the machine is under the OREC dealer’s responsability. • Read the instruction manual as well as the safety measures. Check that all the before delivery and at delivery check points specified in the following lists have been verified and possibly modified before delivering the machine to its owner. -
Page 5: Safety Rules
Always use a chuck and bronze hammer when replacing or intervening on the pins and bolts at the end of rams, rod … etc in order to avoid the projection of metal fragments. OREC SH61 et SH71 - © SAT 02/06... -
Page 6: Different Parts Of The Mower
1, 2 and 3 Travel Fuel tank Lever Exhaust silencer Handlebar adjustment Height of cut adjustment Exhaust silencer Transmission to blade right Figure 1 SH61 front Starter Air filter Exhaust silencer Figure 1 SH71H OREC SH61 et SH71 - © SAT 02/06... -
Page 7: Safety Instruction Stickers
Beware of Flammable gasoline Read Owner’s manual Beware of Hot surface Beware of Exhaust Gas Before doing maintenance remove the spark plug Stand clear of the machine Beware of thrown object （0223-76100） OREC SH61 et SH71 - © SAT 02/06... -
Page 8: Controls
However, when the machine is turning, differential lock must be “OFF” because turning radius is bigger, one of the rear wheel is worn, and transmission may be damaged. Figure 4 OREC SH61 et SH71 - © SAT 02/06... - Page 9 Always perform this adjustment engine off and sparking plug cover unplug When cutting in low position, power needed and Figure 6 thrown objects are more important. Cutting low can cause damage to the machine and injury. Figure 6 OREC SH61 et SH71 - © SAT 02/06...
-
Page 10: Operation
The thrown objects can injure the operator, the bystanders, or cause damage to their properties.. Working in slopes is very dangerous. Never work in slopes more than 15°. Figure 7 OREC SH61 et SH71 - © SAT 02/06... - Page 11 Preform the normal maintenance of the machine according to maintenance chart. Store the machine in a dry protected area. Remove sparking ignition wire from the sparking plug. OREC SH61 et SH71 - © SAT 02/06...
-
Page 12: Maintenance Operations To Be Carried Out By The User
Figure 9 SH 71H Figure 9 SH61 DANGER Check fuel tank is closed, wipe fuel spillages before start the machine. Check there is no fire, electric sparks, cigarettes near the machine when refuelling. OREC SH61 et SH71 - © SAT 02/06... - Page 13 Figure 11 SH 71H Engine : • Refer to engine manual deliver with the machine. • Engine Oil type : SAE10W30 or API Slclass. • Engine Oil Quanitity : 0.65L (SH61/61H), 1.10L (SH71H/71HW) Engine oil replacement frequency Model First Later SH61/61H 8 hours...
- Page 14 B. Try the machine again. Perform the adjustment again if needed. Tightening of bolts : • Check that the bolts, nut are properly tightened. The vibrations tend to loosen the bolts. Figure 14 OREC SH61 et SH71 - © SAT 02/06...
- Page 15 7 seconds are necessary for the blade to stop, ask immediately to your dealer to check the blade brake system. Oil draining : Figure 19 Refer to the engine manual OREC SH61 et SH71 - © SAT 02/06...
-
Page 16: Maintenance Chart
Blade clutch control Check the adjustment of the wire lever Blade brake Check the adjustment Blade belt Check they tensionned and in good condition Engine Refer to engine manual OREC SH61 et SH71 - © SAT 02/06... -
Page 17: Breakdowns And Solutions
617,8 to 657,1 176,5 to 205,9 421,7 to 451,1 539,4 to 578,6 608 to 647,2 843,4 to 882,6 235,4 to 264,8 539,4 to 568,8 706,1 to 745,3 784,5 to 823,8 1098,4 to 1137,6 OREC SH61 et SH71 - © SAT 02/06... -
Page 18: Ec Conformity Declaration
Engine : FJ180V Pick up location Right side : 100 mm from external side of the handlebar 2,33 m/s² Left side : 100 mm from external side of the handlebar 2,95 m/s² OREC SH61 et SH71 - © SAT 02/06... -
Page 19: Ec Conformity Declaration
Engine : FJ180V Pick up location Right side : 100 mm from external side of the handlebar 2,33 m/s² Left side : 100 mm from external side of the handlebar 2,95 m/s² OREC SH61 et SH71 - © SAT 02/06... -
Page 20: Ec Conformity Declaration
Engine : HONDA GXV390 Pick up location Right side : 100 mm from external side of the handlebar 2,47 m/s² Left side : 100 mm from external side of the handlebar 2,39 m/s² OREC SH61 et SH71 - © SAT 02/06... -
Page 21: Limited Warranty
OREC. 2° Each part concerned by a guarantee claim must be returned to OREC’s in order to be inspected, repaired or replaced. The part(s) must be returned with freight prepaid and must be accompanied with a proof of the purchase.
