Megmeet MU200 Series User Manual

MU200 Series I/O Expansion Module
User Manual
Thank you for using MU200 series PLC. Before using the product, please
carefully read this manual so as to better understand it, fully use it, and
ensure safety. This quick start manual is to offer you a quick guide to the
hardware specification, characteristic and usage of MU200 series expansion
module.
For the detailed usage and program design, please refer to MU200 Series
PLC User Manual , MU200 Series PLC Programming Reference Manual . For
ordering the above user manuals, contact your Megmeet distributor or or
scan the code to enter the official website.
This manual is suitable for the following MU200 series members:
MU200-0016ERN
MU200-0016ETN
MU200-1600ENN
MU200-0808ERN
MU200-0808ETN
Version：A00
Revision Date：2022-04-24
1. Product Introduction
1.1 Outline structure

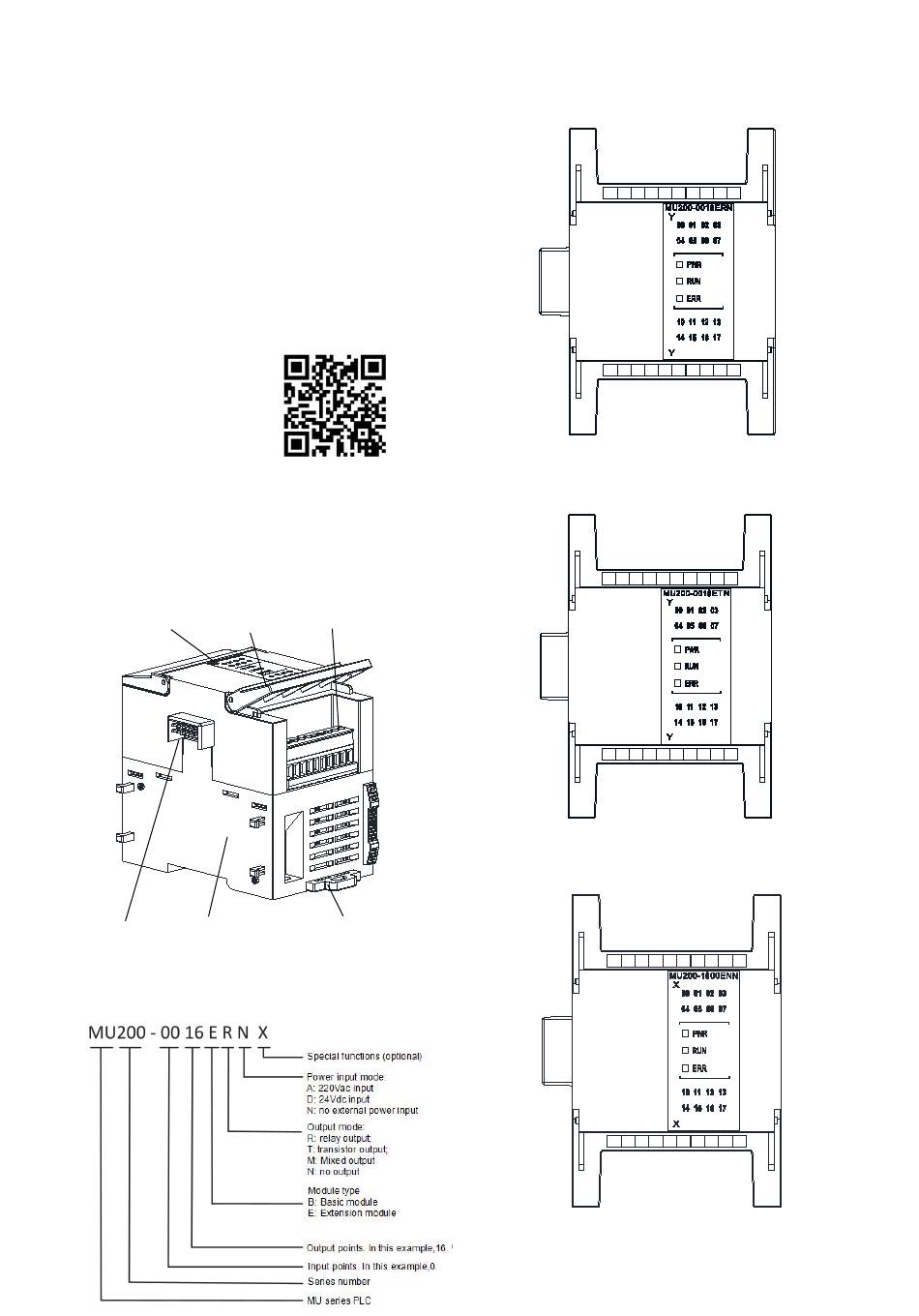

The outline structure of MU200 series I/O expansion module is shown as
follows:
Indicator area
Expansion interface Product label area
Figure 1-1 Outline and part of I/O expansion module
1.2 Model Description
Terminal flap
Terminal
Guide rail snap-fit
Fig 1-2 MU200 PLC model description
1.3 Outline and terminal diagram
The following figure shows the outline and terminals of
C M 0 Y00 Y01 Y02 Y03
C M 2 Y10 Y11 Y12 Y13
Fig 1-3 Outline and terminal diagram of
The following figure shows the outline and terminals of
CM 0 Y00 Y01 Y02 Y03
CM 2 Y10 Y11 Y12 Y13
Fig 1-4 Outline and terminal diagram of
The following figure shows the outline and terminals of
S/ S0X00 X01 X02 X03 X04 X05 X06 X07
S/ S1X10 X11 X12 X13 X14 X15 X16 X17
Fig 1-5 Outline and terminal diagram of
MU200-0016ERN:
Y04 Y05 Y06 Y07
C M 1
C M 3 Y14 Y15 Y16 Y17
MU200-0016ERN
MU200-0016ETN:
CM 1 Y04 Y05 Y06 Y07
CM 3 Y14 Y15 Y16 Y17
MU200-0016ETN
MU200-1600ENN:
.
.
MU200-1600ENN
