MC200-8AD Analog Quantity Input Module
User Quick Start Manual
Thank you for using MC200 series PLC. Before using the product,
please carefully read this manual so as to better understand it, fully use it,
and ensure safety. This quick start manual is to offer you a quick guide to the
design, installation, connection and maintenance of MC200 series PLC,
convenient for on-site reference.
This manual is for the following MC200 series members:
MC200-8AD
Analog Quantity Input Module
Version：V1.1
Revision Date：2010-1-8
BOM Code：R29090025
For detailed product information, please refer to MC200 Series PLC
User Manual , X-Builder Programming Software User Manual , and MC200/
MC100 Series PLC Programming Reference Manual . For ordering the above
user manuals, contact your Megmeet distributor or sales office.

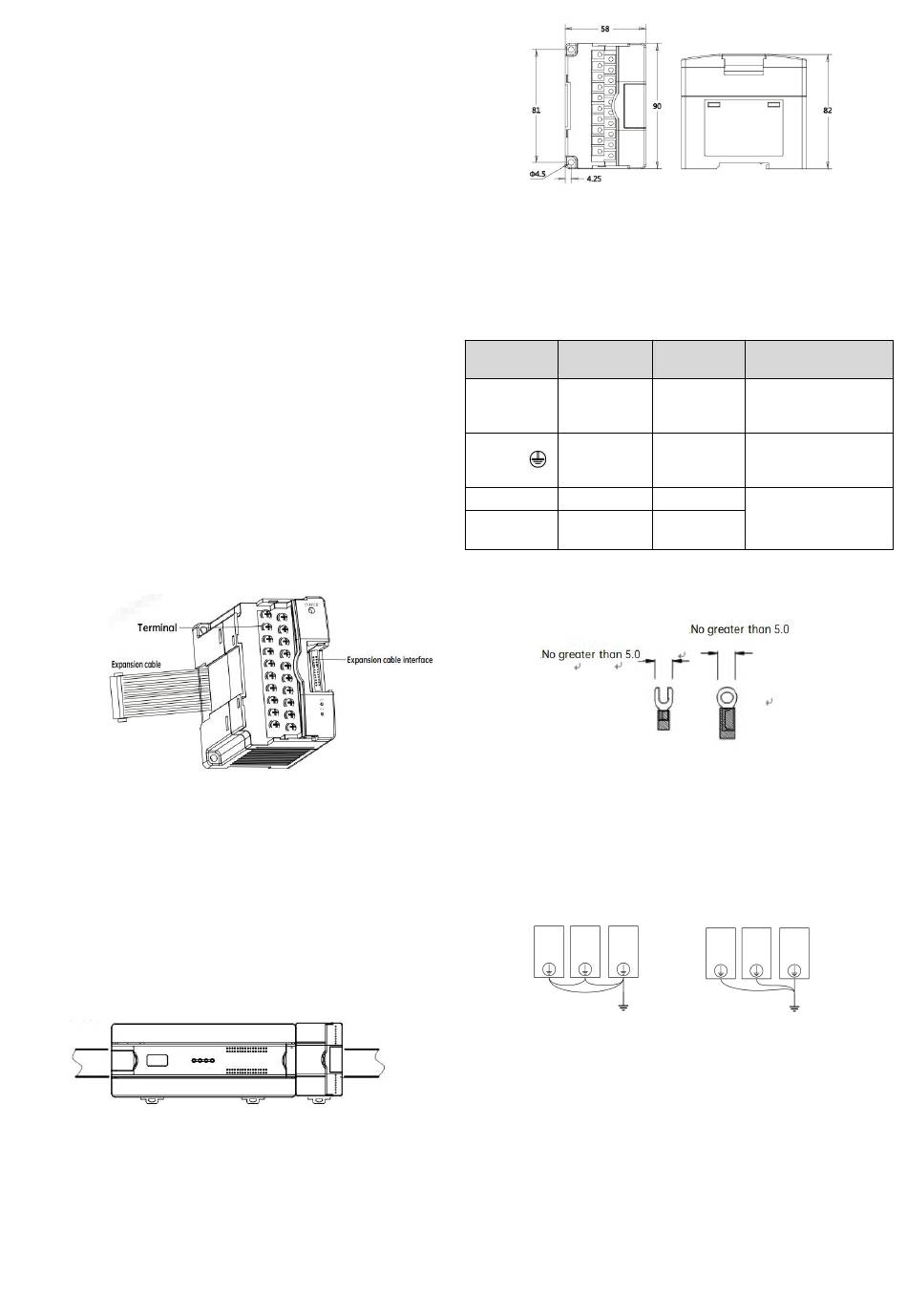

1. Appearance and Part Names
Fig. 1-1 Appearance and part name
2. Installation Description
2.1 Installation method

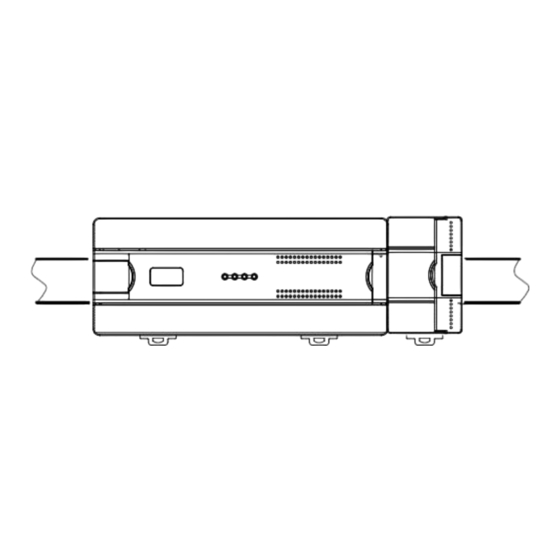

DIN rail mounting
Generally, you can mount the PLC onto a 35mm-wide rail (DIN). Open
the DIN snap-fit at the bottom of the module and lock the bottom of the
module onto the DIN rail; Rotate module close to the DIN guide rail and close
the DIN snap-fit with a double-checking.
Screw fixing
Fixing the PLC with screws can stand greater shock than DIN rail
mounting. M3 screws can be chosen to fix the PLC onto the backboard of the
electric cabinet through the mounting holes on PLC enclosure, as the
following figure.
Fig. 2-2 Screw installation diagram
2.2 Cable connection and specification
It is recommended to use stranded copper cables and prefabricate
insulated plugs to ensure connection quality. The following table lists the
sectional areas and models of the recommended cables.
Recommended
Cable
NO.
AC power line
AWG12/AWG18
（L、N）
AWG12
Ground line
Input signal (X)
AWG18/AWG20
Output signal
AWG18/AWG20
(Y)
Fix the prepared cable head onto the PLC terminals with screws
correctly. Fastening torque: 0.5~0.8Nm.
◆For the safety (to prevent electric shock and fire accidents) and lower
noise, the ground terminal of the controller should be connected in
accordance with the requirements from national electrical regulations, and
the ground resistance should be less than 100 Ω . Single point grounding
should be used when wiring multiple controllers, and the ground wire cannot
form a loop. As shown in the diagram below:
×
Note for wiring:
1. It is recommended to use a shielded twisted-pair cable for analog
input. The cable should be far away from power cable or other cables that
may generate electrical power interference.
2. If there is interference in the external electrical wiring and the input
signal fluctuates, you can connect a smoothing capacitor (0.1μF ~ 0.47 μF
/25V).
3. If the current channel uses the current input mode, short-circuit the
voltage input terminal and the current input terminal.
Terminal and heat shrink
Cross-Section
tubing
H1.5/14 prefabricate
1.0—2.0mm
2
insulated tubing terminal, or
Wire end tinning treatment
H2.0/14 prefabricate
2.0mm
2
insulated tubing terminal, or
Wire end tinning treatment
0.8—1.0mm
2
UT1-3 or OT1-3 cold-pressed
terminal, Φ3 or Φ4 heat
0.8—1.0mm
2
shrink tubing
√
Advertisement
Table of Contents
Related Manuals for Megmeet MC200 Series
Summary of Contents for Megmeet MC200 Series
- Page 1 MC200-8AD Analog Quantity Input Module User Quick Start Manual Thank you for using MC200 series PLC. Before using the product, please carefully read this manual so as to better understand it, fully use it, and ensure safety. This quick start manual is to offer you a quick guide to the design, installation, connection and maintenance of MC200 series PLC, Fig.
-
Page 2: Technical Specification
4. Terminal Introduction 4. The analog power supply can use the auxiliary output 24Vdc power supply Table 4-1 describes the definitions of MC200-8AD terminals. of the main module, or other required power supply. 5. Grounding terminal PG of the module is well grounded. Remark Description Remark... -
Page 3: Application Example
6. Application Example Example: The MC200-8AD module address is 1 (for the addressing of expansion modules, refer to the MC200 Series PLC User Manual ). Set the channel 1 to voltage input (-10V~10V), CH2 to current input (-20mA~20mA), CH3 to voltage signal (-100mV~100mV), CH4 to voltage input signal(-5V~5V), and CH5~8 are Close;... -
Page 4: Buffer Memory (Bfm)
7. Buffer Memory (BFM) Contents Remark #910 CH3-D1 Default: 2000 (input mode 0) MC200-8AD exchanges data with the main module through BFM. The #911 CH3-A1 Default: 10000 (input mode 0) main module uses TO command to write data into the BFM of MC200-8AD to #912 CH4-D0 Default: 0 (input mode 0) - Page 5 Table 7-2 BFM#0 information table Table 7-3 Status information of BFM#300 × Status information BFM#300 bit status Input range: -10V~10V (5mV resolution) b1 or b2 is ON, AD conversion of b0: error No error all channels stopped Input range: –5V~5V or -20mA~20mA (2.5mV or 10µA resolution) b1: channel Channel Input range: –100mV~100mV (0.05mV resolution)
-
Page 6: Routine Inspection
1. The warranty range is confined to the PLC only. Flash quickly: MC200-8AD in normal operation; 2. Warranty period is 18 months, within which period Megmeet conducts free Flash slowly or OFF: Check the information in X-Builder configuration page. maintenance and repairing to the PLC that has any fault or damage under the normal operation conditions.
