MU200-4PT RTD Module User Manual
Thank you for using MU200-4PT thermal resistance input module
independently developed and produced by MEGMEET, which is mainly
combined with MU200 series main module to complete the 4-channel
thermal resistance input function. Before using the product, please carefully
read this manual so as to better understand it, fully use it, and ensure safety.
This quick start manual is to offer you a quick guide to the design, installation,
connection and maintenance of MU200-4PT for the convenience of users to
access the required information on site, and provide a brief introduction to
relevant accessories, FAQs, etc.
This manual is suitable for the following MU200 series members:
MU200–4PT 4-channel thermal resistance input module
Version Number：A00
Revision Date：2022-10-28
BOM Code：R33010834
For detailed product information, please refer to MU200 Series PLC User
Manual , MU200 Series PLC Programming Reference Manual. For ordering the
above user manuals, contact your Megmeet distributor or download from
MEGMEET website (www.megmeet.com).
1. Outline and Component Name
Expansion interface
Installation groove

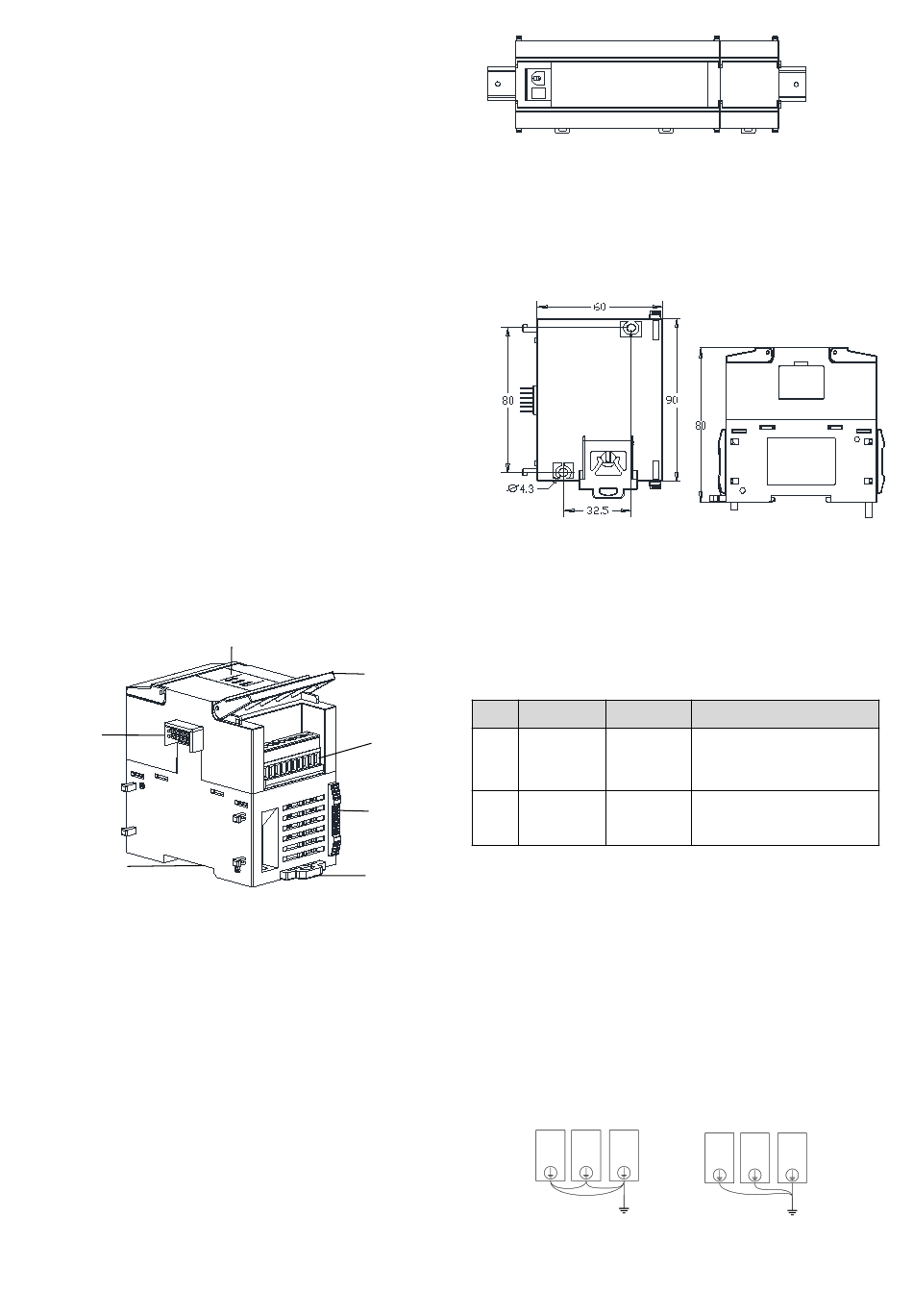

Fig 1-1 Outline structure diagram of expansion module
2. Installation
2.1 Standard 35mm DIN slot installation
◆Fixed installation guide rails;
◆Open the DIN snap-fit at the bottom of the module and fix the bottom
of the module to the DIN guide
◆Insert the module into the expansion socket of the front module one
by one;
◆Push up the side latch to fix with the front module, and fix the module
to the guide rail by pushing up the latch.
*Checking carefully that the DIN snap-fit is tightly fixed to the DIN guide
rail, as shown in Figure
Indicator
rail;
2-1.
2.2 Panel installation
The screws (M3 optional), must be used to fix the module in situations
with high vibration. Positioning and drilling the installation holes according to
the dimensions shown in Figure 2-2, and use the suitable screws to fix the
module on the backplane.
2.3 Cable connection and specification
It is recommended to use shielded twisted-pair cables and prefabricate
insulated terminal ends to ensure the quality of the wiring. The following
table lists the cross-section and models of the recommended cables.
Terminal cover
Cable Cross-section
Terminal
Ground 2.0mm²
Latch
Signal 0.8～1.0mm²
Fix the finished cable end on the PLC terminal by the screw in a correct
Guide rail snap-fit
position and 0.5 ~ 0.8Nm tightening torque, to ensure reliable connection
without damaging the screw.
2.4 Wiring requirement
For the safety (to prevent electric shock and fire accidents) and lower
noise, the ground terminal of the controller should be connected in
accordance with the requirements from national electrical regulations, and
the ground resistance should be less than 100 Ω . Single point grounding
should be used when wiring multiple controllers, and the ground wire cannot
form a loop. As shown in the diagram below:
Fig 2-1 Installation diagram
Fig 2-2 Screw installation diagram
Table 2-1 Recommended model of cable
Cable No. Terminal and heat shrink tube
H2.0/14 Tube-type prefabricated
insulated terminal or wire end
AWG12
tinning
H1.5/14 Tube-type prefabricated
AWG18、20 insulated terminal Φ3 or Φ4 heat
shrink tube
×
√
Fig 2-3 Controller grounding diagram
