MC100 Series Integrated Thermal Resistance
Main Module User Manual
Thank you for using MC100 series integrated thermal resistance PLC.
Before using the product, please carefully read this manual so as to better
understand it, fully use it, and ensure safety. This quick start manual is to
offer you a quick guide to the design, installation, connection and
maintenance of MC100 series PLC, convenient for on-site reference.
This manual is for the following MC100 series members:
MC100-1614BRA7 MC100-1614BTA7 MC100-1614BRD7
Version：V2.0
Revision Date：2013-02-13
BOM Code：R33010115
For detailed product information, please refer to MC100 Series PLC
User
Manual ,
X-Builder
Programming
MC200/MC100 Series PLC Programming Reference Manual . For ordering the
above user manuals, contact your Megmeet distributor or sales office.

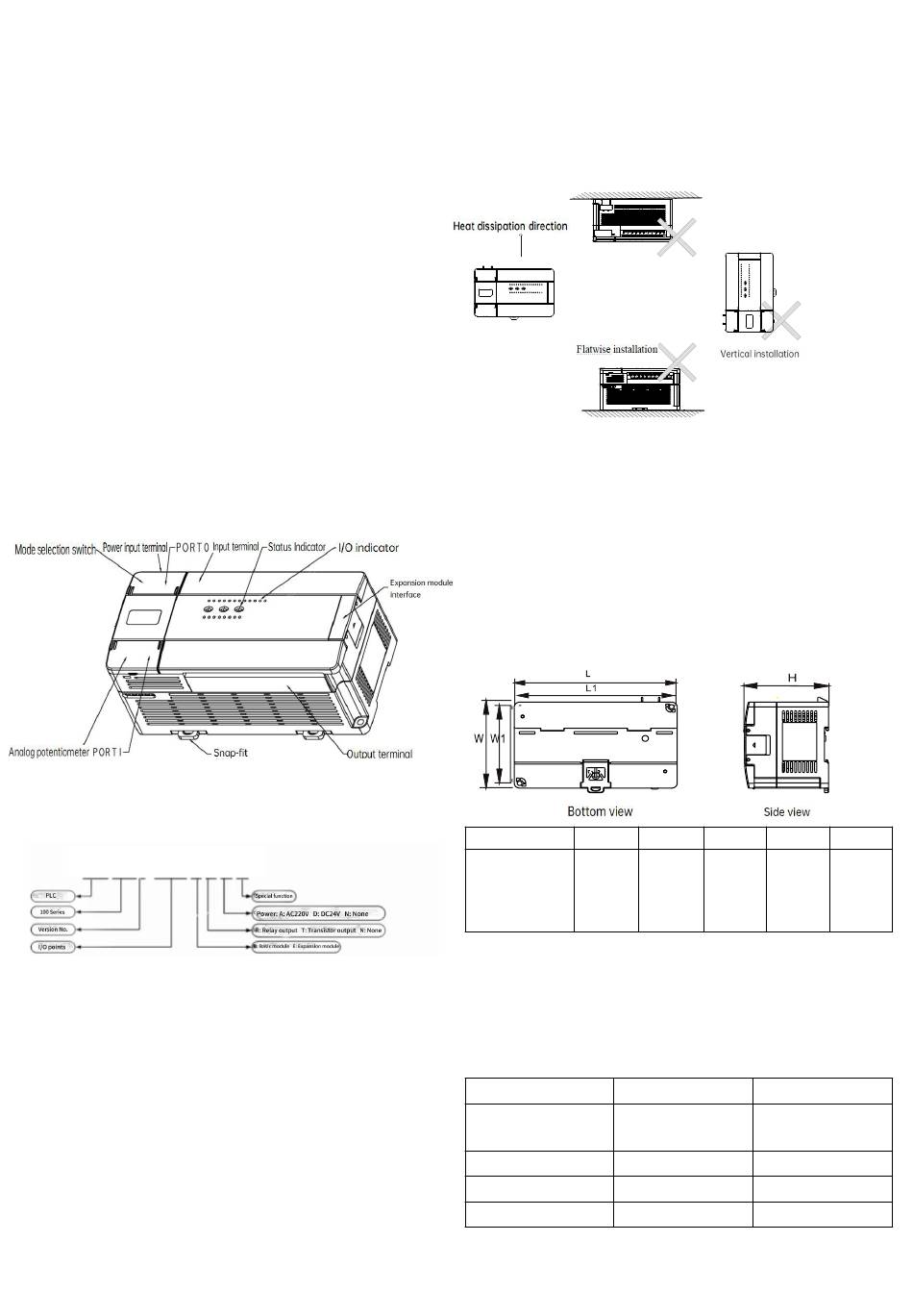

1. Appearance and Part Names
2. Model Description
MC 100 -1614 B R A X
3. Installation Description
3.1 Environmental Temperature
Temperature range for PLC usage：-5℃~55℃.
should be selected when the ambient temperature exceeds 55° C for a long
time.
3.2 Installation Site
◆ Place without corrosion, flammable and explosive gas and liquid.
◆
Solid place without vibration.
◆
This controller is designed for II standard installation environment
and 2-level pollution occasions.
Software
User
Manual ,
and
A well-ventilated place
3.3 Installation Method
The PLC must be installed horizontally on the backplane of the
electrical cabinet, and maintain a distance of more than 20cm from the
peripheral equipment or cabinet wall. The installation in other directions is
not conducive to the PLC heat dissipation, and there can be no heating
equipment under the PLC. As shown in the picture below:
Ceiling installation
Horizontal installation
DIN rail mounting
Generally, you can mount the PLC onto a 35mm-wide rail (DIN). Open
the DIN snap-fit at the bottom of the module and lock the bottom of the
module onto the DIN rail; Rotate module close to the DIN guide rail and close
the DIN snap-fit with a double-checking.
Screw fixing
Fixing the PLC with screws can stand greater shock than DIN rail
mounting. M3 screws can be chosen to fix the PLC onto the backboard of the
electric cabinet through the mounting holes on PLC enclosure, as the
following figure.
Model
W(mm)
MC100-1614BRA7
MC100-1614BTA7
90
MC100-1614BRD7
3.4 Cable connection and specification
It is recommended to use
prefabricate insulated plugs to ensure connection quality. The following
table lists the sectional areas and models of the recommended cables.
Cable
Recommended NO.
AC power line（L、N）
AWG12/AWG18
(24+, 24-)
Ground line
Input signal (X)
AWG18/AWG20
Input signal (Y)
AWG18/AWG20
Fix the prepared cable head onto the PLC terminals with screws
correctly. Fastening torque: 0.5~0.8Nm.
W1(mm)
H(mm)
L(mm)
80
79.2
182
stranded copper
conductors and
Cross-Section
1.0—2.0mm
AWG12
2.0mm
0.8—1.0mm
0.8—1.0mm
L1(mm)
172
2
2
2
2
