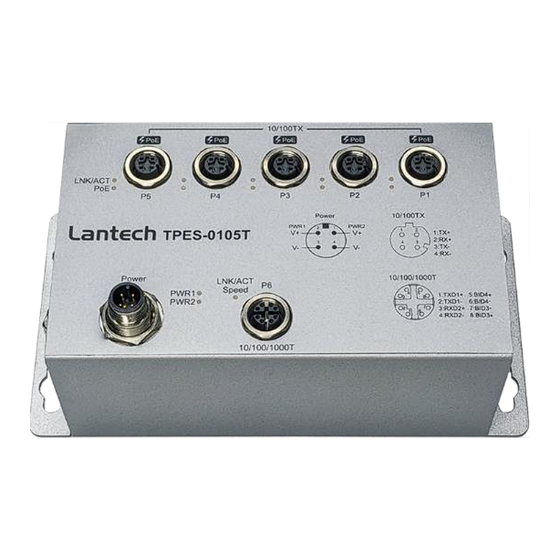

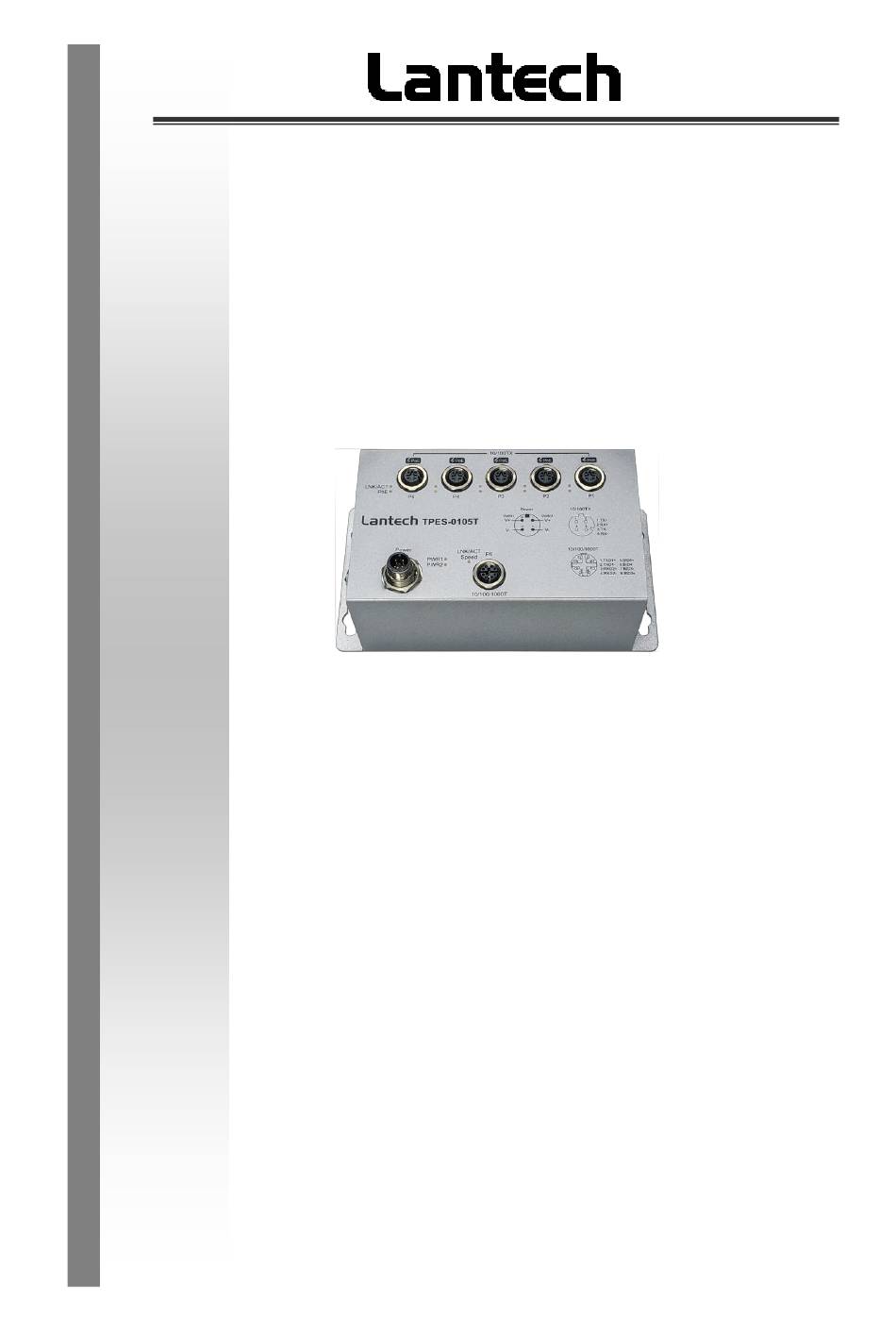

T(P)ES-0105T
5 10/100TX (PoE at/af) + 1 10/100/1000T
Unmanaged Ethernet Switch
User Manual
V1.01
JUN. 2024
Notice
The unmanaged PoE Ethernet switch is equipped with P.S.E capacity. It is
designed for data communication within vehicles, to facilitate data transfer and
Ethernet connectivity as well as expandability. It's important to note that these
features have no impact on the safety of driving and passenger well-being and
the device does not possess any immunity-related functionalities.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lantech TES-0105T
Summary of Contents for Lantech TES-0105T
- Page 1 T(P)ES-0105T 5 10/100TX (PoE at/af) + 1 10/100/1000T Unmanaged Ethernet Switch User Manual V1.01 JUN. 2024 Notice The unmanaged PoE Ethernet switch is equipped with P.S.E capacity. It is designed for data communication within vehicles, to facilitate data transfer and Ethernet connectivity as well as expandability.
- Page 2 Approval Information Version 1.02 Name Title Date Author Greg Tsai Marketing 2024.06.27 Verifier Jacky Chou HW QA 2024.06.27 Approver Thomas Lee RD head 2024.06.27 Version Date Content of Modification Author(s) V1.00 2023.09.06 Greg Tsai V1.01 2024.06.27 Update the ignition content. Greg Tsai...
- Page 3 Recommendation for Shielded network cables STP cables have additional shielding material that is used to reduce external interference. The shield also reduces the emission at any point in the path of the cable. Our recommendation is to deploy an STP network cable in demanding electrical environments. Examples of demanding indoor environments are where the network cable is located in parallel with electrical mains supply cables or where large inductive loads such as motors or contactors are in close vicinity to the camera or its cable.
- Page 4 Lantech Communications Global Inc. Products offered may contain software which is proprietary to Lantech Communications Global Inc. The offer or supply of these products and services does not include or infer any transfer of ownership.
- Page 5 FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
-
Page 6: Table Of Contents
Content Chapter 1 Introduction ..........6 Chapter 2 Hardware Description ......7 Physical Dimension ........7 Package Content: ......... 7 IP Protection ..........8 Front Panel ..........11 LED Indicators ..........11 Chapter 3 Hardware Installation ......13 Wall mount installation ......13 Chapter 4 Connect Cable ........ -
Page 7: Chapter 1 Introduction
Chapter 1 Introduction Lantech T(P)ES-0105T is a 5 10/100TX (PoE at/af) + 1 10/100/1000T M12-connctor unmanaged industrial switches for IP44 rated protection, which meet the high reliability requirements demanded by industrial applications. -
Page 8: Chapter 2 Hardware Description
Chapter 2 Hardware Description In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling information, and wiring installation. 2.1 Physical Dimension Aluminum case. IP-44, 175 mm (W) x 75.5 mm (H) x 90 mm (D) 2.2 Package Content: ⚫... -
Page 9: Ip Protection
2.3 IP Protection The IP Code, Ingress Protection Rating, sometimes also interpreted as International Protection Rating, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water in mechanical casings and with electrical enclosures. It is published by the International Electrotechnical Commission (IEC) Solid particle protection The first digit indicates the level of protection that the enclosure provides against access... - Page 10 Liquid ingress protection The second digit indicates the level of protection that the enclosure provides against harmful ingress of water. Protected Level Testing for Details against — — protected Dripping Dripping water (vertically Test duration: 10 minutes water falling drops) shall have no Water equivalent to 1 mm harmful effect.
- Page 11 Powerful Water projected in powerful Test duration: at least water jets jets (12.5 mm nozzle) 3 minutes against the enclosure from Water volume: 100 litres per any direction shall have no minute harmful effects. Pressure: 100 kPa at distance of 3 m Immersion Ingress of water in harmful Test duration: 30 minutes...
-
Page 12: Front Panel
2.4 Front Panel 2.5 LED Indicators The diagnostic LEDs that provide real-time information of system and optional status are located on the front panel of the industrial switch. The following table provides the description of the LED status and their meanings for the switch. Color Status Meaning... - Page 13 P1~P5 The port is operating in PoE mode. PoE (PoE Green The port is not operating in PoE mode. model) Green A network device is detected. The port is transmitting or receiving packets Green / Blinking LNK/ACT from the TX device. Orange Speed Connected to network at speed of...
-
Page 14: Chapter 3 Hardware Installation
Chapter 3 Hardware Installation There are no mechanically active moving parts in the switch, to fix the switch into an installation position, please use M4 size screw and corresponding nut and standard M4 screwdriver to install switch in the field. 3.1 Wall mount installation Please make sure the screw diameter is M4. - Page 15 Mount switch in wall with 4 fixed screws. Attach switch in wall with 4 screws Move down Tighten 4 screws...
-
Page 16: Chapter 4 Connect Cable
Chapter 4 Connect Cable After the hardware installation is complete, please connect the cable to the switch. All the external interfaces use M12 connector design and follow IEC 61076 standard. 4.1 Power input M12 connector. Note: Please check the power connector has been connected to the switch correctly before you turn on the power resource. - Page 17 ⚫ Pin assignment of optional power cable ECONM12-4P(F)1.5M *The color is based on the optional power cable of Lantech. ⚫ Make sure the direction of connector is correct before you connect it. ⚫ Plug power connector and screw in clockwise direction to fix it.
- Page 18 Pin assignment of Power input (IGN models) ECONM12-05A(F) to MCP 6P-20CM CABLE...
- Page 19 When the vehicle has been stalled by the driver, some equipment in the car may still need to run for a while. With Lantech ignition switch, even if the engine of the vehicle has been turned off by driver, the switch can still offer power to the equipment via PoE connection from the battery.
-
Page 20: 10/100Tx Interface M12 Connector
4.2 10/100TX interface M12 connector ⚫ Pin assignment of the 10/100Tx port ⚫ Make sure the direction of connector is correct before you connect it. ⚫ Plug the 10/100Tx connector and screw in clockwise direction to fix it. -
Page 22: 10/100/1000T Interface M12 Connector
4.3 10/100/1000T interface M12 connector ⚫ Pin assignment of the 10/100/1000T port ⚫ Make sure the direction of connector is correct before you connect it. ⚫ Plug the connector and screw in clockwise direction to fix it. -
Page 23: Ground Interface M6 Connector
4.4 Ground interface M6 connector Ground The chassis is grounded via a separate grounding nut (M6). Use toothed locking washers for a good electrical connection. *Note: The torque should not be over 14 kilogram-force centimeter (kgf·cm). Using torque over 14 kgf·cm may cause damage to the grounding parts. - Page 24 Ground screw of the switch Note: ◼ The protection class IP44 is only achieved when bolted together. ◼ The other components attaching to the system have to meet with the IP44 protection class in order to reach the whole system IP44 protection. ◼...
