Page 1

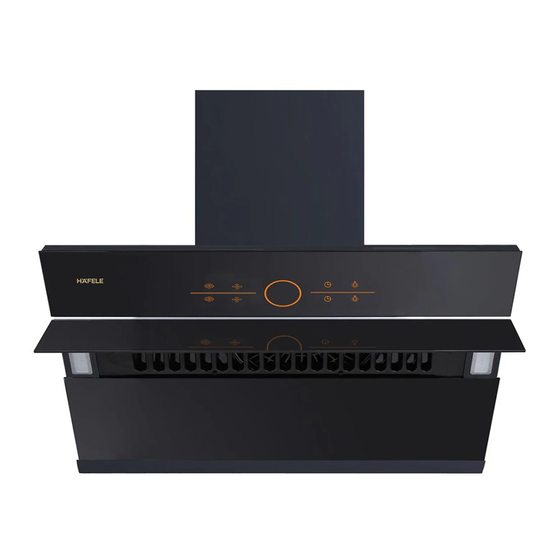

User manual Scan Code For Warranty Registration & Policy Product Name: WALL-MOUNTED BLACK GLASS HOOD HC-H901WB Products Applied: 533.83.655...
Page 2
Duct Switch Light Oil collector HC-H901WB Please check if the following items or accessories are all included in the box. Please report in case of any damaged part found during unpacking to Hafele Authorized Service center HC-H901WB 900m³/h ø Marking for installation: the distance between the smoke panel of the hood and the hob must not exceed 580mm.
Page 3
365mm Green 350mm-410mm 1) Press "power "switch, lighting, hood onstandby. Press "Speed(+).hood work on fast speed. Press "Speed(-), hood work on low speed. Press any of "Speed(+)", "Speed(-)" or "light", the glass will open automatically. Press "Light",light is on. Press "Speed(+)or Speed(-)" again to change speed to high,medium or low.
Page 4
• Do not change the construction inside • The wire used in the hood should not be dismantled and be used for any other purpose • Do not change the wiring connection inside the hood • Hafele does not take any responsibility for any property damage, personal injury, or any damage to the hood, in case of improper use that is not recommended in the manual.
Công tắc Đèn Cốc gom dầu HC-H901WB Phụ kiện Hãy kiểm tra và đảm bảo có đầy đủ các chi tiết hoặc phụ kiện sau trong hộp thiết bị. Vui lòng liên hệ với Trung tâm Dịch vụ Hafele trong trường hợp có bộ phận bị hư hỏng trong quá trình mở bao bì đóng gói.
Sơ đồ lắp đặt Sơ đồ đi dây 365mm Green 350mm-410mm Bảng điều khiển 1) Nhấn công tắc “Nguồn”, đèn, máy hút mùi ở chế độ chờ. Nhấn “Tốc độ (+)”, máy hút mùi hoạt động ở tốc độ nhanh. Nhấn “Tốc độ...
Xử lý sự cố Chưa cắm phích cắm Cắm phích cắm Liên hệ với đội ngũ chăm sóc khách Dây điện bị hỏng hàng của Hafele để được sửa chữa và thay mới Máy hút mùi Quạt bị kẹt Làm sạch quạt không hoạt Liên hệ...
