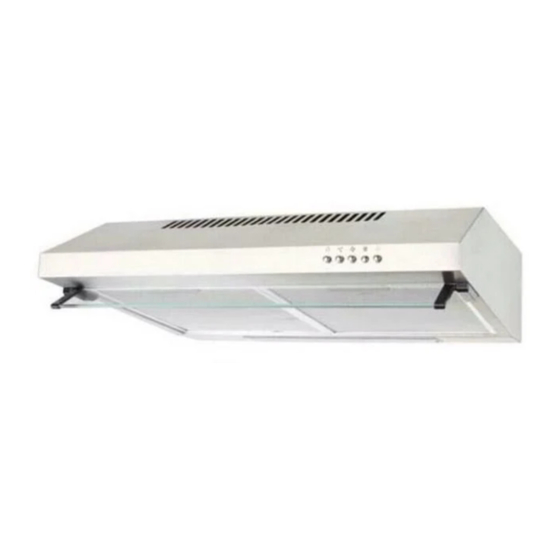

- Page 1 INSTRUCTION MANUAL STANDARD HOOD 536.80.102 (HH-ST60) 536.80.103 (HH-ST90) Hafele (Thailand) Limited 57 Soi Sukhumvit 64, Sukhumvit Rd, Bangchak, Phrakanong, Bangkok 10260 Phone: (Head office Bangkok): (02) 741-7171 (After Sales Service): (02) 740-1400-1...
- Page 2 1. GENERAL Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed as a exhausting version (external exhaust ) or as a filter version (internal air recycle) cooker hood. 2.
- Page 3 4. INSTALLATION INSTRUCTIONS Method A 1) The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for best effect. See Pic 1 2) To install onto the wall, drill 4 holes of Ø 8mm on a suitable place according with the centre distance of hole in the back of the cooker hood.See Pic 2 3) Insert the nut into the holes.
- Page 4 Horizontal ventilation: See Pic 4A, please use the cover to seal the outlet on the top, then the air can be vented from back. Vertical ventilation: See Pic 4B, please use the cover to seal the outlet on the back, then the air can be vented from top.
- Page 5 7. Maintenance Changing and cleaning the filter ● Removing the filters as the instruction in Pic. 7; ● You can clean the filter as below measure: 1. Soak them for about 3 minute in hot water (40-50 degrees) with a grease-loosening detergent then brush it gently with a soft brush.
Need help?
Do you have a question about the HH-ST60 and is the answer not in the manual?
Questions and answers

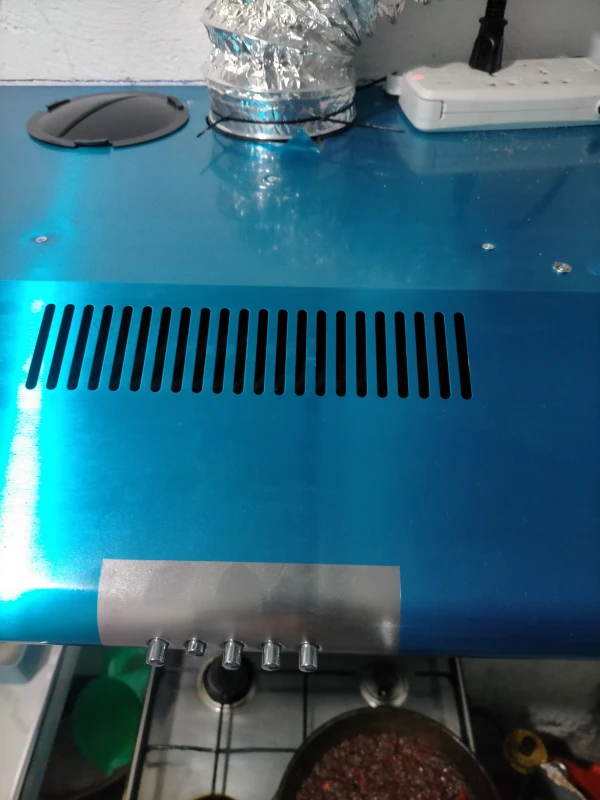

is it possible to close the front sloted vent?
