Summary of Contents for Tenma 72-13550

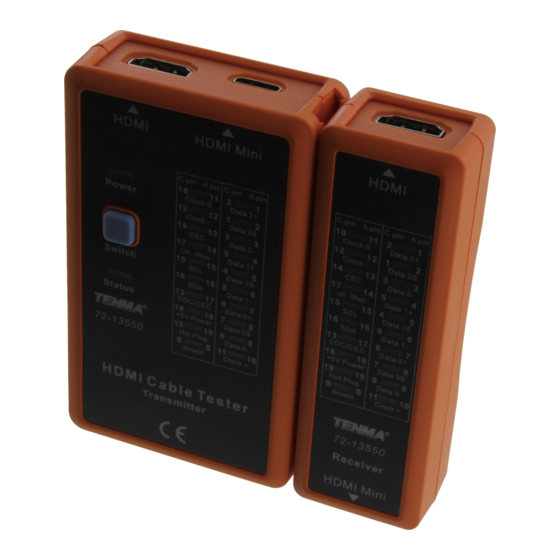

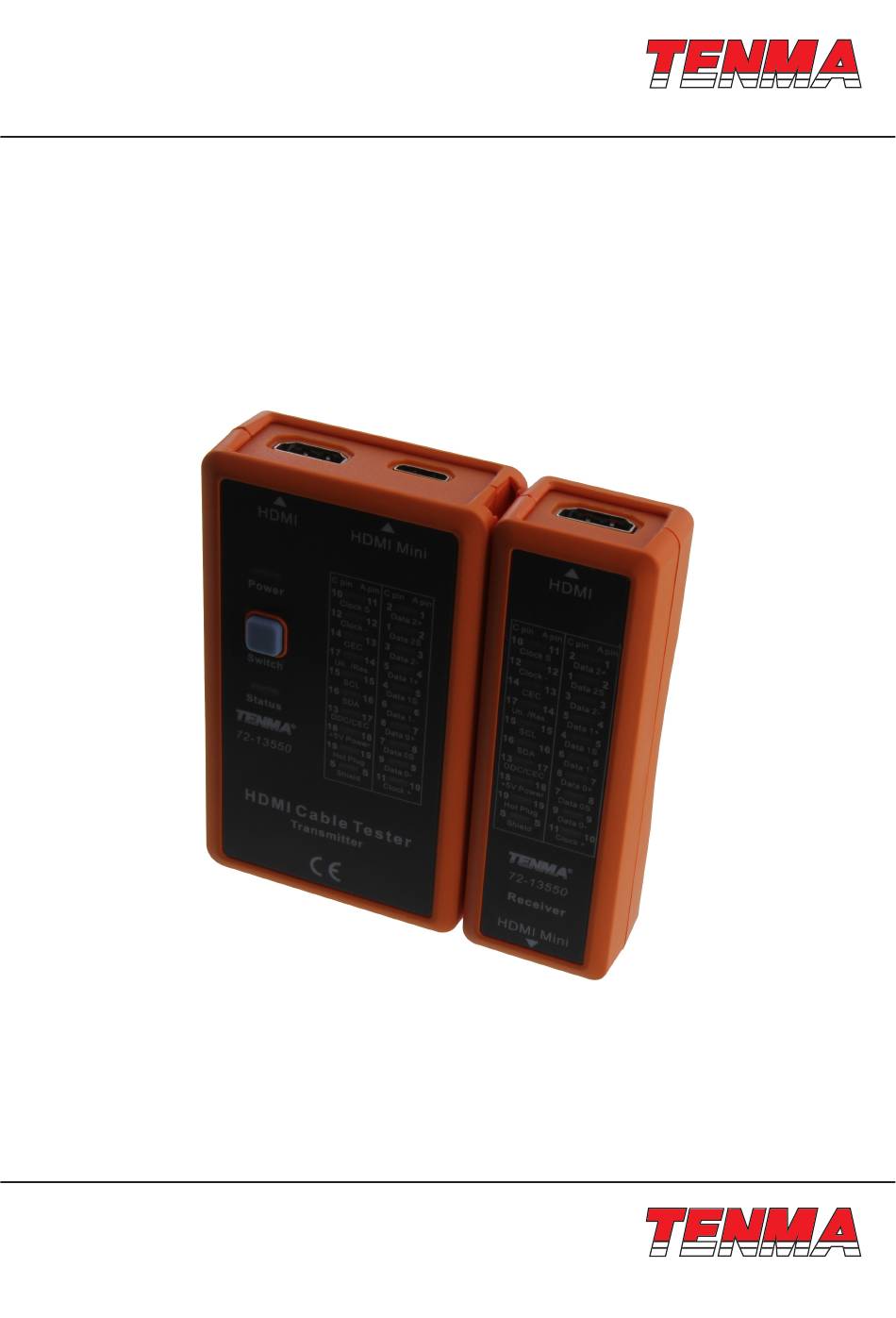

- Page 1 User Manual HDMI Cable Tester Part Number: 72-13550 Newark.com/exclusive-brands Farnell.com/exclusive-brands Element14.com/exclusive-brands Page <1> 16/07/24 V1.0...
- Page 2 • Application standards: EN61326-1: 2013; EN61326-2-2:2013 I. Instrument function introduction 72-13550 HDMI is a professional tester for testing HD cable (HDMI 1.2V/1.3V/1.4V/2.0V). It can quickly scan and test up to 19 wires and decide which one is short circuit, open circuit, or in wrong order.
- Page 3 Receiver HDMI Mini (Type C) interface II. Test method of the instrument 1. Method for 72-13550 HDMI to test HD cable: Firstly install the 9V battery, short press the ON/OFF/Option key for 0.5 seconds to start up, the indicator flashes immediately.
- Page 4 Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. TENMA is the registered trademark of Premier Farnell Limited 2019.
