April 2021© Kubota BX25 Deluxe ROPS Cab Operator Manual

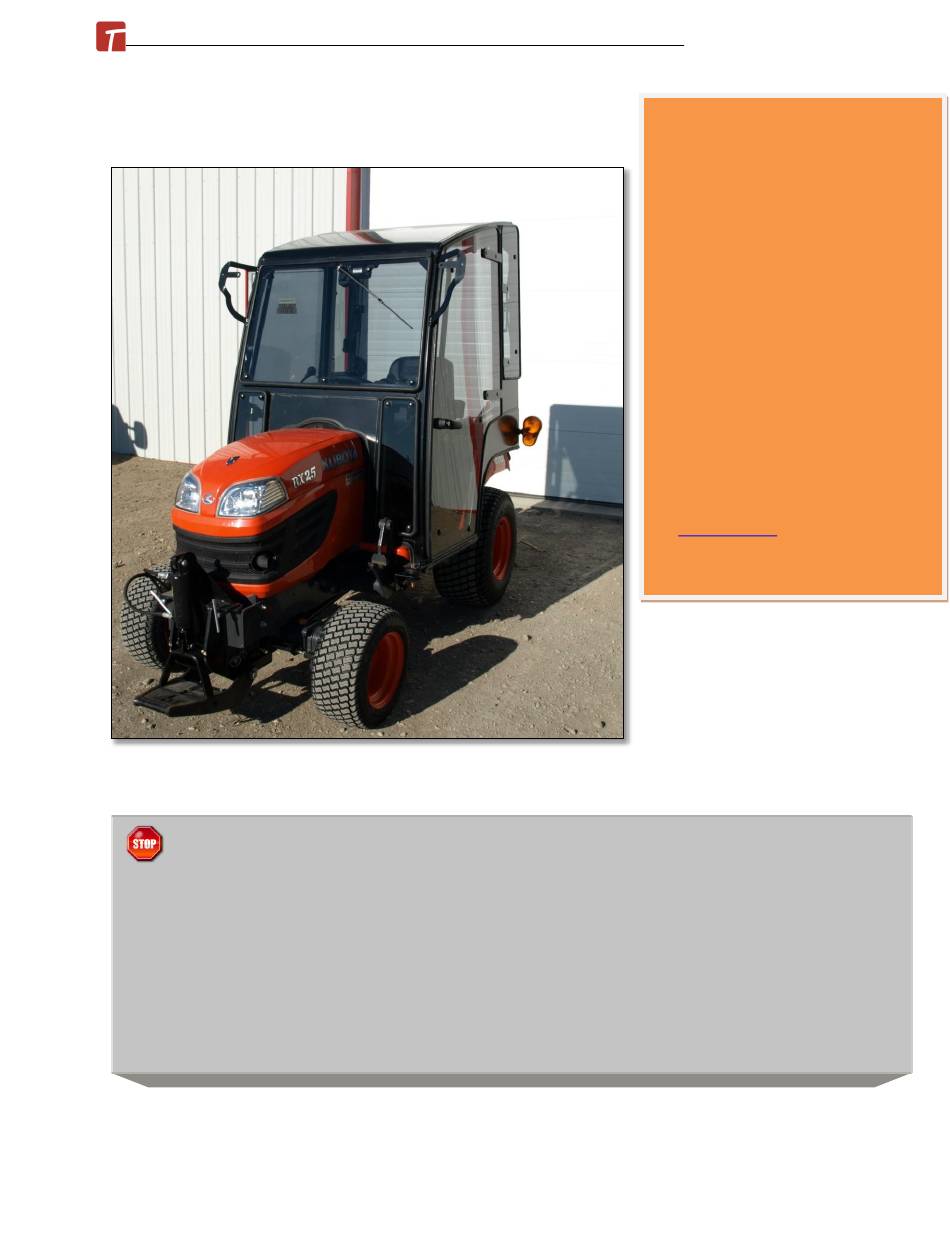

Kubota BX25 Deluxe Cab
Please note: Shown with optional features.
Caution
** Please read installation instructions and follow all safety statements before attempting operating
this ROPS product.
** A copy of this operator manual should be kept with the machine operating manuals.
** If this manual is lost, please contact your local Kubota dealer for a replacement.
Kubota BX25 Cab
This ROPS cab is designed and built
to fit the Kubota BX25.
Designed and Built by:
Tektite Manufacturing Inc:
427 Buffalo Street
P.O. Box 639
Winkler, MB
R6W 4A8
Canada
PH: 204-331-3463
Fax: 204-331-4159
sales@tektite.ca
One year standard product
warranty provided by Tektite.
www.tektite.ca

Advertisement

loading
Need help?

Need help?

Do you have a question about the BX25 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kubota BX25

  • Page 1 ** Please read installation instructions and follow all safety statements before attempting operating this ROPS product. ** A copy of this operator manual should be kept with the machine operating manuals. ** If this manual is lost, please contact your local Kubota dealer for a replacement.
  • Page 2 April 2021© Kubota BX25 Deluxe ROPS Cab Operator Manual Tektite Manufacturing Incorporated thanks you for purchasing a Kubota BX25 ROPS cab! Tektite has worked very hard to design and build this ROPS product and we hope that it provides you with many years of ROPS protection.
  • Page 3 April 2021© Kubota BX25 Deluxe ROPS Cab Operator Manual Tektite Limited Warranty Tektite Manufacturing Inc. (“Tektite”) warrants to the original purchaser (the “Claimant”), that Tektite products will be free from defective materials or workmanship, under normal use and service, for a period of (1) full year from the original invoice date.
  • Page 4: Safety Precautions

    April 2021© Kubota BX25 Deluxe ROPS Cab Operator Manual Safety Precautions Safety First Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to assemble or use the features that are on this cab/ROPS.
  • Page 5 April 2021© Kubota BX25 Deluxe ROPS Cab Operator Manual General Safety 1. Never let an unqualified or untrained driver operate the tractor. 2. Keep a fire extinguisher, with ABC rating securely fastened in the ROPS. Maintain it and be familiar with its use.
  • Page 6 April 2021© Kubota BX25 Deluxe ROPS Cab Operator Manual Safe Operation on Rough Terrain 1. Drive the tractor slowly on hillsides and curves to eliminate the danger of tipping. Avoid slopes which are too steep for safe operation. Avoid sharp uphill turns.
  • Page 7 April 2021© Kubota BX25 Deluxe ROPS Cab Operator Manual 9. Use your turn signals, checking for traffic well in advance of turning. If the tractor is not equipped with turn signals and law requires them, install them prior to operating on or near public roads.
  • Page 8 April 2021© Kubota BX25 Deluxe ROPS Cab Operator Manual Operating Instructions Important The following section locates, identifies and briefly describes the functions of all cab controls. All operators should familiarize themselves with control location and function prior to operating the tractor. Failure to do so may result in unsafe operation of the tractor and possible injury or death to operators and bystanders.
  • Page 9 April 2021© Kubota BX25 Deluxe ROPS Cab Operator Manual 4. Rear Work Light Rocker Switch (optional) Low position: Off High position: On Note: indicator light activates when work light is on. 5. Wiper Washer Rocker Switch (optional) Low position: Off High position: On Note: indicator light activates when the front washer is on.
  • Page 10 April 2021© Kubota BX25 Deluxe ROPS Cab Operator Manual 1. Clear the operator platform of all tools. Tools left in or around the ROPS and tractor can cause operator interference which could lead to bodily injury and/or damage the machine.
  • Page 11 Index Service Part # File Name Description A00-0001 DLP-HANDLE Outside Push Button Handle A00-0002 LEFT-LATCH Suicide Door Left Latch A00-0013 TEKT-0009 5MM Bushing A00-0018 STEP-BOLT1-4X1-1-2 Step Bolt, 1/4" x 1 1/2", MB A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4"...
  • Page 12 Index Service Part # File Name Description A00-0001 DLP-HANDLE Outside Push Button Handle A00-0003 RIGHT-LATCH Suicide Door Right Latch A00-0013 TEKT-0009 5MM Bushing A00-0018 STEP-BOLT1-4X1-1-2 Step Bolt, 1/4" x 1 1/2", MB A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4"...
  • Page 13 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0044 TEKT-ASM-002 Side Window Hinge Weldment A00-0045 TEKT-0004 Side Window Slider Bracket, 1" tube A00-0057 TEKT-0020MIR Side Window Latch, L60776 A00-0058...
  • Page 14 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0045 TEKT-0004 Side Window Slider Bracket, 1" tube A00-0046 TEKT-ASM-002R Side Window Hinge Right A00-0056 TEKT-0020 Side Window Latch, L60775 A00-0058...
  • Page 15 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0014 THICK-BUSHING 8MM Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0033 315-080 Rear Wiper Shaft Grommet A00-0043 WWF-MOTOR...
  • Page 16 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0014 TEKT-0092 Thick Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0033 315-080 Rear Wiper Shaft Grommet A00-0043 WWF-MOTOR WWF Wiper Motor, 1" Shaft A00-0076 TEKT-0026 1/4" Panel Nut A00-0108 TEKT-ASM-037 WWF, Adjustable Radial Arm, 15"...
  • Page 17 Index Service Part # File Name Description A00-0024 BUSS-15600-08-11 Power Block/Ground A00-0055 TEKT-0019 Fir Tree Fastener A00-0065 TEKT-ASM-005 On-Off Switch w/Lens A00-0067 TEKT-ASM-007 Mom-Off-Mom Rocker Switch A00-0223 TEKT-ASM-013 Steel Top Switchplate w/Decal A00-0224 TEKT-0104 3" Plug, Steel Top Tektite Manufacturing Inc. 24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada Req'd: CNC:...
  • Page 18 Index Service Part # File Name Description KUBX25-ASM-005_SHIELD Cab Weldment A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0023 FLANGE_BOLT_1-4X3-4 Flange Bolt, 1/4" x 3/4", YD A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD A00-0061 TEKT-0021 Striker Mounting Plate A00-0084 TEKT-0070 Gas Shock A00-0085 TEKT-0069 Gas Shock Stud A00-0101...
  • Page 19 Wide Flap Seal, 3 sides, 14FT K05-0021 KUBX25-076 Hood Shield Rubber K05-0022 KUBX25-075 Front Seal Cab, Over Platform KUBX25-ASM-010 BX25 Cab 1,2,3 Tektite Manufacturing Inc. 24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada Req'd: CNC: Description: Notice of Confidentiality...
