for KUBOTA TRACTORS BX1800, BX2380, BX2680, BX23S

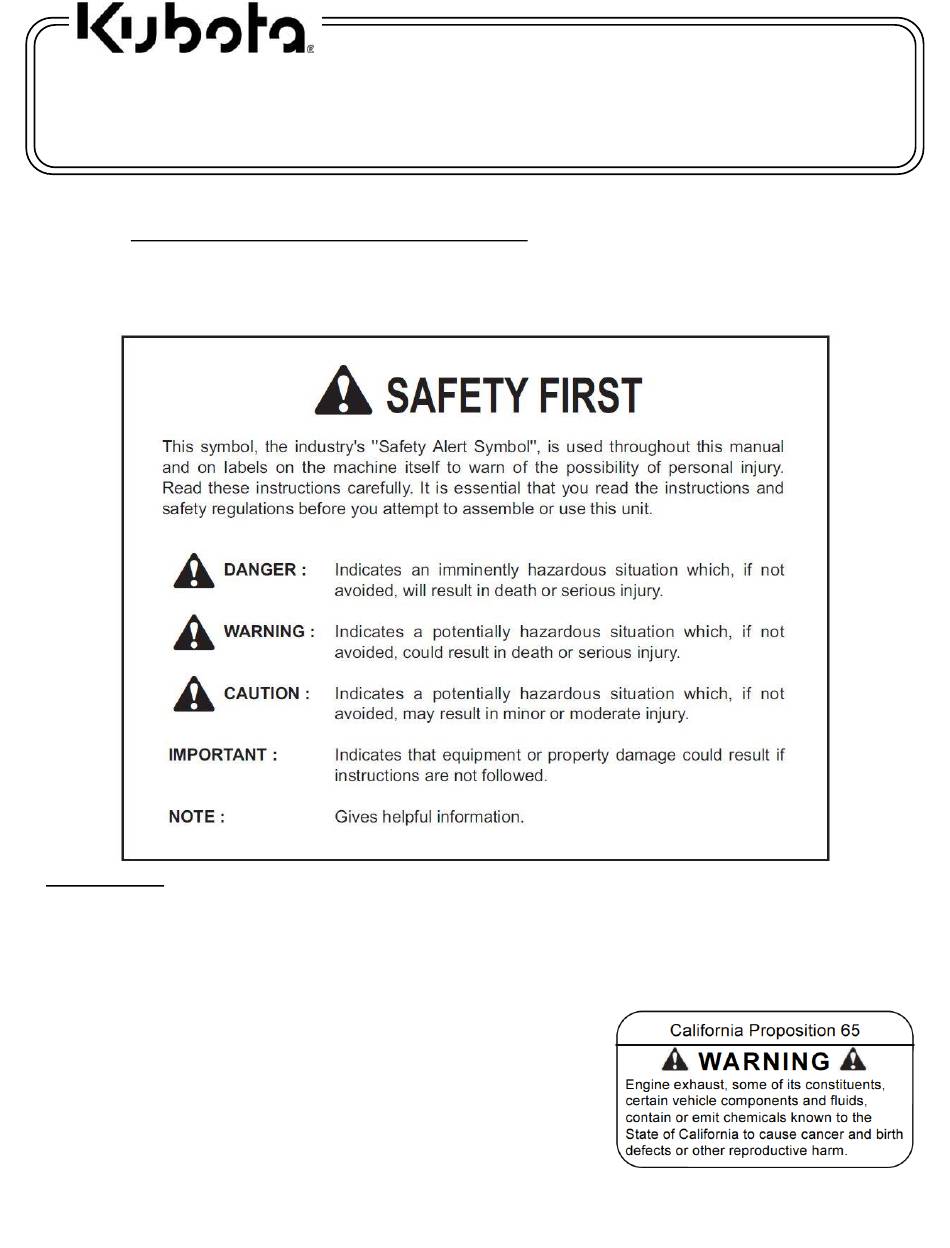

All products are designed to give safe, dependable service if they are operated and maintained according to the
instructions. Read and understand this manual before operation. It is the owner's responsibility to be certain anyone
operating this product reads this manual, and all other applicable manuals, to become familiar with this equipment and
all safety precautions. Failure to do so could result in serious personal injury or equipment damage. If you have any
questions consult your dealer.
Legal Disclaimer
Kubota Corporation notes that specifications and technical information are subject
to change without notice and Kubota does not represent or warrant that the
information in this publication is completely accurate or current; however, Kubota
used reasonable efforts to set forth and include accurate and up to date
information in this publication. Kubota disclaims all representations and warranties,
whether express or implied, including, but not limited to, warranties of
merchantability and fitness for a particular purpose and Kubota shall not be liable
for any damages, whether compensatory, direct, indirect, incidental, special, or
consequential, arising out of or in connection with the use of this publication, or the
information therein.
The Product(s) described in this Publication are designed and manufactured only
for the country in which they are initially wholesaled by Kubota. Kubota does not
provide parts, warranty or service for any Product which is re-sold or retailed in any
country other than the country for which the Product(s) were designed or
manufactured.
INSTRUCTION MANUAL

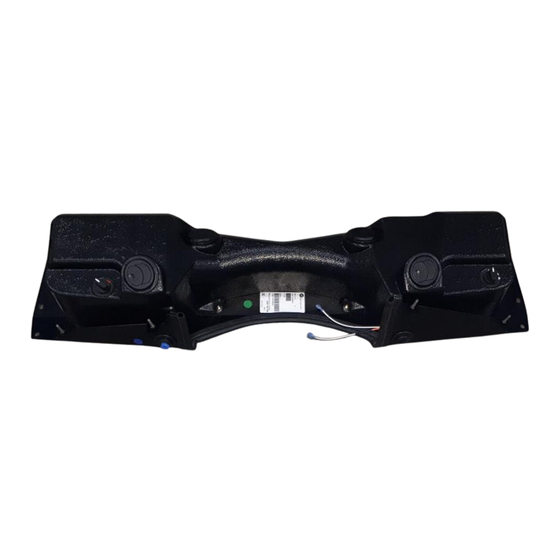

BX-80 HEATER KIT (BX4078)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BX-80 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kubota BX-80

  • Page 1 The Product(s) described in this Publication are designed and manufactured only for the country in which they are initially wholesaled by Kubota. Kubota does not provide parts, warranty or service for any Product which is re-sold or retailed in any country other than the country for which the Product(s) were designed or manufactured.
  • Page 2: General Safety Information

    GENERAL SAFETY INFORMATION...
  • Page 3: Checking Parts

    BEFORE INSTALLING HEATER KIT • Read all instructions and safety instructions in this manual. • Refer to your vehicles operator’s manual and safety instructions on your vehicle safety decals. • Hang a "DO NOT OPERATE" tag in operator station. Estimated assembly time: 2-3 hours ...
  • Page 4: Parts List

    NOTE: • Check the contents as shown in the parts list  PARTS LIST Q’TY Ref. No. Part Name REMARKS Hose Clamps 5/8’’ 27-0048 Fitting – 3/8’’NPT x 5/8’’ Hose nipple 27-0097 Heater Hose 5/8” – Inlet 45 inch 27-0225 Heater Hose 5/5’’...
  • Page 5 CAUTION Open the windshield and remove the original cowl from the cab. Save the four (4) 5/16’’-18x ¾’’ button To avoid personal injury: head screws as well as the two (2) button Allen head screws located just above where the cowl was •...
  • Page 6 Locate the main cabin wire harness and expose the red and black leads. Cut both wires and splice in the Pull the jumper harness <12> from the hole in the new heater jumper harness <12> from the previous bottom of the frame. Leave approx. 3-4 inches of wire step using the butt splice and heat shrink provided in at the top frame hole.
  • Page 7 10. Place the pre-assembled heater <11> on top of the 12. Place 2 of the large hose clamps <5> on the lower engine and against the front of the side frames. Do not coolant hose, install the plastic T-fitting <16> with the fasten at this time.
  • Page 8 14. Apply Teflon tape to the threaded 3/8’’ NPT end of the 16. Install the 20’’ piece of insulation <8> onto the outlet hose fitting <2> and install it into the thermostat spacer hearer hose. Route the heater hose through the <13>.
  • Page 9 17. Continue to route heater hose under the coupler block 19. Connect wire harness routed through side frame to the and to the T-fitting <16>. Connect to T-fitting using the heater assembly. supplied hose clamp <1>. Secure both pieces of insulation on the hose using plastic ties.
  • Page 10: Unit Maintenance

    Unit Maintenance 25. Reinstall inside dash panel using the seven (7) thumbscrews from step 1. • Regularly clean air filters located on each end of the heater assembly • Clean dirt and dust from filters by lightly tapping filter • The filters can also be cleaned by rinsing with cool water NOTE: Never use alcohol or ammonia based cleaners...
  • Page 11 Kubota rejette toute forme de représentations et de garanties, expresses ou implicites, y compris sans toutefois s’y limiter, toute garantie de qualité marchande et d’adéquation à un usage particulier; de plus, Kubota ne pourra être tenue responsable de tout type de dommages, qu’ils soient compensatoires, directs, indirects, connexes, spéciaux ou consécutifs, découlant de ou en lien avec...
  • Page 12 AVANT DE COMMENCER NE PAS FUMER OU TRAVAILLER À PROXIMITÉ DE FLAMMES NUES EN FAISANT LE PLEIN • Lire toutes les instructions et consignes de sécurité • dans le présent manuel et sur les autocollants de L’essence extrêmement inflammable sécurité de votre équipement. dangereuse.
  • Page 13 ÉVITER UN INCENDIE • L’essence est très inflammable et explosive dans certaines conditions. Ne pas fumer ou permettre de flammes ou d’étincelles dans votre zone de travail. • Afin d’éviter les étincelles provenant d’un court-circuit accidentel, toujours débrancher le câble négatif de la batterie d’abord et le rebrancher en dernier. •...
  • Page 14: Vérification Des Pièces

    AVANT D’INSTALLER LA TROUSSE DE CHAUFFAGE • Lire toutes les instructions et consignes de sécurité dans le présent manuel. • Se reporter au manuel du conducteur ou aux instructions de sécurité sur les autocollants de sécurité du véhicule. • Accrocher une étiquette « DO NOT OPERATE » (ne pas conduire) dans la zone du conducteur. Temps de montage approximatif : 2 à...
  • Page 15: Liste Des Pièces

    REMARQUE : • Vérifier le contenu en consultant la liste des pièces.  LISTE DES PIÈCES Nom de pièce QTÉ REMARQUES référence Colliers de serrage de tuyau de 5/8 po 27-0048 Raccord – 3/8 po NPT x 5/8 po raccord de tuyau 27-0097 flexible Tuyau de chauffage de 5/8 po –...
  • Page 16 ATTENTION Pour prévenir les blessures personnelles : Ouvrir le pare-brise et retirer l’auvent original de la cabine. Conserver les quatre (4) vis d’assemblage à • Stationner le véhicule sur une surface ferme et de tête ronde de 5/16 po-18 x 3/4 po et les deux (2) vis niveau.
  • Page 17 Tirer le faisceau de câbles de raccordement <12> à Repérer le faisceau de câbles principal de la cabine et travers le trou dans la partie inférieure du cadre. exposer les câbles rouge et noir. Couper les deux Laisser de 3 à 4 po (7,6 à 10 cm) de câble environ sur câbles et épisser le nouveau faisceau de câbles de raccordement de l’unité...
  • Page 18 10. Placer l’unité de chauffage préassemblée <11> sur le 12. Installer 2 grands colliers de serrage <5> sur le tuyau dessus du moteur et contre la partie avant des cadres de liquide de refroidissement inférieur et installer le latéraux. Ne pas serrer à cette étape. raccord en T en plastique <16>...
  • Page 19 14. Appliquer du ruban de Téflon sur l’extrémité filetée de 16. Installer la pièce d’isolant de 20 po (50,8 cm) <8> sur le 3/8 po NPT du raccord de tuyau <2> et installer le tuyau de chauffage de sortie. Acheminer le tuyau de raccord dans l’entretoise du thermostat <13>.
  • Page 20 17. Continuer d’acheminer le tuyau de chauffage sous le 19. Brancher le faisceau de câbles acheminé dans le cadre latéral vers l’ensemble de chauffage. bloc de coupleur et sur le raccord en T <16>. Brancher le raccord en T à l’aide du collier de serrage compris <1>.
  • Page 21 Entretien de l’unité • 25. Réinstaller le panneau de tableau de bord intérieur au Nettoyer régulièrement les filtres à air situés à moyen des sept (7) écrous moletés de l’étape 1. chaque extrémité de l’ensemble de chauffage. • Nettoyer la saleté et la poussière sur les filtres en frappant légèrement sur les filtres.
