Transport Control

Introduction

Transport control from UC1 and the Plug-in Mixer.
Please note, these Transport commands are powered by HUI/MCU
commands, so therefore you must follow the Setup instructions
on the pages that follow for the Transport control to work. For
more information on the operation of Transport controls from the UC1
front panel TRANSPORT mode, click the link.

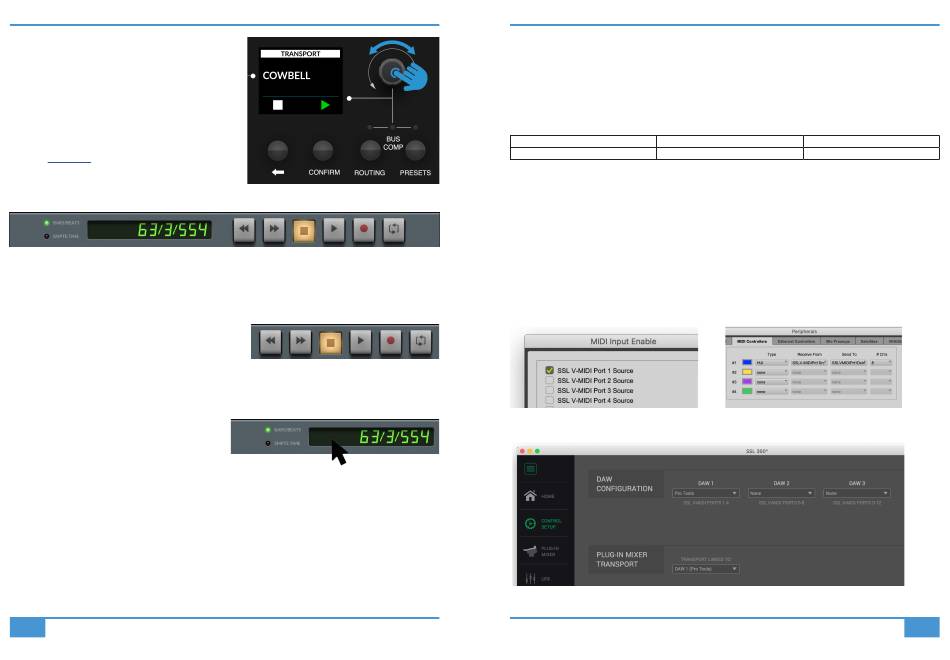

The Plug-in Mixer Transport Bar
Transport Bar - Buttons
You can access the following DAW Transport commands:
• Rewind
• Forward
• Stop
• Play
• Record
• Loop
Transport Bar - Display Readout

Pro Tools

The format is determined by what is currently set in Pro Tools
itself and cannot be changed from the Plug-in Mixer. The
counter will display one of the following formats:
• Bars/Beats
• Mins:Secs
• Timecode
• Feet+Frames
• Samples
Logic/Cubase/Studio One/Other MCU DAWst
In Logic, Cubase and Studio One the Plug-in Mixer Transport counter can display a choice of the following formats:
• Bars/Beats
• SMPTE/Min:Secs Time
Live
In Live the Transport counter currently only displays Bars/Beats and cannot be toggled to SMPTE.
38
UC1 front panel Transport Control
The Transport Bar Buttons
In MCU DAWs (Logic/Cubase/Studio One) you can toggle
between Bars/Beats by clicking with the mouse in the
display area, or by triggering the SMPTE/BEATS MCU
command on UF8.
SSL UC1 User Guide

Plug-in Mixer Transport - Setup

The Transport functionality of the Plug-in Mixer & UC1 front panel is achieved using HUI/MCU commands. In order for it to function,
you must configure a HUI or MCU controller in your DAW. On the following pages are instructions on how to configure a HUI or MCU
controller. One configured, the CONTROL SETUP page of SSL 360° allows you to choose which DAW the Plug-in Mixer Transport
is linked to. The DAW setup examples that follow presume that DAW 1 (i.e. SSL V-MIDI Port 1) is the DAW for which you wish to
configure the Transport control. For completeness, the table below specifies which SSL V-MIDI ports would be required for DAW
2 and DAW 3, should you wish for either of those to be driving the Transport commands.
DAW 1
SSL V-MIDI Port 1
Pro Tools
STEP 1: Open Pro Tools. Go to the Setup Menu > MIDI > MIDI Input Devices...
In this list, ensure that SSL V-MIDI Port 1 is ticked (presuming DAW 1 is being configured to drive the Transport).
STEP 2: Go to the Setup Menu > Peripherals > MIDI Controllers tab. Select HUI Type. Set to Receive From SSL V-MIDI Port 1
Source and then Send To as SSL V-MIDI Port 1 Destination.
STEP 3: In SSL 360°, on the CONTROL SETUP page configure DAW 1 as Pro Tools from the DAW CONFIGURATION drop-down
list and also select DAW 1 (Pro Tools) in the TRANSPORT LINKED TO drop-down list.
STEP 1 : Enable SSL V-MIDI Port 1 in Pro Tools.
STEP 3 : On the CONTROL SETUP tab, set DAW 1 to Pro Tools in DAW CONFIGURATION and also set
TRANSPORT LINED TO as DAW 1 (Pro Tools).
SSL UC1 User Guide
Product Overview & Features
DAW 2 DAW 3
SSL V-MIDI Port 5 SSL V-MIDI Port 9
STEP 2 : Set up a HUI controller to Receive From
and Send to SSL V-MIDI Port 1.
