Product Overview & Features
10 - 360° Button
Opens/minimises the SSL 360° software on your computer screen.
11 - Zoom Button
Toggles the Zoom mode of the Plug-in Mixer.
Process Order Routing
You can adjust the process order routing for the selected
Channel Strip 2 plug-in by pressing the ROUTING key
and then turning the secondary encoder.
There are 10 possible routing orders, as shown in the
table below. Each routing order has a 'b' equivalent,
which sources the Dynamics sidechain externally.
Processing Order Options
1. Filters > EQ > Dynamics (Default)
2. EQ > Filters > Dynamics
3. Dynamics > EQ > Filters
4. Filters > Dynamics > EQ
5. Filters > Dynamics > EQ (with Filters to DYN S/C)
6. Filters > EQ > Dynamics (with EQ to DYN S/C)
7. Filters > EQ > Dynamics (with Filters to DYN S/C)
8. EQ > Filters > Dynamics (with EQ and Filters to DYN S/C)
9. EQ > Filters > Dynamics (with EQ to DYN S/C)
10. EQ > Dynamics > Filters (with DYN and Filters to DYN S/C)
To return the secondary encoder to controlling the selected Bus Compressor, simply press the ROUTING key again.
Presets
You can load presets for the selected Channel Strip 2 or Bus Compressor 2 plug-in directly from the surface by pressing the PRESETS
key. Turn the secondary encoder to choose if you want to load a preset for the selected Channel Strip or Bus Compressor and confirm
by either pushing the secondary encoder, or pressing the CONFIRM button. Then use the secondary encoder to scroll through the list
of presets. Pushing will either confirm the current preset (it turns green), or it will enter you into a preset folder. Use the BACK ARROW
key to navigate back up through preset folders. Press PRESETS once more to return the secondary encoder to controlling Bus
compressor selection.
Press the PRESETS key and then choose Channel Strip
or Bus Compressor
18

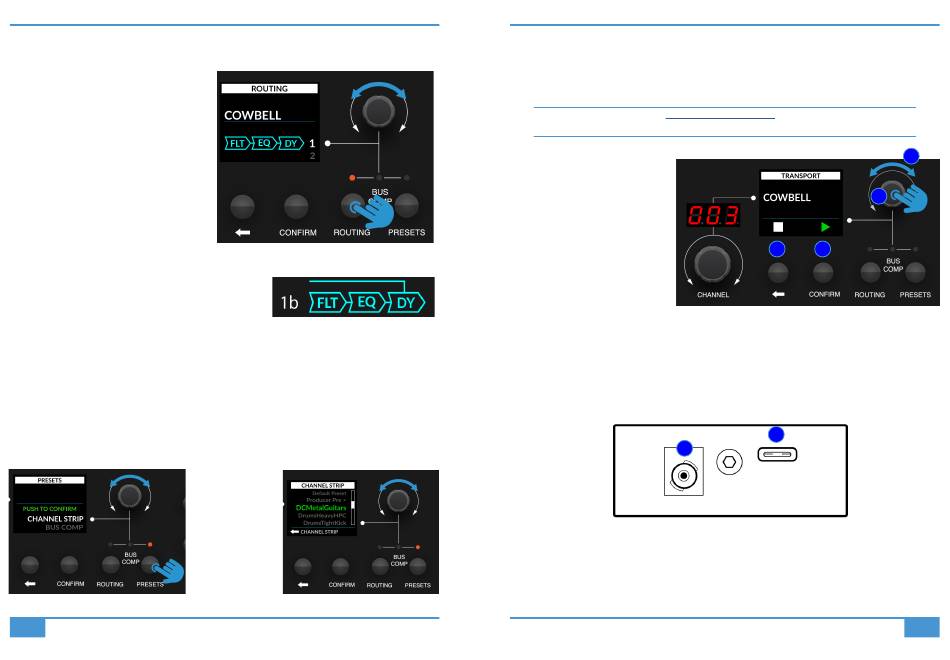

Press ROUTING then use the secondary encoder to select the
process ordering for the selected Channel Strip 2 plug-in
'b' equivalent - the top line going into Dynamics means
that the Dynamics sidechain is set to EXTERNAL
Navigate through your presets list using the
secondary encoder and push to load
SSL UC1 User Guide
Transport
You can control the DAW's Play and Stop commands, as well as the playhead cursor from the front panel of UC1. The Transport
functionality from UC1/Plug-in Mixer is achieved using HUI/MCU commands. In order for this to function, you must configure a HUI/
MCU controller in your DAW, as well as configuring which DAW is driving the Transport in the CONTROL SETUP tab of SSL 360°.
Please follow the instructions in the Plug-in Mixer Transport Setup
1 - Ensure you are in Bus Comp mode and then
simply press the Secondary Encoder to enter/
exit TRANSPORT mode.
2 - Turning the Secondary Encoder will allow
you to navigate the playhead cursor forwards/
backwards along the DAW's timeline.
3 - The BACK button becomes the STOP
command.
4 - The CONFIRM button becomes the PLAY
command.
Connector Panel
The recessed section hosts UC1's connectors.
1
1 - DC Connector
Use the included DC Power Supply to provide power for your UC1.
2 - USB - 'C' Type Connector
Connect one of the included USB cables from your computer to the USB port on UC1. This handles all of the communication
between the plug-ins and UC1, via the SSL 360° software application.
SSL UC1 User Guide
Product Overview & Features
section if you want to use TRANSPORT
Mode on UC1.
1
3 4
2
2
