INSTALLATION INSTRUCTIONS FOR PART 95-5600
Ford/Mazda/Mercury multi-kit
KIT FEATURES
• Double DIN radio provision
• Stacked ISO units provision
KIT COMPONENTS

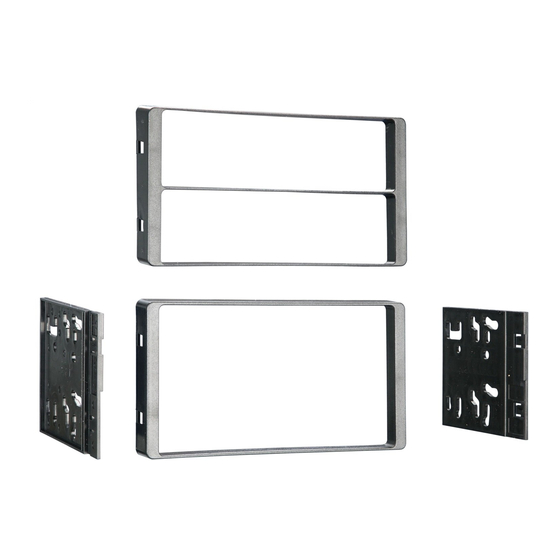

• A) Double DIN Trim Plate • B) ISO Stack Trim Plate • C) ISO Brackets
A
86-5618 Head Unit Removal Keys • Phillips Screwdriver
APPLICATIONS
See application list inside
1995-up
95-5600
B
TOOLS REQUIRED
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
C
metraonline.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 95-5600
Summary of Contents for Metra Electronics 95-5600

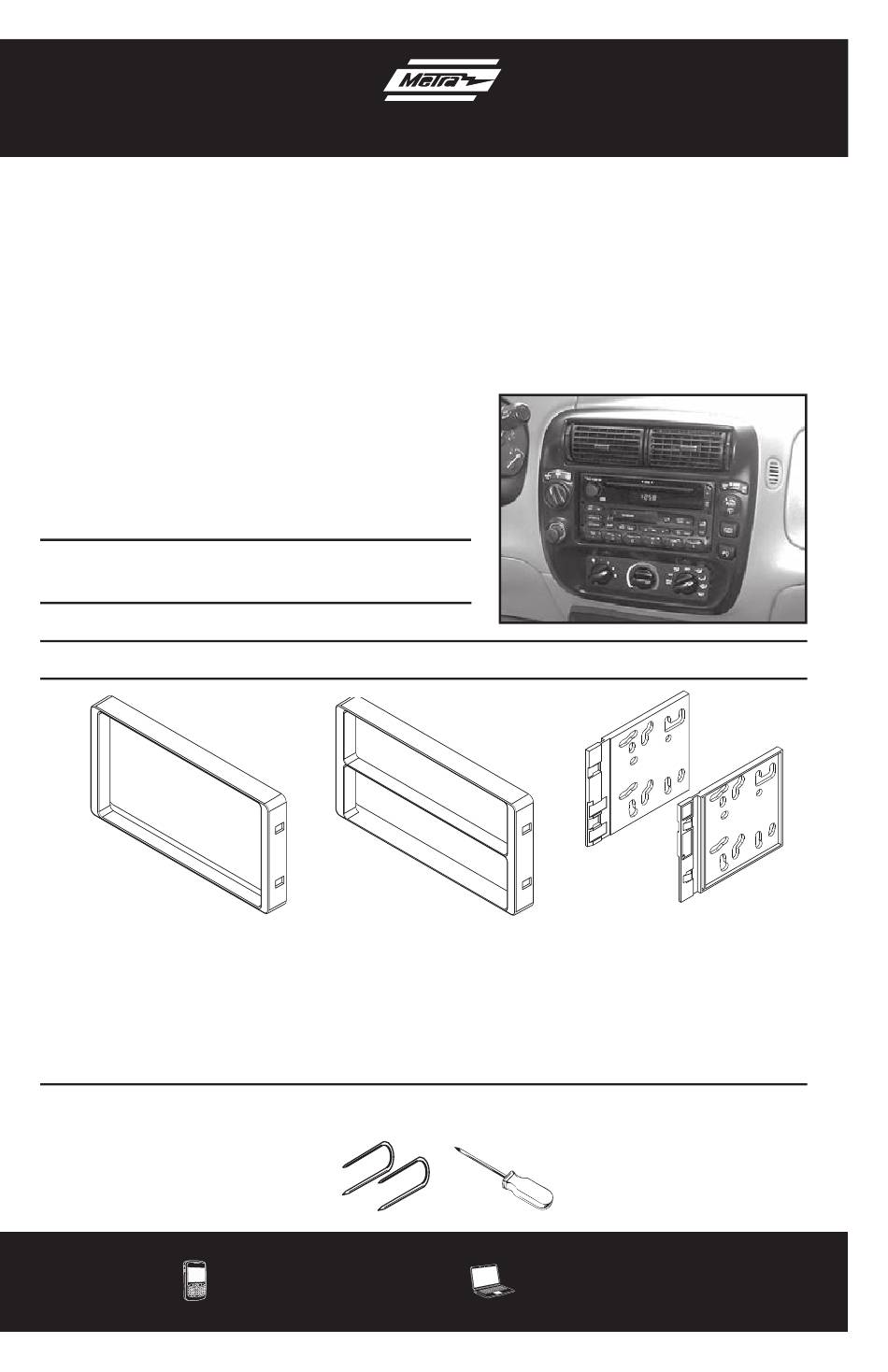

- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-5600 APPLICATIONS See application list inside Ford/Mazda/Mercury multi-kit 1995-up 95-5600 KIT FEATURES • Double DIN radio provision • Stacked ISO units provision KIT COMPONENTS • A) Double DIN Trim Plate • B) ISO Stack Trim Plate • C) ISO Brackets TOOLS REQUIRED 86-5618 Head Unit Removal Keys •...
- Page 2 95-5600 Applications Ford Mazda Mercury Explorer 1995-2001 B-Series Pickup 1995-2009 Mountaineer 1997-2001 Explorer Sport Trac 2001-2005 Ranger 1995-up Table of Contents Dash Disassembly – Ford Explorer 1995-2001 – Ford Explorer Sport Trac 2001-2005 – Ford Ranger 1995-up – Mazda B-Series Pickup 1995-2009 –...
-
Page 3: All Vehicles
Dash Disassembly 95-5600 All Vehicles 1. Using Metra’s 86-5618, pull the factory radio from the dash and disconnect the wiring. Remove (2) Phillips screws above the climate controls. Unclip the radio trim bezel, disconnect the wiring. (Figure A) Continue to kit assembly... -
Page 4: Double Din Radio Provision
Kit Assembly 95-5600 Double DIN radio provision 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation. 2. Latch the ISO brackets onto the lip of the trim bezel radio opening. -
Page 5: Stacked Iso Units Provision
Dash Disassembly 95-5600 Stacked ISO units provision 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation. 2. Slide the aftermarket radio (and digital sound processor, equalizer, etc.) into... - Page 6 Notes...
- Page 7 Notes...
- Page 8 INSTALLATION INSTRUCTIONS FOR PART 95-5600 METRA. THE WORLD’S BEST KITS.™ metraonline.com 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
