Metra Electronics 95-9313B Installation Instructions Manual

Bmw 3-series 1999-2005, 3-series (coupe, convertible) 2006, m3 2001-2006 (for factory switch panel with one long opening)
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Installation instructions for part 95-9313B
BMW 3-Series 1999-2005,
3-Series
(coupe, convertible)
(for factory switch panel with one long opening)
KIT FEATURES
• ISO DDIN radio provision
• Painted matte black
• Relocates the factory climate control and switches
• Parts included to modify the factory airbox

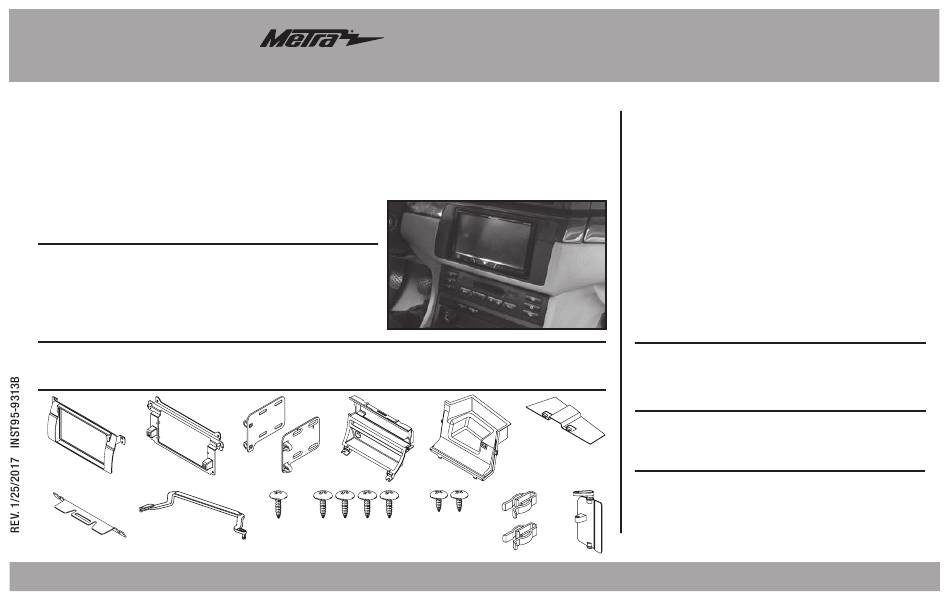

KIT COMPONENTS
• A) Radio trim panel • B) Back up housing • C) Radio brackets • D) Climate and switch panel housing
• E) Airbox cover • F) Cutting template • G) Climate bracket • H) Actuator arm • I) (1) #6 x 1/2" Phillips screw
• J) (4) #8 x 1/2" Phillips screws • K) (2) #8 x 3/8" Phillips screws • L) (2) panel clips • M) Vent door
A
B
G
H
METRA. The World's best kits.
2006, M3 2001-2006
95-9313B
C
D
I
J
®
E
F
K
L
M
metraonline.com

Table of Contents

Dash Disassembly ..............................................2-5
Sub-dash airbox modifications ..........................6-9
- ISO DDIN radio provision .................................... 10
Climate and Switch Panel Assembly .................. 11
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-8590 • 70-9003 (nav models 02-06)
Antenna Adapter: • 40-VW10 40-EU10 (nav models 02-06)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver • Pick tool
CAUTION!
All accessories, switches, climate controls panels,
and especially air bag indicator lights must be connected before
cycling the ignition. Also, do not remove the factory radio with
the key in the on position, or while the vehicle is running.
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION

Advertisement

loading

Related Manuals for Metra Electronics 95-9313B

Summary of Contents for Metra Electronics 95-9313B

  • Page 1: Table Of Contents

    Installation instructions for part 95-9313B Table of Contents BMW 3-Series 1999-2005, 3-Series 2006, M3 2001-2006 (coupe, convertible) Dash Disassembly ..........2-5 (for factory switch panel with one long opening) Sub-dash airbox modifications ......6-9 95-9313B Kit Assembly – ISO DDIN radio provision ........10 KIT FEATURES Climate and Switch Panel Assembly ....

  • Page 2: Dash Disassembly

    95-9313B Dash Disassembly 1. Unclip and remove the trim panel above the glove box. (Figure A) 2. Unclip and remove the trim panel above the factory radio. (Figure B) 3. Remove (2) Phillips screws securing the radio and then unplug and remove the radio.
  • Page 3 95-9313B Dash Disassembly 4. Unsnap and remove the climate control panel. (Figure D) 5. Pull straight up on the shift knob to remove. (Figure E) 6. Unclip and remove the boot around the shift selector. (Figure F) Continued on the next page...
  • Page 4 95-9313B Dash Disassembly 7. Remove (2) Phillips screws securing the shift selector trim panel, and then unclip and remove the panel. (Figure G) 8. Open the upper door on the lower switch panel. Using a pick tool, or something suitable, disengage (2) clips in the upper corners of the tray to remove the tray and door.
  • Page 5 95-9313B Dash Disassembly 9. Remove (4) Phillips screws now exposed securing the lower switch panel, and then unplug and remove the panel. (Figure I) Note: All of the switches will need to be removed and installed into the new switch panel provided.

  • Page 6: Sub-Dash Airbox Modifications

    95-9313B Sub-dash airbox modifications 1. Remove (4) metal retaining clips holding the air box front panel in place and remove the panel. Note: One of the retaining clips will be reused in step 7. (Figure A) 2. Clip the cutting template over the...
  • Page 7 95-9313B Sub-dash airbox modifications 3. Remove the upper actuator arm from the passenger vent door. Remove the lower actuator arm from the vent doors. Unclip the passenger side first and then the drivers side. (Figure C) 4. Remove the passenger side vent door.
  • Page 8 95-9313B Sub-dash airbox modifications 5. Replace the factory passenger side vent door with the supplied vent door. Rotate the vent door into the upper slot and clip into the lower socket. (Figure E) 6. Replace the factory actuator arm with the supplied actuator arm.
  • Page 9 95-9313B Sub-dash airbox modifications 7. Set the air box cover into place and secure the right side with the metal retaining clip removed in step 1. Secure the left side with the (1) #6 x 1/2” Phillips screw supplied. (Figure G) 8.

  • Page 10: Kit Assembly

    95-9313B Kit Assembly 1. Attach the radio brackets to the 4. Secure the completed assembly radio using the screws supplied into the radio/climate cavity using with the radio. (Figure A) the (2) #8 x 3/8 inch screws supplied. 2. Attach the back-up housing to the radio/bracket assembly with the (4) 5.

  • Page 11: Climate And Switch Panel Assembly

    95-9313B Climate and switch panel assembly 1. Secure the climate bracket onto the top of the climate and switch panel housing. (Figure A) 2. Secure the climate and switch panel housing into the lower dash opening with the (4) factory screws removed in step 9 of dash disassembly.
  • Page 12 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians METRA. The World’s best kits. metraonline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION...
  • Page 13 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 95-9313B Indice BMW 3-Series 1999-2005, 3-Series 2006, M3 2001-2006 Desmontaje del tablero ......... 2-5 (cupé, convertible) (para panel de interruptores de fábrica con una abertura larga) Modificaciones a la caja de aire del sub tablero . 6-9 95-9313B Ensamble del kit ............10...
  • Page 14 95-9313B Desmontaje del tablero 1. Desenganche y quite el panel de la moldura que está sobre la guantera. (Figura A) 2. Desenganche y retire el panel de moldura que está arriba del radio de fábrica. (Figura B) 3. Quite los (2) tornillos Phillips que sujetan el radio, luego desconecte y quite el radio.
  • Page 15 95-9313B Desmontaje del tablero 4. Desenganche y quite el panel del control de clima. (Figura D) 5. Jale directamente hacia arriba la perilla de la palanca de velocidades para quitarla. (Figura E) 6. Desenganche y quite la cubierta que rodea el selector de la palanca de velocidades.
  • Page 16 95-9313B Desmontaje del tablero 7. Quite los (2) tornillos Phillips que aseguran el panel de la moldura del selector de la palanca de velocidades y luego desenganche y quite el panel. (Figura G) 8. Abra la puerta superior en el panel de interruptores inferior.
  • Page 17 95-9313B Desmontaje del tablero 9. Quite los (4) tornillos Phillips ahora expuestos que sujetan el panel de interruptores inferior, luego desconecte y quite el panel. (Figura I) Nota: todos los interruptores deberán quitarse e instalarse en el nuevo panel de interruptores suministrado.
  • Page 18 95-9313B Modificaciones a la caja de aire del sub tablero 1. Quite los (4) ganchos de retención de metal que sostienen el panel frontal de la caja de aire en su lugar y quite el panel. Nota: uno de los ganchos de retención se volverá...
  • Page 19 95-9313B Modificaciones a la caja de aire del sub tablero 3. Quite el brazo accionador superior de la puerta de la rejilla del pasajero. Quite el brazo accionador inferior de las puertas de la rejilla. Desenganche primero el lado del pasajero y luego el lado del conductor.
  • Page 20 95-9313B Modificaciones a la caja de aire del sub tablero 5. Reemplace la puerta de la rejilla de fábrica del lado del pasajero con la puerta de la rejilla provista. Rote la puerta de la rejilla dentro de la ranura superior y enganche al tomacorriente inferior.
  • Page 21 95-9313B Modificaciones a la caja de aire del sub tablero 7. Coloque la cubierta de la caja de aire en su lugar y sujete el lado derecho con el gancho de retención de metal que se quitó en el paso 1. Sujete el lado izquierdo con el (1) tornillo Phillips #6 de 1/2”...
  • Page 22 95-9313B Ensamble del kit 1. Una los soportes al radio usando 4. Atornille el ensamble completo a la los tornillos que vienen con el radio. cavidad del radio/clima con los (2) (Figura A) tornillos #8 de 3/8” suministrados. 2. Una la carcasa de respaldo al 5.
  • Page 23 95-9313B Ensamble del panel de interruptores y del clima 1. Sujete el soporte del clima a la parte superior de la carcasa del clima y el panel de interruptores. (Figura A) 2. Sujete la carcasa del panel de interruptores y del clima a la apertura inferior del tablero con los (4) tornillos que quitó...
  • Page 24 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 95-9313B IMPORTANTE Si tiene dificultades con la instalación de este producto, llame a nuestra línea de soporte técnico al 1-800-253-TECH. Antes de hacerlo, revise las instrucciones por segunda vez y asegúrese de que la instalación se haya realizado exactamente como se indica en las instrucciones.
