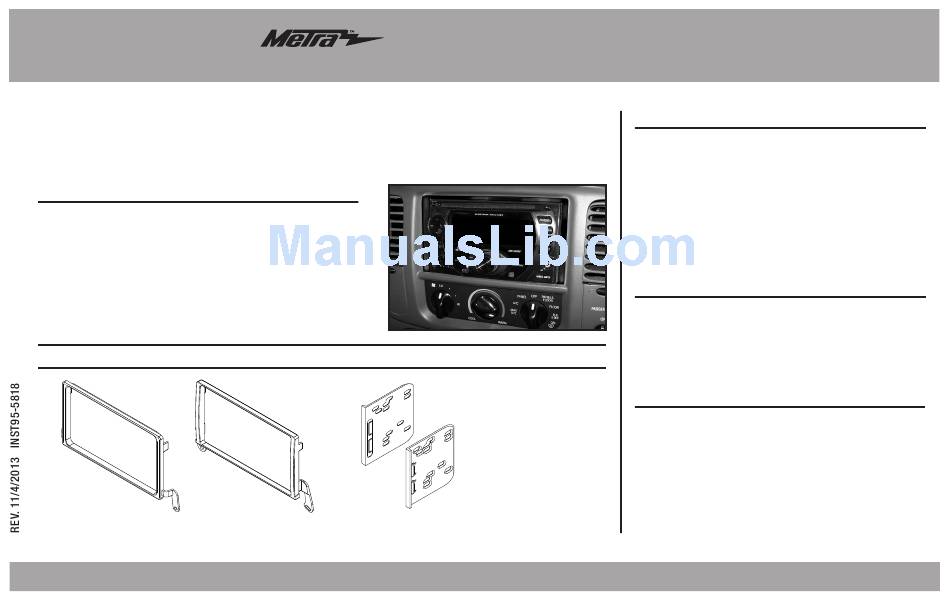

INSTALLATION INSTRUCTIONS FOR PART 95-5818
Ford/Lincoln 1997-2002
KIT FEATURES
• Double DIN radio provision
NOTE:
• Major sub dash modifications are necessary to
use this dash kit. You will need to trim the sub dash
to gain suitable depth and height.
KIT COMPONENTS
• A) (2) Double DIN trim plates • B) Double DIN brackets
A
(a)
METRA. The World's best kits.
APPLICATIONS
See application list inside
95-5818
B
(b)
™
1-800-221-0932
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-1770 - Ford harness 1985-2004
• 70-1771 - Ford harness 1998-up
• 70-5519 - Ford amp interface harness 1998-2011
• 70-5603 - Ford amp interface harness 1995-2002
• 70-5701 - Ford amp interface harness 1998-2011
Antenna Adapter:
• Not required
TOOLS REQUIRED
• Dremel or cutting tool • Small flat blade
screwdriver • Panel removal tool • Socket wrench
• Metra 86-5618 removal keys
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
metraonline.com
© COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION

Advertisement

loading

Related Manuals for Metra Electronics 95-5818

Summary of Contents for Metra Electronics 95-5818

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-5818 APPLICATIONS See application list inside WIRING & ANTENNA CONNECTIONS (sold separately) Ford/Lincoln 1997-2002 Wiring Harness: • 70-1770 - Ford harness 1985-2004 95-5818 • 70-1771 - Ford harness 1998-up • 70-5519 - Ford amp interface harness 1998-2011 KIT FEATURES • 70-5603 - Ford amp interface harness 1995-2002 • Double DIN radio provision • 70-5701 - Ford amp interface harness 1998-2011 NOTE: Antenna Adapter: • Major sub dash modifications are necessary to • Not required use this dash kit. You will need to trim the sub dash to gain suitable depth and height.

  • Page 2: Dash Disassembly

    95-5818 Dash Disassembly Applications Table of Contents All Vehicles Ford Dash Disassembly 1. Unclip and remove the panel surrounding the radio. (Figure A) Expedition ..........1997-2002 – All Vehicles ............2 F-150 ............1997-2003 2. Using the Metra 86-5618 removal keys, slide the F-150 Heritage ..........2004 radio out of the radio cavity. Unplug and remove Kit Assembly the radio. (Figure B) F-250 ..............1998 – Double DIN radio provision ........3 3. Remove the (4) 7 mm screws at the sides of the Lincoln factory climate control and remove the factory climate control. (Figure C)

  • Page 3: Kit Assembly

    Dash Disassembly Kit Assembly All Vehicles Double DIN radio provision NOTE: Major sub dash modifications are necessary to use this dash kit. You will need to trim the sub dash to gain suitable depth and height. 1. Attach the double DIN brackets to the radio using the screws supplied with the radio. (Figure A) 2. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. 3. Re-connect the negative battery terminal and test the radio for (Figure B) (Figure C) (Figure A) proper operation.
  • Page 4 INSTALLATION INSTRUCTIONS FOR PART 95-5818 NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
