Metra Electronics 95-5817 Installation Instructions

Metra Electronics 95-5817 Installation Instructions

Ford multi-kit 1995-2011

Advertisement

Quick Links

Ford multi-kit 1995-2011
• ISO DDIN radio provision
Note:
• Sub-dash modifications are necessary to use this
dash kit. You will need to trim the sub-dash to gain
suitable depth and height.
• Once the kit is snapped in, it cannot be removed
without dash panel removal.

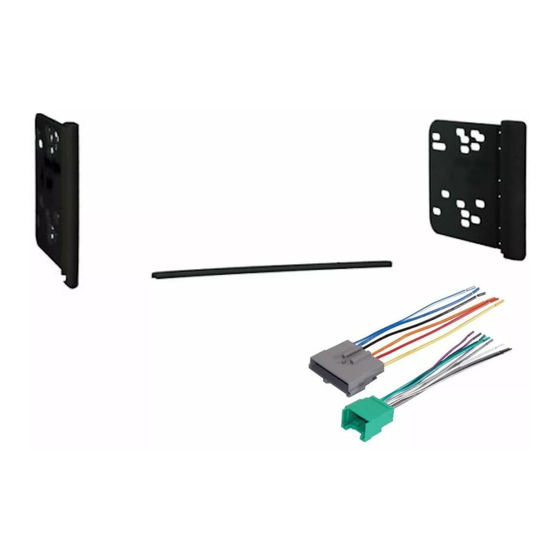

• A) ISO DDIN brackets • B) Filler bar
A
B
METRA. The World's best kits.
Installation instructions for part 95-5817
95-5817
See application list inside cover
metraonline.com
Wiring Harness:
• Please visit metraonline.com for wiring
harness options
Antenna Adapter:
• Not required
• Dremel/Cutting tool • Metra 86-5618 removal keys
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
© COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION
(sold separately)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 95-5817 and is the answer not in the manual?

Questions and answers

Summary of Contents for Metra Electronics 95-5817

  • Page 1 Installation instructions for part 95-5817 (sold separately) Ford multi-kit 1995-2011 Wiring Harness: 95-5817 • Please visit metraonline.com for wiring harness options Antenna Adapter: • ISO DDIN radio provision • Not required Note: • Sub-dash modifications are necessary to use this dash kit.
  • Page 2 95-5817 Applications Table of Contents Ford Dash Disassembly Kit Assembly Crown Victoria ............... 1995-2011 - All Vehicles ..........3 - ISO DDIN radio provision ......3 Econoline ................1997-2008 Ford Crown Victoria 1995-2011 Escape................... 2001-2007 Ford Econoline 1997-2008 Excursion ................2000-2005 Explorer .................
  • Page 3: Dash Disassembly

    95-5817 Dash Disassembly Kit Assembly All vehicles ISO DDIN radio provision 1. Attach the ISO DDIN brackets to the radio using the 1. Using the Metra 86-5618 removal keys, slide the screws supplied with the radio. (Figure A) radio out of the radio cavity. Unplug and remove 2.
  • Page 4 Installation instructions for part 95-5817 IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
