Intercoax ETP-101T Quick Start Manual

Quick Start Guide
ETP-101T / ETP-101R
Please read carefully the instruction manual before use.
Contents of this manual are subject to change without prior notice
for reasons such as functionality enhancements.
Package

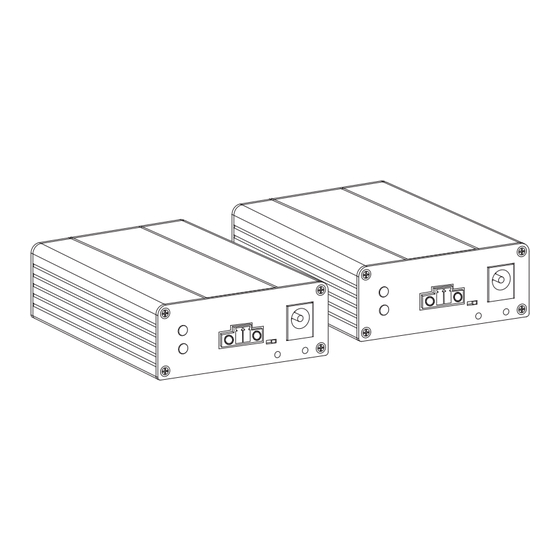

ETP-101T (Transmitter)
ETP-101R (Receiver)
Terminal connect
Overview
ETP-101T/R is a High-Speed, long distance Ethernet & PoE extender
that makes possible to transmit the 100Mbps Ethernet signal and
PoE up to 300m via 2-Wire cable (Twisted pair cable, COM, Power line)
in different situations. It is cost-effective and time saving solution
to migrate existing analog system to IP based system since ETP-
101T/R supports easy installation utilizing the existing cable. With long
distance transmission feature, the device makes to overcome 100
meters distance limitation easily and reduces the construction cost
significantly.
Features
 Ethernet Extension over 2-Wire Cable
(Twisted Pair, COM, Alarm, Power line, etc.)
 Data + Power over 2-Wire cable
 Data & PoE distance up to 300m (Twisted Pair)
 Max. 100Mbps Bandwidth
 10/100 Full Duplex
 Multicast Supported
 PoE, PoE+, Extra PoE (Max. 60W output) (ETP-101T only)
 PoE ON/OFF Switch (ETP-101T only)
 Quality LED (Data, Power, Link, PoE)
 Plug & Play
 Support PoE+ Input (25.5W) from PSE devices (ETP-101R Only)
 Compact Design
 Surge Protection
Rev.2.0
Quick Start
Guide
Bracket

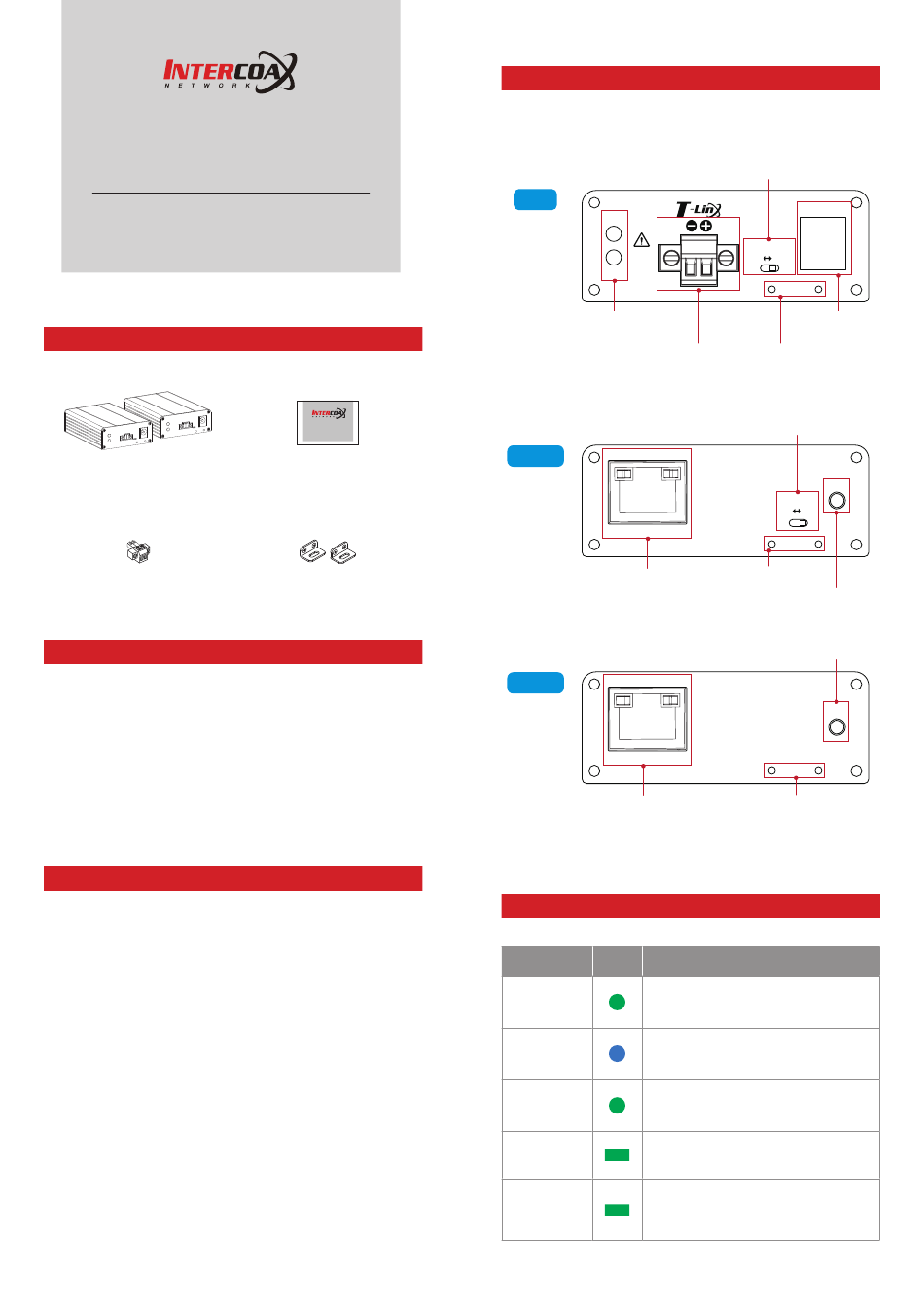

Hardware Overview
Left
ACT
Attention
Polarity
LINK
Status LED
상태 표시등
indicator
Terminal
Terminal 커넥터
connector
LINK/ACT PoE
Tx_Right
Ethernet
RJ45
LINK/ACT PoE
Rx_Right
Ethernet
RJ45
LED Indicators
Indicator Color
PWR
LINK
ACT
LINK / ACT
PoE
Data Rate 스위치
Data Rate Switch
57V DC
Data Rate
10M 100M
Bracket
DC Power
DC 전원 어댑터
Jack
Bracket Hole
브라켓 홀
PoE 스위치
PoE Switch
PWR
PoE
ON OFF
Bracket
Bracket Hole
브라켓 홀
Power LED
전원 LED
전원 LED
Power LED
PWR
Bracket
Bracket Hole
브라켓 홀
Function
57V DC Link
ETP-Product Link
Data Act [Terminal Line]
Data Act [Ethernet Line]
PoE Output On /
Power over 2-Wire Cable On
